rear view mirror ACURA RDX 2022 User Guide

494
uuAcuraWatchTMuCollision Mitigation Braking SystemTM (CMBSTM)
Driving
• When there is a group of people in front of your vehicle walking together side by
side.
• Surrounding conditions or belongings of the pedestrian alter the pedestrian’s
shape, preventing the system from recogn izing that the person is a pedestrian.
• When the pedestrian is shorter than about 3.3 feet (1 meter) or taller than about
6.6 feet (2 meters) in height.
• When a pedestrian blends in with the background.
• When a pedestrian is bent over or squa tting, or when their hands are raised or
they are running.
• When several pedestrians are walking ahead in a group.
• When the camera cannot correctly identify that a pedestrian is present due to an
unusual shape (holding luggage, body position, size).
■Automatic shutoff
The CMBSTM may automatically shut itself o ff and the safety support indicator
(amber) comes and stays on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and wi nding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused the CMBS
TM to shut off improve or are addressed
(e.g., cleaning), the system comes back on.
Limitations applicable to pedestrian detection only
22 ACURA RDX-31TJB6300.book 494 ページ ２０２１年８月２日　月曜日　午前１１時０分

502
uuAcuraWatchTMuAdaptive Cruise Control (ACC) with Low Speed Follow
Driving
Adaptive Cruise Control (ACC) with Low Speed
Follow
Helps maintain a constant vehicle speed a nd a set following-interval behind a vehicle
detected ahead of yours and, if the detect ed vehicle comes to a stop, can decelerate
and stop your vehicle, without you having to keep your foot on the brake or the
accelerator.
When ACC with Low Speed Follow slows y our vehicle by applying the brakes, your
vehicle’s brake lights will illuminate.
1 Adaptive Cruise Control (ACC) with Low Speed Follow
Important Reminder
As with any system, there are limits to ACC with Low
Speed Follow. Use the brake pedal whenever
necessary, and always keep a safe interval between
your vehicle and other vehicles.
ACC with Low Speed Follow cannot be activated if
Intelligent Dynamics System setting is SNOW.
3WARNING
Improper use of ACC with Low Speed
Follow can lead to a crash.
Use ACC with Low Speed Follow only when
driving on expressways or freeways and in
good road and weather conditions.
3WARNING
ACC with Low Speed Follow has limited
braking capability and may not stop your
vehicle in time to avoid a collision with a
vehicle that quickly stops in front of you.
Always be prepared to apply the brake
pedal if the conditions require.
When to use
■Vehicle speed for ACC with Low Speed Follow: A vehicle is detected ahead
within ACC with Low Speed Follow range – ACC with Low Speed Follow
operates at speeds up to 90 mph (145 km/h).
No vehicle is detected within ACC with Low Speed Follow range – ACC with
Low Speed Follow operates at the speed of 25 mph (40 km/h) or above.
■Gear position for ACC with Low Speed Follow: In ( D or ( S.
The radar sensor
is behind the
emblem.
The camera is
located behind
the rearview
mirror.
22 ACURA RDX-31TJB6300.book 502 ページ ２０２１年８月２日　月曜日　午前１１時０分

517
uuAcuraWatchTMuAdaptive Cruise Control (ACC) with Low Speed Follow
Continued
Driving
■Automatic cancellation
The beeper sounds and a message appears on the multi-information display when
ACC with Low Speed Follow is automatically canceled. Any of these conditions may
cause the ACC with Low Speed Fo llow to automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor behind the emblem gets dirty.
• The vehicle ahead of yo u cannot be detected.
• An abnormal tire condition is de tected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ®, CMBS
TM, or Low Speed Braking Control* is activated.
• When the ABS or VSA ® system indicator comes on.
• When the vehicle is stopped on a very steep slope.
• When you manually apply the parking brake.
• When the detected vehicle within the AC C with Low Speed Follow range is too
close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• When the Maximum Load Limit is exceeded.
• When passing through an enclosed space, such as tunnel.
• The vehicle has repeatedly applied the brakes to maintain the set speed (for
example, you are descending a long slope).
The ACC with Low Speed Follow automatic cancellation can be also triggered by the
following causes. In these cases, the parking brake will be automatically applied.
• The driver’s seat belt is unfastened when the vehicle is stationary.
• The vehicle stops for more than 10 minutes.
• The engine is turned off.
* Not available on all models
22 ACURA RDX-31TJB6300.book 517 ページ ２０２１年８月２日　月曜日　午前１１時０分

527
uuAcuraWatchTMuLane Keeping Assist System (LKAS)
Continued
Driving
■The LKAS may be automatically canceled when:
• The camera temperature gets extremely high or low.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
The system may not detect lane markings and therefore may not keep the vehicle in
the middle of the lane under certain conditions, including the following:
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
• Sudden changes between light and dark, such as an entrance or exit of a tunnel.
• There is little contrast between lane lines and the roadway surface.
• Driving into low sunlight (e.g., at dawn or dusk).
• Strong light is reflec ted onto the roadway.
• Driving in the shadows of trees, buildings, etc.
• Shadows of adjacent objects are parallel to lane markings.
• Roadway objects or structures are misinterpreted as lane markers.
• Reflections on the interi or of the windshield.
• Driving at night or in a dark condition such as a tunnel.
■LKAS Conditions and Limitations
22 ACURA RDX-31TJB6300.book 527 ページ ２０２１年８月２日　月曜日　午前１１時０分

530
uuAcuraWatchTMuRoad Departure Mitigation System
Driving
Road Departure Mitigation System
Alerts and helps to assist you when the system detects a possibility of your vehicle
unintentionally crossing over detected la ne markings and/or leaving the roadway
altogether.
The front camera behind the rearview mirror
monitors left and right lane markings (in white
or yellow). If your vehicle is getting too close
to detected lane markings without a turn
signal activated, the system, in addition to a
visual alert, applies steering torque and alerts
you with rapid vibrations on the steering
wheel, to help you remain within the detected
lane.
2 Customized Features P. 359
As a visual alert, the Lane Departure
message appears on the multi-information
display.
If the system determines that its steering in put is insufficient to keep your vehicle on
the roadway, it may apply braking. u Braking is applied only when the lane markings are solid continuous lines.
The system cancels assisting operations when you turn th e steering wheel to avoid
crossing over detected lane markings.
If the system operates several times without detecting driver response, the system
beeps to alert you.
■How the System Works
1 Road Departure Mitigation System
Important Safety Reminder
Like all assistance systems, the Road Departure
Mitigation system has limitations.
Overreliance on the Road Departure Mitigation
system may result in a collision. It is always your
responsibility to keep the ve hicle within your driving
lane.
The Road Departure Mitigation system only alerts you
when lane drift is detected without a turn signal in
use. The Road Departure Mitigation system may not
detect all lane markings or lane or roadway
departures; accuracy will vary based on weather,
speed and lane marker condi tion. It is always your
responsibility to sa fely operate the vehicle and avoid
collisions.
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 541
The Road Departure Mitigati on system may not work
properly or may work im properly under the certain
conditions: 2 Road Departure Mitigation Conditions and
Limitations P. 533
There are times when you may not notice Road
Departure Mitigation functions due to your operation
of the vehicle, or road surface conditions.
22 ACURA RDX-31TJB6300.book 530 ページ ２０２１年８月２日　月曜日　午前１１時０分

541
uuAcuraWatchTMuFront Sensor Camera
Continued
Driving
Front Sensor Camera
The camera, used in systems such as Lane Keeping Assist System (LKAS), Road
Departure Mitigation system, Adaptive Cruise Control (ACC) with Low Speed
Follow, Traffic Sign Recognition system, and Collision Mitigation Braking System
TM
(CMBSTM), is designed to detect an object that triggers any of the systems to operate
their functions.
This camera is located behind the rearview
mirror.
To help reduce the likelihood that high interior
temperatures will cause the camera’s sensing
system to shut off, when parking, find a shady
area or face the front of the vehicle away from
the sun. If you use a reflective sun shade, do
not allow it to cover the camera housing.
Covering the camera can concentrate heat on
it.
■Camera Location and Handling Tips
1 Front Sensor Camera
Never apply a film or attach any objects to the
windshield, the hood, or th e front grille that could
obstruct the camera’s fiel d of vision and cause the
system to operate abnormally.
Scratches, nicks, and othe r damage to the windshield
within the camera’s fiel d of vision can cause the
system to operate abnormall y. If this occurs, we
recommend that you replac e the windshield with a
genuine Acura replacement windshield. Making even
minor repairs within the ca mera’s field of vision or
installing an aftermarke t replacement windshield
may also cause the system to operate abnormally.
After replacing the winds hield, have a dealer
recalibrate the camera. Pr oper calibration of the
camera is necessary for the system to operate
properly.
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
Front Sensor
Camera
22 ACURA RDX-31TJB6300.book 541 ページ ２０２１年８月２日　月曜日　午前１１時０分

uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
570
Driving

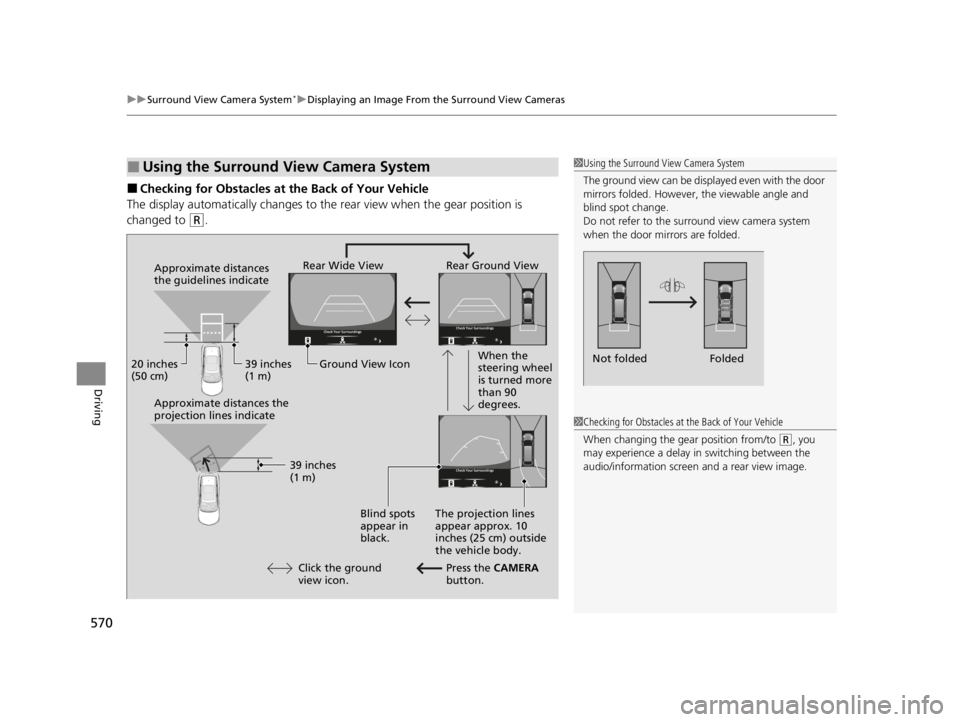

■Checking for Obstacles at the Back of Your Vehicle
The display automatically changes to the rear view when the gear position is
changed to
(R.
■Using the Surround View Camera System1 Using the Surround View Camera System
The ground view can be displayed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.
Folded
Not folded
Rear Wide View Rear Ground View
When the
steering wheel
is turned more
than 90
degrees.
The projection lines
appear approx. 10
inches (25 cm) outside
the vehicle body.
Blind spots
appear in
black.
Press the CAMERA
button.
Approximate distances
the guidelines indicate
Approximate distances the
projection lines indicate
39 inches
(1 m)
20 inches
(50 cm)
39 inches
(1 m)
Ground View Icon
Click the ground
view icon.
1 Checking for Obstacles at the Back of Your Vehicle
When changing the gear position from/to
(R, you
may experience a delay in switching between the
audio/information screen and a rear view image.
22 ACURA RDX-31TJB6300.book 570 ページ ２０２１年８月２日　月曜日　午前１１時０分

700
Index
Cup Holders............................................... 235
Customized Features ................................ 359
D
Daytime Running Lights ........................... 200
Dead Battery ............................................. 663
Defaulting All the Settings ...................... 385
Defrosting the Windshield and Windows .................................................. 249
Devices that Emit Radio Waves ................ 689
Dimming Headlights ............................................... 197
Rearview Mirror ....................................... 213
Dipstick (Engine Oil) ................................. 594
Directional Signals (Turn Signal) .............. 196
Door Mirrors ............................................. 214
Doors ......................................................... 156
Auto Door Locking .................................. 172
Auto Door Unlocking ............................... 172
Keys ........................................................ 156
Locking/Unlocking the Doors from the Inside ..................................................... 169
Locking/Unlocking the Doors from the
Outside .................................................. 160
Lockout Prevention System ...................... 167
DOT Tire Quality Grading ........................ 615
Driving ....................................................... 429
Automatic Transmission ........................... 450
Braking .................................................... 545
Off-Highway Driving Guidelines ............... 441 Shifting Gear ........................................... 451
Starting the Engine.................................. 443
Driving Position Memory System ............ 210
Dust and Pollen Filter ............................... 626
Dynamic Mode Switch ............................. 460
E
Electric Parking Brake
Switch ..................................................... 545
Electric Power Steering (EPS) System Indicator............................................ 95, 670
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 681
Emissions Testing (Readiness Codes) ....... 691
Engine ....................................................... 688
Coolant ................................................... 598
If the Battery Is Dead ............................... 663
Oil ........................................................... 593
Remote Engine Start................................ 445
Starting ................................................... 443
Engine Compartment Cover .................... 592
Engine Coolant ......................................... 598
Adding to the Radiator ............................ 599
Adding to the Reserve Tank..................... 598
Overheating ............................................ 665
Temperature Gauge ................................ 136
Engine Oil ................................................. 593
Adding .................................................... 595
Checking................................................. 594
Displaying Oil Life .................................... 584 Engine Oil Pressure Low Warning ............ 667
Recommended Engine Oil ....................... 593
ENGINE START/STOP Button .................... 193
EPS (Electric Power Steering) System ...... 670
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) .......................... 629
Exterior Mirrors ........................................ 214F
Features.................................................... 253
Filters Dust and Pollen....................................... 626
Oil .......................................................... 596
Flat Tire ............................................. 637, 645
Floor Mats ................................................ 628
Fluids Automatic Transmission .......................... 600
Brake ...................................................... 601
Engine Coolant ....................................... 598
Windshield Washer ................................. 602
FM/AM Radio ........................................... 293
Fog Lights Indicator ................................................... 98
Folding Down the Rear Seats .................. 222
Foot Brake ................................................ 549
Front Airbags (SRS) .................................... 49
Front Seats ................................................ 216
Adjusting ................................................ 216
Front Sensor Camera ............................... 541
22 ACURA RDX-31TJB6300.book 700 ページ ２０２１年８月２日　月曜日　午前１１時０分

702
Index
Indicators..................................................... 80
Adaptive Cruise Control (ACC) with Low
Speed Follow (Amber) ............................ 102
Adaptive Cruise Control (ACC) with Low Speed Follow (White/Green) ... 102, 503
Anti-lock Brake System (ABS) ..................... 94
Auto High-Beam ........................................ 98
Auto Idle Stop (Green) ............................... 90
Auto Idle Stop OFF..................................... 90
Auto Idle Stop Suspend ................. 90, 91, 92
Auto Idle Stop System (Amber) .................. 90
Automatic Brake Hold........................ 85, 550
Automatic Brake Hold System ............ 85, 550
Charging System ............................... 87, 668
Cruise Mode (White/Green) ..................... 101
Electric Power Steering (EPS) System .. 95, 670
Engine Oil Pressure Low Warning............. 667
Fog Light ................................................... 98
Gear Position ............................................. 87
High Beam................................................. 98
Immobilizer System .................................... 99
Lane Keeping Assist System (LKAS) (Amber) ................................................. 102
Lane Keeping Assist System (LKAS) (White/Green) ........................................ 102
Lights On ................................................... 98
Low Fuel (Amber) ...................................... 94
Low Tire Pressure/TPMS ..................... 97, 672
M (sequential mode ) Indicator/Gear
Selection Indicator ................................... 87
Maintenance Minder ............................... 101 Malfunction Indicator Lamp............... 86, 668
Parking Brake a
nd Brake System
(Amber) ........................................... 83, 671
Parking Brake and Brake System (Red)...................... 81, 82, 669, 671
Safety Support (Amber) ........... 103, 104, 105
Safety Support (Green/Gray) .................... 106
Seat Belt Reminder .............................. 39, 93
Security System Alarm ............................... 99
Super Handling-All Wheel Drive
TM
(SH-AWD ®) ............................................ 101
Supplemental Restraint System ............ 60, 95
System Message ...................................... 100
Transmission System.......................... 88, 673
Turn Signal and Hazard Warning ............... 98
Vehicle Stability Assist
TM (VSA ®) OFF .......... 96
Vehicle Stability AssistTM (VSA ®)
System ............................................ 96, 471
VSA ® OFF ................................................ 472
Information .............................................. 685
Instant Fuel Economy ............................... 141
Instrument Panel ........................................ 79
Brightness Control................................... 208
Interior Lights ........................................... 230
Interior Rearview Mirror .......................... 213
iPad ........................................................... 337
iPhone ....................................................... 337
iPod ................................................... 310, 337
J
Jack (Wheel Nut Wrench) ........................ 641
Jump Starting ........................................... 663
K
Key Number Tag ...................................... 158
Keyless Access System .............................. 160
Keyless Lockout Prevention ..................... 167
Keys ........................................................... 156
Lockout Prevention ................................. 167
Number Tag............................................ 158
Rear Door Won’t Open ........................... 171
Remote Transmitter ................................ 165
Two-way Keyless Remote ........................ 168
Types and Functions................................ 156
Kickdown (Automatic Transmission) ...... 450
Knee Airbags .............................................. 54
L
Lane Keeping Assist System (LKAS) ........ 522
LATCH (Child Seats) ............................. 69, 73
Legal Information .................................... 351
License Information ................................. 354
Lights ................................................ 197, 603
Automatic............................................... 198
Bulb Replacement ................................... 603
Daytime Running Lights .......................... 200
Fog Lights ............................................... 200
High Beam Indicator ................................. 98
22 ACURA RDX-31TJB6300.book 702 ページ ２０２１年８月２日　月曜日　午前１１時０分

703
Index
Interior.................................................... 230
Light Switches......................................... 197
Lights On Indicator.................................... 98
Turn Signals and Hazard Warning ........... 196
Load Limits ............................................... 433
Locking/Unlocking ................................... 156
Auto Door Locking/Unlocking ................. 172
Childproof Door Locks ............................ 171
From Inside ............................................. 169
From Outside .......................................... 160
Keys........................................................ 156
Using a Key............................................. 166
Lockout Prevention System ..................... 167
Low Battery Charge ................................. 668
Low Fuel Indicator ..................................... 94
Low Speed Braking Control .................... 497
Lower Anchors ..................................... 69, 73
Luggage (Maximum Load Limit) ............. 433
Lumbar Support ....................................... 216
M
Maintenance.................................... 142, 579
Battery .................................................... 621
Brake Fluid .............................................. 601
Cleaning ................................................. 627
Climate Control System .......................... 625
Coolant .................................................. 598
Maintenance Minder
TM............................ 583
Oil .......................................................... 594
Precautions ............................................. 580 Radiator .................................................. 599
Remote Transmitter ......................... 623, 624
Replacing Light Bulbs ............................... 603
Safety ...................................................... 581
Service Items ........................................... 587
Tires ........................................................ 612
Transmission Fluid ................................... 600
Under the Hood ...................................... 590
Malfunction Indicator Lamp .............. 86, 668
Map Lights ................................................ 231
Maximum Load Limit ............................... 433
Meters, Gauges ......................................... 136
Mirrors ....................................................... 213
Adjusting ................................................. 213
Door ........................................................ 214
Exterior .................................................... 214
Interior Rearview ..................................... 213
Modifications (and Accessories) .............. 633
MP3 ........................................................... 313
MP3/WMA/AAC ........................................ 313
Multi-Information Display ....................... 137
Switching the Display .............................. 139
Warning and Information Messages ........ 107
Multi-View Rear Camera .......................... 564
N
Navigation................................................ 141
Numbers (Identification) .......................... 688
O
Odometer................................................. 137
Off-Highway Driving Guidelines ............. 441
Oil (Engine) ............................................... 593
Adding .................................................... 595
Checking................................................. 594
Displaying Oil Life .................................... 584
Engine Oil Pressure Low Warning ............ 667
Recommended Engine Oil ............... 593, 687
Viscosity .......................................... 593, 687
Open Source Licenses ............................... 353
Opening/Closing Hood....................................................... 591
Panoramic Roof ....................................... 189
Power Windows ...................................... 186
Tailgate ................................................... 173
Outside Temperature Display .................. 137
Overheating .............................................. 665
P
Paddle Shifters (Sequential Shift
Mode) ...................................................... 457
Panic Mode ............................................... 185
Panoramic Roof ........................................ 189
Parking ...................................................... 554
Parking Brake ........................................... 545
Parking Brake and Brake System Indicator .................................................. 669
Parking Brake and Brake System
Indicator (Amber) ..................................... 83
22 ACURA RDX-31TJB6300.book 703 ページ ２０２１年８月２日　月曜日　午前１１時０分
