ACURA RDX 2023 Owners Manual

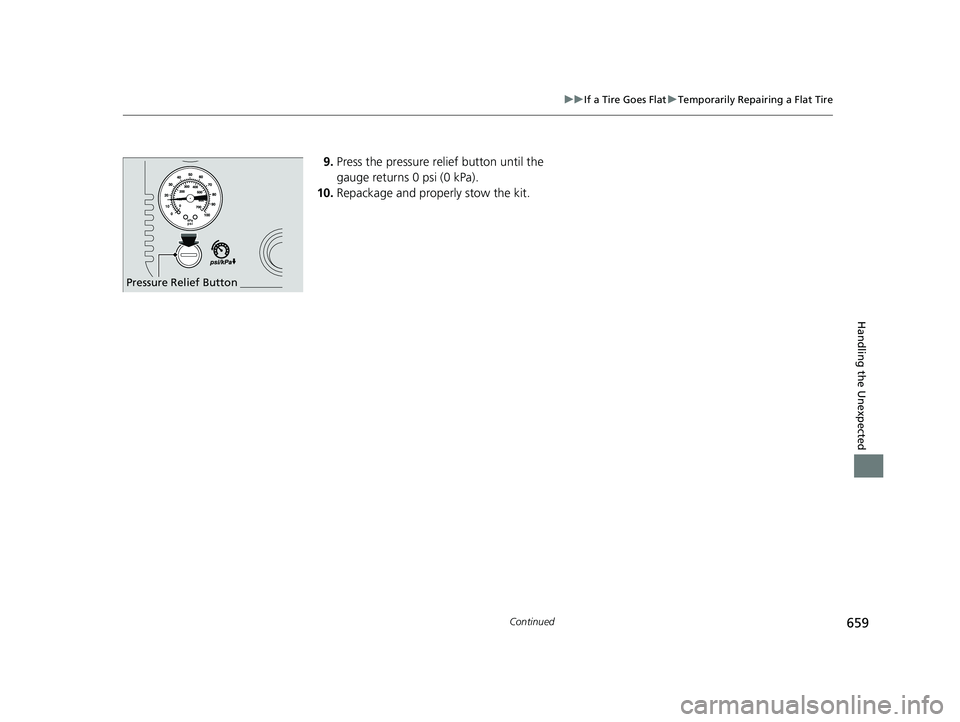

659
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
9. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
10. Repackage and properly stow the kit.
Pressure Relief Button
23 ACURA RDX-31TJB6400.book 659 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire

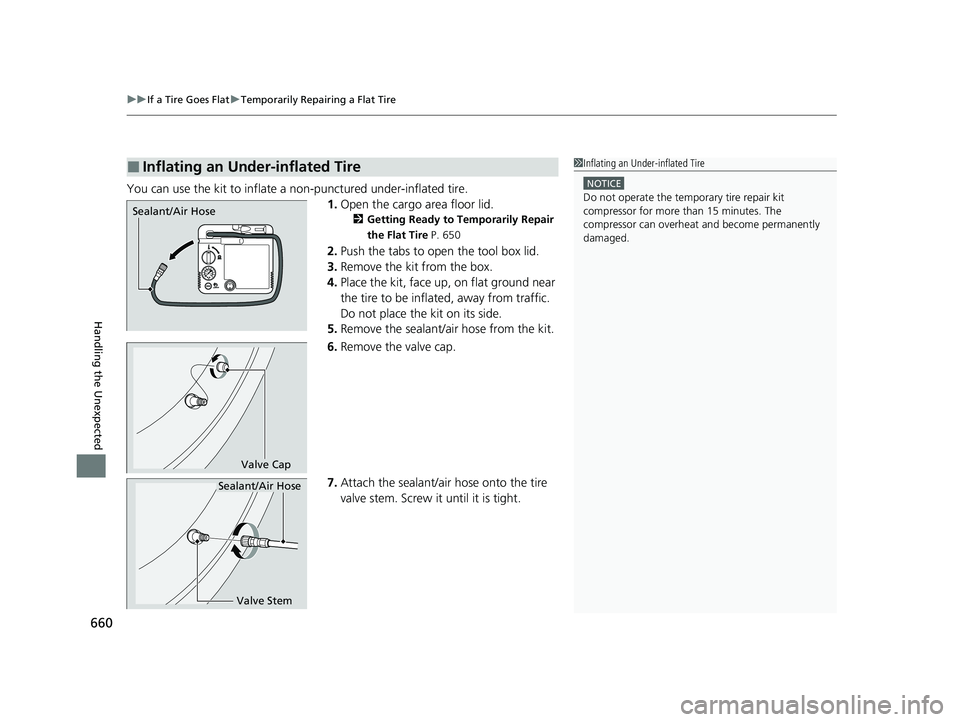

660
Handling the Unexpected
You can use the kit to inflate a non-punctured under-inflated tire.
1.Open the cargo area floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 650
2.Push the tabs to open the tool box lid.
3. Remove the kit from the box.
4. Place the kit, face up, on flat ground near
the tire to be inflated, away from traffic.
Do not place the kit on its side.
5. Remove the sealant/air hose from the kit.
6. Remove the valve cap.
7. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.
Sealant/Air Hose
Valve Cap
Valve Stem
Sealant/Air Hose
23 ACURA RDX-31TJB6400.book 660 ページ ２０２２年８月４日　木曜日　午後１時５１分

Continued661
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
8. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
u Do not plug any other electronic
devices into other accessory power
sockets.
2 Accessory Power Sockets P. 239
9.Start the engine.
2 Starting the Engine P. 443
uKeep the engine running while injecting
air.
2 Carbon Monoxide Gas P. 77
10.Turn the selector switch to AIR.
11. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
12. Inflate the tire to the specified air pressure.
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid buildup of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
AIR
ON
23 ACURA RDX-31TJB6400.book 661 ページ ２０２２年８月４日　木曜日　午後１時５１分

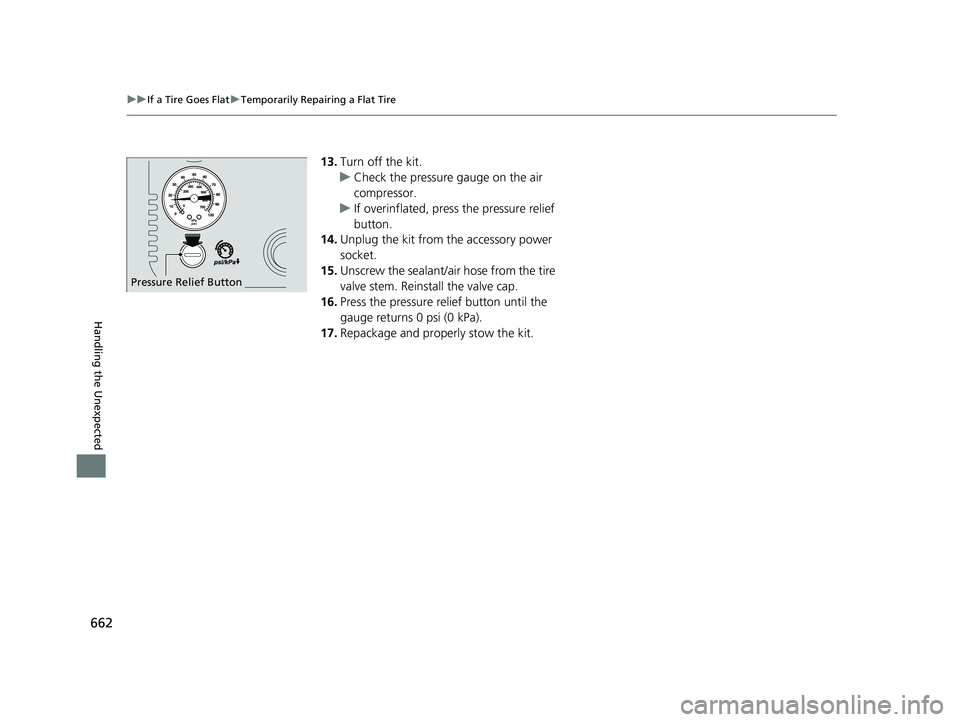

662
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
13. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
14. Unplug the kit from the accessory power
socket.
15. Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.
16. Press the pressure relief button until the
gauge returns 0 psi (0 kPa).
17. Repackage and proper ly stow the kit.
Pressure Relief Button
23 ACURA RDX-31TJB6400.book 662 ページ ２０２２年８月４日　木曜日　午後１時５１分

663
Handling the Unexpected
Handling of the Jack
Your vehicle has jacking points as shown.
When replacing your tires, consult a dealer.
Models with temporary tire repair kit
Jacking Points
23 ACURA RDX-31TJB6400.book 663 ページ ２０２２年８月４日　木曜日　午後１時５１分

664
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
If you cannot start the engine after checking all the items in the list above, have your vehicle checked by a dealer.
If you must start the vehicle immediately, use an a ssisting vehicle or booster battery to jump start it.
2If the Battery Is Dead P. 667
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Remote Battery is Weak P. 665
uMake sure the keyless remote is in its operating range. 2 ENGINE START/STOP Button P. 193
Check the fuses.
Check all fuses, or have your vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 684
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 443
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 183
2 Immobilizer System Indicator P. 99
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 136
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 684
If the problem continues: 2 Emergency Towing P. 685
23 ACURA RDX-31TJB6400.book 664 ページ ２０２２年８月４日　木曜日　午後１時５１分

665
uuEngine Does Not Start uIf the Keyless Remote Battery is Weak
Handling the Unexpected
If the Keyless Remo te Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:
1.Press the ENGINE START/STOP button.
u The beeper sounds and the ENGINE
START/STOP button flashes for about
30 seconds.
2. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
remote while the ENGINE START/STOP
button is flashing. The buttons on the
keyless remote should be facing you.
u The beeper sounds, and the ENGINE
START/STOP button stays on for about
10 seconds.
3. Depress the brake pedal and press the
ENGINE START/STOP button while the
ENGINE START/STOP button is on.
u The engine starts.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.
23 ACURA RDX-31TJB6400.book 665 ページ ２０２２年８月４日　木曜日　午後１時５１分

666
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Engine Stop
NOTICE
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
23 ACURA RDX-31TJB6400.book 666 ページ ２０２２年８月４日　木曜日　午後１時５１分

667Continued
Handling the Unexpected
If the Battery Is Dead
Jump Starting Procedure
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Open the fuse box cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jumper cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.1If the Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Positive Battery
Terminal Cover
Booster Battery
23 ACURA RDX-31TJB6400.book 667 ページ ２０２２年８月４日　木曜日　午後１時５１分

668
uuIf the Battery Is Dead uJump Starting Procedure
Handling the Unexpected
5. Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your vehicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Once your vehicle’s engine has started, re move the jumper cables in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
23 ACURA RDX-31TJB6400.book 668 ページ ２０２２年８月４日　木曜日　午後１時５１分
