windshield wipers ACURA RDX 2023 Owners Manual

Visual Index
10
Quick Reference Guide
❚How to Refuel (P 576)
❚High-Mount Brake Light (P 608)
❚Opening/Closing the Tailgate (P173)
❚Rear Wiper (P 206, 612)
❚ChicaneTM Taillights, Brake and Rear Side Marker Lights (P 197, 607)
❚Rear Turn Signal Lights (P 196, 606)
❚Multi-View Rear Camera* (P 565)
❚Rear License Plate Light (P 197, 608)
❚Tailgate Outer Handle (P 178, 182)
❚ChicaneTM Taillights/Brake and Back-Up Lights (P 197, 608)
❚Windshield Wipers (P 204, 609)
❚Power Door Mirrors (P 214)
❚Maintenance Under the Hood (P 592)
❚Fog Lights* (P 200, 605)
❚Tires (P 614, 641, 649)
❚Door Lock/Unlock Control (P 160)
❚Front Turn Signal Lights (P 196, 605)
❚Parking/ChicaneTM Daytime Running Lights (P 197, 605)
❚Side Turn Signal Lights (P 196, 605)
❚Headlights (P 197, 605)
❚Front Side Marker Lights (P197, 605)
❚Surround View Camera System* (P 567)
❚Rearview Camera Washer* (P 204)
23 ACURA RDX-31TJB6400.book 10 ページ ２０２２年８月４日　木曜日　午後１時５１分

15
Quick Reference Guide
Wipers and Washers
(P 204)
Wiper/Washer Control LeverAdjustment Ring
(-: Low Sensitivity*1
: Lower speed, fewer sweeps*2
(+: High Sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
*1 : Models with automatic intermittent wipers
*2 : Models without automatic intermittent
wipers
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P 212)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Models with automatic intermittent wipersUnlocking the Front
Doors from the Inside
(P 170)
●Pull either front door inner handle to
unlock and open it at the same time.
23 ACURA RDX-31TJB6400.book 15 ページ ２０２２年８月４日　木曜日　午後１時５１分

153
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 154
Locking and Unlocking the Doors Key .................................................. 156
Low Keyless Remote Signal Strength ... 159
Locking/Unlocking the Doors from the Outside .......................................... 160
Locking/Unlocking the Doors from the Inside ............................................. 169
Childproof Door Locks ..................... 171
Auto Door Locking/Unlocking .......... 172
Tailgate .............................................. 173
Security System Immobilizer System .......................... 183 Security System Alarm...................... 183
Windows ........................................... 186
Panoramic Roof ................................. 189
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 193
Turn Signals ..................................... 196
Light Switches.................................. 197
Fog Lights
*...................................... 200
ChicaneTM Daytime Running Lights ... 200
Auto High-Beam .............................. 201
Wipers and Washers ........................ 204
Brightness Control ........................... 208
Rear Defogger/Heated Door Mirror Button ........................................ 207
Heated Windshield Button*............. 207
Driving Position Memory System ...... 210
Adjusting the Steering Wheel .......... 212
Mirrors Interior Rearview Mirror ................... 213
Power Door Mirrors ......................... 214
Seats .................................................. 216
Interior Convenience Items .............. 230
Climate Control System Using Automatic Climate Control .... 247
Automatic Climate Control Sensors ... 252
* Not available on all models
23 ACURA RDX-31TJB6400.book 153 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
202
Controls
■Automatic switching between high-beam and low-beam
When auto high-beam is ac tive, the headlights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the proced ures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you fo r flashing the high beams then release it within about
one second while driving. u To reactivate the auto high-beam, pull the lever toward you for flashing the
high beams then release it while driving. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the auto high-be am, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 25 mph (40
km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 15 mph (24
km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1 How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are op erating at a high speed.
•The camera has detected a dense fog.
23 ACURA RDX-31TJB6400.book 202 ページ ２０２２年８月４日　木曜日　午後１時５１分

204
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO, HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust the wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the lever for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1 : Models with manual intermittent operation
*2 : Models with automatic intermittent operation
■Windshield Wipers/Washers1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay setting ( ) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogge r or heated windshield
*
to warm the windshield, then turn the wipers on.
Models without automatic intermittent wipers
Intermittent Time
Adjustment Ring*
MIST
INT*1/AUTO*2OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
23 ACURA RDX-31TJB6400.book 204 ページ ２０２２年８月４日　木曜日　午後１時５１分

Continued205
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stop in
accordance with the amount of rainfall the
rainfall sensor detects.
■Auto sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
If the wipers st op operating due to an obstacle such
as the buildup of snow, park the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield
•Driving through a car wash•No rain present
Rainfall Sensor
Low sensitivity
High sensitivity
* Not available on all models
23 ACURA RDX-31TJB6400.book 205 ページ ２０２２年８月４日　木曜日　午後１時５１分

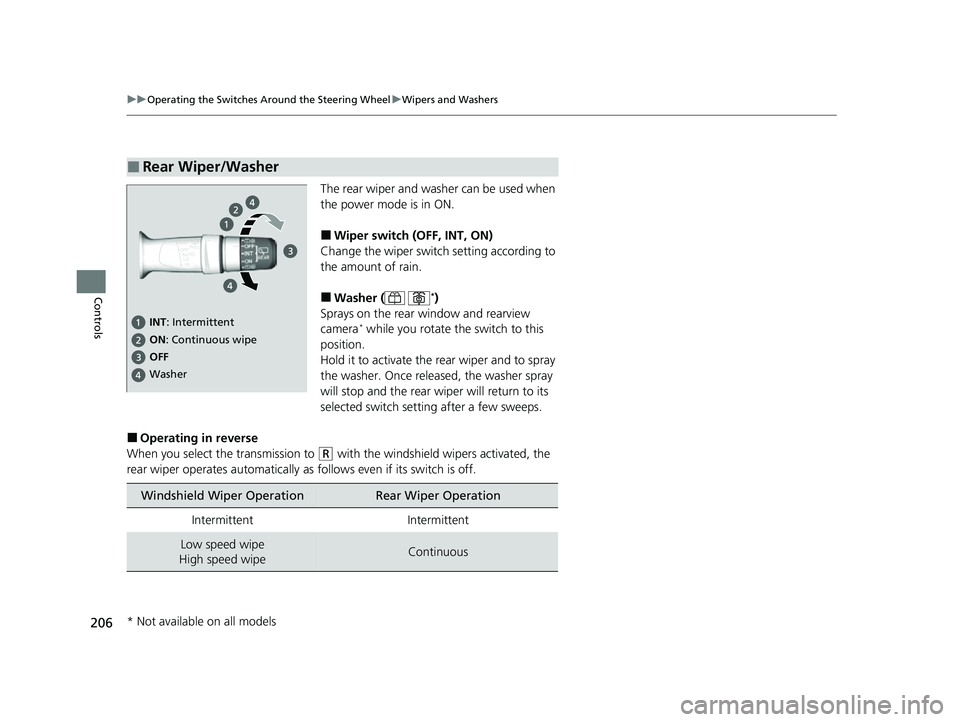

206
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
The rear wiper and washer can be used when
the power mode is in ON.
■Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■Washer ( *)
Sprays on the rear window and rearview
camera
* while you rotate th e switch to this
position.
Hold it to activate the rear wiper and to spray
the washer. Once released, the washer spray
will stop and the rear wi per will return to its
selected switch setting after a few sweeps.
■Operating in reverse
When you select the transmission to
(R with the windshield wipers activated, the
rear wiper operates automatically as follows even if its switch is off.
■Rear Wiper/Washer
INT : Intermittent
OFF ON : Continuous wipe
Washer
Windshield Wiper OperationRear Wiper Operation
IntermittentIntermittent
Low speed wipe
High speed wipeContinuous
* Not available on all models
23 ACURA RDX-31TJB6400.book 206 ページ ２０２２年８月４日　木曜日　午後１時５１分

Index
702
Index
Index
A
ABS (Anti-lock Brake System)................... 553
Accessories and Modifications ................. 636
Accessory Power Socket ........................... 239
Acura Integrated Dynamics System ......... 459
Dynamic Mode Switch ............................. 460
AcuraLink® ............................................... 419
AcuraWatch
TM........................................... 483
Adaptive Cruise Control (ACC) with Low Speed Follow ........................... 102, 502
Additives
Coolant ................................................... 600
Engine Oil ................................................ 595
Washer .................................................... 604
Additives, Engine Oil ................................ 595
Adjusting Armrest ................................................... 229
Front Seats .............................................. 216
Head Restraints........................................ 225
Mirrors .................................................... 213
Rear Seats................................................ 222
Steering Wheel ........................................ 212
Agile Handling Assist ................................ 473
Air Conditioning System (Climate Control System) .................................................... 247
Changing the Mode ................................ 247
Defrosting the Windshield and Windows ............................................... 249
Dust and Pollen Filter ............................... 628
Rear Temperature Control Dial................. 251
Recirculation/Fresh Air Mode ................... 247 Sensors ................................................... 252
Synchronized Mode................................. 250
Using Automatic Climate Control ............ 247
Air Pressure ....................................... 615, 691
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ........................................ 49
Airbag Care............................................... 63
Front Airbags (SRS) .................................... 49
Indicator.............................................. 60, 95
Knee Airbags............................................. 54
Passenger Airbag Off Indicator .................. 61
Sensors ..................................................... 46
Side Airbags .............................................. 57
Side Curtain Airbags.................................. 59
AM/FM Radio ............................................ 293
Amazon Alexa .......................................... 289
Android Auto
TM........................................ 327
Anti-lock Brake System (ABS) .................. 553
Indicator.................................................... 94
Apple CarPlay ........................................... 322
Armrest ..................................................... 229
AT&T Hotspot ........................................... 321
Audio Remote Controls ........................... 258
Audio System ............................................ 254
Adjusting the Sound................................ 287
Audio/Information Screen........................ 264
Display Setup .......................................... 288
Error Messages ........................................ 332
General Information ................................ 336
Home Screen........................................... 269 How to Update Wirelessly ....................... 281
How to Update with a USB Device .......... 285
iPod ........................................................ 310
Limitations for Manual Operation ............ 288
MP3/WMA/AAC ..................................... 313
Reactivating ............................................ 257
Remote Controls ..................................... 258
Security Code ......................................... 257
Status Area ............................................. 274
System Updates ...................................... 281
Theft Protection ...................................... 257
True Touchpad Interface ......................... 261
USB Flash Drives.............................. 313, 338
USB Ports ................................................ 255
Audio/Information Screen ....................... 264
Authorized Manuals ................................ 700
Auto Door Locking/Unlocking ................ 172
Auto High-Beam ...................................... 201
Indicator ................................................... 98
Auto Idle Stop .......................................... 464
OFF Button ............................................. 466
Automatic Brake Hold ............................. 550
Indicator ........................................... 85, 550
Automatic Folding Door Mirror .............. 215
Automatic Intermittent Wipers .............. 205
Automatic Lighting .................................. 198
Automatic Transmission .......................... 450
Creeping................................................. 450
Fluid ....................................................... 602
Kickdown ............................................... 450
Operating the Shift Button ...................... 453
23 ACURA RDX-31TJB6400.book 702 ページ ２０２２年８月４日　木曜日　午後１時５１分

710
Index
Troubleshooting....................................... 639
Blown Fuse .............................. 678, 681, 682
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door .......... 28
Emergency Towing .................................. 685
Engine Won’t Start .................................. 664
Fuel Fill Door............................................ 686
Noise When Braking .................................. 30
Overheating............................................. 669
Puncture/Flat Tire ............................. 641, 649
Rear Door Won’t Open ...................... 28, 171
Tailgate ................................................... 687
Warning Indicators .................................... 80
True Touchpad Interface .......................... 261
Turbo Engine Vehicle ............................... 579
Turn Signals ............................................... 196
Indicators (Instrum ent Panel) ...................... 98
Turn-by-Turn Directions ........................... 151
Two-way Keyless Remote ......................... 168
U
Under-floor Storage Area ........................ 238
Unlocking the Doors ................................. 160
Unlocking the Fron t Doors from the
Inside ................................................. 15, 169
USB Flash Drives ................................ 313, 338
USB Ports ................................................... 255
V
Vanity Mirrors ............................................... 9
Vehicle Identification Number ................ 692
Vehicle Speed ........................................... 151
Vehicle Stability Assist
TM (VSA ®) .............. 471
Off Button............................................... 472
Off Indicator.............................................. 96
System Indicator ................................ 96, 471
Viscosity (Oil) .................................... 595, 691
Voice Control Operation .......................... 290
Voice Portal Screen.................................. 291
Voice Recognition ................................... 290
VSA ® (Vehicle Stability Assist
TM) .............. 471
W
Warning and Information Messages ....... 107
Warning Indicator On/Blinking ............... 671
Warning Labels ........................................... 78
Warnings ................................................... 142
Warranties (Warranty Manual provided
separately) .............................................. 697
Watts ......................................................... 690
Wear Indicators (Tire) .............................. 619
Wheel Nut Wrench (Jack Handle) ........... 645
Wi-Fi Connection ...................................... 319
Window Washers ..................................... 204
Adding/Refilling Fluid .............................. 604
Switch ..................................................... 204
Windows (Opening and Closing) ............ 186Windshield
............................................... 204
Cleaning ................................................. 634
Defrosting/Defogging ............................. 249
Washer Fluid ........................................... 604
Wiper Blades........................................... 609
Wipers and Washers ............................... 204
Winter Tires .............................................. 622
Snow Tires .............................................. 622
Tire Chains.............................................. 622
Wipers and Washers ................................ 204
Automatic Intermittent Wipers ................ 205
Checking and Replacing Wiper Blades..... 609
Front....................................................... 204
Rear ........................................................ 206
Wireless Charger ...................................... 240
WMA ......................................................... 313
Worn Tires ................................................ 614
23 ACURA RDX-31TJB6400.book 710 ページ ２０２２年８月４日　木曜日　午後１時５１分
