lock Acura RL 2006 Owner's Guide

ÛÝ
To exit AUTO DOOR UNLOCK
without changing the current setting,
select EXIT by pressing the INFO
( / ) button, then press the SEL/
RESET button. The screen goes
back to CUSTOMIZE MENU.

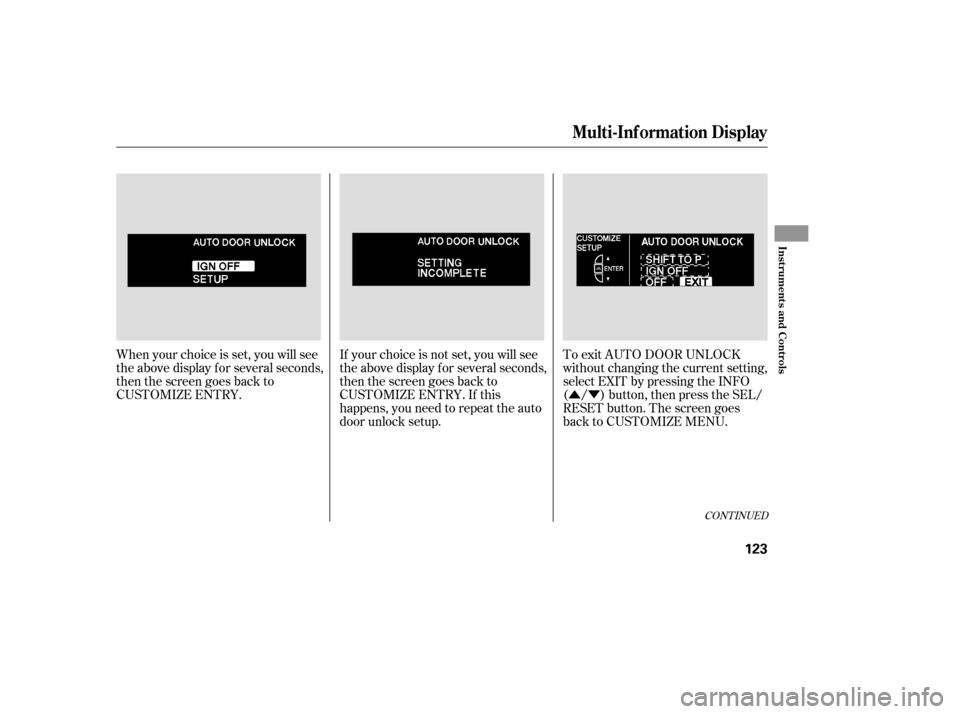

When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. If this
happens, you need to repeat the auto
door unlock setup.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
123

ÛÝÛ
Ý
To select whether the driver’s door
unlocks or all the doors unlock when
you unlock the doors with the
remote, f ollow these instructions.
While the multi-information display
is in the DOOR/WINDOW SETUP
screen of the CUSTOMIZE GROUP,
press the SEL/RESET button. The
screen changes to CUSTOMIZE
MENU. Press the INFO ( / )
button until you see above display.Press the SEL/RESET button. The
screen changes as shown above.
Select DRIVER DOOR or ALL
DOORS by pressing the INFO ( /
) button, then press the SEL/
RESET button to enter your
selection.
Multi-Inf ormation Display
Door L ock Mode
124

ÛÝ
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. To exit DOOR LOCK MODE
without changing the current setting,
select EXIT by pressing the INFO
( / ) button, and then press the
SEL/RESET button. The screen
goes back to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. If this
happens, you need to repeat the door
lock mode setup.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
125

ÛÝÛÝ
When you press the LOCK button
on the remote to lock the doors and
the trunk, and then press the button
again within 5 seconds, a beeper
sounds once and the exterior lights
blink once to verif y that the doors
arelockedandthesecuritysystemis
set.
When you press the UNLOCK
button on the remote to unlock the
doors, and then press the button
again within 5 seconds, a beeper
sounds twice and the exterior lights
blink twice to verify that the doors
are unlocked and the security
system is turned of f .
To turn this feature on or off, follow
these instructions.
While the multi-information display
is in the DOOR/WINDOW SETUP
screen of the CUSTOMIZE GROUP,
press the SEL/RESET button. The
screen changes to CUSTOMIZE
MENU. Press the INFO ( / )
button until you see the above
display.Press the SEL/RESET button. The
screen changes as shown above.
Select ON or OFF by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
Multi-Inf ormation Display
K eyless L ock A cknowledgment
126

ÛÝ
To exit KEYLESS LOCK
ACKNOWLEDGEMENT without
changing the current setting, select
EXIT by pressing the INFO ( / )
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. If this
happens, you need to repeat the
keyless lock acknowledge setup.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
127

ÛÝÛÝ
When you unlock the doors by
pressing the LOCK button on the
remote or by grabbing the driver’s
door handle while carrying the
remote, the doors relock and the
security system sets within 30
seconds. To change the relock time,
f ollow these instructions:
While the multi-information display
is in the DOOR/WINDOW SETUP
screen of the CUSTOMIZE GROUP,
press the SEL/RESET button. The
screen changes to CUSTOMIZE
MENU. Press the INFO ( / )
button until you see the above
display.Press the SEL/RESET button. The
screen changes as shown above.
Select the relock time you want (90,
60, or 30 seconds) by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
Multi-Inf ormation Display
Securit y Relock T imer
128

ÛÝ
To exit SECURITY RELOCK
TIMER without changing the
current setting, select EXIT by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. If this
happens, you need to repeat the
security relock setup.
Multi-Inf ormation Display
Inst rument s and Cont rols
129

The windshield wiper arms have two
parked positions: winter and summer.
In the winter position, the arms sit
slightly above the edge of the hood.
This reduces the possibility of
damage to the wiper arms or
windshield wiper motor by a build-up
of snow and ice.A heavy build-up of snow or ice on
the wiper arms will cause them to
automatically park in the winter
position. Adjust the wiper arms to the winter
position by holding both arms as
shown in the illustration at the same
time. Pull on the arm, parallel to the
windshield, until it locks in the
higher position.To return to the summer position,
pushthesameareaof botharmsthe
other direction.
Windshield Wipers and Washers
Wiper A rm Positions
Inst rument s and Cont rols
135
WIPER ARMS
Winter position WIPER ARMS
Summer position HOLDING
LOCATIONS
HOLDING
LOCATIONS

µ
µ µPush down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turn signal
Of f
Parking and indicator lights
AUTO
Headlights on
High beams
Flashhighbeams
Fog lights of f
Fog lights on The rotating switch
on the lef t lever controls the lights.
Turning this switch to the ‘‘ ’’
position turns on the parking lights,
taillights, instrument panel lights,
side-marker lights, and rear license
plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the
ignition switch released af ter turned
to the LOCK (0) position or when
the built-in key is removed f rom the
ignition switch, you will hear a
reminder chime when you open the
driver’s door. When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position.
To switch f rom low
beams to high beams, push the lef t
lever f orward until you hear a click.
The blue high beam indicator will
come on (see page ). Pull it back
to return to low beams. To flash the
high beams, pull the lever back
lightly, then release it. The high
beamsstayonaslongasyouhold
the lever back.
1.
2.
3.
4.
5.
6.
7.
8.
9. 66
Turn Signal
Headlights
High Beams
Turn Signal, Headlights
136

Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
The headlights revert to normal
operation when you turn them on
with the switch. With the light switch in the AUTO
position, you can also use the f og
lights when the headlights turn on
automatically. They will go of f when
the headlights turn of f .
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.This f eature turns of f the headlights,
all other exterior lights, and the
instrument panel lights within 15
seconds after you turn the ignition
switch to the LOCK (0) position and
close the driver’s door.
To change the ‘‘HEADLIGHT AUTO
OFF TIMER’’ setting, see page . If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
When the multi-information display
shows a ‘‘DRL OFF’’ message, the
daytime running lights are of f .
Follow the procedure in the lef t
column to turn them on.The automatic lighting of f f eature
activates if you leave the headlight
switch in the ‘‘ ’’ or ‘‘ ’’
position or if the lights are turned on
by setting the switch in the ‘‘AUTO’’
position, turn the ignition switch to
the LOCK (0) position, then open
and close the driver’s door.
If you turn the ignition switch to the
LOCK (0) position with the
headlight switch on, but do not open
the door and get out, the lights turn
of f af ter 10 minutes (3 minutes, if
the switch is in the ‘‘AUTO’’
position).
If you unlock the door, but do not
open it within 15 seconds, the lights
go of f . With the driver’s door open,
you will hear a lights-on reminder
chime. The lights turn on again when you
unlock or open the driver’s door.
115
Headlights
Fog Lights
Daytime Running Lights Automatic Lighting Of f Feature
138
