µ
µ This particular message is displayed
when you drive over 10 miles (f or
U.S. models) or 10 km (f or Canadian
models) af ter seeing 0 %. Your authorized dealer knows your
vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Keep all receipts
as proof of completion, and have the
person who does the work f ill out the
maintenance record. Check your
warranty booklet f or more
inf ormation.
We recommend the use of Acura
parts and f luids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their performance and durability.
The maximum total negative mileage
is ‘‘ 999 mile (f or U.S. models) or
999 km (f or Canadian models)’’.
When you press the SEL/RESET
button to select the engine oil lif e
minder, the message ‘‘SERVICE
OIL’’, along with the maintenance
item code and the total negative
mileage af ter the oil lif e became 0
percent, will be displayed on the
lower part of the multi-inf ormation
display.
CONT INUED
Maintenance Minder
Maint enance
355
U.S. CANADA
TOTAL PAST DUE MILEAGE

µµµ
µ
µ µ
Ì Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page .
Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page . Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
U.S. Vehicles:
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, Acura
recommends that all maintenance
services be perf ormed in accordance
with the intervals indicated by the
Multi-Inf ormation Display. 301
366
368 369
383 372
Maintenance Minder
Owner’s Maintenance Checks
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
356

Î
Ì Ì
Ì
Î
CONT INUED
Maintenance Minder
357
: Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Visually inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and line (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections
A
B
Symbol
1
If the message ‘‘SERVICE DUE NOW’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty in the first column
on page .
Independent of the maintenance messages in the Multi-Information
Display, replace the brake fluid every 3 years.
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
NOTE: 1:
356
Maintenance Minder

µµ
Maintenance Minder
358
Maintenance Sub Items
Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher level of
mechanical (shear) stress to fluid This requires
differential fluid changes more frequently than
recommended by the Maintenance Minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed at7,500 miles
(12,000 km), then every15,000 miles (24,000 km).
Maintenance Sub Items
Rotate tires
Replace air cleaner element If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
Replace dust and pollen filter If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission and transfer fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher
transmission and transfer temperatures.
This requires transmission and transfer fluid changes
more frequently than recommended by the
Maintenance Minder. If you regularly drive your
vehicle under these conditions, have the transmission
and transfer fluid changed at 60,000 miles
(100,000 km), then every 30,000 miles (48,000 km).
Replace spark plugs
Replace timing belt and inspect water pump If you drive regularly in very high temperatures (over
110°F, 43°C), or in very low temperatures (under20°F, 29°C), replace every 60,000 mile (U.S.)/
100,000 km (Canada)
Inspect valve clearance
Replace engine coolant
Symbol
1
2
3
4
5 Symbol
6
Maintenance Minder

Î
Î: The power steering f luid reservoir is located under the right compartment cover.
Fluid Locations
Maint enance
361
RADIATOR CAP
ENGINE OIL
FILL CAP
ENGINE OIL DIPSTICK
(Orange loop)
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
ENGINE
COOLANT
RESERVOIR BRAKE FLUID
(Black cap)
WASHER FLUID
(Black cap)
POWER STEERING
FLUID
(Red cap)

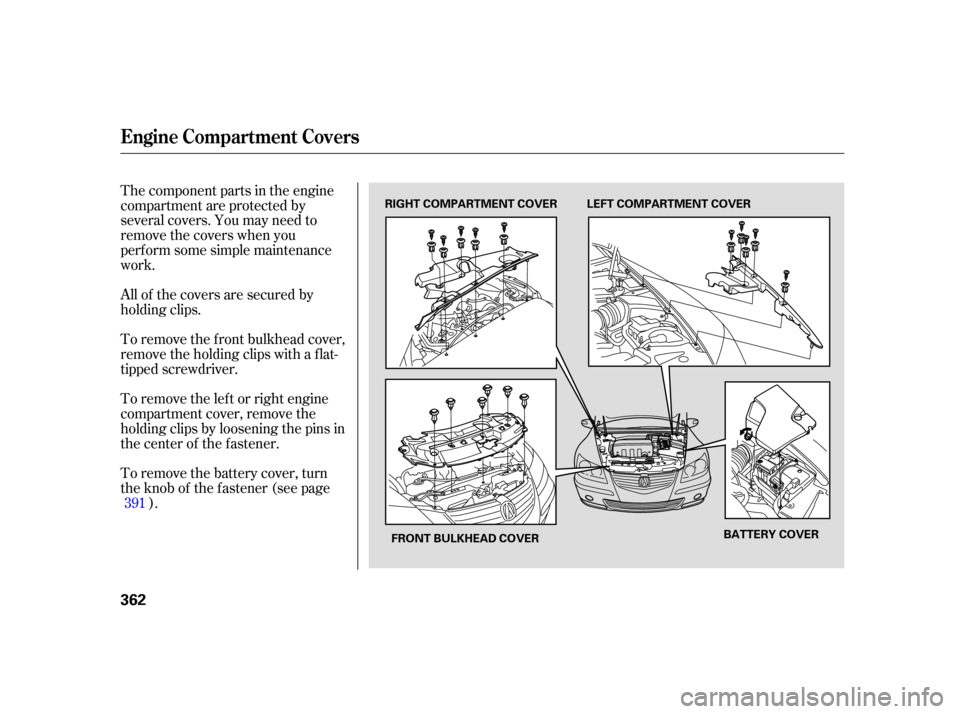

The component parts in the engine
compartment are protected by
several covers. You may need to
remove the covers when you
perf orm some simple maintenance
work.
All of the covers are secured by
holding clips.
To remove the f ront bulkhead cover,
remove the holding clips with a f lat-
tipped screwdriver.
To remove the lef t or right engine
compartment cover, remove the
holding clips by loosening the pins in
the center of the f astener.
To remove the battery cover, turn
the knob of the f astener (see page).
391
Engine Compartment Covers
362
FRONT BULKHEAD COVER
RIGHT COMPARTMENT COVER LEFT COMPARTMENT COVER
BATTERY COVER

Install the engine oil f ill cap, and
tighten it securely. Wait a f ew
minutes, and recheck the oil level.
Do not f ill above the upper mark; you
could damage the engine.Oil is major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving and that
it meets the American Petroleum
Institute’s latest requirements.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill any. Clean up any
spills immediately. Spilled oil could
damage components in the engine
compartment. Honda Motor Oil is the pref erred
5W-20 lubricant f or your vehicle. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or
optimum engine protection. Make
sure the API Certif ication Seal says
‘‘For Gasoline Engines.’’
The oil viscosity or weight is
provided on the container’s label.
5W-20 oil is f ormulated f or year-
round protection of your vehicle to
improve cold weather starting and
f uel economy.
CONT INUED
Recommended Engine Oil
A dding Engine Oil
Maint enance
363
API CERTIFICATION SEAL
ENGINE OIL FILL CAP
Ambient Temperature

Your vehicle does not require any oil
additives. Additives may adversely
af f ect the engine or transmission
perf ormance and durability.Open the hood, and remove the
engine oil f ill cap. Remove the oil
drain bolt and washer f rom the
bottom of the engine. Drain the oil
into an appropriate container.
You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight. You must
f ollow the oil and f ilter change
intervals given on the maintenance
schedule.
Always change the oil and f ilter
according to the maintenance
messages shown on the multi-
inf ormation display. The oil and f ilter
collect contaminants that can
damage your engine if they are not
removed regularly.
Changing the oil and f ilter requires
special tools and access f rom
underneath the vehicle. The vehicle
should be raised on a service station-
type hydraulic lif t f or this service.
Unless you have the knowledge and
proper equipment, you should have
this maintenance done by a skilled
mechanic.
Run the engine until it reaches
normal operating temperature,
then shut it off.
1. 2.
Synthetic Oil
Engine Oil A dditives
Changing the Oil and Filter
A dding Engine Oil, Changing the Oil and Filter
364
WASHER
OIL DRAIN BOLT

Remove the oil f ilter, and let the
remaining oil drain. A special
wrench (available from your
dealer) is required.Refill the engine with the
recommended oil.
Engine oil change capacity
(including f ilter):
Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator should go out within 5
seconds. If it does not, turn of f the
engine, and check your work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
Turn of f the engine and let it sit
f or several minutes, then check
the oil level on the dipstick. If
necessary, add more oil. Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten the drain bolt to:
Check the oil f ilter to make sure
its gasket did not stick to the
engine block. A stuck gasket could
cause an oil leak.
Install a new oil f ilter according to
the instructions that come with it.
3.
4.
5. 6.
7.
8.
9.
10.
Changing the Oil and Filter
Maint enance
365
OIL FILTER
29 lbf·ft (39 N·m , 4.0 kgf·m)
4.5 US qt (4.3
) Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container, and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible. Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent water.
Never add straight antifreeze or
plain water.
A dding Engine Coolant
Engine Coolant
366
RESERVE TANK
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
