Your vehicle is equipped with disc
brakes at all four wheels. A power
assist helps reduce the effort needed
on the brake pedal. The brake pedal
assist function increases the force
you apply to the brake pedal during
an emergency stop. When the brake
pedal assist is activated, the e-
pretensioners (if equipped) tighten
front seat belts (see page ). The
anti-lock brake system (ABS) helps
you retain steering control when
braking very hard (see page ).
Resting your f oot on the brake pedal
applies the brakes slightly. This
builds up heat, and reduces brake
ef f ectiveness and brake pad lif e. In
addition, f uel economy can be
reduced. It also keeps your brake
lights on all the time, conf using
drivers behind you. The hydraulic system that operates
the brakes has two separate circuits.
Each circuit works diagonally across
the vehicle (the lef t-f ront brake is
connected with the right-rear brake,
etc.). If one circuit should develop a
problem, you will still have braking
at two wheels.
Constant application of the brakes
when going down a long hill builds
up heat and reduces their ef f ective-
ness. Use the engine to assist the
brakes by taking your f oot of f the
accelerator and downshif ting to a
lower gear.
Check the brakes after driving
through deep water. Apply the
brakes moderately to see if they f eel
normal. If not, apply them gently and
f requently until they do. Be extra
cautious in your driving.
If the brake pads need replacing, you
will hear a distinctive, metallic
screeching sound when you apply
the brake pedal. If you do not have
the brake pads replaced, they will
screech all the time. It is normal f or
the brakes to occasionally squeal or
squeak when you apply them.
24
353
Braking System
Braking System Design
Brake Pad Wear Indicators
352
——
y
y
(yy

The CMBS does not activate if the
speed difference between your
ve hicles is less than 10 mph (15
km/h). CMBS may also not
activate if you turn the steering
wheel to avoid the collision.
When the CMBS activates, the brake
lights also come on.
The
collision mitigation brake
system (CMBS) can assist you when
there is a possibility of your vehicle
hitting the vehicle in front of you. It
is designed to reduce the speed of
your vehicle before an unavoidable
collision occu rs and, if possible, to
alert you to a poten tial collision while
thereistimetopreventit.Hereisa
brief description of what the CMBS
can do:
When your speed is above 10 mph
(15 km/h), the CMBS radar
sensor in the front grille can sense
a vehicle ahead of you. When your
vehicle gets too close to the
ve hicle ahead of you, the system
mayactivateawarningbeep,
causing automatic application of
the brakes, and causing the
e-pretensioners to tighten the
f ront seat belts (see page ). The CMBS consists of a radar
sensor in the f ront grille, a brake
actuator in the engine compartment,
an indicator on the instrument panel,
seat belt e-pretensioners on the f ront
seats,andanon/off switchonthe
dashboard.
24
If equipped
Collision Mitigation Brake System (CMBS)
Overview
Driving
355
RADAR SENSOR
BRAKE ACTUATOR SEAT BELT
E-PRETENS
IONER
——
y
y
(yy

CONT INUED

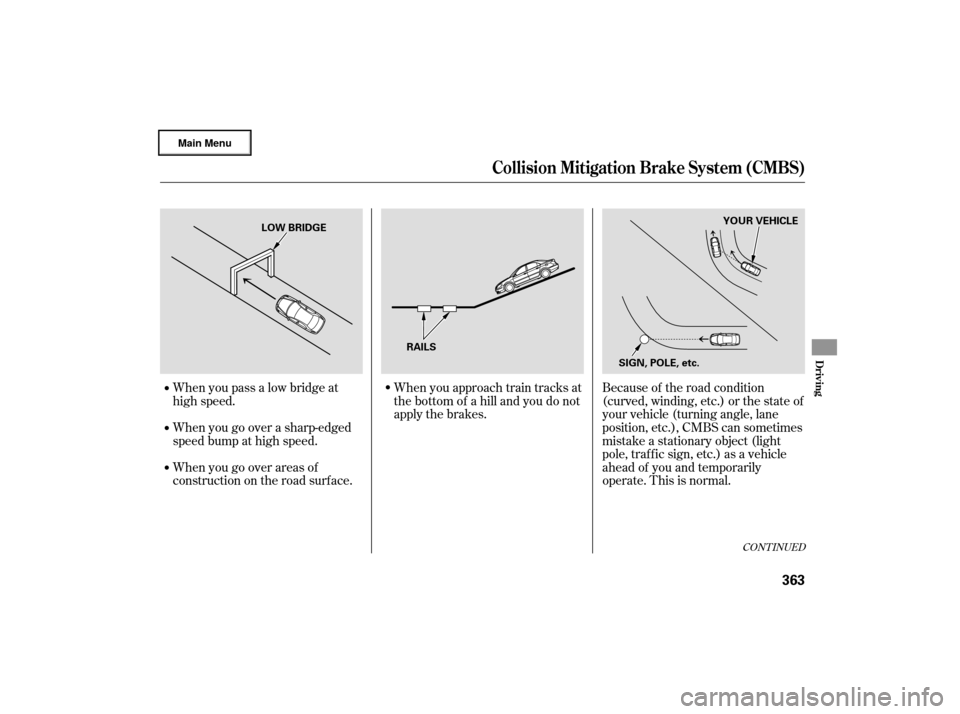

When you pass a low bridge at
high speed.When you approach train tracks at
the bottom of a hill and you do not
apply the brakes.Because of the road condition
(curved, winding, etc.) or the state of
your vehicle (turning angle, lane
position, etc.), CMBS can sometimes
mistake a stationary object (light
pole, traf f ic sign, etc.) as a vehicle
ahead of you and temporarily
operate. This is normal.
When you go over a sharp-edged
speed bump at high speed.
When you go over areas of
construction on the road surface.
Collision Mitigation Brake System (CMBS)
Driving
363
LOW BRIDGE
RAILS YOUR VEHICLE
SIGN, POLE, etc.
——
y
y
(yy

It is possible that the pressures
shown on the multi-inf ormation
display and the pressures you
manually measure are slightly
dif f erent.
If the dif f erence is signif icant or you
cannot make the low tire pressure
indicator and message on the multi-
inf ormation display go out af ter
inf lating the tires to the specif ied
values, have your dealer check the
system as soon as possible.If there is a problem with the TPMS,
the multi-information display shows
a ‘‘CHECK TPMS SYSTEM’’
message.If you see this message, the tire
pressure monitor shows a ‘‘SYSTEM
FUNCTION ERROR’’ message. The
system may not be able to detect or
signal low tire pressure as intended.
Also, the tire pressure readings will
not be displayed. Have your vehicle
checked by a dealer as soon as
possible.
CONT INUED
Check T PMS System Message
Tire Pressure Monitoring System (TPMS)
Driving
369
——
y
y
(yy

Always use saf ety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it
becomes unhitched. Leave enough
slack to allow the trailer to turn
corners easily, but do not let the
chains drag on the ground.Acura recommends that any trailer
having a total weight of 1,000 lbs
(450 kg) or more be equipped with
its own electric or surge-type brakes.
If you choose electric brakes, be
sure they are electronically actuated.
Do not attempt to tap into your
vehicle’s hydraulic system. No
matter how successf ul it may seem,
any attempt to attach trailer brakes
to your vehicle’s hydraulic system
will lower braking ef f ectiveness and
create a potential hazard.Trailer lights and equipment must
comply with federal, state, and local
regulations. Check with your local
trailerdealerorrentalagencyforthe
requirements in your area, and use
only equipment designed f or your
vehicle.
Since lighting and wiring vary by
trailer type and brand, you should
have a qualified technician install a
suitable connector between the
vehicle and the trailer. Improper
equipment or installation can cause
damage to your vehicle’s electrical
system and af f ect your vehicle
warranty.
Seeyourtrailerdealerorrental
agency f or more inf ormation on
installing electric brakes.
CONT INUED
Saf et y Chains
T railer L ight s
Trailer Brakes
Towing a Trailer
Driving
375
——
y

y
(yy

Many states and Canadian provinces
require special outside mirrors when
towing a trailer. Even if they don’t,
you should install special mirrors if
you cannot clearly see behind you, or
if the trailer creates a blind spot.
Askyourtrailersalesorrental
agency if any other items are
recommended or required f or your
towing situation.When preparing to tow, and bef ore
driving away, be sure to check the
f ollowing:
The vehicle has been properly
serviced, and the tires, brakes,
suspension, cooling system, and
lights are in good operating
condition.
All items in or on the trailer are
properly secured and cannot shif t
while you drive. Thehitch,safetychains,andany
other attachments are secure. All weights and loads are within
limits. The trailer has been properly
serviced and is in good condition,
and the lights and brakes on the
trailer are working properly. Your vehicle tires and spare are
properly inf lated, and the trailer
tires and spare are inflated as
recommended by the trailer
maker.
Pre-T ow Checklist
Towing a Trailer
A ddit ional T owing Equipment
376
——
y
y
(y
y

This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer. This section also includes
instructions on how to read the
maintenance minder messages on
the multi-information display, a
maintenance record, and instructions
for simple maintenance tasks you
may want to take care of yourself. ......................
Maintenance Saf ety .380
....................
Maintenance Minder . 381
....................
Maintenance Record .391
..............................
Fluid Locations .393
......
Engine Compartment Covers . 394
........................
Adding Engine Oil .395
.........
Changing the Oil and Filter . 396
..............................
Engine Coolant .398
....................
Windshield Washers .400
....
Automatic Transmission Fluid . 400
....................................
Brake Fluid .402
....................
Power Steering Fluid . 402
....................................
Timing Belt .403
.............................................
Lights .404
..................
DustandPollenFilter . 411
................
Cleaning the Seat Belts . 411
.....................................
Floor Mats .412
.................................
Wiper Blades .413
...........................................
Wheels .415
...............................................
Tires .415
...................
Checking the Battery . 423
.............................
Vehicle Storage .425
477
Maintenance
Maint enance
379
——
y
y
(yy

µµµ
µ
µ
µ
Ì Engine
oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you fill the fuel tank. See page .
Automatic transmission Check
the fluid level monthly. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
Tires
Check the tire pressure
monthly. Examine the tread for
wear and foreign objects. See page
.
Brakes
Check the fluid level
monthly. See page .
U.S.
Vehicles:
Your authorized dealer knows your
vehicle best and can provide
competent, efficient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualified service facility or
person who is skilled in this type of
automotive service. Keep all receipts
as proof of completion, and have the
person who does the work fill out the
maintenance record. Check your
warranty booklet for more
info rmation.
We recommend the use of Acura
parts and fluids whenever you have
maintenance done. These are
manufactured to the same high-
quality standards as the original
components, so you can be confident
of their performan ce and durability. According
to state and federal
regulations, failure to perform
maintenance on the items marked
with will not void your emissions
warranties. However, Acura
recommends that all maintenance
services be performed in accordance
with the intervals indicated by the
Multi-Info rmation Display.
Youshouldcheckthefollowing
items at the specified intervals. If
you are unsure of how to perform
any check, turn to the appropriate
page listed. 331
331
400 402
417
404
Maintenance Minder
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
Owner’s Maintenance Checks
388
——
y

y
(yy

The low beam headlight bulbs are a
type of high voltage discharge tube.
High voltage can remain in the
ci rcuit even with the light switch off
and the key removed. Because of
this, you should not attempt to
examine or change a low beam
headlight bulb yourself. If a low
beam headlight bulb fails, take the
vehicle to your dealer to have it
replaced. Your
vehicle has halogen high beam
headlight bulbs which are also used
for the daytime running light.
Handle it by its base and protect the
glass from contact with your skin or
hard objects. If you touch the glass,
clean it with denatured alcohol and a
clean cloth.
Your
vehicle is equipped with an
automatic headlight adjusting
system that adjusts the vertical angle
of the headlights automatically.
Refer to page for more
inf ormation.
Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer (if applicable),
readjustment may be required.
Adjustmentsshouldbedonebyyour
dealer or other qualif ied technician. 144
Lights
Headlight A iming
Replacing a Headlight/Daytime
Running L ight Bulb
404
Halogen bulbs get very hot when lit. Oil,
perspiration, or a scratch on the glass
can cause the bulb to overheat and
shatter.
——
y


y
(yy

CONTINUED
Remove the electrical connector
from the bulb by pushing on the
tab and pulling the connector
down.
Remove the bulb by turning it one-
quarter turn counterclockwise.
Remove
the left or right side
engine compartment cover from
thesideyouareworkingonby
carefully pulling the cover out (see
page ).
Ifyouarereplacingthebulbon
the driver’s side, remove the
ba ttery cover (see page ), then
remove the battery hold-down by
removing the two nuts with a 10
mm wrench. Then caref ully slide
the battery toward the engine to
access the bulb. 2.
3.
1.
394
424
Lights
Maint enance
405
NUTSBULB
BATTERY HOLD-DOWN CONNECTOR
——
y

y
(y
y
