display Acura RL 2007 Owner's Manual

µ
The
following pages pro vide
instru ctions on how to properly
protect the driver, adult
passengers, and teen age children
who are large enough and mature
enough to drive or ride in the front.
See pages f or important
guidelines on how to properly
protect inf ants, small children, and
larger children who ride in your
vehicle.
After everyone has entered the
vehicle, be sure the doors are
closed and locked. When the trunk is not tightly closed,
the ‘‘TRUNK OPEN’’ indicator will
stay on.
Your vehicle has door monitor
indicators on the multi-information
display to indicate when a specif ic
door or the trunk is not tightly closed.
You will see the appropriate indicator
and the message f or each condition.
When one or more doors are not
tightly closed, the ‘‘DOOR OPEN’’
indicator will stay on.
38 42
CONT INUED
Introduction
Close and L ock the Doors
1.
Protecting A dults and Teens
Driver and Passenger Saf ety
13
 — —
y

y
( y
y

CONTINUED
Your seat belt system includes lap/
shoulder belts in all five seating
positions. The front seat belts are
also equipped with automatic seat
belt tensioners and, on models with
collision mitigation brake system
(CMBS), seat belt e-pretensioners. The
seat belt system
includes an indicator on the
instrument panel and a beeper to
remind you and your passengers to
fasten your seat belts.
This system monitors the front seat
belts. If you turn the ignition switch
to the ON (II) position before your
seat belt is fastened, the beeper will
sound and the indicator will flash. If
your seat belt is not fastened before
the beeper stops, the indicator will
stop flashing but remain on.
If a front passenger does not fasten
their seat belt, the indicator will
come on about 6 seconds after the
ignition switch is turned to the ON
(II) position. If
either the driver or a front
passenger does not fasten their seat
belt, the beeper will sound and the
indicator will flash again at regular
intervals.
You will also see a ‘‘FAS TEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
information display (see page ).
When no one is sitting in the front
passenger’s seat, or a child or small
adult is riding there, the indicator
should not come on and the beeper
should not sound.
This
system uses the same sensors
as the front airbags to monitor
whether the front seat belts are
latched or unlatched, and how much
weight is on the front passenger’s
seat (see pages and ). 31 32 79
Seat Belt System Components
Additional Inf ormation About Your Seat Belts
Driver and Passenger Saf ety
21
 — —
y
 y
( y  y

CONTINUED
You will also see a ‘‘CHECK
AIRBAG SYSTEM’’ message on the
multi-info rmation display (see page
). This indicator alerts
you that the
passenger’s side airbag has been
automatically shut off. It does
mean there is a problem with your
side airbags.
If
you see any of these indications,
the airbags and seat belt tensioners
may not work properly when you
need them.
When you turn the ignition switch to
the ON (II) position, the indicator
should come on briefly and go out
(see page ). If it does not come on,
stays on, or comes on while driving
wi thout a passenger in the front seat,
you will also see a ‘‘PASSENGER
SIDE AIRBAG OFF’’ message on the
multi-information display. Have the
system checked (see page ). This indicator alerts you that the
passenger’s f ront airbag has been
shut of f because weight sensors
detectabout65lbs(29kg)orless
(the weight of an inf ant or small
child) on the f ront passenger’s seat.
It does there is a problem
with the airbag.
78
6379
Additional Inf ormation About Your Airbags
How the Passenger Airbag Of f
Indicator Works
How the Side Airbag Of f
Indicator Works
not
not mean
Driver and Passenger Saf ety
35
PASSENGER AIRBAG OFF INDICATOR
Canada
U.S.
Canada
U.S.
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
 — —
y
y
( y   y

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .60
............................
Instrument Panel .61
..........
Instrument Panel Indicators .62
.............................................
Gauges .70
...................
Temperature Gauge .70
..................................
Fuel Gauge .70
.............
Multi-Inf ormation Display .71
Controls Near the Steering
.........................................
Wheel .136
Windshield Wipers and .....................................
Washers .137
.......
Turn Signals and Headlights .140
.................................
Fog Lights .142
.........
Daytime Running Lights .142
Automatic Lighting Off
...................................
Feature .142
Adaptive Front Lighting System ..........................................
(AFS) .143
...............
Hazard Warning Button .145
......
Instrument Panel Brightness .145
...............
Rear Window Def ogger .146
......
Steering Wheel Adjustments .147
.............................
Keys and Locks .149
......................
Immobilizer System .150
..............................
Ignition Switch .151
....................................
Door Locks .152..............................................
Trunk .153
......
Emergency Trunk Opener .154
................
Childproof Door Locks .154
...............................................
Seats .155
...........................................
Mirrors .159
Driving Position Memory ........................................
System .160
................
Keyless Access System .163
..................................
Seat Heaters .178
Seat Heaters and Seat .................................
Ventilation .179
............................
Power Windows .181
.......................................
Moonroof .183
...............................
Parking Brake .187
.........
Interior Convenience Items .188
..................................
Glove Box .189
.....................
Beverage Holders .190
.............
Console Compartment . 191
..................................
Sun Visors .192
........
Accessory Power Sockets . 192
...........................
Rear Ashtrays .193
..................
Front Door Pockets . 193
..............
Power Rear Sunshade . 194
..............
Integrated Sunshades . 195
...............................
Interior Lights .196
Instruments and Controls
Inst rument s and Cont rols
59
 — —
y
 y
( y  y

ÎÎ
Î
Î The U.S. instrument panel is shown. Differences for the Canadian models are noted in the text.
If equipped.
:

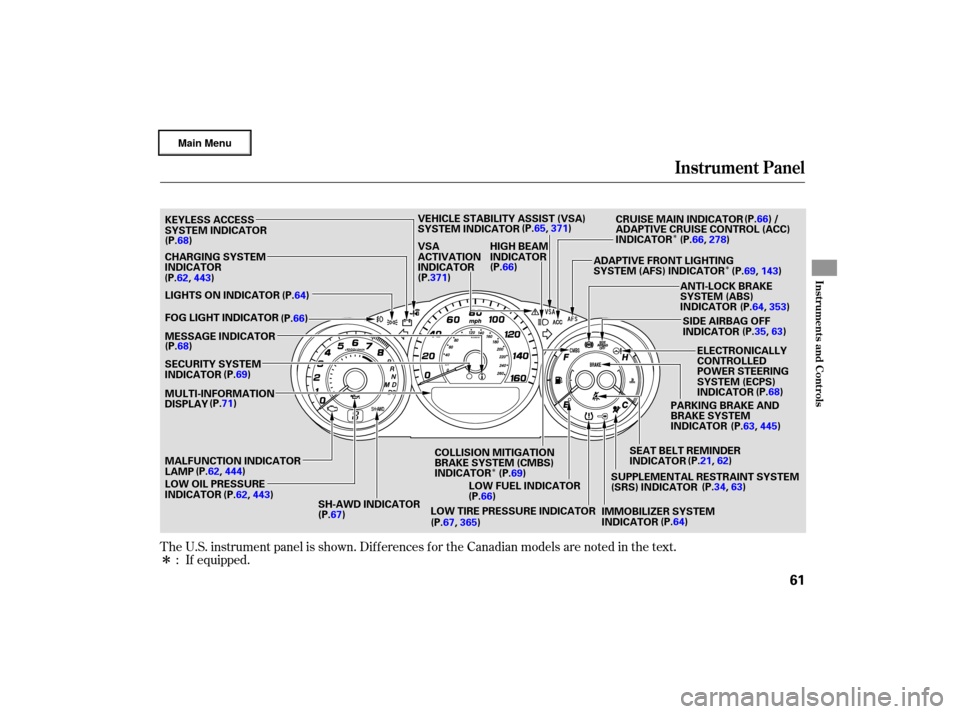

Instrument Panel
Instru m ent sand Cont ro ls
61
SEAT BELT REMINDER
INDICATOR
CHARGING
SYSTEM
INDICATOR KEYLESS ACCESS
SYSTEM INDICATOR
LOW OIL PRESSURE
INDICATOR MALFUNCTION INDICATOR
LAMP
SH-AWD INDICATOR LOW
FUEL INDICATOR CRUISE
MAIN INDICATOR
ELECTRONICALLY
CONTROLLED
POWER STEERING
SYSTEM (ECPS)
INDICATOR
LIGHTS
ON INDICATOR
FOG LIGHT INDICATOR
MULTI-INFORMATION
DISPLAY MESSAGE INDICATOR
SECURITY SYSTEM
INDICATOR (P.64)
(P.68)
(P.66)
(P.68)
(P.69)
(P.71)
(P.66)(P.64)(P.21,
62) (P.68)
ANTI-LOCK
BRAKE
SYSTEM (ABS)
INDICATOR (P.66)
/
(P.34, 63)
IMMOBILIZER SYSTEM
INDICATOR SUPPLEMENTAL
RESTRAINT SYSTEM
(SRS) INDICATOR
VEHICLE
STABILITY ASSIST (VSA)
SYSTEM INDICATOR
VSA
ACTIVATION
INDICATOR (P.66) HIGH
BEAM
INDICATOR
LOW TIRE PRESSURE INDICATOR
(P.62,
443)
(P.62, 444)
(P.62, 443)
(P.67) (P.67, 365)
COLLISION
MITIGATION
BRAKE SYSTEM (CMBS)
INDICATOR (P.64,
353)
ADAPTIVE
CRUISE CONTROL (ACC)
INDICATOR
(P.65,
371)
(P.371) ADAPTIVE
FRONT LIGHTING
SYSTEM (AFS) INDICATOR
(P.69, 143)
(P.69) (P.66,
278)
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (P.63, 445)
SIDE
AIRBAG OFF
INDICATOR (P.35,
63)
 — —
y
y
( y  y

The instrument panel has many
indicators to give you important
info rmation about your vehicl e.
You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display. For
more information, see page .
The
engine can be severely damaged
if this indicator flashes or stays on
when the engine is running, or if a
‘‘CHECK ENGINE OIL LEVEL’’
message is on the multi-information
display. For more information, see
page .
If this indicator comes on when the
engine is running, the battery is not
being charged, and you will also see
a ‘‘CHECK CHARGING SYSTEM’’
message on the multi-information
display. For more information, see
page .
This
indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passenger to fasten your seat belts.
A beeper also sounds if you have not
fastened your seat belt.
If you turn the ignition switch to the
ON (II) position before fastening
your belt, the beeper sounds and the
indicator flashes. If you do not fasten
your seat belt before the beeper
stops, the indicator stops flashing
but remains on. If
your front passenger does not
fasten their seat belt, the indicator
comes on about 6 seconds after the
ignition switch is turned to the ON
(II) position.
If either of you do not fasten your
seat belt while driving, the beeper
will sound and the indicator will flash
again at regular intervals. For more
info rmation, see page .
You will also see a ‘‘FASTEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
information display (see page ).
21
79 443
443
444
Instrument Panel Indicators
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Seat Belt Reminder
Indicator
62
 — —
y
y
( y  y

This indicator has two functions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. Driving with
the parking brake not fully
released can damage the rear
brakes, axles, and tires.
If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ).
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, it can
indicate a problem in the brake system.
You will also see a
‘‘BRAKE FLUID LOW’’ or
‘‘CHECK BRAKE SYSTEM’’
message on the multi-information
display. For more information, see
page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. If it comes on at any
other time, it indicates that the
passenger’s side airbag has
au tomatically shut off. You will also
see a ‘‘PASSENGER SIDE AIRBAG
OFF’’ message on the multi-
information display (see page ).
For more information, see page .This
indicator comes on briefly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
poten tial problem with your front
airbags. This indica tor will also alert
you to a poten tial problem with your
side airbags, passenger’s side airbag
automatic cutoff system, side curtain
airbags, automatic seat belt
tensioners driver’s seat position
sensor, the front passenger’s weight
sensors, or, on models with ACC,
seat belt e-pretensioners. You will
also see a ‘‘CHECK AIRBAG
SYSTEM’’ message on the multi-
inf ormation display (see page ).
For more inf ormation, see page .
1.
2.
78
3578
35
445
79
Instrument Panel Indicators
Parking Brake and Brake System
Indicator Supplemental Restraint
System Indicator
Side Airbag Of f Indicator
Inst rument s and Cont rols
63
U.S. Canada U.S. Canada
 — —
y
y
( y  y

This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either the
or position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning off the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door. This
indicator comes on for a few
seconds when you turn the ignition
switch to the ON (II) position. It will
then go off if you have a properly-
coded remote. If it is not a properly-
coded remote, the indicator will blink
and the engine will not start (see
page ). This
indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If this indicator comes on at
any other time, there is a problem in
theABS.Ifthishappens,takethe
vehicle to your dealer to have it
checked. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock function. You
will also see a ‘‘CHECK ABS
SYSTEM’’ message on the multi-
inf ormation display (see page ).
For more inf ormation, see page .
If you use the built-in key, this
indicator blinks several times when
you turn the ignition switch f rom ON
(II) to the ACCESSORY (I) position. If you use the remote, this indicator
blinks several times when you turn
the ignition switch from
ACCESSORY (I) to the LOCK (0)
position.
78
150
353
Instrument Panel Indicators
Lights On IndicatorImmobilizer System
Indicator Anti-lock Brake System
(A BS) Indicator
64
 — —
y
 y
( y  y

This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. This
indicator has three functions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
This indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position. For more information, see
page . The
left or right turn signal indicator
blinks when you signal a lane change
or turn. If the indicator does not
blink or blinks rapidly, it usually
means one of the turn signal bulbs is
burned out (see page ). Replace
the bulb as soon as possible, since
other drivers cannot see that you are
signaling.
When you press the hazard warning
button, both turn signals blink. All
turn signals on the outside of the
vehicle should flash.
It
comes on along with the VSA
system indicator if there is a
problem with the VSA system.
You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
information display (see page ).
Ifitcomesonandstaysonatany
other
time, or it does not come on
wh en you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. You
will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
info rmation display (see page ).
Take your vehicle to a dealer to have
it checked. Without VSA, your
vehicle still has normal driving ability,
but will not have VSA traction and
stability enhancement. For more
info rmation, see page . 1.
2.
3.
78 78
371 371371
406
Instrument Panel Indicators
Vehicle Stability Assist
(VSA ) System IndicatorVSA Activation Indicator
Turn Signal and
Hazard Warning
Indicators
Inst rument s and Cont rols
65
 — —
y

y
( y   y

This indicator comes on when you
tu rn on the fog lights. For more
info rmation, see page .
This indicator comes on with the
high beam headlights. For more
info rmation, see page .
This indicator also comes on with
reduced brightness when the
daytime running lights (DRL) are on
(see page ).
This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page ). This
indicator normally comes on for
a few seconds when you turn the
ignition switch to the ON (II)
position.
When you push the ACC button on
the steering wheel, this indicator
comes on green. You will also see
‘‘ACC’’ on the multi-info rmation
display.
If the indicator comes on orange,
there is a problem with the ACC
system. You will also see a ‘‘CHECK
ACC SYSTEM’’ message on the
multi-info rmation display (see page
). Take your vehicle to your
dealer to have it checked. For more
info rmation, see page . This
indicator is in the fuel gauge. It
comesonasareminderthatyou
must refuel soon. You will also see a
‘‘FUEL LOW’’ message on the multi-
information display (see page ).
When the indicator comes on, there
is about 2.69 U.S. gal (10.2
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E. 79
79
142
140
142
275 278
On models without adaptive cruise
control (ACC) On models with adaptive cruise control
(ACC)
Instrument Panel Indicators
Fog L ight Indicator L ow Fuel Indicator
High Beam Indicator
Cruise Main Indicator A daptive Cruise Control
(A CC) Indicator
66
LOW FUEL INDICATOR
 — —
y

y
( y
y
