Acura RL 2010 Owner's Manual

ÛÝ
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. To exit DOOR LOCK MODE
without changing the current setting,
select EXIT by pressing the INFO
( / ) button, and then press the
SEL/RESET button. The screen
goes back to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE SETUP. If this
happens, you need to repeat the door
lock mode setup.
Multi-Inf ormation Display
128
——y
y
(y
y
2010 RL

ÛÝÛÝ
When you press the LOCK button
on the remote to lock the doors and
the trunk, and then press the button
again within 5 seconds, a beeper
sounds once and the exterior lights
blink once to verif y that the doors
arelockedandthesecuritysystemis
set.

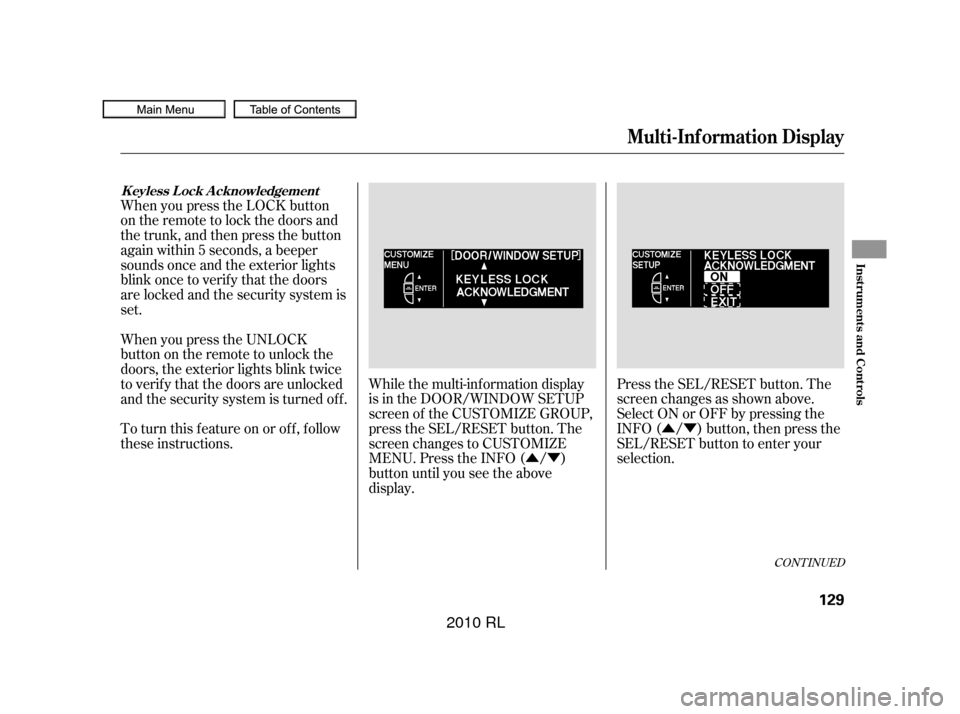

While the multi-information display
is in the DOOR/WINDOW SETUP
screen of the CUSTOMIZE GROUP,
press the SEL/RESET button. The
screen changes to CUSTOMIZE
MENU. Press the INFO ( / )
button until you see the above
display.Press the SEL/RESET button. The
screen changes as shown above.
Select ON or OFF by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
When you press the UNLOCK
button on the remote to unlock the
doors, the exterior lights blink twice
to verify that the doors are unlocked
and the security system is turned of f .
To turn this feature on or off, follow
these instructions.
CONT INUED
K eyless L ock A cknowledgement
Multi-Inf ormation Display
Inst rument s and Cont rols
129
——y
y
(y
y
2010 RL

ÛÝ
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY. If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE SETUP. If this
happens, you need to repeat the
keyless lock acknowledgment setup.To exit KEYLESS LOCK
ACKNOWLEDGMENT without
changing the current setting, select
EXIT by pressing the INFO ( / )
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
Multi-Inf ormation Display
130
——y

y
(y
y
2010 RL

ÛÝÛÝ
When you unlock the doors by
pressing the UNLOCK button on the
remote, but do not open any door,
the doors relock and the security
system sets within 30 seconds. To
change the relock time, f ollow these
instructions.
While the multi-information display
is in the DOOR/WINDOW SETUP
screen of the CUSTOMIZE GROUP,
press the SEL/RESET button. The
screen changes to CUSTOMIZE
MENU. Press the INFO ( / )
button until you see the above
display.Press the SEL/RESET button. The
screen changes as shown above.
Select the relock time you want (90,
60, or 30 seconds) by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
CONT INUED
Securit y Relock T imer
Multi-Inf ormation Display
Inst rument s and Cont rols
131
——y

y
(y
y
2010 RL

ÛÝ
To exit SECURITY RELOCK
TIMER without changing the
current setting, select EXIT by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE SETUP. If this
happens, you need to repeat the
security relock timer setup.
Multi-Inf ormation Display
132
——y
y
(y
y
2010 RL

ÛÝÛ
Ý
ÛÝ
ÛÝ
While the multi-information display
is in the CUSTOMIZE GROUP
screen, select WIPER SETUP by
pressing the INFO ( / ) button,
then press the SEL/RESET button. The changeable setting under
WIPER SETUP is called WIPER
ACTION. To get into WIPER
ACTION, do this:
Each time you press the INFO ( /) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
WIPER ACTION, then press the
SEL/RESET button to enter your
selection.
CONT INUED
Multi-Inf ormation Display
Wiper Setup
Inst rument s and Cont rols
133
see page 134
Press the or button.
Press the SEL/RESET button.
——y
y
(y
y
2010 RL

Û
Ý
µ
µ
You can select from these two
settings when the wiper switch is in
the INT (intermittent) position:
While the multi-information display
is in the WIPER SETUP screen of
the CUSTOMIZE GROUP, press the
SEL/RESET button. The screen
changes to the above display.Press the SEL/RESET button. The
screen changes as shown above.
Select INTERMITTENT or WITH
VEH SPD by pressing the INFO ( /
) button, then press the SEL/
RESET button to enter your
selection.
INTERMITTENT The
intermittent operation varies
according to the selection you make
on the wiper lever’s intermittent
control ring.
WITH VEH SPD The intermittent
operation varies according to vehicle
speed.
Wiper Action
Multi-Inf ormation Display
134
——y
y
(y
y
2010 RL

ÛÝ
To exit WIPER ACTION without
changing the current setting, select
EXIT by pressing the INFO ( / )
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE ENTRY.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE SETUP. If this
happens, you need to repeat the
wiper action setup.
Multi-Inf ormation Display
Inst rument s and Cont rols
135
——y
y
(y
y
2010 RL

ÎÎ
Î
ÎÎ Î
Î
Î
Î
Î
Î
Î
To use the horn, press the center pad of the steering wheel.
On models with navigation system, refer to the navigation system manual.
If equipped. Canadian models only
1:
2:
3:
4:
Controls Near the Steering Wheel
136
MIRROR CONTROLS
VEHICLE STABILITY ASSIST (VSA)
SYSTEM OFF SWITCH
PADDLE SHIFTERS
STEERING WHEEL
AUDIO CONTROLS
STEERING WHEEL
ADJUSTMENTS
HEADLIGHT WASHER
SWITCH
COLLISION MITIGATION
BRAKE SYSTEM (CMBS)
OFF SWITCH
ADAPTIVE FRONT LIGHTING
SYSTEM (AFS) OFF SWITCH
VOICE CONTROL
BUTTONSHORN
(P.138)
HEADLIGHTS/
TURN SIGNAL/FOG
LIGHTS
(P.140,142) INSTRUMENT
PANEL BRIGHTNESS
WINDSHIELD WIPER/
WASHER HAZARD WARNING
BUTTON
PASSENGER AIRBAG
OFF INDICATOR
(P.
35)
(P.137)
BLUETOOTHHANDSFREELINKBUTTONS HEATED MIRROR BUTTON
REAR WINDOW DEFOGGER
BUTTON
CRUISE CONTROL
BUTTONS
ADAPTIVE CRUISE CONTROL
(ACC) BUTTONS
FRONT SEAT HEATER AND
SEAT VENTILATION BUTTONS MULTI INFORMATION
DISPLAY BUTTONS
FRONT SEAT HEATER
SWITCHES (P.71)
(P.145)
(P.148) (P.278)(P.304)(P.182)(P.
181 )/
(P.316)/
(P.162)
(P.147)/
(P.
146 )
(P.146)
(P.328,333) (P.
319 ,324 )
(P.403)
(P.416)
(P.430)
(P.354)DISTANCE BUTTON
(P.161)
2 4
4
31 4
4
4
——y
y
(y

y
2010 RL

µ
µ
µ µ
µ µ
µ
µ
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated. The wipers run at low speed.
The wipers run at high speed.
The length of the wipe
interval is varied automatically
according to vehicle speed.
To change the ‘‘WIPER ACTION’’
setting, see page .
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay ( position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
1.
2.
3.
4.
5.
6.
134
CONT INUED
MIST
OFFLO
HI
INT
Windshield Wipers and Washers
Inst rument s and Cont rols
137
ADJUSTMENT RING
——y
y
(y
y
2010 RL
