If the AFS indicator comes on and
starts blinking while driving, pull to
the side of the road when it is saf e,
andturnoff theengine.If theAFS
indicator keeps blinking, or starts
blinking again while driving af ter
turning the ignition switch to the ON
(II) position, the AFS is not working
properly (see page ). Have the
AFS inspected by your dealer.
When the AFS indicator comes on,
you will also see a ‘‘CHECK
ADAPTIVE FRONT LIGHTING
SYSTEM’’ message on the multi-
inf ormation display (see page ). Without AFS, your vehicle still has
normal lighting ability to continue
driving.
The adaptive f ront lighting system
(AFS) helps to improve visibility
during nighttime driving. The AFS
controls the aiming direction and
lighting distribution of the low
beams according to the amount of
turn applied to the steering wheel
during cornering or turning. Press
the AFS OFF switch to turn the AFS
on and off when the ignition switch
is in the ON (II) position and the
headlights are turned on.
69
78
If equippedAFS Indicator
A daptive Front L ighting System (A FS)
144
——y
y
(y
y
2010 RL

When you are pressing the ignition
switch, or when the ignition switch is
in the ON (II) position, the beeper
sounds if you take the remote out of
the vehicle and close the door.
To remove the ignition switch cover,
insert the built-in key (see page ),
then pull the cover out by pulling the
built-in key while pushing it.
Also, if you close the door when the
ignition switch is not in the LOCK
(0) position and the remote is not
inside the vehicle, the keyless access
alarm sounds outside the vehicle, a
message appears on the multi-
inf ormation display, and the beeper
sounds if the ignition switch is in the
ON (II) position.
When the beeper sounds af ter you
close the driver’s door outside the
vehicle, check the position of the
ignition switch and the location of
the remote.
If the engine is running and you
removetheremotefromthevehicle,
it will continue to run. But once
turned to the LOCK (0) position, the
engine will not restart until a remote
is brought back into the vehicle.
180
CONT INUED
Beeper and Message
Removing the Ignition Switch
Cover
K eyless Remot e Not Det ect ed
K eyless A ccess System
Inst rument s and Cont rols
177
BUILT-IN KEY
IGNITION SWITCH COVER
pushpull
——y
y
(y
y
2010 RL

Thebatteriesintheremotenormally
last about 2 years. To ensure
maximum battery lif e, do not store
the remote close to electrical devices
such as computers or TVs. When the
multi-inf ormation display shows
‘‘KEYLESS REMOTE LOW
BATTERY,’’ replace the batteries as
soon as possible (see page ).
The engine does not restart if you
turn the ignition switch to the LOCK
(0) position when the remote is
outside the vehicle. Check where the
remote is. Make sure that you carry
the remote or built-in key with you
when you operate the ignition switch.
When the ignition switch is in the
ON (II) position, the multi-
inf ormation display shows
‘‘KEYLESS REMOTE NOT
DETECTED,’’ and the inside and
outside beepers sound.
The multi-inf ormation display
message goes away when you
bring the remote back inside the
vehicle, and close the door or
apply the parking brake. The outside beeper sounds when
the ignition switch is in the
ACCESSORY (I) or the ON (II)
position.
If the engine is running and you
removetheremotefromthe
vehicle, it will continue to run.
Once turned to the LOCK (0)
position, the engine will not restart
until a remote is brought back into
the vehicle. If you pass the remote through an
open window, the system does not
respond.Also,evenwhentheremote
is inside the vehicle, the beeper may
sound when the location of the
remote is not detected due to
surrounding conditions. It is not a
f ailure. Make sure that you carry the
remote with you.
174
K eyless Remot e L ow Bat t ery
K eyless A ccess System
178
——y
y
(y
y
2010 RL

The keyless access system
indicator comes on and stays on
while you are driving.
The indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. Have
your vehicle checked by your dealer
if : In this case, use the built-in key to
lock/unlock the doors and start the
engine.The multi-inf ormation display
shows ‘‘CHECK KEYLESS
ACCESS SYSTEM.’’ The indicator comes on with the
ignition switch in the ON (II)
position.Check K eyless A ccess Syst em
K eyless A ccess System
Inst rument s and Cont rols
179
KEYLESS ACCESS SYSTEM
INDICATOR
——y
y
(y
y
2010 RL

Bef ore you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important f luids. You also
need to know how to properly store
luggage or packages. The
inf ormation in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first..............................
Break-in Period .378
.................
Fuel Recommendation . 378
.........
Service Station Procedures . 379
....................................
Ref ueling .379
.....
Tighten Fuel Cap Message . 381
Opening and Closing ................................
the Hood .381
...................................
Oil Check .383
.............
Engine Coolant Check . 383
...............................
Fuel Economy .384
...
Accessories and Modif ications . 387
.............................
Carrying Cargo .389
Bef ore Driving
Bef ore Driving
377
——y
y
(yy
2010 RL

Park the vehicle, and set the
parking brake. Pull the hood
release lever located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Your vehicle’s on board diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘TIGHTEN FUEL CAP’’ message
appears on the multi-inf ormation
display. Turn the engine of f , and
conf irm the f uel f ill cap is installed. If
it is, loosen it, then retighten it until
it clicks at least once. The message
should go of f af ter several days of
normal driving once you tighten or replace the f uel f ill cap. To scroll to
another message, press the INFO
button. The ‘‘TIGHTEN FUEL CAP’’
message will appear each time you
restart the engine until the system
turns the message of f .
If the system still detects a leak in
the vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
1.
501
CONT INUED
Opening and Closing the Hood
Tighten Fuel Cap Message
Service Station Procedures
Bef ore Driving
381
HOOD RELEASE LEVER
——y
y
(yy
2010 RL

Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower
mark, seeon
page .
Wait a f ew minutes af ter turning the
engine of f bef ore you check the oil.
Remove the dipstick (orange loop).
Wipe the dipstick with a clean
cloth or paper towel.
Insert the dipstick all the way back
into its hole. Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page .
Refer to on page f or inf ormation
about checking other items on your
vehicle.
4.
1.
2.
3. 452 455
446
Engine Coolant Check
A dding Engine Oil
Oil Check
A dding
Engine Coolant
Owner’s Maintenance
Checks
Service Station Procedures
Bef ore Driving
383
MAX
MIN
LOWER MARK UPPER MARK
DIPSTICK
RESERVE TANK
——y
y
(yy
2010 RL

µµµ µ
µ µ
µ
Aggressive driving (hard
acceleration and braking)
Excessive idling, accelerating and
braking in stop-and-go traf f ic
Cold engine operation (engines
aremoreefficientwhenwarmed
up)
Driving with a heavy load or the
air conditioner running
Improperly inf lated tires
An underinf lated tire increases
‘‘rolling resistance,’’ which reduces
f uel economy.
It puts a heavier
load on the engine, increasing f uel
consumption. In
particular, a build-up of snow or
mud on your vehicle’s underside
adds weight and rolling resistance.
Frequent cleaning helps your f uel
economy.
The f ollowing f actors can lower your
vehicle’s f uel economy:
A properly maintained vehicle
maximizes f uel economy. Poor
maintenance can signif icantly reduce
f uel economy. Always maintain your
vehicle according to the maintenance
messages displayed on the multi-
inf ormation display (see
on page ).
For example: Idling
results in 0 miles per gallon (0 kms
per liter). If your vehicle has a
manual transmission, you can
boost your f uel economy by up
shif ting as early as possible. Aerodynamic drag has a big ef f ect
on f uel economy at speeds above
45 mph (75 km/h). Reduce your
speed and you reduce the drag.
Trailers, car top carriers, roof
racks and bike racks are also big
contributors to increased drag.
Rapid
acceleration, abrupt cornering,
and hard braking increase fuel
consumption.
446
CONT INUED
Fuel Economy
Fuel Economy Factors Use the recommended viscosity
motor oil, displaying the A PI
Certif ication Seal (see page ).
Maintain proper tire inf lation
A void carrying excess weight in
your vehicle
K eep your vehicle clean
Improving Fuel Economy
Owner’s
Maintenance Checks Avoid excessive idling Always drive in the highest gear
possible Observe the speed limit
Drive moderately 452
Drive Ef f icient ly
Vehicle Maint enance
Bef ore Driving
385
——y

y
(yy
2010 RL

µµ
Fill the f uel tank until the nozzle automatically clicks of f .
Reset trip counter to zero.
Record the total gallons (liters) needed to ref ill.
Follow one of the simple calculations above.
Direct calculation is the
recommended source of inf ormation
about your actual f uel economy.
Using f requency of f ill-ups or taking
f uel gauge readings are NOT
accurate measures of f uel economy.
Fuel economy may improve over the
f irst several thousand miles
(kilometers). The A/C
puts an extra load on the engine
which makes it use more f uel. Use
the f resh-air ventilation when
possible.
Combine several short trips into
one. A warmed-up engine is more
f uel ef f icient than a cold one.
1)
2)
3)
4)
Fuel Economy

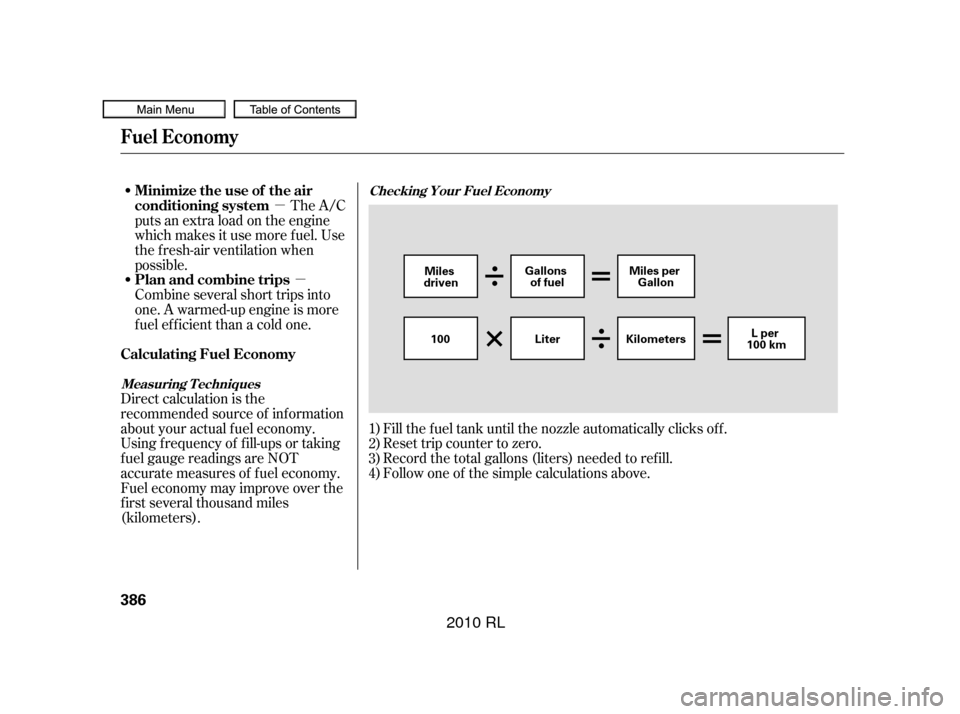

Checking Your Fuel Economy
Measuring T echniques
Calculating Fuel Economy Minimize the use of the air
conditioning system
Plan and combine trips
386
Miles
driven Gallons
of fuel Miles per
Gallon
100 KilometersLper
100 km
Liter
——y
y
(y
y
2010 RL

This section gives you tips on
starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important inf ormation on
parking your vehicle, the braking
system, the Super Handling-All
Wheel Drive (SH-AWD
)system,
the vehicle stability assist (VSA)
system, the tire pressure monitoring
system (TPMS), the collision
mitigation brake system (CMBS),
and f acts you need if you are
planning to tow a trailer. ........................
Preparing to Drive .396
.......................
Starting the Engine .397
Check Starting System .................................
Message .398
..............
Automatic Transmission . 399
Driving with the Paddle ...................................
Shif ters .403
................
D-Paddle Shif t Mode . 403
..............
Sequential Shif t Mode . 405
Super Handling-All Wheel Drive .................
(SH-AWD
) System . 407
...........................................
Parking .409
.............................
Braking System .410
...............
Anti-lock Brakes (ABS) . 411
Collision Mitigation Brake ........................
System (CMBS) .413
Tire Pressure Monitoring ........................
System (TPMS) .423
Vehicle Stability Assist (VSA
),
aka Electronic Stability ........
Control (ESC), System . 429
...........................
Towing a Trailer .431
...................
Towing Your Vehicle . 436
Driving
Driving
395
TM
TM
——y

y
(yy
2010 RL
