ACURA RL 2011 Owners Manual

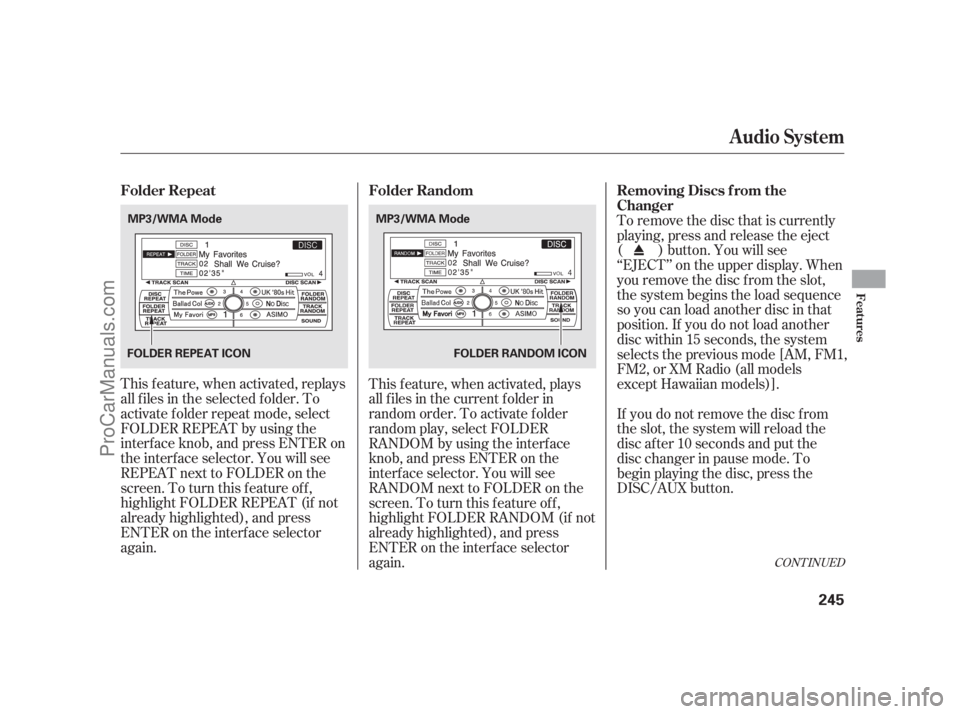

This f eature, when activated, replays
all f iles in the selected f older. To
activate f older repeat mode, select
FOLDER REPEAT by using the
interf ace knob, and press ENTER on
the interf ace selector. You will see
REPEAT next to FOLDER on the
screen. To turn this f eature of f ,
highlight FOLDER REPEAT (if not
already highlighted), and press
ENTER on the interf ace selector
again.This f eature, when activated, plays
all f iles in the current f older in
random order. To activate f older
random play, select FOLDER
RANDOM by using the interf ace
knob, and press ENTER on the
interf ace selector. You will see
RANDOM next to FOLDER on the
screen. To turn this f eature of f ,
highlight FOLDER RANDOM (if not
already highlighted), and press
ENTER on the interf ace selector
again.To remove the disc that is currently
playing, press and release the eject
( ) button. You will see
‘‘EJECT’’ on the upper display. When
you remove the disc f rom the slot,
the system begins the load sequence
so you can load another disc in that
position. If you do not load another
disc within 15 seconds, the system
selects the previous mode [AM, FM1,
FM2, or XM Radio (all models
except Hawaiian models)].
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds and put the
disc changer in pause mode. To
begin playing the disc, press the
DISC/AUX button.
CONT INUED
Audio System
Folder Repeat
Folder RandomRemoving Discs f rom the
Changer
Features
245
FOLDER REPEAT ICON FOLDER RANDOM ICON
MP3/WMA Mode
MP3/WMA Mode
10/08/04 19:23:57 31SJA660_250
ProCarManuals.com

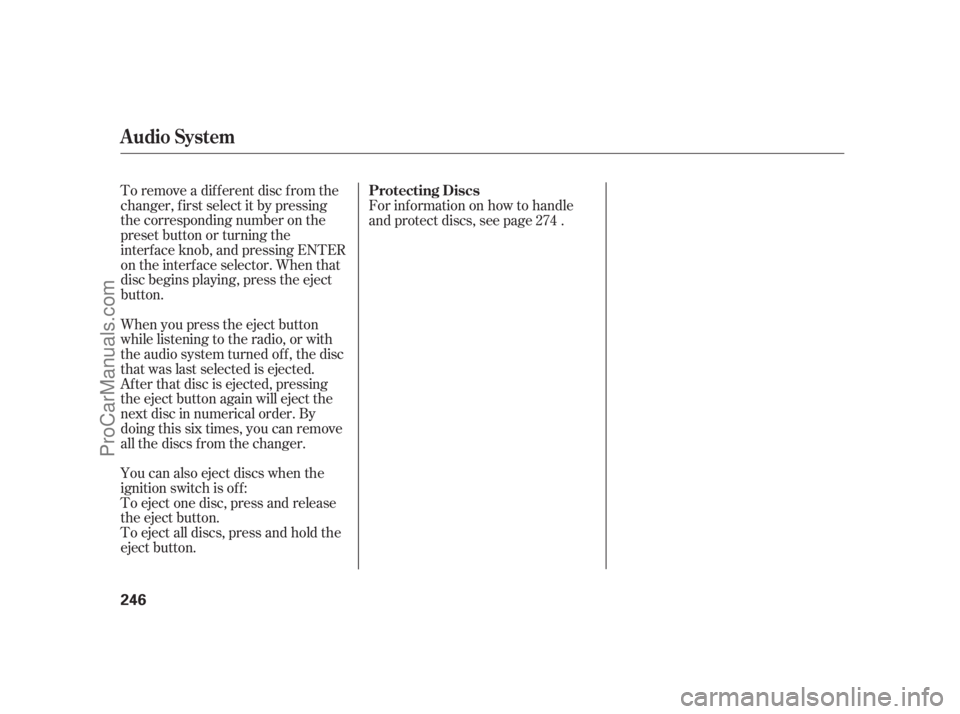

To remove a different disc from the
changer,firstselectitbypressing
the corresponding number on the
preset button or turning the
interf ace knob, and pressing ENTER
on the interf ace selector. When that
disc begins playing, press the eject
button.
When you press the eject button
while listening to the radio, or with
the audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the discs f rom the changer.
To eject all discs, press and hold the
eject button. You can also eject discs when the
ignition switch is of f :
To eject one disc, press and release
the eject button.For inf ormation on how to handle
and protect discs, see page .
274
Audio System
Protecting Discs
246
10/08/04 19:24:05 31SJA660_251
ProCarManuals.com

Audio System

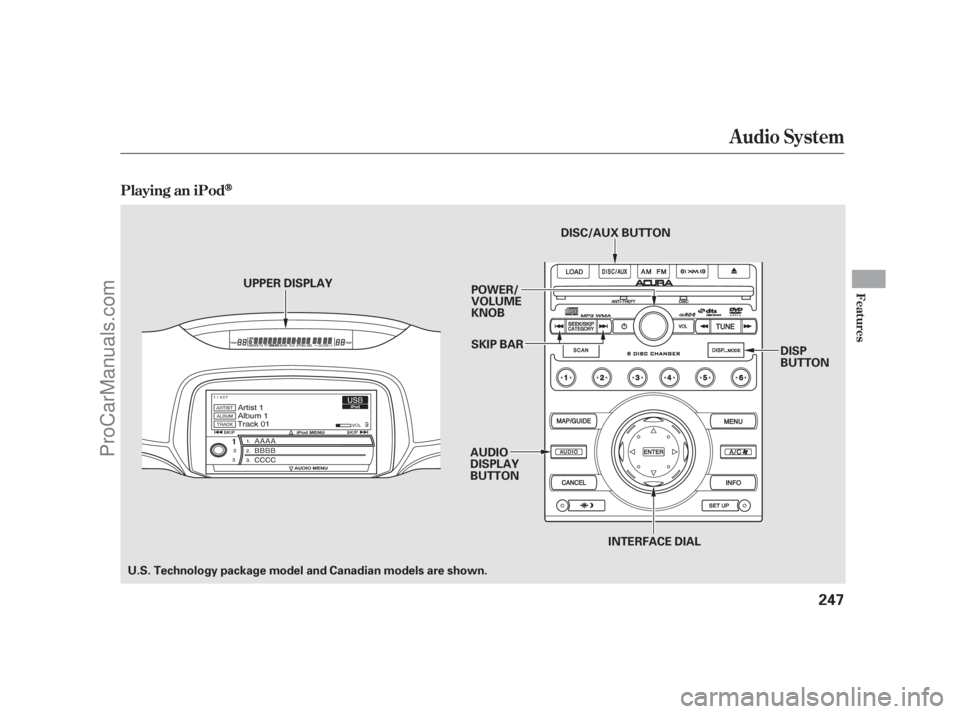

Playing an iPod
Features
247
AUDIO
DISPLAY
BUTTON
UPPER DISPLAY
POWER/
VOLUME
KNOB
SKIP BAR DISP
BUTTON
DISC/AUX BUTTON
INTERFACE DIAL
U.S. Technology package model and Canadian models are shown.
10/08/04 19:24:12 31SJA660_252
ProCarManuals.com

This audio system can operate the
audio f iles on the iPod
with the
same controls used f or the in-dash
disc changer. To play an iPod,
connect it to the USB adapter cable
in the console compartment by using
your dock connector, then press the
DISC/AUX button. The ignition
switch must be in the ACCESSORY
(I) or ON (II) position. The iPod will
also be recharged with the ignition
switch in these positions. The audio system reads and plays
playable sound f iles on the iPod. The
system cannot operate an iPod as a
mass storage device. The system will
only play songs stored on the iPod
with iTunes.
iPod and iTunes are registered
trademarks owned by Apple Inc.
You can select the AUX mode by
using the navigation system voice
control buttons, but cannot operate
theplaymodefunctions.iPod models conf irmed to be
compatible with your audio system
using the USB adapter cable are:
This system may not work with all
sof tware versions of these devices.
Model
iPod (5th generation)
iPod classic 80 GB/160 GB
(launch in 2007)
iPod classic 120 GB (launch in 2008)
iPod nano (1st to 5th generation)
iPod touch (1st and 2nd generation)
Audio System
To Play an iPod
Voice Cont rol Syst em
248
10/08/10 13:45:47 31SJA660_253
ProCarManuals.com

CONT INUED

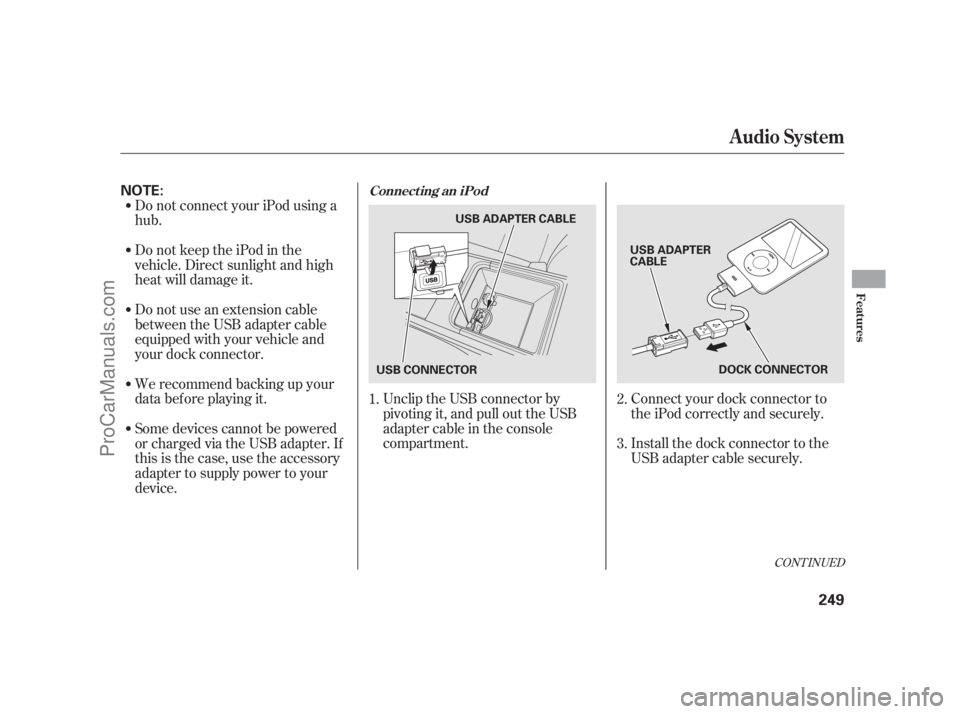

Unclip the USB connector by
pivoting it, and pull out the USB
adapter cable in the console
compartment. Install the dock connector to theUSB adapter cable securely. Connect your dock connector to
the iPod correctly and securely.
Do not connect your iPod using a
hub.
DonotkeeptheiPodinthe
vehicle. Direct sunlight and high
heat will damage it.
Do not use an extension cable
between the USB adapter cable
equipped with your vehicle and
your dock connector.
We recommend backing up your
data bef ore playing it.
Some devices cannot be powered
or charged via the USB adapter. If
this is the case, use the accessory
adapter to supply power to your
device.
1.
3. 2.
Audio System
Connect ing an iPod
Features
249
NOTE:
USB ADAPTER CABLEUSB ADAPTER
CABLE
DOCK CONNECTOR
USB CONNECTOR
10/08/04 19:24:36 31SJA660_254
ProCarManuals.com

µ
If the iPod indicator does not appear
in the audio display, check the
connections, and try to reconnect the
iPod a f ew times.
If the audio system still does not
recognize the iPod, the iPod may
need to be reset. Follow the
instructions that came with your
iPod, or you can f ind reset
instructions online at The current f ile number and total of
the selected playable f iles are
displayed in the upper display.
Pressing the AUDIO button displays
the artist, album and track (f ile)
names on the navigation screen. Each time you press and
release the side of the SKIP bar,
the system skips forward to the
beginning of the next f ile. Press and
release the side of the bar to
skip backward to the beginning of
the current f ile. Press it again to skip
to the beginning of the previous file. Use the SKIP bar while an iPod is
playing to select passages and
change f iles.
To move rapidly within a f ile, press
andholdeitherside( or )
of the SKIP bar.
www.apple.com/
itunes/
Audio System
T o Change or Select Files
SK IP
250
10/08/04 19:24:44 31SJA660_255
ProCarManuals.com

CONT INUED
You can also change files with the
interf ace dial. Press the AUDIO
button to show the audio control
display on the navigation screen.
Push the selector to the right side to
skip forward and to the left side to
skip backward.You can also select a file from any of
the iPod menus: playlists, artists,
albums and songs, by using the
interf ace dial. Press the AUDIO
button to display the audio control
display on the navigation screen.
Push up the interf ace selector to
display the iPod menu. Turn the
knob on the interf ace dial to select a
desired list.Push ENTER on the selector to
display the items on that list, then
turn the knob on the interface dial to
select a desired list. Pushing the
selector up or down moves a
selection to the top or bottom of the
screen items. Press ENTER to set
your selection.
Audio System
T o Select a File f rom iPod Menu
Features
251
10/08/04 19:24:54 31SJA660_256
ProCarManuals.com

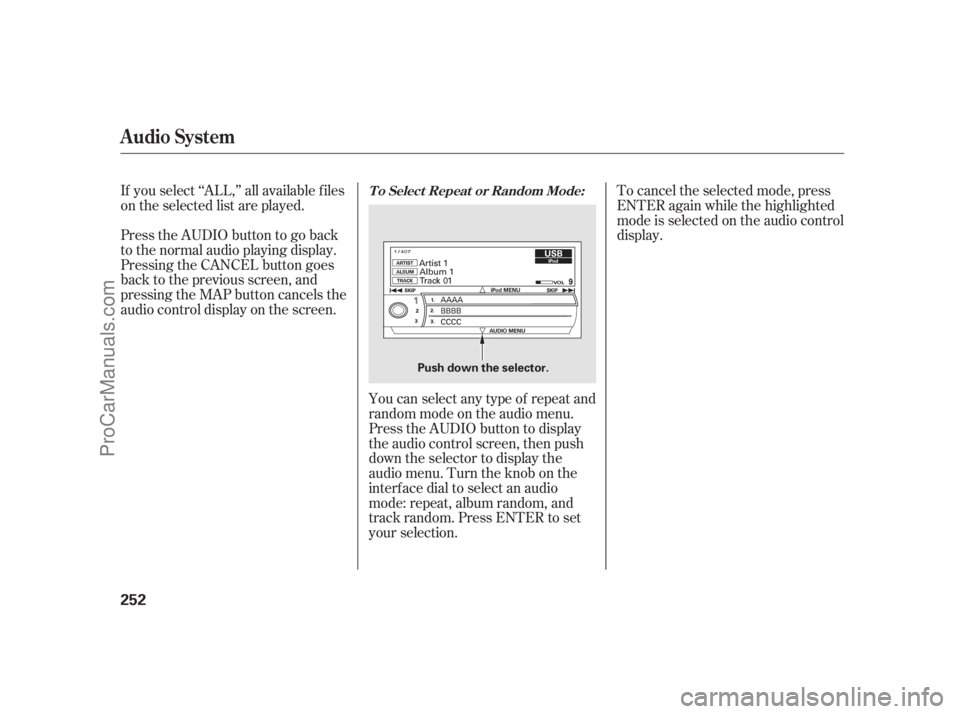

If you select ‘‘ALL,’’ all available f iles
on the selected list are played.
PresstheAUDIObuttontogoback
to the normal audio playing display.
Pressing the CANCEL button goes
back to the previous screen, and
pressing the MAP button cancels the
audio control display on the screen.You can select any type of repeat and
random mode on the audio menu.
Press the AUDIO button to display
the audio control screen, then push
down the selector to display the
audio menu. Turn the knob on the
interf ace dial to select an audio
mode: repeat, album random, and
track random. Press ENTER to set
your selection.To cancel the selected mode, press
ENTER again while the highlighted
mode is selected on the audio control
display.
Audio System
T o Select Repeat or Random Mode:
252
Push down the selector.
10/08/04 19:25:02 31SJA660_257
ProCarManuals.com

µµ
µ
CONT INUED

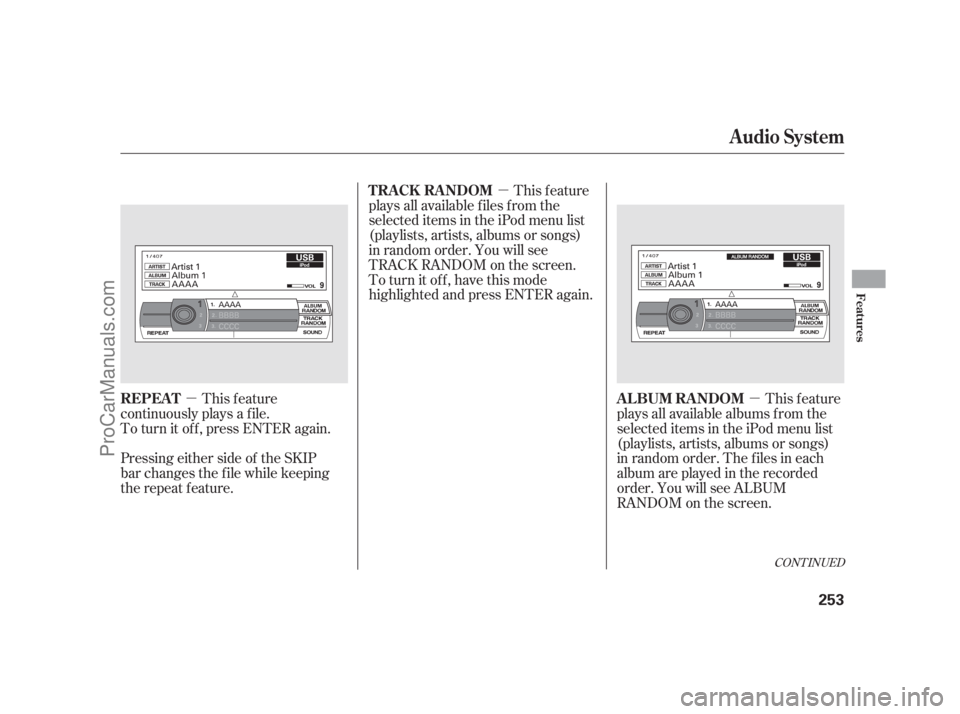

This feature
continuously plays a f ile.
To turn it off, press ENTER again.
Pressing either side of the SKIP
bar changes the f ile while keeping
the repeat f eature. This feature
plays all available f iles f rom the
selected items in the iPod menu list
(playlists, artists, albums or songs)
in random order. You will see
TRACK RANDOM on the screen.
To turn it off, have this mode
highlighted and press ENTER again.
This feature
plays all available albums from the
selected items in the iPod menu list
(playlists, artists, albums or songs)
in random order. The f iles in each
album are played in the recorded
order. You will see ALBUM
RANDOM on the screen.
Audio System
REPEAT TRACK RANDOM
ALBUM RANDOM
Features
253
10/08/04 19:25:11 31SJA660_258
ProCarManuals.com

Î
Î
To turn it off, have this mode
highlighted and press ENTER again.
You can also select another list from
theiPodmenuwhilekeepingthe
random f unction.
Available operating f unctions vary
on models or versions. Some
f unctions may not be available on
the vehicle’s audio system.
To play the radio, press the AM/FM
or XM button. Press the DISC/AUX
button to switch to the disc mode (if
a disc is loaded). Press the DISC/
AUX button to switch the audio
mode between the
audio
and iPod.
To play the radio, press the AM or
FM button. Press the DISC/AUX
button to switch to the disc mode (if
a disc is loaded). Press the DISC/
AUX button to switch the audio
mode between the
audio
and iPod.
You can also press the MODE
buttononthesteeringwheelto
change modes. When you disconnect the iPod while
it is playing, the upper display and
the audio screen (if selected) show
NO DATA.The displayed message may
vary on models or versions. On
some models, there is no
message to disconnect.
YoucandisconnecttheiPodatany
time when you see the ‘‘OK to
disconnect’’ message in the iPod
display. Always make sure you see
the ‘‘OK to disconnect’’ message in
the iPod display bef ore you
disconnect it. Make sure to f ollow
the iPod’s instructions on how to
disconnect the dock connector f rom
the USB adapter cable.
:
Bluetooth
Bluetooth
Hawaiian models
All models except Hawaiian
Audio System
T o Stop Playing Your iPodDisconnect ing an iPod
254
NOTE:
10/08/04 19:25:25 31SJA660_259
