display ACURA RL 2011 Owner's Manual

When you turn of f the engine, INST.
MPG or INST. L/100 km is also
reset. This shows your instant f uel
economy. Along with the trip meter, the trip
computer calculates these values:Instantaneous Fuel Economy
Range
Elapsed Time
Average Fuel Economy Average Vehicle Speed
This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles (U.S.) or kilometers (Canada), so it will vary with changes in speed,
traf f ic, etc.
When the battery is disconnected, or
you ref uel, RANGE is also reset.
This shows the accumulated
traveling time since you last reset it.
When you turn the ignition switch to
the ON (II) position, ELAPSED
TIME is reset.
You can customize the ELAPSED
TIME reset conditions on the multi-
inf ormation display (see page ).
This shows the average speed you
are traveling in miles per hour (mph)
f or U.S. models or kilometers per
hour (km/h) f or Canadian models.
When you reset Trip A, average
speed is also reset.
You can customize the average
speed reset condition on the multi-
inf ormation display (see page ).
This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or liter/100 km (Canadian models)
since you last reset Trip A or Trip B.
The average f uel economy will be
reset when you reset the trip meter,
or if the vehicle’s battery goes dead
or is disconnected.
You can customize the average fuel
A reset condition on the multi-
inf ormation display (see page ).
101 99
99
Multi-Inf ormation Display
INST.MPG(U.S.models)/INST.
L /100km (Canadian models) Trip Computer
RANGE EL A PSED T IME
A VERA GE SPEED
AVERAGE FUEL A/B
Inst rument s and Cont rols
75
10/08/04 18:54:45 31SJA660_080
ProCarManuals.com

This monitor shows how much
torque is being delivered to each
wheel. For more inf ormation, see
page .Whenthetirepressuremonitoris
shown on the multi-inf ormation
display, press the SEL/RESET
button. The display changes as
shown.
You can see the pressure of each tire
in this monitor. If one or more tires
are low, inflate them to the correct
pressure. For more inf ormation, see
page .You can receive or make phone calls
f rom your cell phone through your
vehicle’s
HandsFreeLink
(HFL) system without touching your
cell phone.
412
432
Bluetooth
Multi-Inf ormation Display
SH-AWD T orque Distribution
MonitorTire Pressure MonitorHandsFreeL inkBluet oot h
76
U.S.
Canada
10/08/04 18:54:56 31SJA660_081
ProCarManuals.com

When the engine oil lif e reaches 15%,
the display shows ‘‘SERVICE DUE
SOON’’ and the code f or the
maintenance items to be perf ormed.Have your dealer do the indicated
maintenance as soon as you see this
message, and have them reset the
display af ter completing the service.
If you do not perf orm the indicated
maintenance or do not reset the
display, the message changes to
‘‘SERVICE PAST DUE’’ when the
engine oil lif e becomes 0%.
These messages appear on the multi-
inf ormation display each time you
turn the ignition switch to the ON
(II) position.
For details on engine oil lif e and
maintenance messages, ref er to page
.
Also ref er to page f or important
maintenance saf ety precautions.
When the engine oil lif e reaches 5%,
the display shows ‘‘SERVICE DUE
NOW’’ along with the same
maintenance items.
To use the system, your cell phone
and the HFL system must be linked.
Not all cell phones are compatible
with this system. Ref er to page
for instructions on how to link
your cell phone to HFL and how to
receive or make phone calls, or visit
the acura.com/handsf reelink
website. In Canada, visit , or call 1-888-9-ACURA-9.
354
445444
www.acura.
ca
Maintenance Messages
Multi-Inf ormation Display
Inst rument s and Cont rols
77
10/08/04 18:55:08 31SJA660_082
ProCarManuals.com

ÛÝ
ÛÝ
When a problem is detected with
your vehicle, a message will be
shown on the multi-inf ormation
display.
If this happens, refer to the
applicable pages of this owner’s
manual, and f ollow the instructions.
When there are several messages to
be shown, the system switches the
messages every 5 seconds.
The message is shown until you
push the INFO ( or ) button.
To see the message again, press the
INFO ( or ) button, 5 seconds
after the display disappears.
Here is a list of messages shown on
the multi-information display:
See page
68
See pages
63, 510
See page 510
See pages 62, 508
See pages 62, 509
See pages 62, 508
See page 402 See page
507
See pages 65, 435
See pages 69, 144
See pages 66, 412
See pages
64, 416
Multi-Inf ormation Display
Message Display
78
10/08/04 18:55:24 31SJA660_083
ProCarManuals.com

CONT INUED
See page13
See page
142 See page
319
See page 66
See page
403
See page 463 See pages
69, 425
See pages 69, 419
See pages 21, 62
See pages 21, 62 See page
385
See page 433
See page 431
See pages 67, 431
See page 180
See page 179
See page 180
See pages
34, 63
See pages 35, 63
Multi-Inf ormation Display
Inst rument s and Cont rols
79
U.S.
Canada
10/08/04 18:55:46 31SJA660_084
ProCarManuals.com

See page152
See page 152
See page
447
Multi-Inf ormation Display
80
10/08/04 18:55:54 31SJA660_085
ProCarManuals.com

ÛÝÛÝ

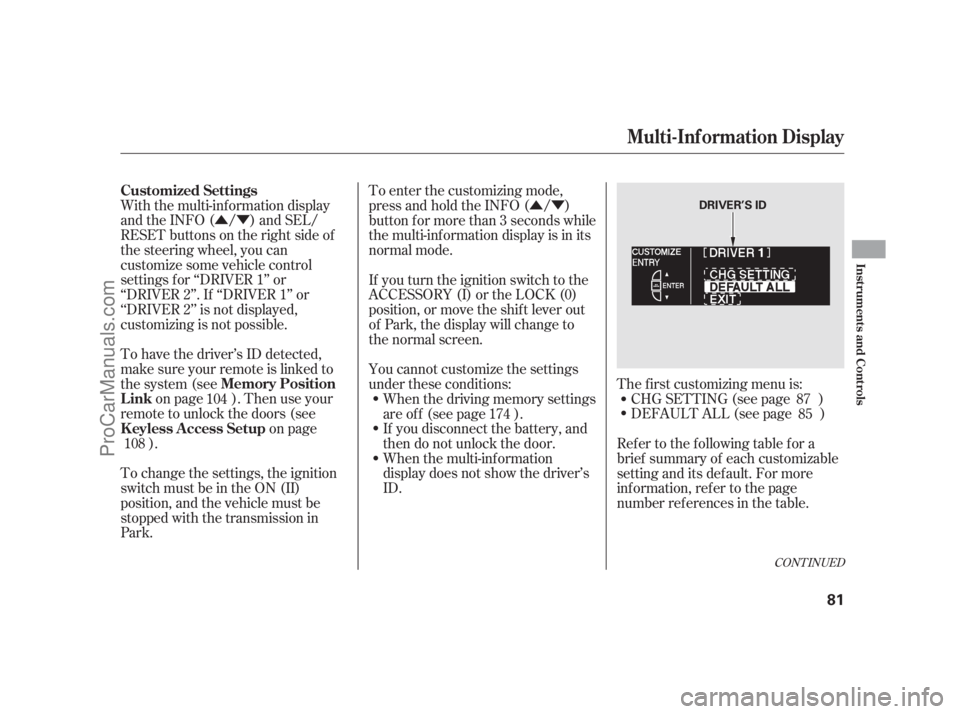

With the multi-information display
and the INFO ( / ) and SEL/
RESET buttons on the right side of
the steering wheel, you can
customize some vehicle control
settings f or ‘‘DRIVER 1’’ or
‘‘DRIVER 2’’. If ‘‘DRIVER 1’’ or
‘‘DRIVER 2’’ is not displayed,
customizing is not possible.
To have the driver’s ID detected,
make sure your remote is linked to
the system (see
on page ). Then use your
remote to unlock the doors (see on page
). To enter the customizing mode,
press and hold the INFO ( / )
button for more than 3 seconds while
the multi-information display is in its
normal mode.
If you turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position, or move the shif t lever out
of Park, the display will change to
the normal screen.
When the multi-information
display does not show the driver’s
ID. The f irst customizing menu is:
CHG SETTING (see page )
If you disconnect the battery, and
then do not unlock the door. DEFAULT ALL (see page )
You cannot customize the settings
under these conditions:
To change the settings, the ignition
switch must be in the ON (II)
position, and the vehicle must be
stopped with the transmission in
Park. Ref er to the f ollowing table f or a
brief summary of each customizable
setting and its default. For more
inf ormation, ref er to the page
number ref erences in the table.
When the driving memory settings
are off (see page ).
104
108 87
85
174
CONT INUED
Customized Settings
Memory Position
Link
K eyless A ccess Setup
Multi-Inf ormation Display
Inst rument s and Cont rols
81
DRIVER’S ID
10/08/04 18:56:11 31SJA660_086
ProCarManuals.com

ÎÎ Î Î
ÎÎ
Î Î
Î
Î
µ™¶ ™
µ™¶ ™
Î
Î
Î CUSTOMIZE ENTRY
CHG SETTING
(see page 87) CUST OMIZE GROUP
ACC SETUP
(see page 89)
MET ER SET UP
(see page 94)
POSITION SETUP
(see page 103) CUST OMIZE SET UP
ON
OFF
mph
km/h
ENGLISH
FRENCH
SPANISH 5°F 0°F 5°F
3°C 0°C 3°C
ON
OFF
IGN OFF
TRIP A
TRIP B
ON
OFF
ON
OFF Page
90
92
95
97
99
101
104
106
CUST OMIZE MENU
PRE-RUNNING CAR
DET ECT BEEP
ACC DISPLAY SPEED
UNIT
LANGUAGE
SELECTION
ADJUST OUTSIDE
TEMP. DISPLAY
TRIP A RESET with
REFUEL
ELAPSED TIME
RESET
MEMORY POSIT ION
LINK
AUTO TILT &
TELESCOPIC Description
Causes the system to beep when a vehicle
ahead of you gets too close.
Changes the ACC display speed unit.
Changes the language used in the display.
Changes the outside temperature reading
above or below its current reading.
Causes trip meter A, the average fuel
economy, and the average speed to reset
when you refuel.
Resets the elapsed time of your current
trip.
Changes the driver’s seat, the steering
wheel, and the outside mirror positions to
your stored setting.
Moves the steering wheel fully in and out
when you get in/out of the vehicle.
1:
2:
3: Default setting
Default setting for U.S. models
Default setting for Canadian model previous
setting
1
2 3 1
23
1 1
1
1
Multi-Inf ormation Display
82
10/08/04 18:56:19 31SJA660_087
ProCarManuals.com

Î
Î
Î
Î
Î
Î Î
Î
CONT INUED
CUSTOMIZE ENTRYCHG SETTING
(see page 87) CUST OMIZE SET UP
DRIVER DOOR
ONLY
ALL DOORS
ON
OFF
ON
OFF
60 SEC
30 SEC
15 SEC
60 SEC
30 SEC
15 SEC
MAX
HIGH
MID
LOW
SHIFT FROM P
WITH VEH SPD
OFF
CUST OMIZE GROUP
KEYLESS ACCESS
SETUP
(see page 108)
LIGHTING SETUP
(see page 115)
DOOR/WINDOW
SETUP
(see page 122) Page
109
111
113
116
118
120
123
CUST OMIZE MENU
DOOR UNLOCK
MODE
KEYLESS ACCESS
LIGHT FLASH
KEYLESS ACCESS
BEEP
INTERIOR LIGHT
DIMMING T IME
HEADLIGHT AUT O
OFF TIMER
AUTO LIGHT
SENSITIVITY
AUTO DOOR LOCK Description
Changes which doors unlock when you use
the remote or grab the driver’s door handle.
Causes some exterior lights to blink when
you lock/unlock the doors.
Cause the beeper to sound when you lock/
unlock the doors.
Changes how long (in seconds) the interior
lights stay on after you close the doors.
Changes how long (in seconds) the exterior
lights stay on after you close the driver’s
door.
Changes the timing of when the headlights
to come on. The headlight switch needs to
be in the AUTO position.
Changes when the doors automatically lock.
: Default setting 0SEC
MIN
Multi-Inf ormation Display
Inst rument s and Cont rols
83
10/08/04 18:56:28 31SJA660_088
ProCarManuals.com

ÎÎ
Î
Î Î
Î CUST OMIZE MENU
AUTO DOOR
UNLOCK
DOOR LOCK MODE
KEYLESS LOCK
ACKNOWLEDGMENT
SECURITY RELOCK
TIMER
WIPER ACTION
CUST OMIZE GROUP
DOOR/WINDOW
SETUP
(see page 122)
WIPER SETUP
(see page 133) CUST OMIZE SET UP
SHIFT TO P
IGN OFF
OFF
DRIVER DOOR
ALL DOORS
ON
OFF
90 SEC
60 SEC
30 SEC
INTERMITTENT
WITH VEH SPD
SET
CANCEL
CUSTOMIZE ENTRY
CHG SETTING
(see page 87)
DEFAULT ALL
(see page 85) Description
Changes when the doors automatically
unlock.
Changes which doors unlock with the first
push of the remote’s unlock button.
The exterior lights flash each time you
press the LOCK or UNLOCK button.
Changes how long it takes (in seconds) for
the doors to relock and the security system
to set after you unlock the driver’s door
without opening it.
Changes the wiper operation among two
settings when the wiper switch is in the INT
position.
Changes all settings to the default. Page
125
127
129
131
134
85
: Default setting
Multi-Inf ormation Display
84
10/08/04 18:56:36 31SJA660_089
ProCarManuals.com
