uuClimate Control System uUsing Automatic Climate Control
180Controls

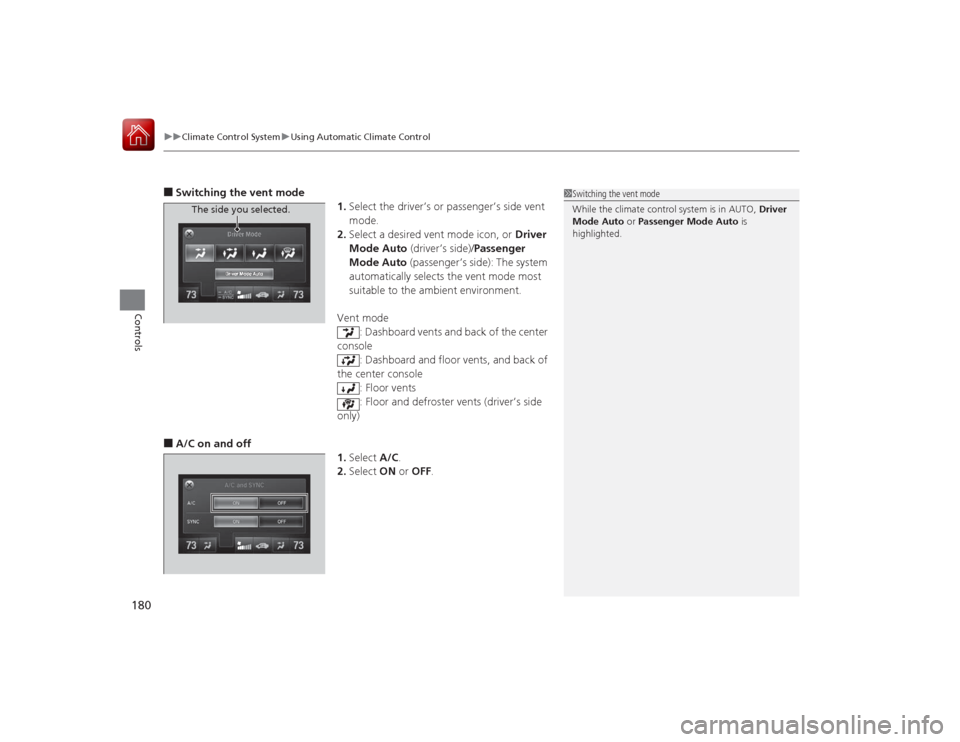

■Switching the vent mode
1.Select the driver’s or passenger’s side vent
mode.
2. Select a desired vent mode icon, or Driver
Mode Auto (driver’s side)/ Passenger
Mode Auto (passenger’s side): The system
automatically selects the vent mode most
suitable to the ambient environment.
Vent mode : Dashboard vents and back of the center
console
: Dashboard and floor vents, and back of
the center console : Floor vents
: Floor and defroster vents (driver’s side
only)■A/C on and off 1.Select A/C.
2. Select ON or OFF .
1Switching the vent mode
While the climate control system is in AUTO, Driver
Mode Auto or Passenger Mode Auto is
highlighted.
The side you selected.

208
uuAudio System Basic Operation uVoice Control Operation
Features
Voice Control OperationYour vehicle has a voice control system that allows hands-free operation of most of
the navigation
*/audio system functions.
The voice control system uses the (Talk) and (hang-up/back) buttons on the
steering wheel and a microphone near the map lights on the ceiling.
To achieve optimum voice recognition when using the voice control system:
• Make sure the correct screen is displayed for the voice command that you are
using.
• Close the windows and moonroof.
• Adjust the dashboard and side vents so air does not blow onto the microphone
on the ceiling.
• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
• Refer to the Voice Help feature.
2 Refer to the Navigation System Manual
*
■
Voice Recognition
1Voice Control Operation
When you press the button, a helpful prompt asks
what you would like to do. Press and release the
button again to bypass this prompt and give a
command.1Voice Recognition
The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the front passenger’s side.
* Not available on all models

Continued
393
uuBraking uCollision Mitigation Braking System
TM (CMBS
TM)*
Driving
■When the system activates
1When the system activates
The heads-up warning uses a lens located at the front
end of the dashboard.
Do not cover the lens or spill any liquid on it.
Lens
The system provides visual and audible alerts of a possible collision, and stops
if the collision is avoided.
u Take appropriate action to prevent a collision (apply the brakes, change
lanes, etc.)
Beep
Heads-up
Warning
Lights
Visual Alerts
Audible Alert

419
uuMaintenance Under the Hood uOpening the Hood
Maintenance

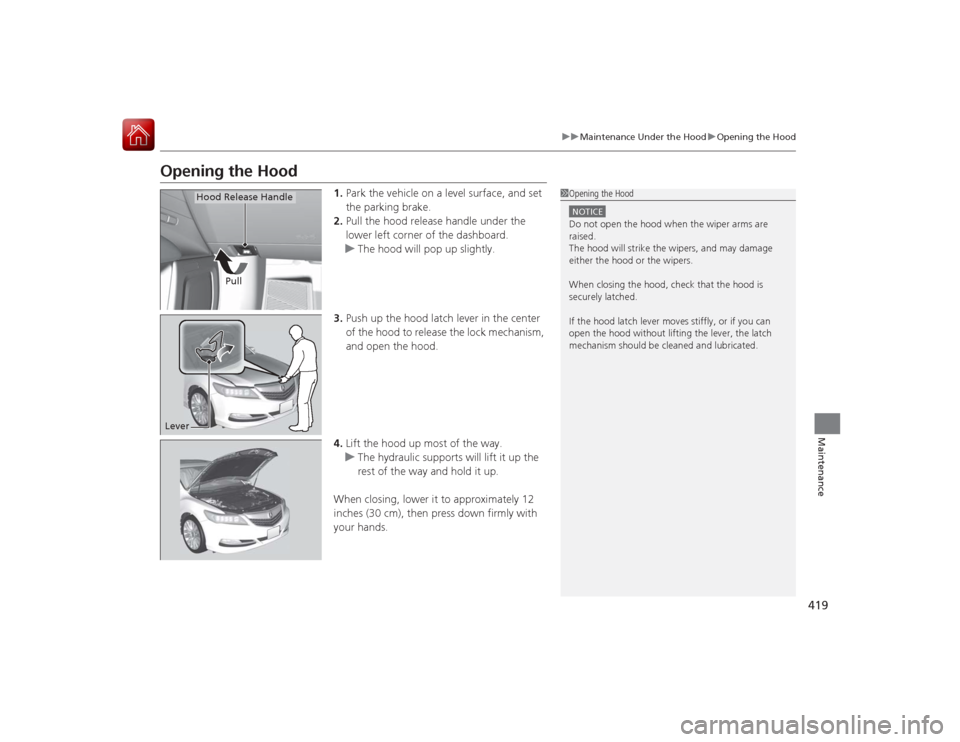

Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
lower left corner of the dashboard.
u The hood will pop up slightly.
3. Push up the hood latch lever in the center
of the hood to release the lock mechanism,
and open the hood.
4. Lift the hood up most of the way.
u The hydraulic supports will lift it up the
rest of the way and hold it up.
When closing, lower it to approximately 12
inches (30 cm), then press down firmly with
your hands.
1 Opening the HoodNOTICEDo not open the hood when the wiper arms are
raised.
The hood will strike the wipers, and may damage
either the hood or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifting the lever, the latch
mechanism should be cleaned and lubricated.
Pull
Hood Release Handle
Lever

489
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.■
Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit Protected
Amps
1
Driver’s Side Door Lock
10 A
2
Passenger’s Side Door Lock
10 A
3
Driver’s Door Lock
10 A
4
Driver’s Side Door Unlock
10 A
5
Passenger’s Side Door
Unlock
10 A
6
Driver’s Door Unlock
10 A
7
Door Lock
20 A
8
−
−
9
Tilt Steering Wheel
20 A
10
IG1 DR1
7.5 A
11
Meter
10 A
12
IG1 Box
20 A
13
ACCESSORY
7.5 A
14
−
−
15
Driver’s Power Seat Sliding
20 A
16
Moonroof
20 A
17
Rear Driver’s Side Power Window
20 A
18
Telescopic Steering Wheel
20 A
19
Driver’s Power Window
20 A
20
Left e-pretensioner
*
20 A
21
Fuel Pump
20 A
22
−
−
23
ST Cut
7.5 A
24
IG1 DR2
7.5 A
25
Start DIAG
7.5 A
26
A/C
7.5 A
27
DRL
7.5 A
28
ACC Key Lock
7.5 A
29
Driver’s Lumbar Support
7.5 A
30
SMART
10 A
31
−
−
32
Driver’s Power Seat
Reclining
20 A
33
Right Precision All Wheel Steer
40 A
34
IG1 Box
30 A
Circuit Protected
Amps
* Not available on all models
