turn signal Acura RLX 2015 User Guide

371
uuWhen Driving uLane Keeping Assist System (LKAS)
*
Continued
Driving
Lane Keeping Assist System (LKAS)
*
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides audible and visual alerts if the vehicle is detected drifting out of its lane.
1Lane Keeping Assist System (LKAS)
*
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicle control. The system does
not work if you take your hands off the steering
wheel or fail to steer the vehicle.
2 Multi-Information Display Warning and
Information Messages P. 93
Do not place an object on the top of the instrument
panel. It may reflect onto the windshield and prevent
the system from detecting lane lines properly.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly under the following
conditions:•Your tires are over or under inflated.•Your tires or wheels are of varied size or
construction.•Your vehicle’s suspension has been altered,
changing the height of the vehicle.•Your vehicle has heavy load in the trunk or on the
rear seats.•A compact spare tire
* is mounted.
•Driving on snowy or wet roads.•Roadway lane markers are difficult to see due to
weather (rain, snow, fog, etc.) or road conditions.•Driving on a road with temporary lane markings.•Multiple or varied lane markings are visible on the
pavement due to road repairs or old lane markings.•Roadway objects or structures are misinterpreted
as lane markers.•On non-freeway roadways and on freeways with
many curves.
■Steering input assist
The system applies torque to the
steering to keep the vehicle between
the left and right lane lines. The
applied torque becomes stronger as the
vehicle gets closer to either of the lane
lines.
■Audible and visual alerts
Beeps and a warning display alert
you that the vehicle is drifting out of
a detected lane.
When you operate the turn signals to change lanes, the system is suspended, and
resumes after the signals are off.
() If you make a lane change without operating the turn signals, the LKAS
alerts activate, and torque is applied to the steering.
■LKAS camera
Monitors the lane
lines
* Not available on all models

uuWhen Driving uLane Keeping Assist System (LKAS)
*
372Driving
The system can be used when the following conditions are met.
• The lane you are driving has detectable lane markers on both sides, and your
vehicle is in the center of the lane.
• The vehicle speed is between 45 – 90 mph (72 – 145 km/h).
• You are driving on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.■How to activate the system
1.Press the MAIN button.
u The LKAS is on in the multi-information
display.
The system is ready to use.
2. Press the LKAS button.
u Lane outlines appear on the multi-
information display.
The system is activated.■
When the System can be Used
1Lane Keeping Assist System (LKAS)
*
•Shadows of adjacent object s are parallel to lane
markings.•The windshield is dirty.•Where the roadway has crossing or other lines
(e.g., such as at an intersection).
1 LKAS camera
Never apply a film or attach any objects to the
windshield that could obstruct the LKAS camera’s
field of vision.
Scratches, nicks, and other damage to the windshield
within the LKAS camera’s field of vision can cause the
system to operate abnormally. If this occurs, we
recommend that you replace the windshield with a
genuine Acura replacement windshield. Making even
minor repairs withi n the camera’s field of vision or
installing an aftermarket replacement windshield
may also cause the system to operate abnormally.
After replacing the windshield, have a dealer
recalibrate the camera. Proper calibration of the LKAS
camera is necessary for the system to operate properly.
If the Can Not Operate: Camera Too Hot message
appears:•Use the climate control system to cool down the
interior and, if necessary, the defroster mode when
windows are fogged.•Start driving the vehicle to lower the windshield
temperature, which cools down the area around
the LKAS camera.
1 When the System can be Used
If the vehicle drifts toward either left or right lane line
due to the system applying torque, turn off the LKAS
and have your vehicle checked by a dealer.
MAIN Button
LKAS Button
* Not available on all models

uuWhen Driving uBlind Spot Information (BSI) System
*
380Driving
■When the system detects a vehicle
1Blind Spot Information (BSI) System
*
You can change the setting for BSI.
2 Customized Features P. 102, 263
BSI may be adversely affected when:•Objects (guard rails, poles, trees, etc,.) are
detected.•An object that does not reflect radio waves well,
such as a motorcycle, is in the alert zone.•Driving on a curved road.•A vehicle is moving from a far lane to the adjacent
lane.•The system picks up external electrical interference.•The rear bumper or the sensors have been improperly
repaired or the rear bumper has been deformed.•The orientation of the sensors has been changed.•In bad weather (Heavy rain, snow, and fog).
For proper BSI operation:•Always keep the rear bumper corner area clean.•Do not cover the rear bumper corner area with
labels or stickers of any kind.•Take your vehicle to a dealer if you need the rear
bumper corner area or the radar sensors to be repaired,
or the rear bumper corner area is strongly impacted.
Comes on when:●A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
Blinks and a beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
* Not available on all models

431
uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Maintenance

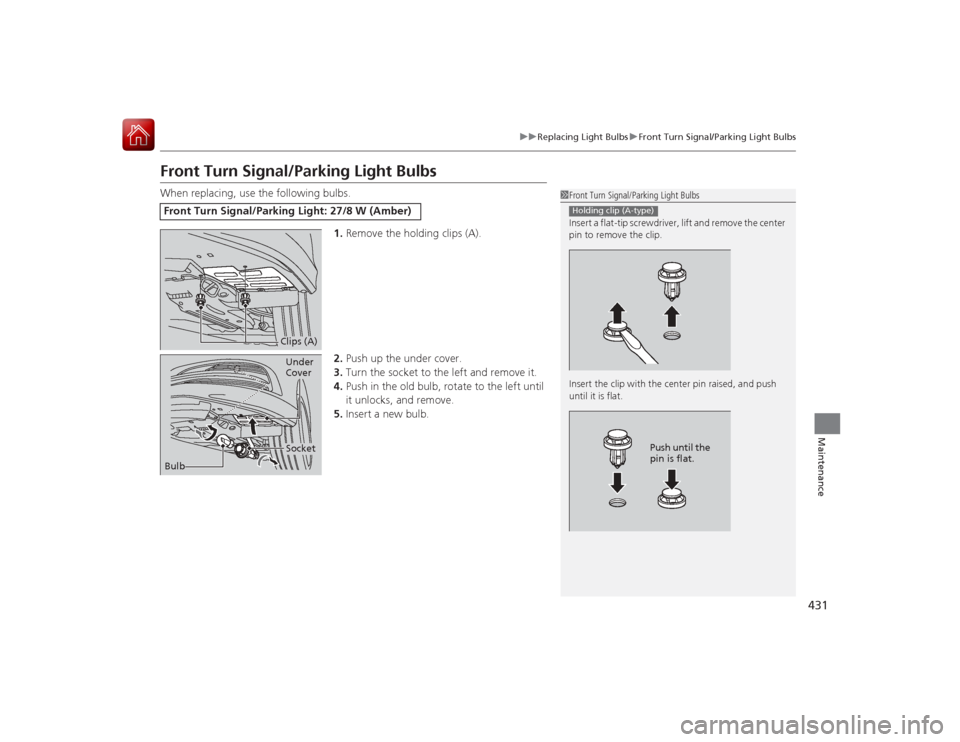

Front Turn Signal/Parking Light BulbsWhen replacing, use the following bulbs.
1.Remove the holding clips (A).
2. Push up the under cover.
3. Turn the socket to the left and remove it.
4. Push in the old bulb, rotate to the left until
it unlocks, and remove.
5. Insert a new bulb.Front Turn Signal/Parking Light: 27/8 W (Amber)
1Front Turn Signal/Parking Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.Holding clip (A-type)
Push until the
pin is flat.
Clips (A)
Bulb
SocketUnder
Cover

432
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance

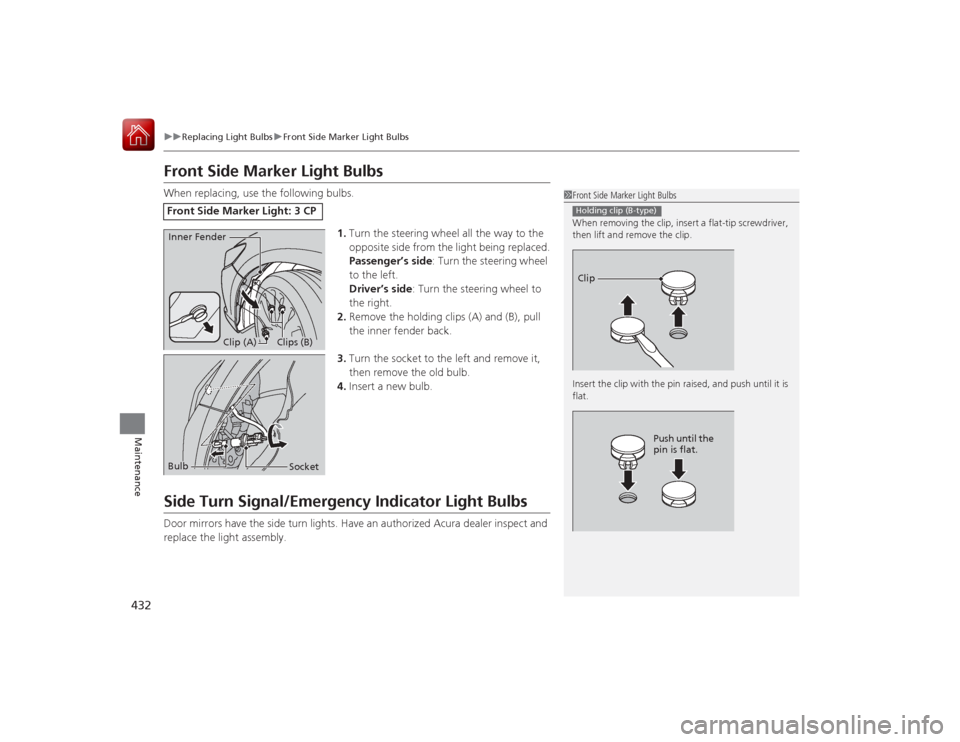

Front Side Marker Light BulbsWhen replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger’s side : Turn the steering wheel
to the left.
Driver’s side : Turn the steering wheel to
the right.
2. Remove the holding clips (A) and (B), pull
the inner fender back.
3. Turn the socket to the left and remove it,
then remove the old bulb.
4. Insert a new bulb.Side Turn Signal/Emergency Indicator Light BulbsDoor mirrors have the side turn lights. Have an authorized Acura dealer inspect and
replace the light assembly.Front Side Marker Light: 3 CP
1Front Side Marker Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.Holding clip (B-type)Clip
Push until the
pin is flat.
Inner Fender
Clip (A)
Clips (B)
Bulb
Socket

433
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance

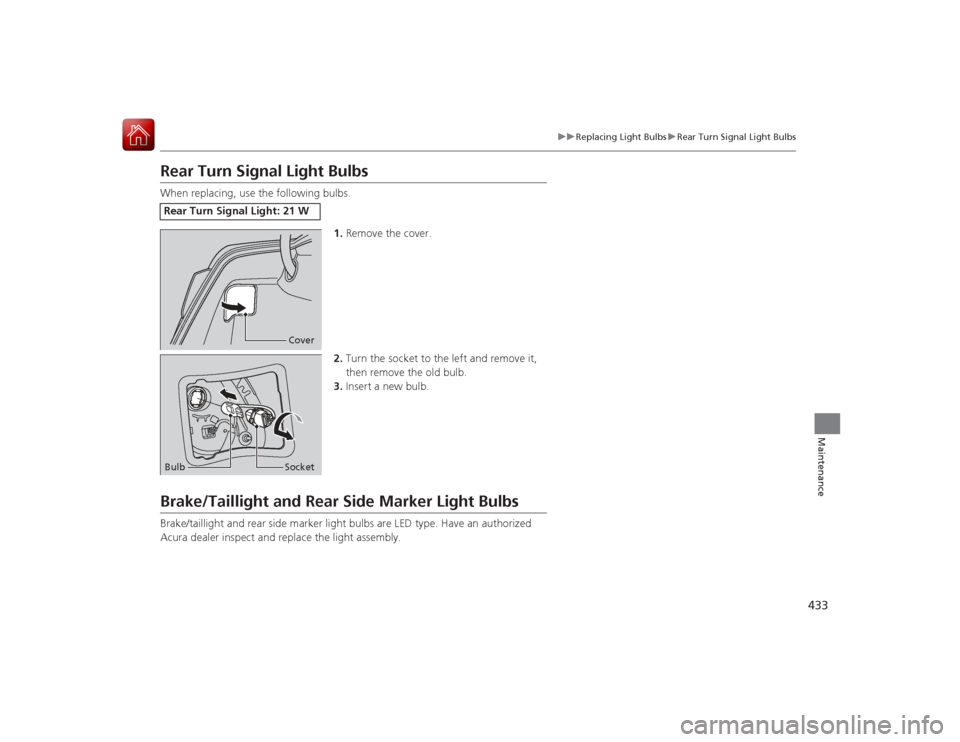

Rear Turn Signal Light BulbsWhen replacing, use the following bulbs.
1.Remove the cover.
2. Turn the socket to the left and remove it,
then remove the old bulb.
3. Insert a new bulb.Brake/Taillight and Rear Side Marker Light BulbsBrake/taillight and rear side marker light bulbs are LED type. Have an authorized
Acura dealer inspect and replace the light assembly.Rear Turn Signal Light: 21 W
Cover
Bulb Socket

498Information
Specifications■Vehicle SpecificationsModel
Acura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating
U.S.: 4,993 lbs (2,265 kg)
Canada: 2,265 kg
Gross Axle Weight
Rating (Front)
U.S.: 2,778 lbs (1,260 kg)
Canada: 1,260 kg
Gross Axle Weight
Rating (Rear)
U.S.: 2,271 lbs (1,030 kg)
Canada: 1,030 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.8 – 17.6 oz (450 – 500 g)
Lubricant Type ND-OIL 8
■ Engine Specifications
■ Fuel
■ Washer FluidDisplacement
212 cu-in (3,471 cm
3)
Spark Plugs NGK DILZKR7B11G
Type
Unleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank Capacity
U.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.3 US qt (5.0 ℓ)
■ Light Bulbs*1: Not available on all modelsHeadlights (Low Beam)
LED
Headlights (High Beam) LED
Front Turn Signal/Parking Lights
27/8W (Amber)
Front Side Marker Lights 3CP
Side Turn Signal Lights
(on Door Mirrors)
LED
Brake/Taillights/Rear Side Marker
Lights LED
Taillights
LED
Back-Up Lights 16W
Rear Turn Signal Lights
21W
High-Mount Brake Light LED
Rear License Plate Lights
LED
Door Outer Handle Ambient Lights LED
Interior Lights
Front and Rear Map Lights
LED
Front and Rear Ambient Lights
LED
Vanity Mirror Lights
2.1W
Front Door Pocket Lights
LED
Center Pocket Light
LED
Beverage Holder Light
LED
Door Courtesy Lights
3.4W
Console Compartment Light
LED
Glove Box Light
LED
Front and Rear
*1 Foot Lights
LED
Door Inner Handle Lights
LED
Trunk Lights
5W

513Index
Belts (Seat).................................................. 30
Beverage Holders ..................................... 166
Blind Spot Information (BSI) System ....... 379
Bluetooth® Audio..................................... 251
Bluetooth® HandsFreeLink® .................... 286
Booster Seats (For Children) ...................... 63
Brake System ............................................ 385
Anti-lock Brake System (ABS) .................. 390
Automatic Brake Hold ............................. 388
Brake Assist System................................. 391
Fluid ....................................................... 429
Foot Brake .............................................. 387
Parking Brake.......................................... 385
Brake System (Amber)
Indicator ................................................... 70
Brake System (Red) Indicator ........................................... 68, 484
Brake System Indicator (Amber) ............... 70
Brightness Control (Instrument Panel) ... 144
BSI (Blind Spot Information) System ....... 379
Bulb Replacement .................................... 430
Back-Up Lights ........................................ 434
Brake/Taillights and Rear Side Marker Lights .................................................... 433
Door Outer Handle Ambient Lights ......... 435
Front Side Marker Lights ......................... 432
Front Turn Signal/Parking Lights .............. 431
Headlights .............................................. 430
High-Mount Brake Light.......................... 435
Rear License Plate Lights ......................... 435
Rear Turn Signal Lights............................ 433 Side Turn Signal/Emergency Indicator
Lights .................................................... 432
Taillights .................................................. 434
Bulb Specifications ................................... 498
CCarbon Monoxide Gas ................................ 64
Cargo Hooks ............................................. 169
Carrying Cargo .................................. 335, 337
CD Player ................................................... 224
Center Pocket ........................................... 165
Certification Label .................................... 500
Changing Bulbs ......................................... 430
Charging System Indicator ................. 71, 483
Child Safety ................................................. 52
Childproof Door Locks ............................. 123
Child Seat .................................................... 52
Booster Seats ............................................. 63
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 59
Larger Children .......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 123
Cleaning the Exterior ............................... 453
Cleaning the Interior ................................ 451
Client Service Information ....................... 508Climate Control System
............................ 177
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 184
Dust and Pollen Filter............................... 450
Rear Temperature Control Dial ................ 185
Sensors ................................................... 186
Using Automatic Climate Control ............ 177
Clock .......................................................... 114
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 392
Coat Hooks ............................................... 168
Collision Mitigation Braking System
TM
(CMBS
TM) ................................................. 392
Compact Spare Tire (Optional) ........ 468, 499
Console Compartment ............................. 164
Controls ..................................................... 113
Coolant (Engine) ...................................... 426
Adding to the Radiator ............................ 427
Adding to the Reserve Tank..................... 426
Overheating ............................................ 481
Creeping (Automatic Transmission) ........ 344
Cruise Control ........................................... 350
Indicator.................................................... 78
Cup Holders .............................................. 166
Customized Features ........................ 102, 263
DDaytime Running Lights .......................... 140
Dead Battery ............................................. 477

514Index
Defrosting the Windshield and Windows .................................................. 184
Devices that Emit Radio Waves ................ 501
Dimming Headlights ............................................... 137
Rearview Mirror ....................................... 149
Dipstick (Engine Oil) ................................. 422
Directional Signals (Turn Signal) .............. 136
Door Mirrors ............................................. 150
Doors ......................................................... 115
Auto Door Locking .................................. 124
Auto Door Unlocking ............................... 124
Door Open Indicator ............................ 29, 75
Keys ........................................................ 115
Locking/Unlocking the Doors from the Inside ......................................... 12, 121
Locking/Unlocking the Doors from
the Outside ............................................ 117
Lockout Prevention System ...................... 120
DOT Tire Quality Grading ........................ 442
Driver’s Knee Airbag .................................. 44
Driving ....................................................... 333
Automatic Transmission ........................... 344
Braking .................................................... 385
Cruise Control ......................................... 350
Shifting Gear ........................................... 345
Starting the Engine .................................. 340
Driving Position Memory System ............. 146
Dust and Pollen Filter ............................... 450
EElapsed Time............................................. 100
Electric Parking Brake Indicator.................................................... 69
Electric Parking Brake System
Indicator............................................ 69, 485
Electric Power Steering (EPS) System Indicator............................................ 74, 485
Electronic Stability Control (ESC) ............. 376
Emergency ................................................ 492
Emissions Testing (Readiness Codes) ....... 503
Engine ....................................................... 500
Coolant ................................................... 426
Jump Starting .......................................... 477
Oil ........................................................... 421
Starting ................................................... 340
Switch Buzzer.......................................... 133
Engine Compartment Cover .................... 420
Engine Coolant ......................................... 426
Adding to the Radiator ............................ 427
Adding to the Reserve Tank..................... 426
Overheating ............................................ 481
Temperature Gauge .................................. 94
Engine Oil ................................................. 421
Adding .................................................... 423
Checking................................................. 422
Displaying Oil Life .................................... 414
Low Oil Pressure Indicator ................. 68, 483
Recommended Engine Oil ....................... 421
ENGINE START/STOP Button .................... 133
e-pretensioners ........................................... 32 EPS (Electric Power Steering) System
........ 74
Exhaust Gas Hazard (Carbon Monoxide) .. 64
Expanded Rear Door Sunshades ............. 176
Expanded View Driver’s Mirror ............... 151
Exterior Care (Cleaning) .......................... 453
Exterior Mirrors ........................................ 150
FFeatures.................................................... 187
Filters Dust and Pollen....................................... 450
Oil .......................................................... 424
Flat Tire ..................................................... 457
Floor Mats ................................................ 452
Fluids
Automatic Transmission .......................... 428
Brake ...................................................... 429
Engine Coolant ....................................... 426
Windshield Washer ................................. 429
Foot Brake ................................................ 387
Forward Collision Warning (FCW) .......... 364
Front Airbags (SRS) .................................... 40
Front Seat Heaters and Seat
Ventilation .............................................. 173
Front Seats ................................................ 152
Adjusting ................................................ 152
Fuel ..................................................... 18, 404
Economy................................................. 406
Gauge ...................................................... 94
Instant Fuel Economy .............................. 100

516Index
Door and Trunk Open .......................... 29, 75
Electric Parking Brake................................. 69
Electric Parking Brake System ............. 69, 485
Electric Power Steering (EPS) System .. 74, 485
Forward Collision Warning (FCW) .............. 79
High-Beam ................................................ 77
Immobilizer System .................................... 77
Keyless Access System ............................... 78
Lane Departure Warning (LDW) ................. 80
Lane Keeping Assist System (LKAS) .... 82, 372
Lights On ................................................... 77
Low Fuel .................................................... 73
Low Oil Pressure ................................ 68, 483
Low Tire Pressure/TPMS ............. 76, 381, 383
Malfunction Indicator Lamp ............... 71, 484
Precision All Wheel Steer System................ 81
Seat Belt Reminder .............................. 31, 73
Security System Alarm ............................... 77
Shift Lever Position .................................... 72
SPORT Mode ..................................... 81, 349
Supplemental Restraint System ............ 49, 74
System Message ........................................ 76
Transmission .............................................. 72
Turn Signal ................................................ 77
Vehicle Stability Assist (VSA®)
System ............................................. 75, 376
VSA ® OFF .......................................... 75, 377
Information ............................................... 497
Instant Fuel Economy ............................... 100
Instrument Panel ........................................ 67
Brightness Control ................................... 144 Interface Dial
............................................ 193
Interior Lights ........................................... 159
Interior Rearview Mirror .......................... 149
JJack (Wheel Nut Wrench) ........................ 471
Jump Starting ........................................... 477KKey Number Tag ....................................... 116
Keyless Access System .............................. 118
Keyless Lockout Prevention ..................... 120
Keys ........................................................... 115
Lockout Prevention.................................. 120
Number Tag ............................................ 116
Rear Door Won’t Open............................ 123
Remote Transmitter ................................. 117
Types and Functions ................................ 115
Kickdown (Automatic Transmission) ....... 344LLane Departure Warning (LDW)............. 367
Lane Keeping Assist System (LKAS) ......... 371
Language (HFL) ........................................ 287
LATCH (Child Seats) .................................... 57
Lights ................................................. 137, 430
Automatic ............................................... 138
Bulb Replacement ................................... 430
Daytime Running Lights........................... 140 High-Beam Indicator ................................. 77
Interior.................................................... 159
Light Switches......................................... 137
Lights On Indicator.................................... 77
Turn Signals ............................................ 136
Load Limits ............................................... 337
Locking/Unlocking ................................... 115
Auto Door Locking/Unlocking ................. 124
Childproof Door Locks ............................ 123
From Inside ............................................. 121
From Outside .......................................... 117
Keys........................................................ 115
Using a Key............................................. 120
Lockout Prevention System ..................... 120
Low Battery Charge ................................. 483
Low Fuel Indicator ..................................... 73
Low Keyless Access Remote Signal
Strength .................................................. 116
Low Oil Pressure Indicator ................. 68, 483
Lower Anchors ........................................... 57
Luggage (Maximum Load Limit) ............. 337
Lumbar Support ....................................... 153
MMaintenance............................................ 409
Battery .................................................... 448
Brake Fluid .............................................. 429
Cleaning ................................................. 451
Climate Control System .......................... 450
Coolant .................................................. 426
