warning Acura RLX 2016 Owners Manual

539
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Indicator Comes On
■Reasons for the indicator to come on
Comes on when the engine oil pressure is low.
■What to do as soon as the indicator comes on
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Turn the power system off and let it sit for about three minutes.
2. Open the hood and check the oil level.
2 Oil Check P. 476
3.Turn the power system on and chec k the low oil pressure indicator.
u The indicator goes off: Start driving again.
u The indicator does not go off wi thin 10 seconds: Turn the power
system off and contact a dealer for repairs immediately.
If the 12-Volt Battery Cha rging System Indicator
Comes On
■Reasons for the indicator to come on
Comes on when the 12-volt battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Indicator Comes On
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the 12-Volt Battery Chargi ng System Indicator Comes On
If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.
16 ACURA RLX E-AWD-31TY36200.book 539 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

543
uuIndicator, Coming On/Blinking uIf the Transmission Indicator Blin ks along with the Warning Message
Handling the Unexpected
If the Transmission Indicator Blinks along with the
Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioned.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by a dealer.
• Change the gear position to
(N when you turn the power system on.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The power system cannot be turned on unless the parking brake is
set.
2 Turning on the Power P. 366
1If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 550
16 ACURA RLX E-AWD-31TY36200.book 543 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

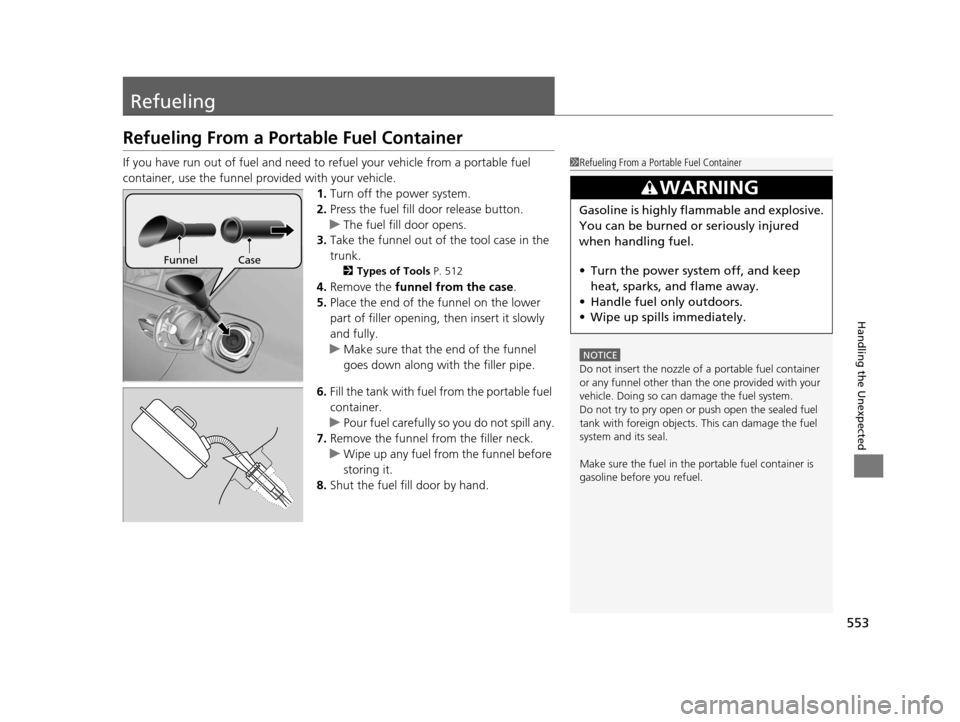

553
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 512
4.Remove the funnel from the case .
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power sy stem off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel Case
16 ACURA RLX E-AWD-31TY36200.book 553 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

573
Index
Exterior Mirrors........................................ 173
F
Features.................................................... 211
Filters Dust and Pollen....................................... 504
Oil .......................................................... 478
Flat Tire ............................................. 513, 525
Floor Mats ................................................ 506
Fluids Brake ...................................................... 483
Dual Clutch Transmission ........................ 482
Engine Coolant ....................................... 480
Inverter Coolant ...................................... 482
Windshield Washer ................................. 483
Foot Brake ................................................ 425
Front Airbags (SRS) .................................... 46
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 383
Fuel ..................................................... 25, 458
Economy................................................. 460
Gauge .................................................... 106
Instant Fuel Economy .............................. 111
Low Fuel Indicator..................................... 81
Range ..................................................... 111
Recommendation............................ 458, 556
Refueling ................................................ 458 Fuel Economy
............................................ 460
Fuel Fill Door ....................................... 25, 459
Fuses .......................................................... 544
Inspecting and Changing ......................... 549
Locations ................................. 544, 546, 548
G
Gasoline (Fuel) Economy ................................................. 460
Gauge ..................................................... 106
Information ............................................. 458
Instant Fuel Economy ............................... 111
Low Fuel Indicator ..................................... 81
Refueling ................................................. 458
Gauges ...................................................... 106
Gear Position Indicator ...................... 80, 375
Gear Shift Positions
Dual Clutch Transmission ......................... 373
Glass (care) ........................................ 505, 508
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 511
HandsFreeLink ® (HFL) ............................... 313
Auto Answer ........................................... 328
Automatic Import of Cellular Phonebook and
Call History ............................................ 330
Automatic Transferring ............................ 328
Displaying Messages ................................ 347 Editing User Name................................... 327
HFL Buttons............................................. 313
HFL Menus .............................................. 315
HFL Status Display ................................... 314
Limitations for Manual Operation ............ 314
Making a Call .......................................... 338
Options During a Call .............................. 344
Phone Setup............................................ 319
Phonebook Phonetic Modification ........... 334
Receiving a Call ....................................... 343
Receiving a Text/E-m
ail Message.............. 345
Ring Tone................................................ 329
Roadside Assistance ................................ 351
Selecting a Mail Account ......................... 346
Speed Dial ............................................... 331
To Create a Security PIN .......................... 326
To Set Up a Text/E-mail Message Option................................................... 324
Use Contact Photo .................................. 329
Hard Disk Drive (HDD) Audio .................. 251
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 159
Aiming .................................................... 484
Automatic Operation............................... 160
Dimming ......................................... 159, 162
Operating................................................ 159
Head-Up Display ....................................... 123
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
16 ACURA RLX E-AWD-31TY36200.book 573 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

576
Index
P
Paddle Shifters (Sequential Mode).......... 379
Pandora® ................................................... 270
Panic Mode ............................................... 151
Parking ...................................................... 438
Parking Brake ............................................ 423
Parking Sensor System .............................. 439
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 159
POWER Button .......................................... 155
Power Distribution Monitor ............. 128, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 366
POWER SYSTEM Indicator .......................... 78
Power Windows ........................................ 152
Precautions While Driving
Rain ......................................................... 371
Pregnant Women ....................................... 41
Puncture (Tire) .................................. 513, 525
R
Radiator..................................................... 481
Radio (AM/FM) .......................................... 240
Radio (SiriusXM ®)...................................... 245
Radio Data System (RDS) .......................... 242
Range ........................................................ 111
RDS (Radio Data System) .......................... 242
Reactive Force Pedal ................................. 381
Readiness Codes (Emissions Testing) ....... 561READY Indicator
......................................... 78
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 458
Fuel Gauge.............................................. 106
Gasoline .......................................... 458, 556
Low Fuel Indicator ..................................... 81
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 420, 495, 559
Remote Engine Start with Vehicle
Feedback ................................................. 368
Remote Transmitter ................................. 136
Replacement
Battery ............................................ 502, 503
Bulbs ....................................................... 484
Fuses ....................................... 544, 546, 548
Tires ........................................................ 498
Wiper Blade Rubber ................................ 489
Reporting Safety Defects ......................... 560
Resetting a Trip Meter ............................. 110
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ....................... 108, 113
Road Departure Mitigation (RDM) ......... 401
On and Off.............................................. 402
S
Safe Driving ................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 71
Safety Message ............................................ 1
Seat Belts .................................................... 36
Adjusting the Shoulder Anchor ................. 40
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
e-pretensioners ......................................... 38
Fastening .................................................. 39
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 65
Pregnant Women...................................... 41
Reminder ............................................ 37, 81
Warning Indicator ............................... 37, 81
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................................. 175
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 149
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................ 86
Selecting a Child Seat ................................ 62
Sequential Mode ...................................... 378
Sequential Mode Operation ................... 379
Setting the Clock ...................................... 132
Shift Button ........................................ 23, 373
Operation ............................................... 375
Shifting (Transmission) ...................... 23, 373
16 ACURA RLX E-AWD-31TY36200.book 576 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

577
Index
Shoulder Anchor........................................ 40
Side Airbags ............................................... 52
Side Curtain Airbags .................................. 54
SiriusXM ® Radio ....................................... 245
Snow Tires ................................................ 500
Sounds Unique to the SPORT HYBRID SH-AWD® System...................................... 13
Spare Tire (Optional) ....................... 525, 557
Spark Plugs ............................................... 556
Specifications ........................................... 556
Specified Fuel ................................... 458, 556
SPORT HYBRID Super Handling-All Wheel Drive
TM (SPORT HYBRID SH-AWD ®)....... 415
SPORT Mode ............................................. 380
SPORT Mode Indicator ....................... 86, 380
SRS Airbags (Airbags) ................................ 46
Steering Wheel
Adjusting ................................................ 171
Stopping ................................................... 438
Summer Tires ............................................ 500
Supplemental Restraint System (SRS) ....... 46
Surround View Camera System ............... 448
Switches (Around the Steering Wheel) ............................................ 4, 5, 155
System Message Indicator ......................... 84
T
Temperature
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83 Temperature Sensor
................................. 209
Temporary Tire Repair Kit ........................ 514
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 132
Tire Pressure Monitoring System
(TPMS) ..................................................... 418
Indicator ............................................ 84, 542
Tires ........................................................... 492
Air Pressure ..................................... 493, 557
Chains ..................................................... 500
Checking and Maintaining ....................... 492
Flat Tire (Puncture) ................................... 513
Inspection ................................................ 492
Labeling .................................................. 493
Regulations ............................................. 495
Rotation .................................................. 499
Spare (Optional) .............................. 525, 557
Summer .................................................. 500
Temporary Tire Repair Kit ........................ 514
Wear Indicators ....................................... 497
Winter ..................................................... 500
Tools .......................................................... 512
Towing a Trailer ....................................... 365
Towing Your Vehicle ................................ 365
Emergency .............................................. 550
TPMS (Tire Pressure Monitoring System) .................................................... 418
Transmission ....................................... 23, 373
Dual Clutch ............................... 23, 372, 373
Fluid ........................................................ 482
Gear Position Indicator ...................... 80, 375 Number................................................... 558
Sequential Mode ..................................... 378
TRIP Button ............................................... 109
Trip Meter ................................................. 110
Troubleshooting ....................................... 511
Blown Fuse.............................. 544, 546, 548
Brake Pedal Vibrates .................................. 28
Buzzer Sounds When Opening Door.......... 28
Emergency Towing .................................. 550
Flat Tire/Puncture ............................ 513, 525
Noise When Braking .................................. 29
Overheating ............................................ 537
Power System Won’t Start ....................... 531
Premium Gasoline ........................... 458, 556
Rear Door Won’t Open...................... 28, 144
Warning Indicators .................................... 74
Trunk ......................................................... 146
Lid........................................................... 146
Light Bulbs .............................................. 556
Release Handle ........................................ 552
Unable to Open....................................... 552
Turn Signals .............................................. 158
Indicators (Instrument Panel) ..................... 85
Turn-by-Turn Directions ................... 111, 127
Turning on the Power .............................. 366
Does Not Activate ................................... 531
Jump Starting .......................................... 534
Remote Engine Start................................ 368
Two-way Keyless Access Remote ..... 141, 368
16 ACURA RLX E-AWD-31TY36200.book 577 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

578
Index
U
Unlocking the Doors................................. 136
Unlocking the Front Doors from the Inside ........................................... 18, 142
USB Flash Drives ........................................ 285
USB Port .................................................... 213
Using the Keyless Access System .............. 138
V
Valet Mode............................................... 185
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................. 558
Vehicle Speed ............................................ 127
Vehicle Stability Assist (VSA ®).................. 412
Off Button ............................................... 413
Off Indicator ...................................... 83, 413
System Indicator ................................ 83, 412
Viscosity (Oil) ..................................... 475, 557
VSA ® (Vehicle Stability Assist) .................. 412
W
Warning and Information Messages ......... 92
Warning Indicator On/Blinking ................ 539
Warning Labels ........................................... 71
Warranties (Warranty Manual provided separately) ............................................... 563
Watts ......................................................... 556
Wear Indicators (Tire) ............................... 497
Wheel Nut Wrench (Jack Handle) ............ 528Window Washers
..................................... 163
Adding/Refilling Fluid .............................. 483
Switch ..................................................... 163
Windows (Opening and Closing) ............ 152
Windshield
Cleaning ......................................... 505, 508
Defrosting/Defogging .............................. 207
Washer Fluid ........................................... 483
Wiper Blades ........................................... 489
Wipers and Washers................................ 163
Winter Tires
Snow Tires .............................................. 500
Tire Chains .............................................. 500
Wipers and Washers ................................. 163
Checking and Replacing Wiper Blades ..... 489
WMA ................................................. 248, 272
Worn Tires ................................................ 492
16 ACURA RLX E-AWD-31TY36200.book 578 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
