display Acura RLX 2016 Owner's Manual

483
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reservoir.
Refilling Window Washer Fluid
If the washer fluid is low, a message appears on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a tem porary replacement.
Using any non-Acura brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
MIN
Brake Reservoir
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
16 ACURA RLX E-AWD-31TY36200.book 483 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

499
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the multi-information
display helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
FRONT
Direction MarkFront
Front
16 ACURA RLX E-AWD-31TY36200.book 499 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

501
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
Check the battery terminals for corrosion
monthly.
The battery condition is being monitored by
the sensor on the negative terminal. If there is
a problem with the sensor, the warning
message on multi-information display will let
you know. Have your vehicle checked by a
dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock resets.
2 Clock P. 132
•The navigation system is disabled.
2 Refer to the Navigation System Manual
Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean terminals with a damp towel. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance,
wear protective clothing and a face shield,
or have a skilled technician do it.
16 ACURA RLX E-AWD-31TY36200.book 501 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

uuIf a Tire Goes Flat uChanging a Flat Tire
530
Handling the Unexpected
1. Place the flat tire face down in the spare tire
well.
2. Wrap the spacer cone and spare tire wing
bolt with cloth or paper, and store them in
the spare tire well.
3. Store the jack and tools in the tool case.
Place the tool case and the trunk floor lid on
the flat tire.
4. Close the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer Cone
Wing Bolt
■TPMS and the Spare Tire1TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
16 ACURA RLX E-AWD-31TY36200.book 530 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

531
Handling the Unexpected

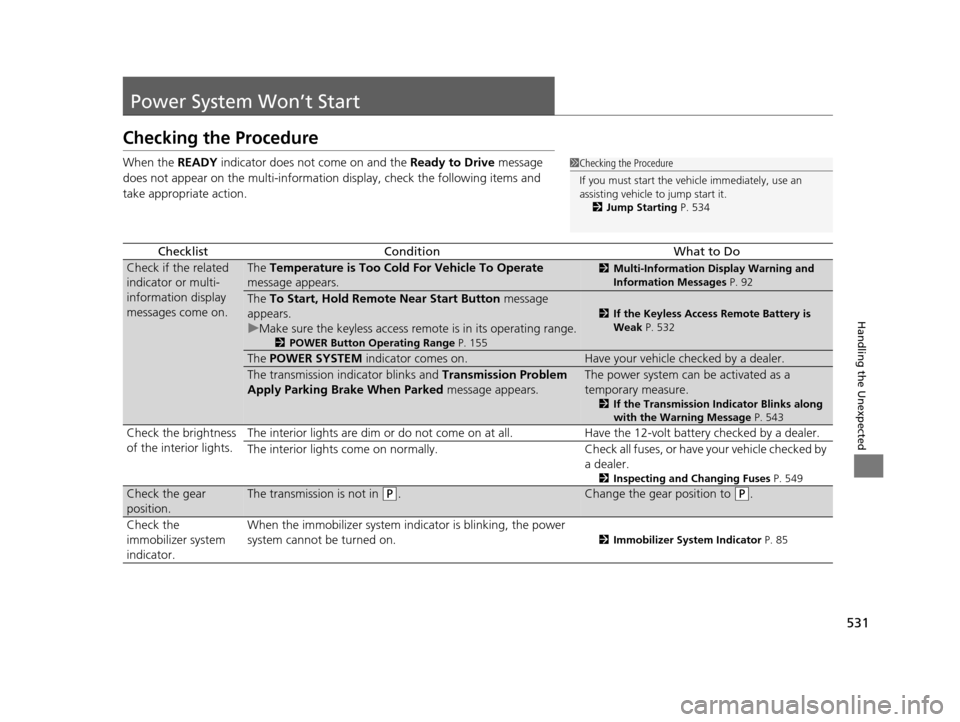

Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready to Drive message
does not appear on the multi-information display, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display Warning and
Information Messages P. 92
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2POWER Button Operating Range P. 155
2If the Keyless Access Remote Battery is
Weak P. 532
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission indicator blinks and Transmission Problem
Apply Parking Brake When Parked message appears.The power system can be activated as a
temporary measure.
2If the Transmission Indicator Blinks along
with the Warning Message P. 543
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 549
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 85
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 534
16 ACURA RLX E-AWD-31TY36200.book 531 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

567
uuClient Service Information u
Continued
Information
Music recognition technology and related
data are provided by Gracenote ®.
Gracenote is the indus try standard in music
recognition technology and related content
delivery.
For more information, visit
www.gracenote.com.
When music is recorded to the HDD from a
CD, information such as the recording artist
and track name are retrieved from the
Gracenote Database and displayed (when
available).
Gracenote may not contain information for
all albums.
Gracenote is an in ternet-based music
recognition service that allows artist, album,
and track information from CDs to display
on the HDD.
Gracenote users are allowed 4 free updates
a year. More information about Gracenote,
its features, and downloads are available at
■Gracenote Music Recognition
Service (CDDB)www.acura.com (in U.S.) or www.acura.ca
(in Canada).
CD and music-related data from Gracenote,
Inc., copyright © 2000 to present
Gracenote. Gracenote Software, copyright
© 2000 to present Gracenote.
One or more patents owned by Gracenote
apply to this produc t and service. See the
Gracenote website for a non-exhaustive list
of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote in the United States and/or other
countries.
This application or device contains software
from Gracenote, Inc. of Emeryville,
California (“Grace note”). The software
from Gracenote (the “Gracenote
Software”) enables this application to
perform disc and/or f ile identification and
obtain music- related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or
■Gracenote ® END USER LICENSE
AGREEMENT
embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data
only by means of th e intended End-User
functions or this application or device.
You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal non-
commercial use only.
You agree not to assign, copy, transfer, or
transmit the Gracenote Software or any
Gracenote Data to any third party.
YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your no n-exclusive license to
use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will
terminate if you violate these restrictions. If
your license terminates , you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote
Servers.
16 ACURA RLX E-AWD-31TY36200.book 567 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

571
Index
B
Battery12-Volt ................................................... 501
12-Volt Battery Charging System
Indicator ......................................... 79, 539
Charging (12-Volt Battery) ...................... 501
High Voltage........................................... 422
Jump Starting ......................................... 534
Maintenance (Checking the 12-Volt Battery) ................................................. 501
Maintenance (Replacing) ......................... 502
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 416
Bluetooth ® Audio ..................................... 275
Bluetooth ® HandsFreeLink ®.................... 313
Booster Seats (For Children) ...................... 69
Brake System ............................................ 423
Anti-lock Brake System (ABS) .................. 428
Automatic Brake Hold ............................. 426
Brake Assist System................................. 429
Fluid ....................................................... 483
Foot Brake .............................................. 425
Parking Brake.......................................... 423
Brake System (Amber) Indicator ................................................... 77
Brake System (Red)
Indicator ........................................... 74, 540
Brightness Control (Head-Up Display) .... 167Brightness Control (Instrument Panel)
.... 166
BSI (Blind Spot Information) System ....... 416
Bulb Replacement .................................... 484
Back-Up Lights ........................................ 487
Brake/Taillight s and Rear Side Marker
Lights .................................................... 487
Door Outer Handle Ambient Lights .......... 488
Fog Lights ................................................ 484
Front Side Marker Lights .......................... 485
Front Turn Signal/Parking Lights ............... 484
Headlights ............................................... 484
High-Mount Brake Light .......................... 488
Rear License Plate Lights .......................... 488
Rear Turn Signal Lights ............................ 486
Side Turn Signal/Em ergency Indicator
Lights .................................................... 485
Taillights .................................................. 487
Bulb Specifications ................................... 556
C
CAMERA Button....................................... 449
Carbon Monoxide Gas ................................ 70
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 361, 363
CD Player ................................................... 248
Center Pocket ........................................... 188
Certification Label .................................... 558
Changing Bulbs ......................................... 484
Charging System Indicator ....................... 539Child Safety
................................................. 58
Childproof Door Locks............................. 144
Child Seat .................................................... 58
Booster Seats ............................................ 69
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 65
Larger Children ......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 67
Childproof Door Locks ............................. 144
Cleaning the Exterior ............................... 507
Cleaning the Interior ................................ 505
Client Service Information ....................... 566
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 504
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 430
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 430
Compact Spare Tire (Optional) ........ 525, 557
16 ACURA RLX E-AWD-31TY36200.book 571 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

572
Index
Console Compartment............................. 187
Controls ..................................................... 131
Coolant (Engine) ....................................... 480
Adding to the Radiator ............................ 481
Adding to the Reserve Tank ..................... 480
High Temperature Indicator ....................... 83
Low Temperature Indicator ........................ 83
Overheating............................................. 537
Coolant (Inverter) ..................................... 482
Creeping (Dual Clutch Transmission) ....... 372
Cross Traffic Monitor ................................ 443
Cruise Control ........................................... 398
Cup Holders ............................................... 189
Customized Features ........................ 113, 286
D
Daytime Running Lights ........................... 162
Dead Battery (12-Volt) ............................. 534
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 559
Dimming Headlights ............................................... 159
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 476
Directional Signals (Turn Signal) .............. 158
Door Mirrors ............................................. 173
Doors ......................................................... 133
Auto Door Locking .................................. 145
Auto Door Unlocking ............................... 145 Door Open Message.................................. 35
Keys ........................................................ 133
Locking/Unlocking the Doors from
the Inside ........................................ 18, 142
Locking/Unlocking the Doors from
the Outside ........................................... 136
Lockout Prevention System ...................... 140
DOT Tire Quality Grading ........................ 495
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 359
Braking ................................................... 423
Cruise Control ......................................... 398
Dual Clutch Transmission ........................ 372
Shifting Gear ........................................... 373
Turning on the Power.............................. 366
Driving Position Memory System ............ 169
Dual Clutch Transmission ......................... 372
Creeping ................................................. 372
Fluid ........................................................ 482
Kickdown ................................................ 372
Operating the Shift Button ................ 23, 375
Shifting ................................................... 373
Dust and Pollen Filter ............................... 504
E
Elapsed Time............................................. 111
Electric Parking Brake Indicator.................................................... 75
Electric Parking Brake System
Indicator............................................ 75, 541 Electric Power Steering (EPS) System
Indicator ........................................... 82, 541
Electronic Stability Control (ESC) ............ 412
Emergency ................................................ 550
Emissions Testing (Readiness Codes) ...... 561
Energy Efficiency ........................................ 12
Engine ....................................................... 558
Coolant .................................................. 480
Jump Starting ......................................... 534
Oil .......................................................... 475
Remote Engine Start ............................... 368
Engine Compartment Cover .................... 474
Engine Coolant ........................................ 480
Adding to the Radiator ........................... 481
Adding to the Reserve Tank .................... 480
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83
Overheating ............................................ 537
Engine Oil ................................................. 475
Adding ................................................... 477
Checking ................................................ 476
Displaying Oil Life ................................... 468
Low Oil Pressure Indicator ................. 74, 539
Recommended Engine Oil ....................... 475
e-pretensioners .......................................... 38
EPS (Electric Power Steering) System ........ 82
Exhaust Gas Hazard (Carbon Monoxide) ................................................ 70
Expanded Rear Door Sunshades ............. 199
Expanded View Driver’s Mirror ............... 174
Exterior Care (Cleaning) .......................... 507
16 ACURA RLX E-AWD-31TY36200.book 572 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

573
Index
Exterior Mirrors........................................ 173
F
Features.................................................... 211
Filters Dust and Pollen....................................... 504
Oil .......................................................... 478
Flat Tire ............................................. 513, 525
Floor Mats ................................................ 506
Fluids Brake ...................................................... 483
Dual Clutch Transmission ........................ 482
Engine Coolant ....................................... 480
Inverter Coolant ...................................... 482
Windshield Washer ................................. 483
Foot Brake ................................................ 425
Front Airbags (SRS) .................................... 46
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 383
Fuel ..................................................... 25, 458
Economy................................................. 460
Gauge .................................................... 106
Instant Fuel Economy .............................. 111
Low Fuel Indicator..................................... 81
Range ..................................................... 111
Recommendation............................ 458, 556
Refueling ................................................ 458 Fuel Economy
............................................ 460
Fuel Fill Door ....................................... 25, 459
Fuses .......................................................... 544
Inspecting and Changing ......................... 549
Locations ................................. 544, 546, 548
G
Gasoline (Fuel) Economy ................................................. 460
Gauge ..................................................... 106
Information ............................................. 458
Instant Fuel Economy ............................... 111
Low Fuel Indicator ..................................... 81
Refueling ................................................. 458
Gauges ...................................................... 106
Gear Position Indicator ...................... 80, 375
Gear Shift Positions
Dual Clutch Transmission ......................... 373
Glass (care) ........................................ 505, 508
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 511
HandsFreeLink ® (HFL) ............................... 313
Auto Answer ........................................... 328
Automatic Import of Cellular Phonebook and
Call History ............................................ 330
Automatic Transferring ............................ 328
Displaying Messages ................................ 347 Editing User Name................................... 327
HFL Buttons............................................. 313
HFL Menus .............................................. 315
HFL Status Display ................................... 314
Limitations for Manual Operation ............ 314
Making a Call .......................................... 338
Options During a Call .............................. 344
Phone Setup............................................ 319
Phonebook Phonetic Modification ........... 334
Receiving a Call ....................................... 343
Receiving a Text/E-m
ail Message.............. 345
Ring Tone................................................ 329
Roadside Assistance ................................ 351
Selecting a Mail Account ......................... 346
Speed Dial ............................................... 331
To Create a Security PIN .......................... 326
To Set Up a Text/E-mail Message Option................................................... 324
Use Contact Photo .................................. 329
Hard Disk Drive (HDD) Audio .................. 251
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 159
Aiming .................................................... 484
Automatic Operation............................... 160
Dimming ......................................... 159, 162
Operating................................................ 159
Head-Up Display ....................................... 123
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
16 ACURA RLX E-AWD-31TY36200.book 573 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

575
Index
L
Lane Keeping Assist System (LKAS)........ 405
Language (HFL) ........................................ 314
LATCH (Child Seats) ................................... 63
Lights ................................................ 159, 484
Automatic............................................... 160
Bulb Replacement ................................... 484
Daytime Running Lights .......................... 162
Fog Lights ............................................... 162
High Beam Indicator ................................. 85
Interior.................................................... 182
Light Switches......................................... 159
Lights On Indicator.................................... 85
Turn Signals ............................................ 158
Load Limits ............................................... 363
Locking/Unlocking ................................... 133
Auto Door Locking/Unlocking ................. 145
Childproof Door Locks ............................ 144
From Inside ............................................. 142
From Outside .......................................... 136
Keys........................................................ 133
Using a Key............................................. 140
Lockout Prevention System ..................... 140
Low Battery Charge (12-Volt) ................. 539
Low Fuel Indicator ..................................... 81
Low Keyless Access Remote Signal Strength .................................................. 135
Low Oil Pressure Indicator ................. 74, 539
Lower Anchors ........................................... 63
Luggage (Maximum Load Limit) ............. 363
Lumbar Support ....................................... 176
M
Maintenance............................................. 463
12-Volt Battery ........................................ 501
Brake Fluid .............................................. 483
Cleaning .................................................. 505
Climate Control System ........................... 504
Coolant ........................................... 480, 482
Maintenance Minder
TM............................ 467
Oil ........................................................... 476
Precautions .............................................. 464
Radiator .................................................. 481
Remote Transmitter ......................... 502, 503
Replacing Light Bulbs ............................... 484
Safety ...................................................... 465
Service Items ........................................... 470
Tires ........................................................ 492
Transmission Fluid ................................... 482
Under the Hood ...................................... 472
Malfunction Indicator Lamp .............. 79, 540
Map Lights ................................................ 183
Maximum Load Limit ............................... 363
Meters, Gauges ......................................... 106
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door ........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 461
Moonroof .................................................. 154 MP3
................................................... 248, 272
Multi-Information Display ....................... 108
Multi-View Rear Camera .......................... 447
N
Numbers (Identification).......................... 558
O
Odometer................................................. 110
Oil (Engine) ....................................... 475, 557
Adding .................................................... 477
Checking................................................. 476
Displaying Oil Life .................................... 468
Low Oil Pressure Indicator ................. 74, 539
Recommended Engine Oil ............... 475, 557
Viscosity .......................................... 475, 557
On Demand Multi-Use Display
TM............. 217
Opening
Trunk ...................................................... 552
Opening/Closing Hood....................................................... 473
Moonroof ............................................... 154
Power Windows ...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ...................................................... 155
Outside Temperature Display .................. 110
Overheating .............................................. 537
16 ACURA RLX E-AWD-31TY36200.book 575 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
