88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Amber)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
ACC with LSF.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if anything covers the
radar sensor cover and prevents the
sensor from detecting a vehicle in
front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC with LSF has been automatically
canceled.
●When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dear if the
indicator does not go off even after you
clean the sensor cover.
Adaptive Cruise
Control (
ACC) with
Low Speed Follow
(LSF) Indicator
(Green)
●Comes on when you press the MAIN
button.2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 385—
●Comes on if the temperature inside
the camera is too high.
●ACC with LSF has been automatically
canceled.
●Use the climate control system to cool down
the camera.
●Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system.
2 Front Sensor Camera P. 383
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF) P. 385
16 ACURA RLX E-AWD-31TY36200.book 88 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

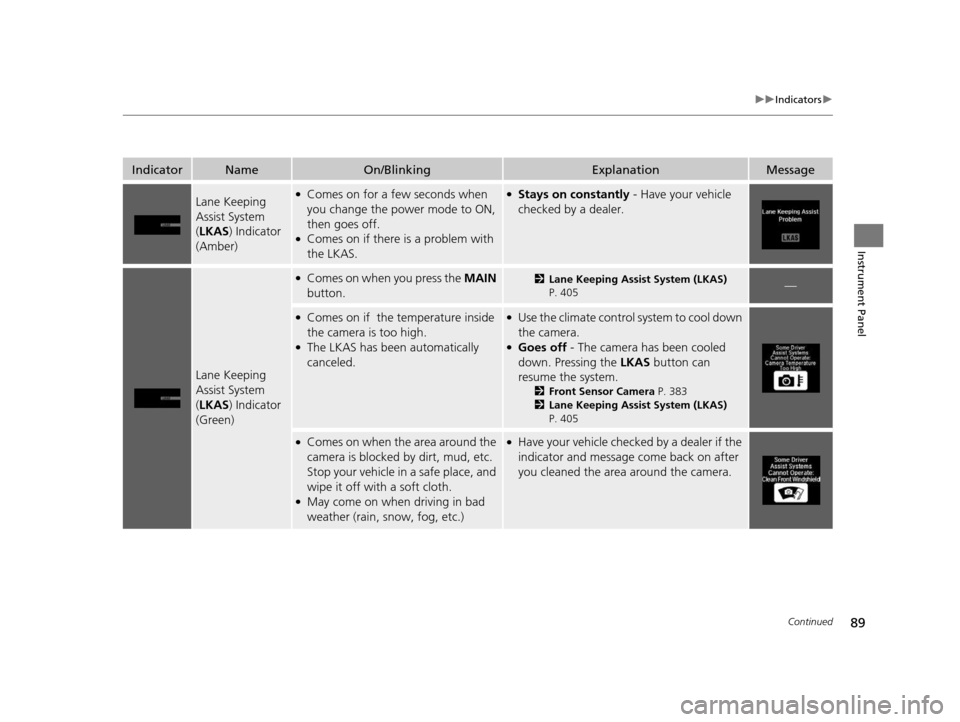

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
the LKAS.
●Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)
●Comes on when you press the MAIN
button.2 Lane Keeping Assist System (LKAS)
P. 405—
●Comes on if the temperature inside
the camera is too high.
●The LKAS has been automatically
canceled.
●Use the climate control system to cool down
the camera.
●Goes off - The camera has been cooled
down. Pressing the LKAS button can
resume the system.
2 Front Sensor Camera P. 383
2 Lane Keeping Assist System (LKAS)
P. 405
●Comes on when the area around the
camera is blocked by dirt, mud, etc.
Stop your vehicle in a safe place, and
wipe it off with a soft cloth.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
16 ACURA RLX E-AWD-31TY36200.book 89 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind Spot
Information (BSI)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Stays on while BSI is turned off.
—
●Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.●Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind Spot Information (BSI) System
P. 416
●Comes on if there is a problem with
the system.●Comes on while driving - Have your
vehicle checked by a dealer.
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on when you deactivate the
CMBSTM. A multi-information display
message appears for five seconds.
●Comes on if there is a problem with
the CMBSTM.
●Stays on constantly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 430
16 ACURA RLX E-AWD-31TY36200.book 90 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

93
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when there is a prob lem with the sensor on the
12-volt battery.●Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 501
●Appears when the starter system has a problem.●As a temporary measure, press and hold the POWER
button for up to 15 second s while depressing the brake
pedal and manually turn on the power system.
Have your vehicle checked by a dealer.
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press the POWER button twice with your foot off the
brake pedal to change the power mode to VEHICLE OFF
(LOCK).
●Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
16 ACURA RLX E-AWD-31TY36200.book 93 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

94
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power mode
in ON without the keyless access remote inside the
vehicle.●Disappears when you bring the keyless access remote
back inside the vehicle and close the door.
2Keyless Access Remote Reminder P. 157
●Appears when the keyless access remote battery
becomes weak.●Replace the battery as soon as possible.
2Replacing the Button Battery P. 502
●Appears if the keyless access remote battery is too weak
to turn on the power system or the key is not within
operating range to turn on the power system.
A beeper sounds six times.●Bring the keyless access remote in front of the POWER
button to be touched with.
2 If the Keyless Access Remote Battery is Weak P. 532
●Appears three seconds after you bring the keyless
access remote in front of the POWER button when To
Start, Hold Remote Near Start Button appears. To
Start Vehicle: Brake + Push appears sequentially.●Unless you bring the keyless access remote in front of
the POWER button, this message does not appear.
2If the Keyless Access Remote Battery is Weak P. 532
●Appears when you set the power mode to ACCESSORY
or ON.
2Turning on the Power P. 366
16 ACURA RLX E-AWD-31TY36200.book 94 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

95
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when you turn the power system on with the
transmission not in
(P.
●Press the (P button.
●Appears when you try to chan ge the gear position after
the position has automati cally been changed to
(P with
the driver’s door open and the driver’s seat belt
unfastened.
●Press the (P button if you leave the vehicle.
●Appears when you set the power mode to ON without
fastening the driver’s seat belt.
●Appears when you change the gear position after (P
has been automatically selected with the driver’s door
open, the driver’s seat belt unfastened, then the brake
pedal is released.
●Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 375
●Appears when you try to change the gear position
without depressing the brake pedal.●Depress the brake pedal, then select a shift button.
●Appears when you try to change the gear position
without releasing your foot off the accelerator pedal.●Release your foot off the acce lerator pedal, then select
a shift button.
16 ACURA RLX E-AWD-31TY36200.book 95 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

96
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the parking button is pressed while the
vehicle is moving.
●Appears if you change the gear position to (R while the
vehicle is moving forward, or to
(D while the vehicle is
reversing.
●Make sure that the vehicle comes to a stop before
operating the select button.
●Appears if there is a proble m with the electric system.●Appears when you set the power mode to OFF while
driving.
●Immediately stop in a safe place and set the parking
brake.
●Continue driving if the message goes off soon after.●If there is a problem with the transmission system, the
transmission indicator comes on.
2Transmission Indicator P. 80
●Appears when you change to (N, and press the
POWER button within five seconds.●The gear position remains in (N for 15 minutes, then
automatically switches to
(P.
2 If you want to keep the transmission in (N
position (car wash mode) P. 376
●Appears when the vehicle is stopped with the driver’s
seat belt unfastened and th ere is a chance that the
vehicle may roll unintentionally.●Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2Shift Operation P. 375
16 ACURA RLX E-AWD-31TY36200.book 96 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if any door or the trunk is not completely
closed.
●Appears if any door or the tr unk is opened while driving.
The beeper sounds.
●Goes off when all doors and the trunk are closed.
●Appears if there is a problem with the acoustic vehicle
alerting system.●Have your vehicle checked by a dealer immediately.
●Appears if there is a problem with the radiator system.●Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
●Appears when there is a problem with the headlights.●Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle checked by a dealer as soon as
possible.
●Appears if there is a problem with the parking sensor
system.●Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.Models with
parking sensor
system
16 ACURA RLX E-AWD-31TY36200.book 97 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

100
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the High Voltage battery temperature is
extremely low or high.●Avoid sudden acceleration or deceleration, or abrupt
steering wheel operation until the message disappears.
●Appears if the AWD system has a problem due to a
hybrid system or power distribution control failure.●Set the power mode to OFF, then set it back to ON.
Have your vehicle checked by a dealer if the message
appears again.
●Appears when the High Voltage battery is running
extremely low due to continuous slow driving.●Driving at low speed for a long time decreases the
amount of electricity generated, leading to High
Voltage battery drain.
●Appears when the High Voltag e battery is drained even
further and a stop is needed to charge the battery.●Stop in a safe place in (P, then charge the High Voltage
battery by idling the engine.
2 If the 12-Volt Battery Charging System Indicator
Comes On P. 539
●Appears while the High Voltage battery is being
charged with the engine running after the vehicle is
parked with an extremely low battery level.●Do not drive the vehicle until Ready To Drive appears.
2READY Indicator P. 78
16 ACURA RLX E-AWD-31TY36200.book 100 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

105
uuIndicators uMulti-Information Display Warning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you unlock an d open the driver’s door
while the power system is on by two-way keyless access
remote.
2 Remote Engine Start with Vehicle Feedback* P. 368
Models with two-way keyless access remote
* Not available on all models
