reset Acura RLX 2016 Service Manual

310

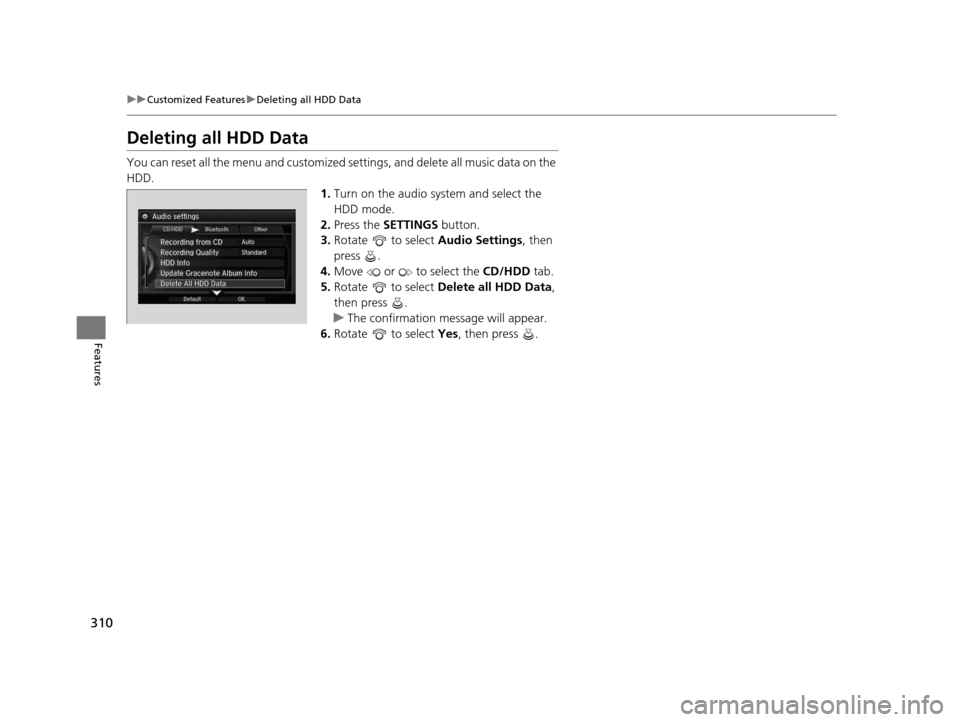

uuCustomized Features uDeleting all HDD Data
Features
Deleting all HDD Data
You can reset all the menu and customized se ttings, and delete all music data on the
HDD. 1.Turn on the audio system and select the
HDD mode.
2. Press the SETTINGS button.
3. Rotate to select Audio Settings, then
press .
4. Move or to select the CD/HDD tab.
5. Rotate to select Delete all HDD Data,
then press .
u The confirmation message will appear.
6. Rotate to select Yes, then press .
16 ACURA RLX E-AWD-31TY36200.book 310 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

316
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
Select a text/e-mail message account.Text/Email*1
Manual Input
Edit Speed
Dial*1New Entry

Import from Call History
*1: Appears only when a pho ne is connected to HFL.



Import from
Phonebook


Delete AllDelete all the previously stored speed dial numbers.
Select a phone number from the call
history to store as a speed dial number.
Select a phone number from the
phonebook to store as a speed dial number. Enter a phone number to store as a speed
dial number.

Edit
Delete
(Existing
entry list)Edit a previously stored speed dial number.●Change a number.●Create or delete a voice tag.
Delete a previously stored speed dial number.

Set calls to automatically transfer from your phone to HFL when you enter the
vehicle.Auto Transfer
Auto Answer
Ring Tone
Set whether to automatically answer an incoming call after about four
seconds.
Select the ring tone.
Use Contact Photo
Set phonebook data to be automatically imported when a phone is paired to
HFL.
Display a caller’s picture on an incoming call screen.Automatic Phone Sync*1




Select Account

Enable Text/EmailTurn the text/e-mail message function on and off.
New Text/Email AlertSelect whether a pop-up alert comes on the screen when HFL receives a new
text/e-mail message.

Cancel/Reset all customized items in the Phone Settings group as default.Default
16 ACURA RLX E-AWD-31TY36200.book 316 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

470
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 160,000 miles (256,000
km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Main Item Sub Items
*1: If a message Maintenance Due Now does not appear more than 12 months after the display is
reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect tie rod ends, steering gearbox, boots, and
drain plug
●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and li nes (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Check expiration informat ion for Temporary Tire
Repair Kit bottle
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
at 30,000 miles (48,000 km), then every 25,000 miles (40,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles/100,000 km.
*6: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the differential
fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
3●Replace transmission fluid*4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
6●Replace Twin Motor Unit fluid*6
16 ACURA RLX E-AWD-31TY36200.book 470 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

471
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
Reset the engine oil life display if you have performed the maintenance service.
1. Set the power mode to ON.
2. Go to the Maintenance Info. group.
2Customized Features P. 113
3.Push the right selector wheel.
u The oil life reset mode is displayed on the multi-information display.
4. Select Reset with the right selector wheel, th en push the right selector wheel.
u The displayed maintenance items disapp ear, and the engine oil life display
returns to 100%.
To cancel the oil life reset mode, select Cancel, then push the right selector wheel.
■Resetting the Display1Resetting the Display
NOTICE
Failure to reset the engine oil life after a maintenance
service results in the sy stem showing incorrect
maintenance intervals, which can lead to serious
mechanical problems.
The dealer will reset the en gine oil life display after
completing the required ma intenance service. If
someone other than a deal er performs maintenance
service, reset the engine oil life display yourself.
Engine Oil Life
Maintenance Item Codes
Right Selector
Wheel
16 ACURA RLX E-AWD-31TY36200.book 471 ページ ２０１５年５月２２日　金曜日　午後３時
５０分

501
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
Check the battery terminals for corrosion
monthly.
The battery condition is being monitored by
the sensor on the negative terminal. If there is
a problem with the sensor, the warning
message on multi-information display will let
you know. Have your vehicle checked by a
dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock resets.
2 Clock P. 132
•The navigation system is disabled.
2 Refer to the Navigation System Manual
Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean terminals with a damp towel. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance,
wear protective clothing and a face shield,
or have a skilled technician do it.
16 ACURA RLX E-AWD-31TY36200.book 501 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

576
Index
P
Paddle Shifters (Sequential Mode).......... 379
Pandora® ................................................... 270
Panic Mode ............................................... 151
Parking ...................................................... 438
Parking Brake ............................................ 423
Parking Sensor System .............................. 439
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 159
POWER Button .......................................... 155
Power Distribution Monitor ............. 128, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 366
POWER SYSTEM Indicator .......................... 78
Power Windows ........................................ 152
Precautions While Driving
Rain ......................................................... 371
Pregnant Women ....................................... 41
Puncture (Tire) .................................. 513, 525
R
Radiator..................................................... 481
Radio (AM/FM) .......................................... 240
Radio (SiriusXM ®)...................................... 245
Radio Data System (RDS) .......................... 242
Range ........................................................ 111
RDS (Radio Data System) .......................... 242
Reactive Force Pedal ................................. 381
Readiness Codes (Emissions Testing) ....... 561READY Indicator
......................................... 78
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 458
Fuel Gauge.............................................. 106
Gasoline .......................................... 458, 556
Low Fuel Indicator ..................................... 81
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 420, 495, 559
Remote Engine Start with Vehicle
Feedback ................................................. 368
Remote Transmitter ................................. 136
Replacement
Battery ............................................ 502, 503
Bulbs ....................................................... 484
Fuses ....................................... 544, 546, 548
Tires ........................................................ 498
Wiper Blade Rubber ................................ 489
Reporting Safety Defects ......................... 560
Resetting a Trip Meter ............................. 110
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ....................... 108, 113
Road Departure Mitigation (RDM) ......... 401
On and Off.............................................. 402
S
Safe Driving ................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 71
Safety Message ............................................ 1
Seat Belts .................................................... 36
Adjusting the Shoulder Anchor ................. 40
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
e-pretensioners ......................................... 38
Fastening .................................................. 39
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 65
Pregnant Women...................................... 41
Reminder ............................................ 37, 81
Warning Indicator ............................... 37, 81
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................................. 175
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 149
Immobilizer System Indicator ..................... 85
Security System Alarm Indicator ................ 86
Selecting a Child Seat ................................ 62
Sequential Mode ...................................... 378
Sequential Mode Operation ................... 379
Setting the Clock ...................................... 132
Shift Button ........................................ 23, 373
Operation ............................................... 375
Shifting (Transmission) ...................... 23, 373
16 ACURA RLX E-AWD-31TY36200.book 576 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
