Page 373 of 581
uuWhen Driving uDual Clutch Transmission
372
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Dual Clutch Transmission
As with a conventional gasoline-powered vehicle with an automatic transmission,
this vehicle will creep.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unex pectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especi ally on slippery roads and curves.
■Other Precautions
■Creeping
■Kickdown
1Precautions While Driving
Do not press the
(N button, as you will lose
regenerative braking (and ac celeration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
16 ACURA RLX E-AWD-31TY36200.book 372 ページ ２０１５年５月２２日 金曜日 午後３時 ５０分

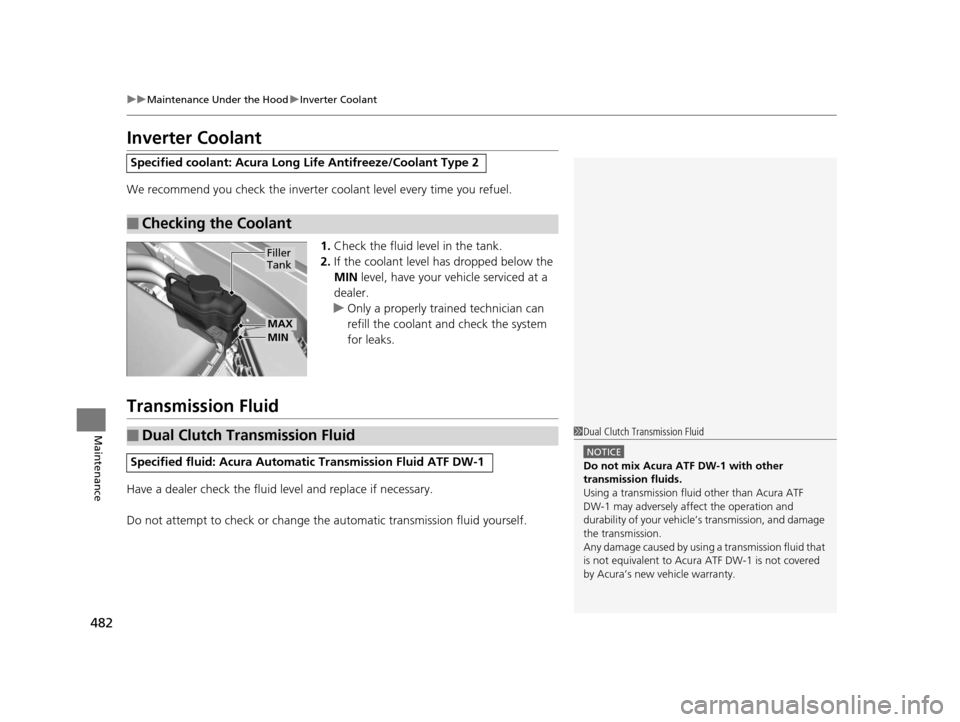

Page 483 of 581
482
uuMaintenance Under the Hood uInverter Coolant
Maintenance
Inverter Coolant
We recommend you check the inverter co olant level every time you refuel.
1. Check the fluid level in the tank.
2. If the coolant level has dropped below the
MIN level, have your vehicle serviced at a
dealer.
u Only a properly trained technician can
refill the coolant an d check the system
for leaks.
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
Specified coolant: Acura Long Life Antifreeze/Coolant Type 2
■Checking the Coolant
MAX
MIN
Filler
Tank
■Dual Clutch Transmission Fluid
Specified fluid: Acura Automatic Transmis sion Fluid ATF DW-1
1Dual Clutch Transmission Fluid
NOTICE
Do not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission flui d other than Acura ATF
DW-1 may adversely af fect the operation and
durability of your vehicle’ s transmission, and damage
the transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acur a ATF DW-1 is not covered
by Acura’s new vehicle warranty.
16 ACURA RLX E-AWD-31TY36200.book 482 ページ ２０１５年５月２２日 金曜日 午後３時 ５０分
Page 558 of 581
557
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 3.7 US qt (3.5 ℓ)
SpecifiedAcura Automatic Transmission Fluid
ATF DW-1
Capacity Change 2.56 US qt (2.42 ℓ)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 ℓ)
Change
including
filter
4.5 US qt (4.3 ℓ)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity2.1 US gal (7.9 ℓ)
(change including the remaining
0.225 US gal (0.85 ℓ) in the reserve tank)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.32 US gal (1.23 ℓ)
(change including the remaining
0.03 US gal (0.11 ℓ) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire kit
RegularSize245/40R19 98WPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Compact
Spare*1
SizeT155/70D17 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular19 x 8JCompact Spare*117 x 4T
16 ACURA RLX E-AWD-31TY36200.book 557 ページ ２０１５年５月２２日 金曜日 午後３時
５０分
Page 574 of 581
573
Index
Exterior Mirrors........................................ 173
F
Features.................................................... 211
Filters Dust and Pollen....................................... 504
Oil .......................................................... 478
Flat Tire ............................................. 513, 525
Floor Mats ................................................ 506
Fluids Brake ...................................................... 483
Dual Clutch Transmission ........................ 482
Engine Coolant ....................................... 480
Inverter Coolant ...................................... 482
Windshield Washer ................................. 483
Foot Brake ................................................ 425
Front Airbags (SRS) .................................... 46
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................................ 175
Adjusting ................................................ 175
Front Sensor Camera ............................... 383
Fuel ..................................................... 25, 458
Economy................................................. 460
Gauge .................................................... 106
Instant Fuel Economy .............................. 111
Low Fuel Indicator..................................... 81
Range ..................................................... 111
Recommendation............................ 458, 556
Refueling ................................................ 458 Fuel Economy
............................................ 460
Fuel Fill Door ....................................... 25, 459
Fuses .......................................................... 544
Inspecting and Changing ......................... 549
Locations ................................. 544, 546, 548
G
Gasoline (Fuel) Economy ................................................. 460
Gauge ..................................................... 106
Information ............................................. 458
Instant Fuel Economy ............................... 111
Low Fuel Indicator ..................................... 81
Refueling ................................................. 458
Gauges ...................................................... 106
Gear Position Indicator ...................... 80, 375
Gear Shift Positions
Dual Clutch Transmission ......................... 373
Glass (care) ........................................ 505, 508
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 511
HandsFreeLink ® (HFL) ............................... 313
Auto Answer ........................................... 328
Automatic Import of Cellular Phonebook and
Call History ............................................ 330
Automatic Transferring ............................ 328
Displaying Messages ................................ 347 Editing User Name................................... 327
HFL Buttons............................................. 313
HFL Menus .............................................. 315
HFL Status Display ................................... 314
Limitations for Manual Operation ............ 314
Making a Call .......................................... 338
Options During a Call .............................. 344
Phone Setup............................................ 319
Phonebook Phonetic Modification ........... 334
Receiving a Call ....................................... 343
Receiving a Text/E-m
ail Message.............. 345
Ring Tone................................................ 329
Roadside Assistance ................................ 351
Selecting a Mail Account ......................... 346
Speed Dial ............................................... 331
To Create a Security PIN .......................... 326
To Set Up a Text/E-mail Message Option................................................... 324
Use Contact Photo .................................. 329
Hard Disk Drive (HDD) Audio .................. 251
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 159
Aiming .................................................... 484
Automatic Operation............................... 160
Dimming ......................................... 159, 162
Operating................................................ 159
Head-Up Display ....................................... 123
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
16 ACURA RLX E-AWD-31TY36200.book 573 ページ ２０１５年５月２２日 金曜日 午後３時 ５０分
Page 576 of 581
575
Index
L
Lane Keeping Assist System (LKAS)........ 405
Language (HFL) ........................................ 314
LATCH (Child Seats) ................................... 63
Lights ................................................ 159, 484
Automatic............................................... 160
Bulb Replacement ................................... 484
Daytime Running Lights .......................... 162
Fog Lights ............................................... 162
High Beam Indicator ................................. 85
Interior.................................................... 182
Light Switches......................................... 159
Lights On Indicator.................................... 85
Turn Signals ............................................ 158
Load Limits ............................................... 363
Locking/Unlocking ................................... 133
Auto Door Locking/Unlocking ................. 145
Childproof Door Locks ............................ 144
From Inside ............................................. 142
From Outside .......................................... 136
Keys........................................................ 133
Using a Key............................................. 140
Lockout Prevention System ..................... 140
Low Battery Charge (12-Volt) ................. 539
Low Fuel Indicator ..................................... 81
Low Keyless Access Remote Signal Strength .................................................. 135
Low Oil Pressure Indicator ................. 74, 539
Lower Anchors ........................................... 63
Luggage (Maximum Load Limit) ............. 363
Lumbar Support ....................................... 176
M
Maintenance............................................. 463
12-Volt Battery ........................................ 501
Brake Fluid .............................................. 483
Cleaning .................................................. 505
Climate Control System ........................... 504
Coolant ........................................... 480, 482
Maintenance Minder
TM............................ 467
Oil ........................................................... 476
Precautions .............................................. 464
Radiator .................................................. 481
Remote Transmitter ......................... 502, 503
Replacing Light Bulbs ............................... 484
Safety ...................................................... 465
Service Items ........................................... 470
Tires ........................................................ 492
Transmission Fluid ................................... 482
Under the Hood ...................................... 472
Malfunction Indicator Lamp .............. 79, 540
Map Lights ................................................ 183
Maximum Load Limit ............................... 363
Meters, Gauges ......................................... 106
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door ........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 461
Moonroof .................................................. 154 MP3
................................................... 248, 272
Multi-Information Display ....................... 108
Multi-View Rear Camera .......................... 447
N
Numbers (Identification).......................... 558
O
Odometer................................................. 110
Oil (Engine) ....................................... 475, 557
Adding .................................................... 477
Checking................................................. 476
Displaying Oil Life .................................... 468
Low Oil Pressure Indicator ................. 74, 539
Recommended Engine Oil ............... 475, 557
Viscosity .......................................... 475, 557
On Demand Multi-Use Display
TM............. 217
Opening
Trunk ...................................................... 552
Opening/Closing Hood....................................................... 473
Moonroof ............................................... 154
Power Windows ...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ...................................................... 155
Outside Temperature Display .................. 110
Overheating .............................................. 537
16 ACURA RLX E-AWD-31TY36200.book 575 ページ ２０１５年５月２２日 金曜日 午後３時 ５０分
