Trunk release Acura RLX 2017 User Guide

528
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Lever
17 ACURA RLX-31TY26300.book 528 ページ ２０１６年６月１７日　金曜日　午前８時１２分

529
Handling the Unexpected

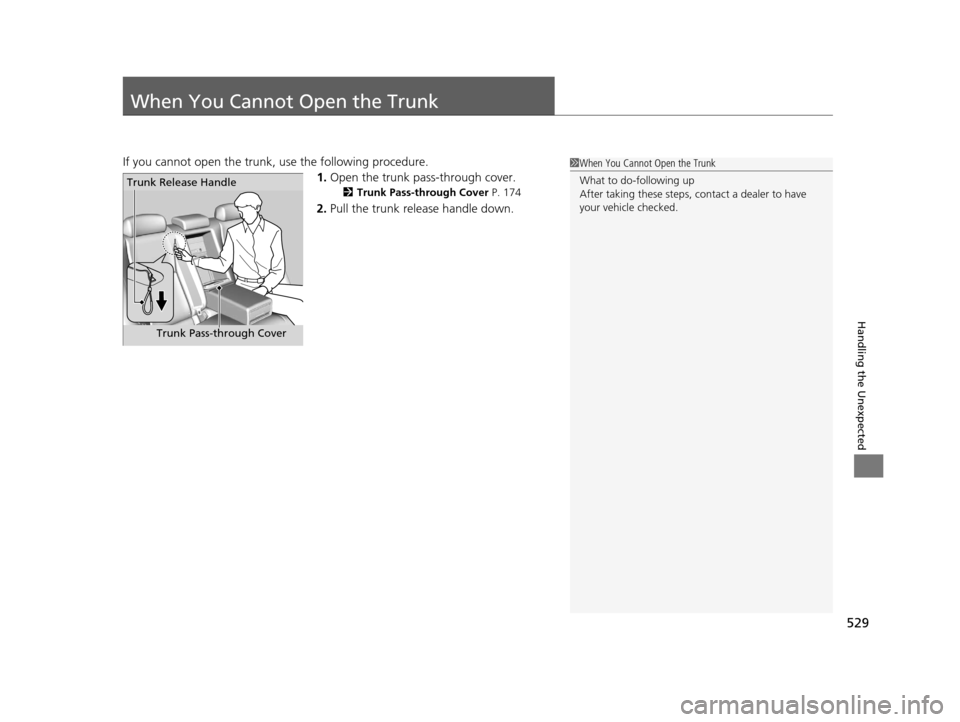

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Open the trunk pass-through cover.
2 Trunk Pass-through Cover P. 174
2.Pull the trunk release handle down.
1When You Cannot Open the Trunk
What to do-following up
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Pass-through Cover
Trunk Release Handle
17 ACURA RLX-31TY26300.book 529 ページ ２０１６年６月１７日　金曜日　午前８時１２分

530
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 490
4.Remove the funnel from the case .
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel Case
17 ACURA RLX-31TY26300.book 530 ページ ２０１６年６月１７日　金曜日　午前８時１２分

553
Index
Tire Pressure Monitoring System (TPMS) ..................................................... 398
Indicator ........................................... 76, 521
Tires .......................................................... 471
Air Pressure..................................... 472, 533
Chains .................................................... 479
Checking and Maintaining ...................... 471
Flat Tire (Puncture) .......................... 491, 503
Inspection ............................................... 471
Labeling .................................................. 472
Regulations ............................................. 474
Rotation.................................................. 478
Spare (Optional) .............................. 503, 533
Summer .......................................... 479, 488
Temporary Tire Repair Kit ........................ 492
Wear Indicators....................................... 476
Winter .................................................... 479
Tools ......................................................... 490
Towing a Trailer ....................................... 343
Towing Your Vehicle ............................... 343
Emergency .............................................. 527
TPMS (Tire Pressure Monitoring
System) .................................................... 398
Transmission ....................................... 17, 351
Automatic................................. 17, 350, 351
Fluid ....................................................... 460
Number .................................................. 534
Sequential Shift Mode............................. 353
Shift Lever Position Indicator ............. 72, 352
TRIP Button ................................................ 99
Trip Meter ................................................ 100 Troubleshooting
....................................... 489
Blown Fuse .............................. 522, 524, 525
Brake Pedal Vibrates .................................. 21
Buzzer Sounds When Opening Door .......... 22
Emergency Towing .................................. 527
Engine Won’t Start .................................. 509
Flat Tire/Puncture ............................. 491, 503
Noise When Braking .................................. 22
Overheating ............................................ 516
Premium Gasoline ........................... 437, 532
Rear Door Won’t Open ...................... 21, 126
Shift Lever Does Not Move ...................... 515
Warning Indicators .................................... 68
Trunk ......................................................... 128
Lid ........................................................... 128
Light Bulbs .............................................. 532
Release Handle ........................................ 529
Unable to Open ....................................... 529
Trunk Pass-through Cover ........................ 174
Turn Signals .............................................. 140
Indicators (Instrument Panel) ...................... 77
Turn-by-Turn Directions ........................... 101
Two-way Keyless Access Remote ..... 123, 346
U
Unlocking the Doors................................ 118
Unlocking the Front Doors from the Inside ................................................. 12, 124
USB Flash Drives ........................................ 261
USB Port .................................................... 193 Using the Keyless Access System
............. 118
V
Valet Mode............................................... 166
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 534
Vehicle Stability Assist (VSA ®).................. 393
Off Button............................................... 394
Off Indicator...................................... 75, 394
System Indicator ................................ 75, 393
Viscosity (Oil) .................................... 453, 533
VSA ® (Vehicle Stability Assist) .................. 393
W
Warning and Information Messages ......... 86
Warning Indicator On/Blinking ............... 518
Warning Labels ........................................... 65
Warranties (Warranty Manual provided
separately) .............................................. 539
Watts ......................................................... 532
Wear Indicators (Tire) .............................. 476
Wheel Nut Wrench (Jack Handle) ........... 506
Window Washers ..................................... 145
Adding/Refilling Fluid .............................. 461
Switch ..................................................... 145
Windows (Opening and Closing) ............ 134
Windshield
Cleaning ......................................... 484, 487
Defrosting/Defogging .............................. 188
17 ACURA RLX-31TY26300.book 553 ページ ２０１６年６月１７日　金曜日　午前８時１２分
