buttons Acura RLX 2017 User Guide

211
uuAudio System Basic Operation uVoice Control Operation
Continued
Features
Voice Control Operation
Your vehicle has a voice control system that allows hands-free operation of most of
the navigation system functions.
The voice control system uses the (Tal k) and (hang-up/back) buttons on the
steering wheel and a microphone near the map lights on the ceiling.
To achieve optimum voice recognition when using the voice control system:
• Make sure the correct screen is displa yed for the voice command that you are
using.
• Close the windows and moonroof.
• Adjust the dashboard and side vents so air does not blow onto the microphone
on the ceiling.
• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your
command if more than one person is speaking at the same time.
• Refer to the Voice Help feature.
2 Refer to the Navigation System Manual
■Voice Recognition
1Voice Control Operation
When you press the button, a helpful prompt asks
what you would like to do. Press and release the
button again to bypass th is prompt and give a
command.
1 Voice Recognition
The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the front passenger’s side.
17 ACURA RLX-31TY26300.book 211 ページ ２０１６年６月１７日　金曜日　午前８時１２分

288
Features

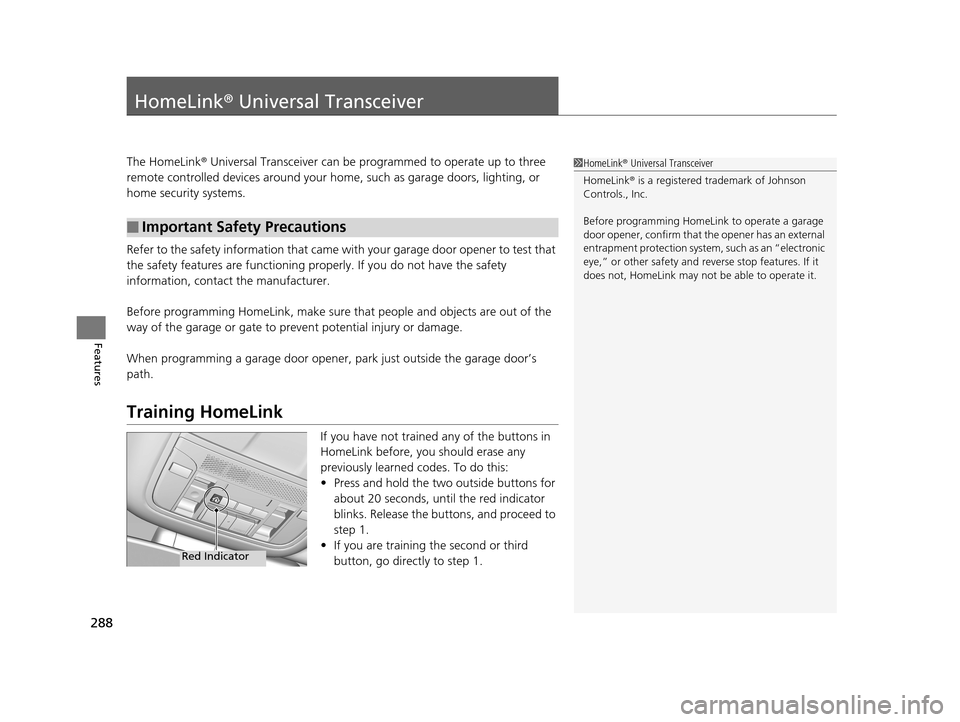

HomeLink® Universal Transceiver
The HomeLink ® Universal Transceiver can be pr ogrammed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, park just outside the garage door’s
path.
Training HomeLink
If you have not trained any of the buttons in
HomeLink before, you should erase any
previously learned codes. To do this:
• Press and hold the two outside buttons for
about 20 seconds, until the red indicator
blinks. Release the bu ttons, and proceed to
step 1.
• If you are training the second or third
button, go directly to step 1.
■Important Safety Precautions
1HomeLink ® Universal Transceiver
HomeLink® is a registered tra demark of Johnson
Controls., Inc.
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and reverse stop features. If it
does not, HomeLink may not be able to operate it.
Red Indicator
17 ACURA RLX-31TY26300.book 288 ページ ２０１６年６月１７日　金曜日　午前８時１２分

289
uuHomeLink ® Universal Transceiver uTraining HomeLink
Features

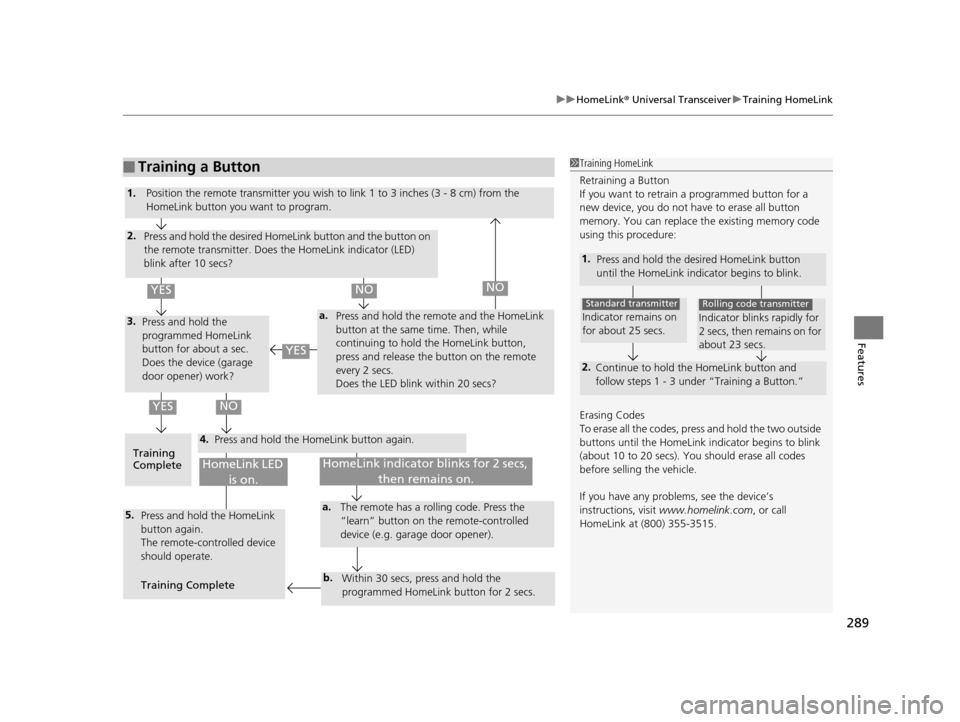

■Training a Button1Training HomeLink
Retraining a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
1. Press and hold the desired HomeLink button
until the HomeLink indi cator begins to blink.
2.
Continue to hold the HomeLink button and
follow steps 1 - 3 unde r “Training a Button.”
Indicator remains on
for about 25 secs.
Standard transmitter
Indicator blinks rapidly for
2 secs, then remains on for
about 23 secs.
Rolling code transmitter
Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink i ndicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com , or call
HomeLink at (800) 355-3515.
4.
a.3.
2.
5.a.
b.
1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.
Press and hold the desired HomeLink button and the button on
the remote transmitter. Does the HomeLink indicator (LED)
blink after 10 secs?
Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work? Press and hold the remote and the HomeLink
button at the same time. Then, while
continuing to hold the HomeLink button,
press and release the button on the remote
every 2 secs.
Does the LED blink within 20 secs?
Training
Complete Press and hold the HomeLink button again.
Press and hold the HomeLink
button again.
The remote-controlled device
should operate.
Training Complete The remote has a ro
lling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).
Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.
HomeLink indicator blinks for 2 secs, then remains on.HomeLink LED is on.
YESNO
YES
YESNONO
17 ACURA RLX-31TY26300.book 289 ページ ２０１６年６月１７日　金曜日　午前８時１２分

290
Features
Bluetooth® HandsFreeLink ®
Bluetooth® HandsFreeLink ® (HFL) allows you to place and receive phone calls using
your vehicle’s navigation system, without handling your cell phone.
Using HFL
(Pick-up) button: Press to go to the Speed Dial/Call History on the multi-
information display or to answer an incoming call.
(Hang-up/back) button: Press to end a call, to cancel a command or to clear
the phone information on the multi-information display.
(Talk) button: Press to give HFL voice commands.
PHONE button: Press to go directly to the Phone screen.
Interface dial: Rotate to select an item on the screen, then press . Move ,
, or to select secondary menu.
■HFL Buttons
1 Bluetooth ® HandsFreeLink ®
To use HFL, you need a Bluetooth-compatible cell
phone. For a list of compatible phones, pairing
procedures, and special feature capabilities:
•U.S.: Visit www.acura.com/handsfreelink , or call 1-
888-528-7876.
•Canada: Visit www.handsfreelink.ca , or call 1-888-
528-7876.
To use HFL, the Bluetooth setting must be On.
2 Customized Features P. 262
Voice control tips:
•Aim the vents away from the ceiling and close the
windows, as noise coming fr om them may interfere
with the microphone.
•Press and release the but ton when you want to
call a number using a stored voice tag, a
phonebook name, or a numbe r. Speak clearly and
naturally after a beep.
•If the microphone picks up vo ices other than yours,
the command may be misinterpreted.
•To change the volume level, use the audio system’s
volume knob or the remote audio controls on the
steering wheel.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Talk Button
Volume up
Microphone
Hang-up/Back Button
Pick-up
Button
Volume down
Interface
DialPHONE

Button
17 ACURA RLX-31TY26300.book 290 ページ ２０１６年６月１７日　金曜日　午前８時１２分

Continued321
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
When there is an inco ming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
■Receiving a Call1 Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Ignore the incoming call if you do not want to answer
it.
Press the button if you want to hang up the
current call.
You can select the icons on the On Demand Multi-
Use Display
TM instead of the and buttons.
17 ACURA RLX-31TY26300.book 321 ページ ２０１６年６月１７日　金曜日　午前８時１２分

481Continued
Maintenance
Remote Transmitter Care
Replacing the Button Battery
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
2. Remove the upper half of the cover by
carefully prying on the edge with a coin.
u Remove carefully to avoid losing the
buttons.
u Wrap a coin with a cloth to prevent
scratching the keyless access remote.
3. Make sure to replace the battery with the
correct polarity.1Replacing the Button Battery
NOTICE
An improperly disposed of battery can damage the
environment. Always conf irm local regulations for
battery disposal.
Replacement batteries are commercially available or
at a dealer.
Battery type: CR2032
Battery
17 ACURA RLX-31TY26300.book 481 ページ ２０１６年６月１７日　金曜日　午前８時１２分

uuRemote Transmitter Care uReplacing the Button Battery
482
Maintenance
If the indicator does not come on when the button is pressed, replace the battery.
1. Remove the built-in key.
u As a convenience, lightly place masking
tape over the remote buttons to hold
them in place.
2. Remove the upper half by carefully prying
on the edge with a coin.
u Wrap a coin with a cloth to prevent
scratching the transmitter.
3. Press down on the center of the assembly
and remove the battery.
u When removing the button battery, be
careful not to touch parts around it.
4. Make sure to replace the battery with the
correct polarity.
Models with remote control engine start system1 Replacing the Button Battery
NOTICE
The Remote transmitter is equipped with two
batteries: A standard replaceable CR2032 coin
button battery and an in tegral non-replaceable
rechargeable battery. To prevent permanent damage
to the rechargeable battery, replace the CR2032
battery every three to four years.
Models with remote control engine start system
Battery type: CR2032
Battery
17 ACURA RLX-31TY26300.book 482 ページ ２０１６年６月１７日　金曜日　午前８時１２分

510
uuEngine Does Not Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the indicator on the ENGINE START/
STOP button flashes, and the engine won’ t start. Start the engine as follows.
1. Touch the center of the ENGINE START/
STOP button with the A logo on the keyless
access remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the keyle ss access remote
should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds while the
indicator stays on.
u If you do not depress the pedal, the
mode will change to ACCESSORY.
17 ACURA RLX-31TY26300.book 510 ページ ２０１６年６月１７日　金曜日　午前８時１２分

549
Index
Fuel..................................................... 18, 437
Economy................................................. 439
Gauge ...................................................... 97
Instant Fuel Economy .............................. 101
Low Fuel Indicator..................................... 73
Range ..................................................... 101
Recommendation............................ 437, 532
Refueling ................................................ 437
Fuel Economy ........................................... 439
Fuel Fill Door ...................................... 18, 438
Fuses ......................................................... 522
Inspecting and Changing ........................ 526
Locations ................................ 522, 524, 525
G
Gasoline (Fuel)
Economy................................................. 439
Gauge ...................................................... 97
Information............................................. 437
Instant Fuel Economy .............................. 101
Low Fuel Indicator..................................... 73
Refueling ................................................ 437
Gauges ........................................................ 97
Gear Shift Lever Positions Automatic Transmission .......................... 351
Glass (care) ....................................... 484, 487
Glove Box ................................................. 165
H
Handling the Unexpected ........................ 489
HandsFreeLink ® (HFL) ............................... 290
Auto Answer ........................................... 305
Automatic Import of Cellular Phonebook
and Call History ..................................... 307
Automatic Transferring ............................ 305
Displaying Messages ................................ 325
Editing User Name ................................... 304
HFL Buttons ............................................. 290
HFL Menus .............................................. 292
HFL Status Display ................................... 291
Limitations for Manua l Operation ............ 291
Making a Call .......................................... 316
Options During a Call .............................. 322
Phone Setup ............................................ 296
Phonebook Phonetic M odification ........... 311
Receiving a Call ....................................... 321
Receiving a Text/E-mail Message .............. 323
Ring Tone ................................................ 306
Roadside Assistance ................................. 329
Selecting a Mail Account ......................... 324
Speed Dial ............................................... 308
To Create a Security PIN .......................... 303
To Set Up a Text/E-mail Message Options ................................................. 301
Use Contact Photo .................................. 306
Hard Disk Drive (HDD) Audio .................. 227
Hazard Warning Button ............................... 4
Head Restraints ......................................... 159
Headlight Washers ................................... 147 Headlights
................................................. 141
Aiming .................................................... 462
Automatic Operation............................... 142
Dimming ......................................... 141, 144
Operating................................................ 141
Heated Steering Wheel ............................ 175
Heaters (Seat) ........................... 176, 177, 178
HFL (HandsFreeLink ®)............................... 290
High Beam Indicator .................................. 77
Hill Start Assist System ............................. 348
HomeLink ® Universal Transceiver ............ 288
I
Identification Numbers
Engine and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control
Buttons ................................................... 148
Immobilizer System .................................. 131
Indicator.................................................... 77
Indicators .................................................... 68
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 82, 361
Anti-lock Brake System (ABS)..................... 74
Automatic Brake Hold ....................... 70, 405
Automatic Brake Hold System ........... 70, 405
Blind Spot Information (BSI) ............... 84, 397
Brake System (Amber) ............................... 71
Brake System (Red) ............................ 68, 519
Charging System ............................... 72, 518
17 ACURA RLX-31TY26300.book 549 ページ ２０１６年６月１７日　金曜日　午前８時１２分
