Page 154 of 557

153
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When driving after dark, the automatic
dimming rearview mirror and power door
mirrors
* reduce the glare from headlights
behind you. Press the auto button to turn this
function on and off. When activated, the auto
indicator comes on.
■Automatic Dimming Rearview Mi rror and Power Door Mirrors*
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors befo re you start driving.
2 Front Seats P. 156
1Automatic Dimming Rearview Mirror and Power Door Mirrors*
The auto dimming function cancels when the shift
position is in (R.
Sensor
Auto Button
Indicator
* Not available on all models
17 ACURA RLX-31TY26300.book 153 ページ 2016年6月17日 金曜日 午前8時12分
Page 278 of 557

277
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features
DescriptionSelectable Settings
Vehicle
Settings Driving
Position
Setup
Memory Position Link
Turns the driving position memory system on and off.On*1/
Off
Auto Tilt & Telescopic Moves the steering wheel fully up when you get
in/get out of the vehicle. On
*1/
Off
Auto Seatbelt Tension
*Turns the auto seatbelt tension setting for the
seat belt e-pretensioner on and off. On*1/
Off
Keyless
Access
Setup Door Unlock Mode
Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only
*1/
All Doors
Keyless Access Light Flash Causes some exterior lights to flash when you
unlock/lock the doors.
On
*1/
Off
Keyless Access Beep Causes the beeper to
sound when you unlock/
lock the doors. On
*1/
Off
Remote Start System On/
Off
*Turns the remote engine start feature on and off. On*1/Off
Lighting
Setup Interior Light Dimming
Time
Changes the length of time the interior lights stay
on after you close the doors.
60seconds/30seconds*1/
15seconds
Headlight Auto Off Timer
Changes the length of time the exterior lights
stay on after you close the driver’s door.60seconds/30seconds/
15seconds*1/0seconds
Auto Light Sensitivity
Changes the timing for the headlights to come
on. Max
/High /Mid*1/
Low /Min
* Not available on all models
17 ACURA RLX-31TY26300.book 277 ページ 2016年6月17日 金曜日 午前8時12分

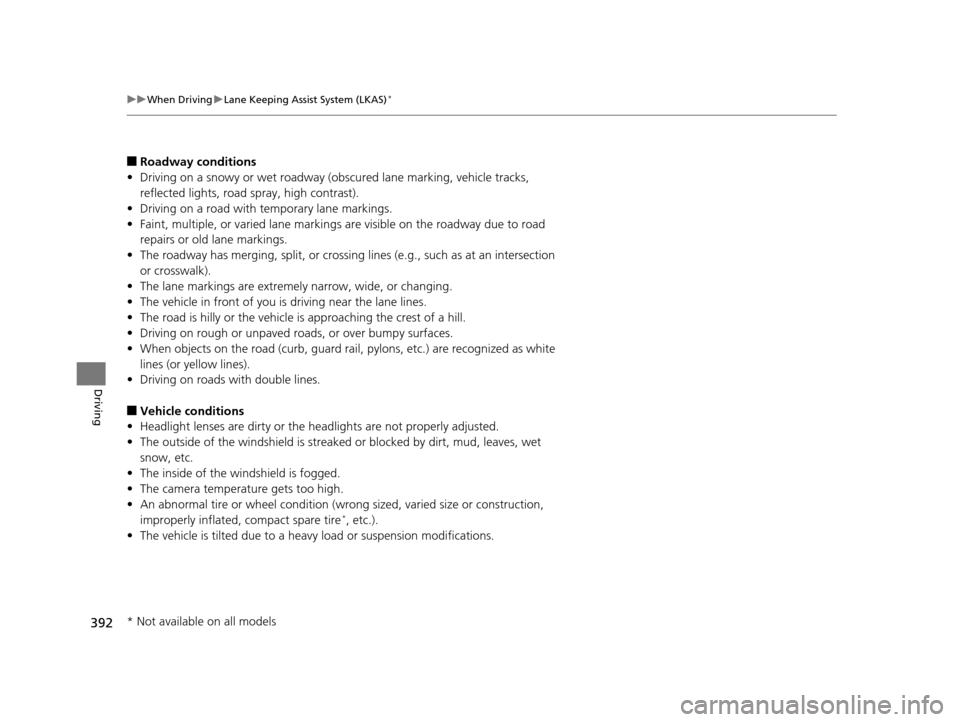

Page 393 of 557

392
uuWhen Driving uLane Keeping Assist System (LKAS)*
Driving
■Roadway conditions
• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (c urb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).
• Driving on roads with double lines.
■Vehicle conditions
• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streake d or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• The vehicle is tilted due to a heav y load or suspension modifications.
* Not available on all models
17 ACURA RLX-31TY26300.book 392 ページ 2016年6月17日 金曜日 午前8時12分
Page 415 of 557

414
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
■Vehicle conditions
• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heav y load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a cu rved, winding or undulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicle suddenly slows down.
* Not available on all models
17 ACURA RLX-31TY26300.book 414 ページ 2016年6月17日 金曜日 午前8時12分
Page 463 of 557

462
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Daytime Running Lights
Daytime running lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
17 ACURA RLX-31TY26300.book 462 ページ 2016年6月17日 金曜日 午前8時12分
Page 488 of 557

487
uuCleaning uExterior Care
Maintenance
If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. Use a sponge and mild detergent to wipe away promptly.
Be careful not to use harsh chemicals (inc luding some commercial wheel cleaners) or
a stiff brush. They can damage the clear coat of the aluminum alloy wheels that
helps keep the aluminum from corroding and tarnishing.
The inside lenses of exterior lights (headlights, brake light s, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics ma y result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
■Fogged Exterior Light Lenses
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the pa inted surface of the parts
made of resin.
17 ACURA RLX-31TY26300.book 487 ページ 2016年6月17日 金曜日 午前8時12分
Page 533 of 557

532
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,993 lbs (2,265 kg)
Canada: 2,265 kg
Gross Axle Weight
Rating (Front)U.S.: 2,778 lbs (1,260 kg)
Canada: 1,260 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,271 lbs (1,030 kg)
Canada: 1,030 kg
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 16.0 - 17.8 oz (455 - 505 g)
Lubricant TypeND-OIL 8
Quantity 7.8 - 8.7 cu-in (127.5 - 142.5 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.3 US qt (5.0 ℓ)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal/Parking Lights27/8W (Amber)
Front Side Marker Lights 2CP
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Rear License Plate LightsLED
Door Outer Handle Ambient Lights LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights2.1WFront Door Pocket LightsLEDCenter Pocket LightLEDBeverage Holder LightLEDDoor Courtesy Lights3.4WConsole Compartment LightLEDGlove Box LightLEDFront and Rear*1 Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5W
17 ACURA RLX-31TY26300.book 532 ページ 2016年6月17日 金曜日 午前8時12分
Page 548 of 557

547
Index
Maintenance (Checking the Battery) ....... 480
Maintenance (Replacing) ......................... 481
Belts (Seat) .................................................. 30
Beverage Holders ..................................... 170
Blind Spot Information (BSI) System ....... 396
Bluetooth ® Audio ..................................... 251
Bluetooth ® HandsFreeLink ®.................... 290
Booster Seats (For Children) ...................... 63
Brake System ............................................ 402
Anti-lock Brake System (ABS) .................. 407
Automatic Brake Hold ............................. 405
Brake Assist System................................. 408
Fluid ....................................................... 461
Foot Brake .............................................. 404
Parking Brake.......................................... 402
Brake System Indicator (Amber) ............... 71
Brake System Indicator (Red) ............ 68, 519
Brightness Control (Instrument Panel) ... 148
BSI (Blind Spot Information) System ....... 396
Bulb Replacement .................................... 462
Back-Up Lights ........................................ 466
Brake/Taillights and Rear Side Marker
Lights .................................................... 465
Door Outer Handle Am bient Lights ......... 467
Front Side Marker Lights ......................... 464
Front Turn Signal/Parking Lights .............. 463
Headlights .............................................. 462
High-Mount Brake Light.......................... 467
Rear License Plate Lights ......................... 467
Rear Turn Signal Lights............................ 465 Side Turn Signal/Em
ergency Indicator
Lights ............................................ 462, 464
Taillights .................................................. 466
Bulb Specifications ................................... 532
C
CAMERA Button....................................... 428
Carbon Monoxide Gas ................................ 64
Cargo Hooks ............................................. 173
Carrying Cargo .................................. 339, 341
CD Player ................................................... 224
Center Pocket ........................................... 169
Certification Label .................................... 534
Changing Bulbs ......................................... 462
Charging System Indicator ................. 72, 518
Child Safety ................................................. 52
Childproof Door Locks ............................. 126
Child Seat .................................................... 52
Booster Seats ............................................. 63
Child Seat for Infants ................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 59
Larger Children .......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Using a Tether ........................................... 61
Childproof Door Locks ............................. 126
Cleaning the Exterior ............................... 486
Cleaning the Interior ................................ 484 Client Service Information
....................... 542
Climate Control System ............................ 181
Changing the Mode ................................ 184
Defrosting the Windshield and Windows ............................................... 188
Dust and Pollen Filter............................... 483
Rear Temperature Control Dial ................ 189
Sensors ................................................... 190
Using Automatic Climate Control ............ 181
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 409
Coat Hooks ............................................... 172
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 409
Compact Spare Tire (Optional) ........ 503, 533
Console Compartment ............................. 168
Controls ..................................................... 113
Coolant (Engine) ...................................... 458
Adding to the Radiator ............................ 459
Adding to the Reserve Tank..................... 458
Overheating ............................................ 516
Creeping (Automatic Transmission) ........ 350
Cross Traffic Monitor ............................... 422
Cruise Control ........................................... 356
Indicator.................................................... 78
Cup Holders .............................................. 170
Customized Features ........................ 103, 262
D
Daytime Running Lights .......................... 144
17 ACURA RLX-31TY26300.book 547 ページ 2016年6月17日 金曜日 午前8時12分
Page 549 of 557

548
Index
Dead Battery............................................. 512
Defrosting the Windshield and
Windows .................................................. 188
Devices that Emit Radio Waves ................ 535
Dimming
Headlights ............................................... 141
Rearview Mirror ....................................... 153
Dipstick (Engine Oil) ................................. 454
Directional Signals (Turn Signal) .............. 140
Door Mirrors ............................................. 154
Doors ......................................................... 115
Auto Door Locking .................................. 127
Auto Door Unlocking ............................... 127
Door Open Message .................................. 29
Keys ........................................................ 115
Locking/Unlocking the Doors from the Inside ............................................... 12, 124
Locking/Unlocking the Doors from the Outside .................................................. 118
Lockout Prevention System ...................... 122
DOT Tire Quality Grading ........................ 474
Driver’s Knee Airbag .................................. 44
Driving ....................................................... 337
Automatic Transmission ........................... 350
Braking .................................................... 402
Cruise Control ......................................... 356
Shifting Gear ........................................... 351
Starting the Engine .................................. 344
Driving Position Memory System ............. 150
Dust and Pollen Filter ............................... 483E
Elapsed Time............................................. 101
Electric Parking Brake Indicator.................................................... 69
Electric Parking Brake System
Indicator............................................ 69, 520
Electric Power Steering (EPS) System Indicator............................................ 74, 520
Electronic Stability Control (ESC) ............. 393
Emergency ................................................ 527
Emissions Testing (Readiness Codes) ....... 537
Engine ....................................................... 534
Coolant ................................................... 458
Jump Starting .......................................... 512
Oil ........................................................... 453
Remote Engine Start................................ 346
Starting ................................................... 344
Switch Buzzer.......................................... 137
Engine Compartment Cover .................... 452
Engine Coolant ......................................... 458
Adding to the Radiator ............................ 459
Adding to the Reserve Tank..................... 458
Overheating ............................................ 516
Temperature Gauge .................................. 97
Engine Oil ................................................. 453
Adding .................................................... 455
Checking................................................. 454
Displaying Oil Life .................................... 446
Low Oil Pressure Indicator ................. 68, 518
Recommended Engine Oil ....................... 453
ENGINE START/STOP Button .................... 137e-pretensioners
.......................................... 32
EPS (Electric Power Steering) System ........ 74
Exhaust Gas Hazard (Carbon Monoxide) .. 64
Expanded Rear Door Sunshades ............. 180
Expanded View Driver’s Mirror ............... 155
Exterior Care (Cleaning) .......................... 486
Exterior Mirrors ........................................ 154
F
Features.................................................... 191
Filters Dust and Pollen....................................... 483
Oil .......................................................... 456
Flat Tire ..................................................... 491
Floor Mats ................................................ 485
Fluids Automatic Transmission .......................... 460
Brake ...................................................... 461
Engine Coolant ....................................... 458
Windshield Washer ................................. 461
Foot Brake ................................................ 404
Forward Collision Warning (FCW) .......... 375
Front Airbags (SRS) .................................... 40
Front Seat Heaters ................................... 176
Front Seat Heaters and Seat Ventilation .............................................. 177
Front Seats ................................................ 156
Adjusting ................................................ 156
Front Sensor Camera ............................... 359
17 ACURA RLX-31TY26300.book 548 ページ 2016年6月17日 金曜日 午前8時12分
Page 550 of 557

549
Index
Fuel..................................................... 18, 437
Economy................................................. 439
Gauge ...................................................... 97
Instant Fuel Economy .............................. 101
Low Fuel Indicator..................................... 73
Range ..................................................... 101
Recommendation............................ 437, 532
Refueling ................................................ 437
Fuel Economy ........................................... 439
Fuel Fill Door ...................................... 18, 438
Fuses ......................................................... 522
Inspecting and Changing ........................ 526
Locations ................................ 522, 524, 525
G
Gasoline (Fuel)
Economy................................................. 439
Gauge ...................................................... 97
Information............................................. 437
Instant Fuel Economy .............................. 101
Low Fuel Indicator..................................... 73
Refueling ................................................ 437
Gauges ........................................................ 97
Gear Shift Lever Positions Automatic Transmission .......................... 351
Glass (care) ....................................... 484, 487
Glove Box ................................................. 165
H
Handling the Unexpected ........................ 489
HandsFreeLink ® (HFL) ............................... 290
Auto Answer ........................................... 305
Automatic Import of Cellular Phonebook
and Call History ..................................... 307
Automatic Transferring ............................ 305
Displaying Messages ................................ 325
Editing User Name ................................... 304
HFL Buttons ............................................. 290
HFL Menus .............................................. 292
HFL Status Display ................................... 291
Limitations for Manua l Operation ............ 291
Making a Call .......................................... 316
Options During a Call .............................. 322
Phone Setup ............................................ 296
Phonebook Phonetic M odification ........... 311
Receiving a Call ....................................... 321
Receiving a Text/E-mail Message .............. 323
Ring Tone ................................................ 306
Roadside Assistance ................................. 329
Selecting a Mail Account ......................... 324
Speed Dial ............................................... 308
To Create a Security PIN .......................... 303
To Set Up a Text/E-mail Message Options ................................................. 301
Use Contact Photo .................................. 306
Hard Disk Drive (HDD) Audio .................. 227
Hazard Warning Button ............................... 4
Head Restraints ......................................... 159
Headlight Washers ................................... 147 Headlights
................................................. 141
Aiming .................................................... 462
Automatic Operation............................... 142
Dimming ......................................... 141, 144
Operating................................................ 141
Heated Steering Wheel ............................ 175
Heaters (Seat) ........................... 176, 177, 178
HFL (HandsFreeLink ®)............................... 290
High Beam Indicator .................................. 77
Hill Start Assist System ............................. 348
HomeLink ® Universal Transceiver ............ 288
I
Identification Numbers
Engine and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control
Buttons ................................................... 148
Immobilizer System .................................. 131
Indicator.................................................... 77
Indicators .................................................... 68
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 82, 361
Anti-lock Brake System (ABS)..................... 74
Automatic Brake Hold ....................... 70, 405
Automatic Brake Hold System ........... 70, 405
Blind Spot Information (BSI) ............... 84, 397
Brake System (Amber) ............................... 71
Brake System (Red) ............................ 68, 519
Charging System ............................... 72, 518
17 ACURA RLX-31TY26300.book 549 ページ 2016年6月17日 金曜日 午前8時12分
