Page 6 of 557
5
Quick Reference Guide
❙Wipers/Washers (P 145)
❙Audio Remote Controls (P 195)
❙Headlights/Turn Signals (P 140, 141)
❙Paddle Shifter (Shift down) (P 354)
❙Paddle Shifter (Shift up) (P 354)
❙Horn (Press an area around .)
❙Voice Control Buttons (P 211)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 290)
❙Brightness Control (P 148)
❙Cruise Control Buttons* (P 356)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P 361)
❙TRIP Button (P 99)
❙Distance Button* (P 369)
❙Lane Keeping Assist System (LKAS)
Button* (P 388)
❙Right Selector Wheel (P 98)
❙Heated Steering Wheel Button* (P 175)
❙CAMERA Button* (P 428)
* Not available on all models
17 ACURA RLX-31TY26300.book 5 ページ 2016年6月17日 金曜日 午前8時12分
Page 11 of 557
10
Quick Reference Guide
Instrument Panel (P 67)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P 97)/Multi-Information Display (P 98)/System Indicators (P 68)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
Temperature
Gauge Security System Alarm
IndicatorFuel
Gauge
Tachometer
Multi-Information Display
Speedometer
Shift Lever Position
Indicator Gear Position Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator Brake System
Indicator (Amber)
SPORT
Mode Indicator
Blind Spot Information
(BSI) Indicator
*
System Indicators
Forward Collision
Warning (FCW)
Indicator
*/Collision
Mitigation Braking
System
TM (CMBSTM)
Indicator*
Precision All-Wheel
SteerTM (P-AWS ®)
System Indicator
Lane Departure Warning
(LDW) Indicator*/Road
Departure Mitigation
(RDM) Indicator
*
Lane Keeping Assist System
( LKAS ) Indicator*Adaptive Cruise Control
(ACC ) with Low Speed
Follow (LSF) Indicator
*
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
CRUISE MAIN Indicator*CRUISE CONTROL
Indicator*
17 ACURA RLX-31TY26300.book 10 ページ 2016年6月17日 金曜日 午前8時12分
Page 19 of 557
18
Quick Reference Guide
VSA® OFF Button (P 394)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P 356)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the RES/+/SET/– switch
down once you have achieved the desired
speed (above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM (CMBSTM)
OFF Button
* (P 412)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 398)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you start the engine.
Refueling (P 437)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded premiu m gasoline with a pump octane
number 91 or higher
Fuel tank capacity: 18.5 US gal (70 L)
Wait for five seconds
17 ACURA RLX-31TY26300.book 18 ページ 2016年6月17日 金曜日 午前8時12分
Page 79 of 557
78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Keyless Access
System Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on as soon as a problem is
detected in the keyless access system
or keyless starting system.
●Have your vehicle checked by a dealer.
CRUISE MAIN
Indicator*
●Comes on when you press the
CRUISE button.2Cruise Control* P. 356—
CRUISE
CONTROL
Indicator
*
●Comes on if you have set a speed for
cruise control.
2 Cruise Control* P. 356—
Precision All-
Wheel SteerTM (P-
AWS ®) System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●If it comes on at any other time, there
is a problem with the Precision All-
Wheel Steer
TM (P-AWS ®) system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●The system may limit the vehicle speed to
50 mph (80 km/h) or less.
SPORT Mode
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when you press the
SPORT button.
2SPORT Mode P. 355—
* Not available on all models
17 ACURA RLX-31TY26300.book 78 ページ 2016年6月17日 金曜日 午前8時12分
Page 83 of 557
82
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC )
with Low Speed
Follow (LSF)
Indicator
(Amber)
*
●Comes on for a few seconds when
you change the power mode to ON,
then goes off.
●Comes on if there is a problem with
ACC with LSF.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Comes on if anything covers the
radar sensor cover and prevents the
sensor from detecting a vehicle in
front.
●May come on when driving in bad
weather (rain, snow, fog, etc.)
●ACC with LSF has been automatically
canceled.
●When the radar sensor gets dirty, stop your
vehicle in a safe plac e, and wipe off dirt
using a soft cloth.
●Have your vehicle checked by a dear if the
indicator does not go off even after you
clean the sensor cover.
Adaptive Cruise
Control (ACC )
with Low Speed
Follow (LSF)
Indicator (Green)
*
●Comes on when you press the MAIN
button.2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)* P. 361—
●Comes on if the temperature inside
the camera is too high.
●ACC with LSF has been automatically
canceled.
●Use the climate control system to cool down
the camera.
●Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system.
2 Front Sensor Camera* P. 359
2 Adaptive Cruise Control (ACC) with
Low Speed Follow (LSF)
* P. 361
* Not available on all models
17 ACURA RLX-31TY26300.book 82 ページ 2016年6月17日 金曜日 午前8時12分

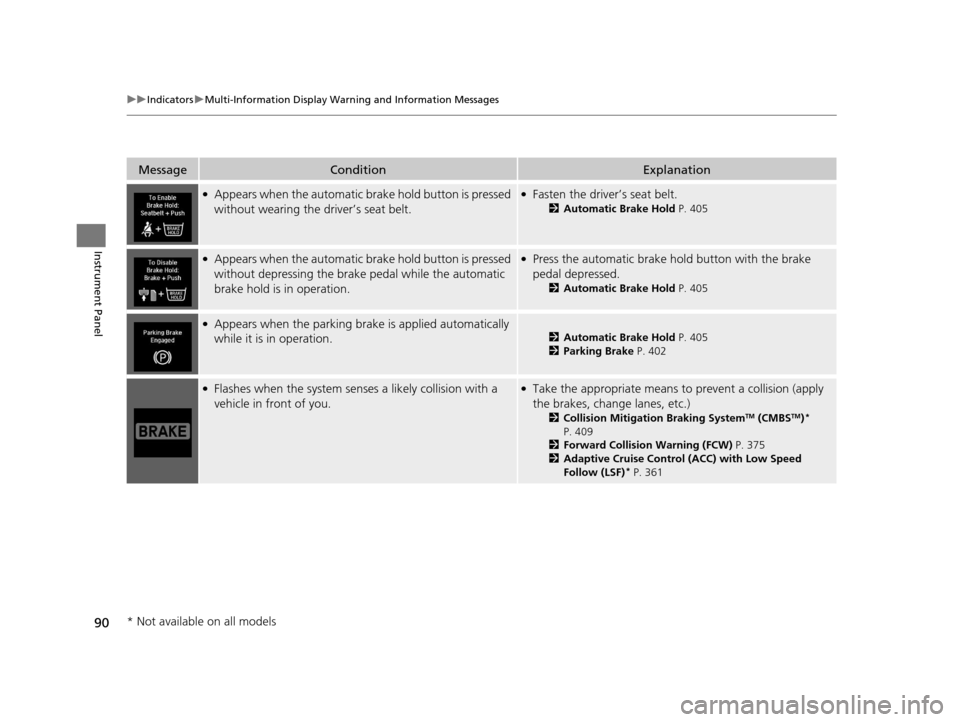

Page 91 of 557
90
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold button is pressed
without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 405
●Appears when the automatic brake hold button is pressed
without depressing the brake pedal while the automatic
brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 405
●Appears when the parking brake is applied automatically
while it is in operation.2Automatic Brake Hold P. 405
2 Parking Brake P. 402
●Flashes when the system sens es a likely collision with a
vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)*
P. 409
2 Forward Collision Warning (FCW) P. 375
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)
* P. 361
* Not available on all models
17 ACURA RLX-31TY26300.book 90 ページ 2016年6月17日 金曜日 午前8時12分

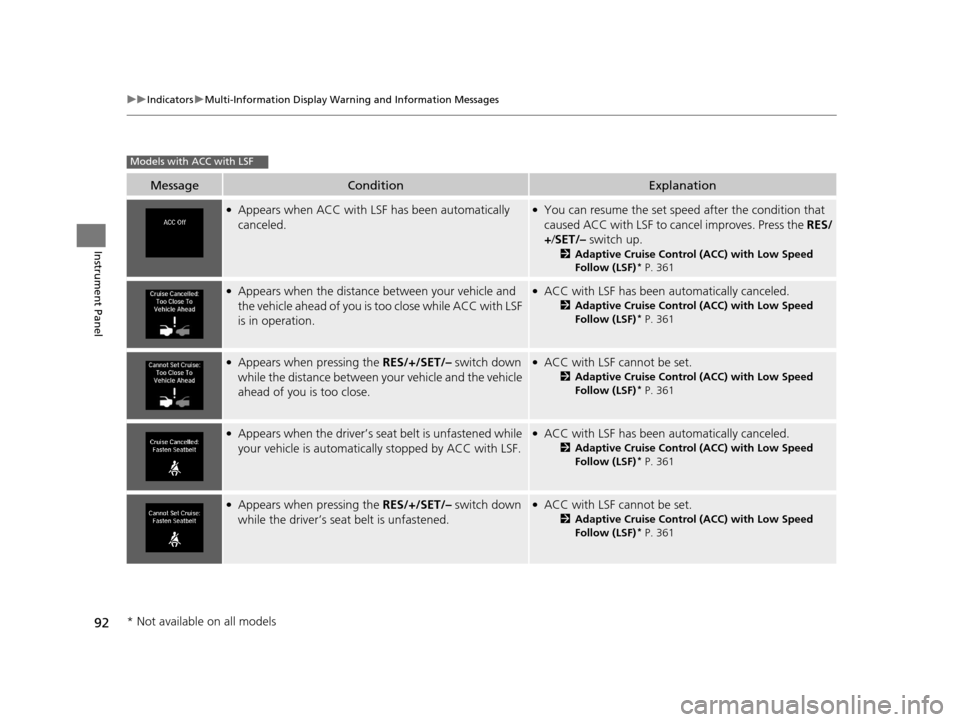

Page 93 of 557
92
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with LSF has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+/ SET/– switch up.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when pressing the RES/+/SET/– switch down
while the distance between y our vehicle and the vehicle
ahead of you is too close.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when the driver’s seat belt is unfastened while
your vehicle is automatica lly stopped by ACC with LSF.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
Models with ACC with LSF
* Not available on all models
17 ACURA RLX-31TY26300.book 92 ページ 2016年6月17日 金曜日 午前8時12分

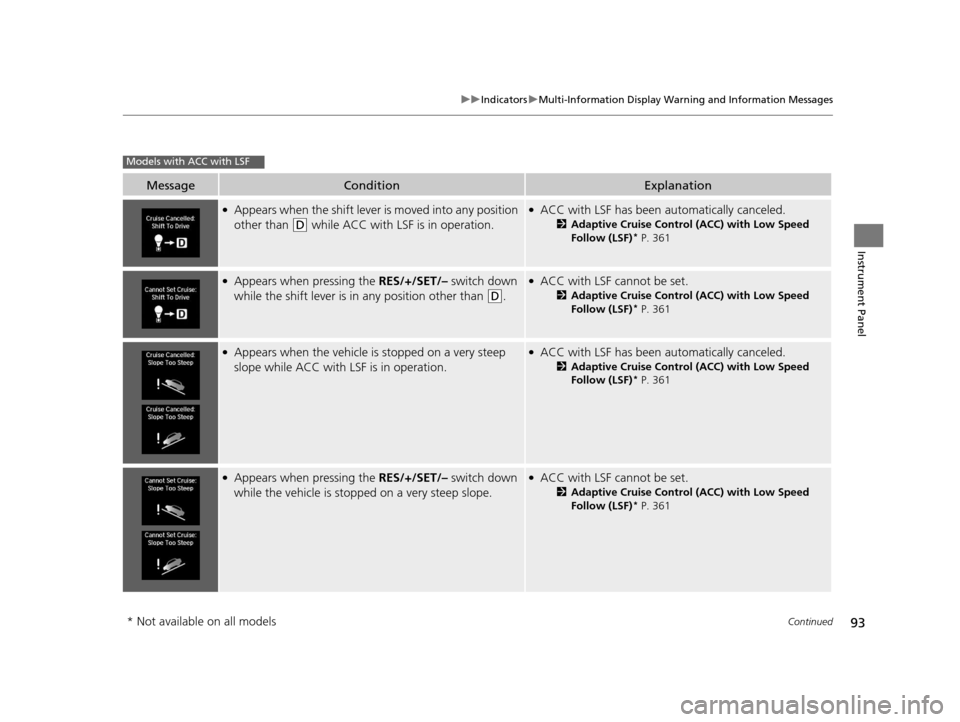

Page 94 of 557
93
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the shift lever is moved into any position
other than
(D while ACC with LSF is in operation.
●ACC with LSF has been automatically canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when pressing the RES/+/SET/– switch down
while the shift lever is in any position other than
(D.
●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears when pressing the RES/+/SET/– switch down
while the vehicle is stoppe d on a very steep slope.●ACC with LSF cannot be set.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
Models with ACC with LSF
* Not available on all models
17 ACURA RLX-31TY26300.book 93 ページ 2016年6月17日 金曜日 午前8時12分

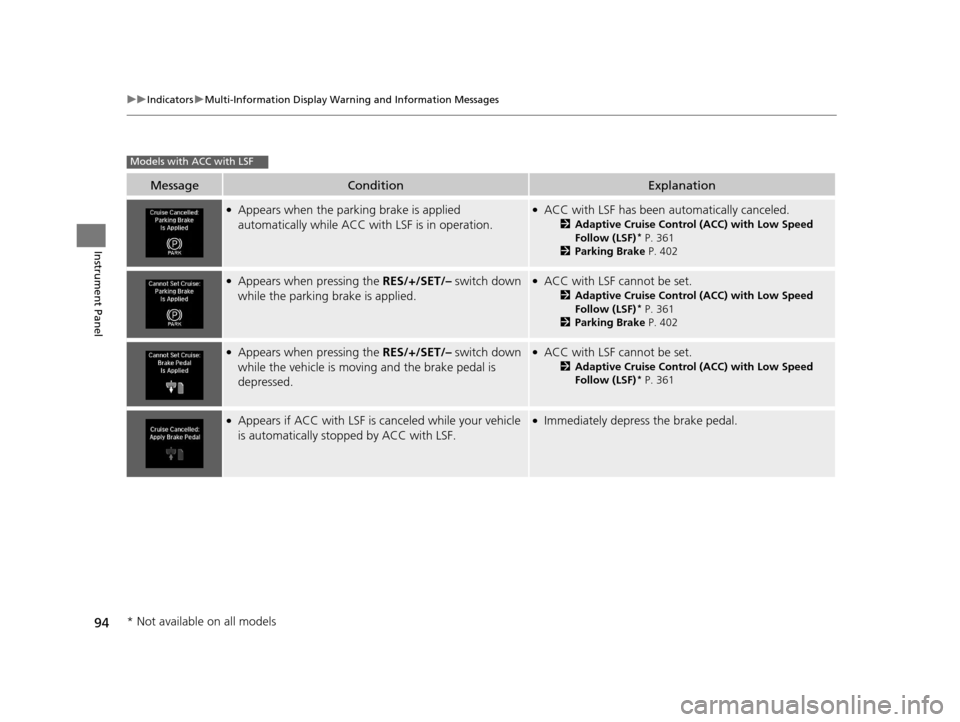

Page 95 of 557
94
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the parking brake is applied
automatically while ACC with LSF is in operation.●ACC with LSF has been automatically canceled.
2Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
2 Parking Brake P. 402
●Appears when pressing the RES/+/SET/– switch down
while the parking brake is applied.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
2 Parking Brake P. 402
●Appears when pressing the RES/+/SET/– switch down
while the vehicle is moving and the brake pedal is
depressed.●ACC with LSF cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow (LSF)* P. 361
●Appears if ACC with LSF is canceled while your vehicle
is automatically sto pped by ACC with LSF.●Immediately depress the brake pedal.
Models with ACC with LSF
* Not available on all models
17 ACURA RLX-31TY26300.book 94 ページ 2016年6月17日 金曜日 午前8時12分
Page 102 of 557
Continued101
uuGauges and Multi-Information Display uMulti-Information Display
Instrument Panel
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
Shows the current mode for ACC with LSF.
2 To Switch ACC with LSF to Cruise Control P. 373
Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
■Instant Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Current Mode for ACC with LSF
■Turn-by-Turn Directions
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 103, 262
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 103, 262
Models with ACC with LSF
1Turn-by-Turn Directions
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 103, 262
17 ACURA RLX-31TY26300.book 101 ページ 2016年6月17日 金曜日 午前8時12分
