ECU Acura RLX 2017 Owner's Manual

Contents
Child Safety P. 52Exhaust Gas Hazard P. 64Safety Labels P. 65
Opening and Closing the Trunk P. 128 Security System P. 131 Opening and Closing the Windows P. 134
Operating the Switches Around the Steering Wheel P. 137 Adjusting the Mirrors P. 153
Interior Lights/Interior Convenience It ems P. 163 Climate Control System P. 181
Audio Error Messages P. 253General Information on the Audio System P. 258
Bluetooth® HandsFreeLink ® P. 290 AcuraLink ® P. 330
When Driving P. 344 Braking P. 402Parking Your Vehicle P. 417
Refueling P. 437 Fuel Economy and CO
2 Emissions P. 439
Maintenance Under the Hood P. 450 Replacing Light Bulbs P. 462
Checking and Maintaining Tires P. 471 Battery P. 480 Remote Transmitter Care P. 481
Cleaning P. 484 Accessories and Modifications P. 488
Engine Does Not Start P. 509Jump Starting P. 512 Shift Lever Does Not Move P. 515
Fuses P. 522 Emergency Towing P. 527 When You Cannot Unlock the Fuel Fill Door P. 528
Refueling P. 530
Devices that Emit Radio Waves P. 535 Reporting Safety Defects P. 536
Authorized Manuals P. 541 Client Service Information P. 542
Quick Reference GuideP. 4
Safe DrivingP. 25
Instrument PanelP. 67
ControlsP. 113
FeaturesP. 191
DrivingP. 337
MaintenanceP. 441
Handling the UnexpectedP. 489
InformationP. 531
IndexP. 546
17 ACURA RLX-31TY26300.book 3 ページ ２０１６年６月１７日　金曜日　午前８時１２分

7
Quick Reference Guide
❙Side Airbags (P 46)
❙Map Lights (P 164)
❙Side Curtain Airbags (P 48)
❙Seat Belts (P 30)
❙Seat Belt to Secure a Child Seat (P 61)
❙LATCH to Secure a Child Seat (P 57)
❙Seat Belt (Installing a Child Seat) (P 59)
❙Rear Seat
❙Front Seat (P 156)
❙Coat Hook (P 172)
❙Grab Handle
❙Moonroof Switch
(P 136)
❙Map Lights (P 164)
❙Sunglasses Holder
(P 178)
❙Power Rear Sunshade
Button* (P 179)
❙Sun Visors
❙Vanity Mirrors
* Not available on all models
17 ACURA RLX-31TY26300.book 7 ページ ２０１６年６月１７日　金曜日　午前８時１２分

10
Quick Reference Guide
Instrument Panel (P 67)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P 97)/Multi-Information Display (P 98)/System Indicators (P 68)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
Temperature
Gauge Security System Alarm
IndicatorFuel
Gauge
Tachometer
Multi-Information Display
Speedometer
Shift Lever Position
Indicator Gear Position Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator Brake System
Indicator (Amber)
SPORT
Mode Indicator
Blind Spot Information
(BSI) Indicator
*
System Indicators
Forward Collision
Warning (FCW)
Indicator
*/Collision
Mitigation Braking
System
TM (CMBSTM)
Indicator*
Precision All-Wheel
SteerTM (P-AWS ®)
System Indicator
Lane Departure Warning
(LDW) Indicator*/Road
Departure Mitigation
(RDM) Indicator
*
Lane Keeping Assist System
( LKAS ) Indicator*Adaptive Cruise Control
(ACC ) with Low Speed
Follow (LSF) Indicator
*
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
CRUISE MAIN Indicator*CRUISE CONTROL
Indicator*
17 ACURA RLX-31TY26300.book 10 ページ ２０１６年６月１７日　金曜日　午前８時１２分

22
Quick Reference Guide
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why does the beeper
sound when I turn the
engine off?The beeper sounds when you turn off the engine with the
driver’s door open.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
17 ACURA RLX-31TY26300.book 22 ページ ２０１６年６月１７日　金曜日　午前８時１２分

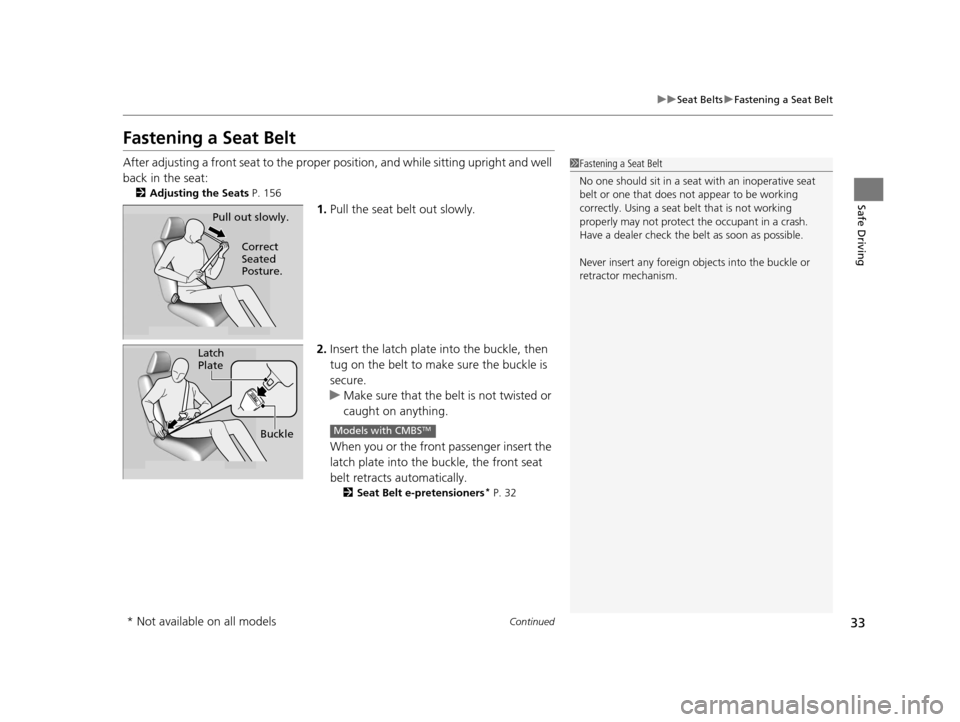

33
uuSeat Belts uFastening a Seat Belt
Continued
Safe Driving
Fastening a Seat Belt
After adjusting a front seat to the proper position, and while sitting upright and well
back in the seat:
2 Adjusting the Seats P. 156
1.Pull the seat belt out slowly.
2. Insert the latch plate into the buckle, then
tug on the belt to make sure the buckle is
secure.
u Make sure that the belt is not twisted or
caught on anything.
When you or the front passenger insert the
latch plate into the buckle, the front seat
belt retracts automatically.
2 Seat Belt e-pretensioners* P. 32
1Fastening a Seat Belt
No one should sit in a seat with an inoperative seat
belt or one that does not appear to be working
correctly. Using a seat be lt that is not working
properly may not protect the occupant in a crash.
Have a dealer check the belt as soon as possible.
Never insert any foreign obj ects into the buckle or
retractor mechanism.
Pull out slowly.
Correct
Seated
Posture.
Latch
Plate
BuckleModels with CMBSTM
* Not available on all models
17 ACURA RLX-31TY26300.book 33 ページ ２０１６年６月１７日　金曜日　午前８時１２分

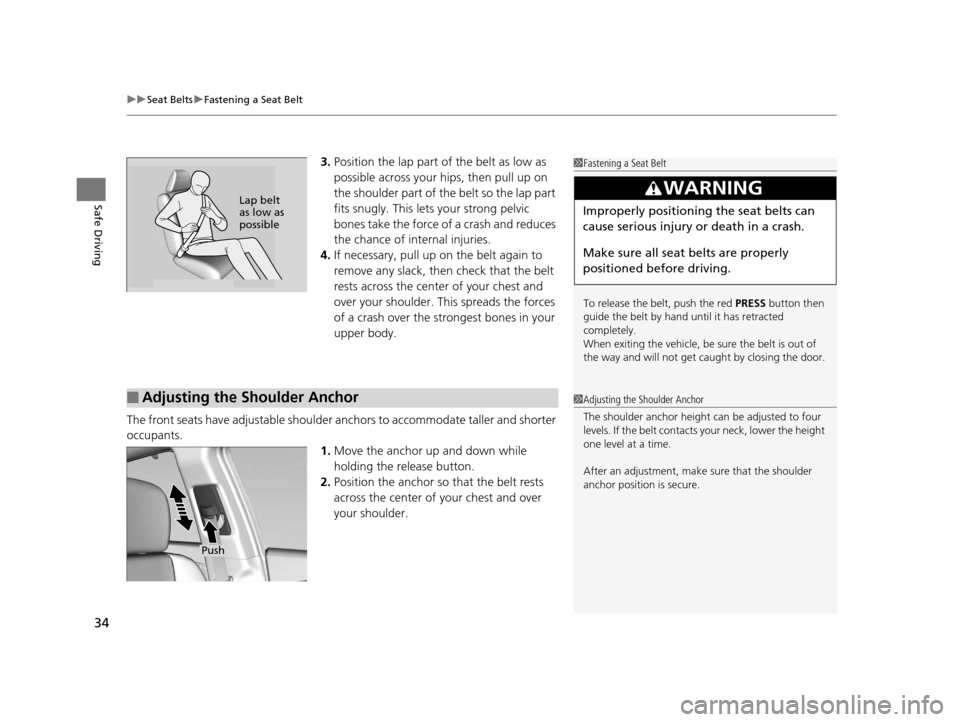

uuSeat Belts uFastening a Seat Belt
34
Safe Driving
3. Position the lap part of the belt as low as
possible across your hips, then pull up on
the shoulder part of the belt so the lap part
fits snugly. This lets your strong pelvic
bones take the force of a crash and reduces
the chance of internal injuries.
4. If necessary, pull up on the belt again to
remove any slack, then check that the belt
rests across the center of your chest and
over your shoulder. Th is spreads the forces
of a crash over the strongest bones in your
upper body.
The front seats have adjustable shoulder anchors to accommodate taller and shorter
occupants. 1.Move the anchor up and down while
holding the release button.
2. Position the anchor so that the belt rests
across the center of your chest and over
your shoulder.1Fastening a Seat Belt
To release the belt, push the red PRESS button then
guide the belt by hand until it has retracted
completely.
When exiting the vehicle, be sure the belt is out of
the way and will not get ca ught by closing the door.
3WARNING
Improperly positioning the seat belts can
cause serious injury or death in a crash.
Make sure all seat belts are properly
positioned before driving.Lap belt
as low as
possible
■Adjusting the Shoulder Anchor1Adjusting the Shoulder Anchor
The shoulder anchor height can be adjusted to four
levels. If the belt contacts your neck, lower the height
one level at a time.
After an adjustment, make sure that the shoulder
anchor position is secure.
Push
17 ACURA RLX-31TY26300.book 34 ページ ２０１６年６月１７日　金曜日　午前８時１２分

53
uuChild Safety uProtecting Child Passengers
Safe Driving
• Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using either the seat
belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehicle unatte nded, especially in hot weather when
the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1 Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the pa ssenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels. 2 Safety Labels P. 65
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.
17 ACURA RLX-31TY26300.book 53 ページ ２０１６年６月１７日　金曜日　午前８時１２分

54
uuChild Safety uSafety of Infants and Small Children
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weig ht or height limit for the seat, and the
infant is at least one year old. Many expe rts recommend use of a rear-facing seat for
a child up to two years old if the child’s he ight and weight are appropriate for a rear-
facing seat.
■Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position.
It can also interfere with pr oper operation of the passenger’s advanced front airbag
system.
2 Airbags P. 37
If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far fo rward as needed, and leave it unoccupied.
Or, you may wish to get a sm aller rear-facing child seat.
■Protecting Infants1Protecting Infants
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
3WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-fac ing child seat in the
rear seat, not the front.
17 ACURA RLX-31TY26300.book 54 ページ ２０１６年６月１７日　金曜日　午前８時１２分

Continued55
uuChild Safety uSafety of Infants and Small Children
Safe DrivingIf a child is at least one year old and has exceeded the weight and height limitations
of a rear-facing child seat, the child should be properly restrained in a firmly secured
forward-facing child seat until they exceed the weight and height limitations for the
forward-facing child seat.
■Forward-facing child seat placement
We strongly recommend placing a forward-
facing child seat in a rear seating position.
Placing a forward-facing child seat in th e front seat can be hazardous, even with
advanced front airbags that automatically turn the passeng er’s front airbag off. A
rear seat is the safest place for a child.
■Protecting Smaller Children1 Protecting Smaller Children
Educate yourself about th e laws and regulations
regarding child seat use wh ere you are driving, and
follow the child seat manufacturer’s instructions.
Many experts recommend us e of a rear-facing seat
for a child up to two years old if the child's height and
weight are appropriate for a rear-facing seat.
3WARNING
Placing a forward-facing child seat in the
front seat can result in serious injury or
death if the front airbag inflates.
If you must place a forward-facing child
seat in front, move the vehicle seat as far
back as possible, and properly restrain the
child.
17 ACURA RLX-31TY26300.book 55 ページ ２０１６年６月１７日　金曜日　午前８時１２分

uuChild Safety uSafety of Infants and Small Children
56
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for CHildren).
Some have a rigid-type connector, while ot hers have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with the seat belt. In addition, the child seat manufacturer may advise that a seat
belt be used to attach a LATCH-compatib le seat once a child reaches a specified
weight. Please read the child seat ow ner’s manual for proper installation
instructions.
■Important consideration when selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
17 ACURA RLX-31TY26300.book 56 ページ ２０１６年６月１７日　金曜日　午前８時１２分
