1 Lights/turn signals p. 32, p. 34
2 Wipers/washers p. 34
3 Cruise control*/Adaptive Cruise
Control with Low Speed Follow*
buttons p. 82, p. 83
4 Horn
5 Voice control/Bluetooth HandsF reeLink buttons p. 57
6 Audio controls p. 48
7 Instrument panel p. 22
Multi-information

display p. 26
8 Right selector wheel
TRIP button

p. 26
9 Paddle shifters p. 79
10 Brightness control p. 33
Quickly locate items in the vehicle’s interior.
Steering Wheel and Nearby Controls
10 Adaptive Cruise Control (ACC)


Interval button*
p. 83
Lane Keeping Assist System
(LKAS) button*

p. 88


Vehicle Stability Assist (VSA) OFF
button

p. 92
Lane Departure Warning (LDW)*/


R

oad Departure Mitigation (RDM)

button*

p. 87, p. 90
Parking sensor button* p. 92
Collision Mitigation Braking System


(CMBS)

OFF button* p. 89
Headlight washer button* p. 35
14 ENGINE START/STOP button p. 77
15 Heated steering wheel* p. 44
VISUAL INDEX
*if equipped
12
*if equipped
11
13
127
4
8
135615
9310
111214
DRIVING ............................................................... 73
Befor e Driving ...................................................... 73
Maximum Load Limit
........................................... 74
Improving Fuel Economy and Reducing CO2 Emissions
..................................75
Remote Engine Start*
..........................................76
Starting to Drive
................................................... 77
Shifting
.................................................................. 78
Braking
................................................................... 80
Cruise Control*
.................................................... 82
Adaptive Cruise Control (ACC)

with

Low Speed Follow (LSF)*
.................................83
Forward Collision Warning (FCW)*
..................86
Lane Departure Warning (LDW)*
.....................87
Lane Keeping Assist System (LKAS)*
...............88
Collision Mitigation Braking System™ (CMBS™)* 89
R
oad Departure Mitigation (RDM)*

................. 90
Blind Spot Information (BSI)*

............................ 91
Parking Sensor System*

..................................... 92
Vehicle Stability Assist (VSA
®) .......................... 92
Multi-
View Rear Camera*

.................................. 93
Surround View Camera*

.................................... 94
Cross Traffic Monitor*

........................................ 96
Refueling

................................................................ 97
HANDLING THE UNEXPECTED .........................98
Keyless Access Remote Battery Strength
.......98
Shift Lever Does Not Move

............................... 98
Jump Starting

....................................................... 99
Overheating........................................................ 100
Emergency Engine Stop

..................................... 101
Emergency Towing

............................................. 101
Tire Pressure Monitoring System (TPMS)
.....102
Handling a Flat Tire

........................................... 104
Tire Repair Kit*

................................................... 104
Compact Spare Tire*

......................................... 105
Fuse Locations

.................................................... 108MAINTENANCE
.................................................
112
Safety Precautions .............................................
112
Maintenance Minder
™ ........................................ 113
Under the
Hood

.................................................. 115
Engine Oil

............................................................. 117

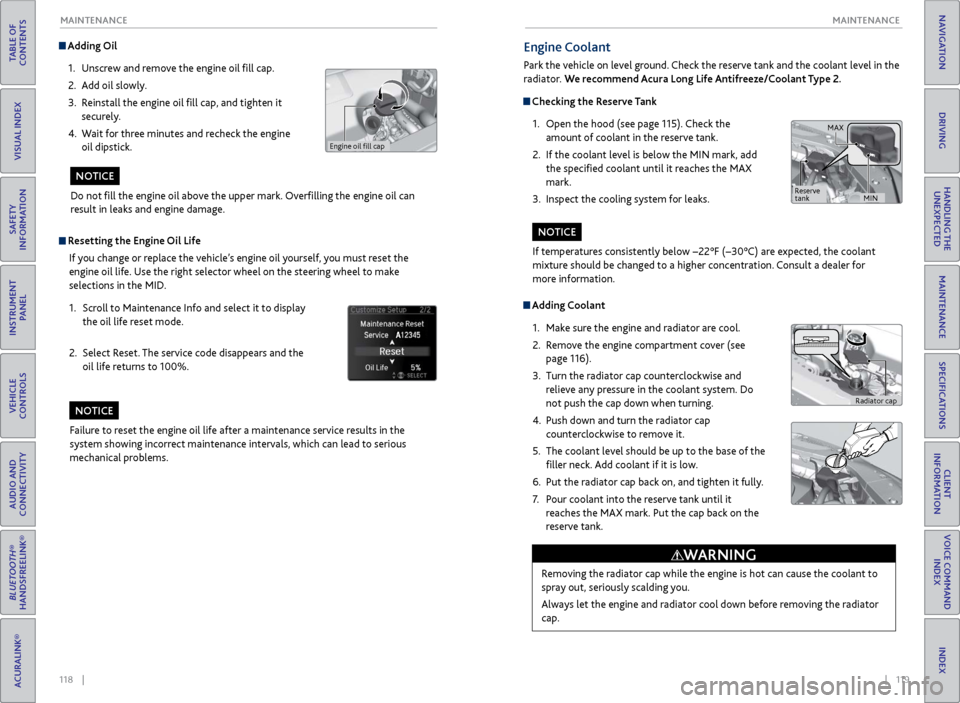

Engine Coolant

.................................................... 119
Window Washer Fluid ....................................... 120
Checking the Battery

........................................ 120
Changing Wiper Blades
..................................... 121
Tire Information

................................................. 122
Tire Labeling

....................................................... 125
DOT Tire Quality Grading
................................ 126
Testing of Readiness Codes .............................. 128
SPECIFICATIONS

............................................... 129
CLIENT INFORMATION
.................................... 130
Frequently Asked Questions/ Troubleshooting

.............................................. 130
Contact Us

........................................................... 131
EPA Contact Information
.................................. 131
Acura Total Luxury Care Roadside Assistance ..132
Warranty Coverages

......................................... 132
INDEX.................................................................. 135

100 || 101
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Overheating
If the temperature gauge needle is at the H mark, the engine suddenly loses power,
or steam or spray comes out from under the hood, your engine is overheating.
1.

Immediatel
y park the vehicle in a safe place. Turn
off all accessories and turn on the hazard warning
lights.
2.

If no steam
or spray is present: Keep the
engine running and open the hood (see page
115).
If steam or spray is present: Turn off the engine
and wait until it subsides. Then, open the hood.
3.

Check that the
cooling fan is operating and stop the engine once the
temperature gauge needle goes down. If the cooling fan is not operating,
immediately stop the engine.

4.


Once
the engine has cooled down, inspect the coolant level and check the
cooling system components for leaks. If the coolant level in the reserve tank
is low, add coolant until it reaches the MAX mark. If there is no coolant in the
reserve tank, make sure the radiator is cool, then cover the radiator cap with a
heavy cloth and open the cap. If necessary, add coolant up to the base of the
filler neck, and put the cap back on.
Once the engine has cooled sufficiently, restart it and check the temperature
gauge. If the temperature needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.
Steam and spray from an overheated engine can seriously scald you.
Do not open the hood if steam is coming out.
WARNING
Removing the radiator cap while the engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator
cap.
WARNING
Continuing to drive with the temperature gauge needle at the H mark may
damage the engine.
NOTICE
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, choose one of
the following operations:
The steering wheel will not lock. The power mode changes to ACCESSORY, unless
the shift lever is in Park, in which case the power mode changes to VEHICLE OFF.
Because turning off the engine also disables the power assist the engine provides to
the steering and braking systems, it will require significantly more physical effort
and time to steer and slow the vehicle. Downshift gears and use both feet on the
brake pedal, if necessary, to slow the vehicle and stop immediately in a safe place.
Do not press the button while driving unless it is absolutely necessary for the
engine to be switched off.
• Press and hold the ENGINE START/STOP button for two seconds, or
•

Firml
y press the ENGINE START/STOP button two
times.
Trying to lift or tow your vehicle by the bumpers will cause serious damage. The
bumpers are not designed to support the vehicle’s weight.
Improper towing such as towing behind a motorhome or other motor vehicle can
damage the transmission.
NOTICE
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
Flat bed equipment: The operator loads your vehicle on the back of a truck. This is
the only way you can safely transport your vehicle. Any other towing method
will damage the vehicle’s drive system.
Reserve
tank MAX
MIN

114 || 115
MAINTENANCE
MAINTENANCE
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Maintenance Minder Service Codes
These codes indicate what services are due on your vehicle.
*1: If a message Maintenance Due Now does not appear more than 12 months after the display is reset, change the engine oil every year.
#: See information on maintenance and emissions warranty.
CODEMaintenance Main Items
AReplace engine oil*1
BReplace engine oil*1 and oil lte r
Inspect front and rear brakes
Check parking brake adjustment
Inspect tie rod ends, steering gearbox, boots, and
drain plug
Inspect suspension components
Inspect driveshaft boots
Inspect brake hoses and li nes (Including ABS/VSA)
Inspect all uid levels and condition of uid s
Inspect exhaust system#
Inspect fuel lines and connections#
Check expiration information for the Temporary Tire
*2: If you drive in dusty conditions, replace the air cleaner element every \
15,000 miles (24,000 km).
*3:If you drive primarily in urban areas that have high concentrations of s\
oot from industry and
diesel-powered vehicles, replace the dust and pollen lter every 15,0\
00 miles (24,000 km).
*4:If you drive regularly in very high temperatures (over 110°F/43°C\
), in very low temperatures
(under -20°F/-29°C), replace every 60,000 miles/100,000 km.
CODEMaintenance Sub Items
1
Rotate tires
2Replace air cleaner element*2
Replace dust and pollen lte r*3
Inspect drive belt
3
Replace transmission uid
4Replace spark plugs
Replace timing belt and inspect water pump*4
Inspect valve clearance
5
Replace engine coolan t
Repair Kit bottle
Under the Hood
Engine oil fill cap
Engine oil dipstick
(orange)
Washer fluid
(black cap) Brake fluid (black cap)
Engine coolant
reserve tank Radiator cap Battery

Opening the Hood
1.
P
ark the vehicle on a level surface, and apply
the electric parking brake.
2.

Pull
the hood release handle under the lower
left corner of the dashboard.
3.

Push up
the hood latch lever in the center of
the hood to release the lock mechanism, and
then open the hood.
4.

Lift the
hood up most of the way. The
hydraulic supports lift it up the rest of the way
and hold it up.

When closing the hood, lower it to
approximately 12 inches (30 cm), then press
firmly down with your hands.
Do not open the hood when the wiper arms are raised. The hood will strike the
wipers, and may damage either the hood or the wipers.
NOTICE
Hood release handle
Lever

118 || 119
MAINTENANCE
MAINTENANCE
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Adding Oil
1.
Unscr
ew and remove the engine oil fill cap.
2.

A
dd oil slowly.
3.

R
einstall the engine oil fill cap, and tighten it
securely.
4.

W
ait for three minutes and recheck the engine
oil dipstick.
Do not fill the engine oil above the upper mark. Overfilling the engine oil can
result in leaks and engine damage.
NOTICE
Resetting the Engine Oil Life
If you change or replace the vehicle’s engine oil yourself, you must reset the
engine oil life. Use the right selector wheel on the steering wheel to make
selections in the MID.
1.

Scr
oll to Maintenance Info and select it to display
the oil life reset mode.
2.

Select R
eset. The service code disappears and the
oil life returns to 100%.
Failure to reset the engine oil life after a maintenance service results in the
system showing incorrect maintenance intervals, which can lead to serious
mechanical problems.
NOTICE
Engine oil fill cap
Engine Coolant
Park the vehicle on level ground. Check the reserve tank and the coolant level in the
radiator. We recommend Acura Long Life Antifreeze/Coolant Type 2.
Checking the Reserve Tank
1.
Open
the hood (see page 115). Check the
amount of coolant in the reserve tank.
2.

If
the coolant level is below the MIN mark, add
the specified coolant until it reaches the MAX
mark.
3.

Inspect
the cooling system for leaks.
Adding Coolant1.
Mak
e sure the engine and radiator are cool.
2.

R
emove the engine compartment cover (see
page 116).
3.

Turn
the radiator cap counterclockwise and
relieve any pressure in the coolant system. Do
not push the cap down when turning.
4.

Push down
and turn the radiator cap
counterclockwise to remove it.
5.

The coolant lev
el should be up to the base of the
filler neck. Add coolant if it is low.
6.

Put
the radiator cap back on, and tighten it fully.
7.
P

our coolant into the reserve tank until it
reaches the MAX mark. Put the cap back on the
reserve tank.
Removing the radiator cap while the engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator
cap.
WARNING
If temperatures consistently below −22°F (−30°C) are expected, the coolant
mixture should be changed to a higher concentration. Consult a dealer for
more information.
NOTICE
Radiator cap
MAX
MIN
Reserve
tank

128 || 129
SPECIFICATIONS
MAINTENANCE
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Testing of Readiness Codes
Your vehicle has readiness codes as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly. The codes may not be read if you go through the
emissions testing just after the battery has gone dead or been disconnected.
To check if they are set, turn the vehicle on without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle emissions tested before the readiness codes
are set, prepare the vehicle for retesting by doing the following:
1.

Fill the
gas tank to approximately 3/4 full.
2.

P
ark the vehicle and leave the engine off for 6 hours or more.
3.

Mak
e sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4.

Start
the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5.

K
eep the vehicle in Park. Increase the engine speed to 2,000 rpm, and hold it
there for about 3 minutes.
6.

Let
the engine idle with your foot off the accelerator for 20 seconds.
7.
Select a nearb

y, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
with the vehicle in Drive. Do not use cruise control. When traffic allows, drive
for 90 seconds without using the accelerator pedal. (Vehicle speed may vary
slightly; this is OK.) If you cannot do this for a continuous 90 seconds because of
traffic conditions, drive for at least 30 seconds, then repeat two more times (for
a total of 90 seconds).
8.

Driv
e in city or suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9.

P
ark the vehicle and leave the engine off for 30 minutes.
The readiness codes are erased when the battery is disconnected, and set again
only after several days of driving under a variety of conditions.
If an emissions testing facility determines that the readiness codes are not set, you
may be requested to return at a later date to complete the test, or see your dealer.SPECIFICATIONS
Vehicle
ModelAcura RL X
No. of Passengers:
Front 2
Rear 3
Tota l5
Weights:Gross Vehicle Weight
Rating U.S.: 4,993 lbs (2,265 kg)
Canada: 2,265 kg
Gross Axle Weight
Rating (Front)U.S.: 2,778 lbs (1,260 kg)
Canada: 1,260 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,271 lbs (1,030 kg)
Canada: 1,030 kg
Air Conditioning:
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 16.0 - 17.8 oz (455 - 505 g)
Lubricant Type ND-OIL 8
Quantity 7.8 - 8.7 in³ (127.5 - 142.5 cm³ )
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam )LED
Front Turn Signal/Parking Lights27/8W (Amber )
Front Side Marker Lights 2CP
Side Turn Signal Lights
(on Door Mirrors)LE D
Brake/Taillights/Rear Side Marker
Lights LE
D
TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W
High-M ount Brake Ligh tLED
Rear License Plate LightsLED
Door Outer Handle Ambient Lights LED
Interior Light sFront and Rear Map LightsLEDLEDVanity Mirror Lights2.1WFront Door Pocket LightsLEDCenter Pocket Ligh tLEDBeverage Holder Ligh tLEDDoor Courtesy Lights3.4WLEDGlove Box Ligh tLEDFront and Rear* Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5W
Front and Rear Ambient Lights
Console Compartment Ligh t
Fluids
Brake Fluid
Automatic Transmission Fluid
SpeciedAcura Heavy Duty Brake Fluid DOT 3
SpeciedAcura ATF DW-1
(automatic transmission uid)
Capacity Change 3.3 US qt (3.1)
Engine Oil
Engine Coolan
t
Recommended·Genuine Acura Motor Oil 0W-2 0
·API Premium-grade 0W-20 detergent oi l
Capacity Change
4.2 US qt (4.0 )
Change
including
lter 4.5 US qt (4.3 )
Specie
dAcura Long-Life Antifreeze/Coolant Type 2
Ratio 50/50 with distilled wate r
Capacity2.1 US gal (8.0 )
(change including the remaining
0.225 US gal (0.85 ) in the reserve tank )
Washer Fluid
Tank Capacit yU.S.: 2.6 US qt (2.5 )
Canada: 5.3 US qt (5.0 )
Engine and Fuel
Engine
FuelDisplacement212 cu-in (3,471 cm3)
Spark Plugs NGKD ILZKR7B11G
TypeUnleaded premium gasoline, Pump octane number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 )
Tires
*1: Vehicles with optional spare tire kit
RegularSize245/40 R19 98 WPressure
psi (kPa [kgf/cm2])Front35 (240 [2.4])Rear33 (230 [2.3])
Compact
Spar e
*1SizeT155/70D17 110MPressure
psi (kPa [kgf/cm2]) 60
(420 [4.2])
Wheel SizeRegula r19 x 8JCompact Spar e*117 x 4T
*if equipped

136 || 137
INDEX
INDEX
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Light Bulbs ............................................................. 129
Lights ........................................................................\
. 33
Brightness Control
............................................... 33
Exterior Lights
...................................................... 33
Interior Lights
....................................................... 33
Map Lights
............................................................ 34
Lights indicator
....................................................... 25
LINK button
............................................................. 65
LKAS indicator
.................................................. 23, 25
Locking the Doors
.................................................. 29
Lock Tab
................................................................... 30
Low fuel indicator
................................................... 24
Low oil pressure indicator
.....................................22
Low Speed Follow (LSF)
.......................................83
Low tire pressure indicator
...................................24
Maintenance
.......................................................... 112
Maintenance Minder
......................................... 113
Opening the Hood ............................................. 115
Safety Precautions............................................. 112 Service Codes
..................................................... 114
Under the Hood
................................................. 115
Making a Call
.......................................................... 60
Malfunction indicator lamp

.................................22
Malfunction Indicators

.......................................... 22
Map Legend
............................................................. 71
Map Lights
.............................................................. 34
Master Door Lock Switch
.....................................30
Maximum Load Limit
............................................. 74
MID
........................................................................\
.... 26
Mirrors
..................................................................... 40
Automatic Dimming Rearview Mirror
............40
Power Door Mirrors
............................................ 40
Reverse Tilt Door Mirrors
..................................40
Moonroof
................................................................. 32
Multi-Information Display
....................................26
Multi-View Rear Camera

.......................................93
NA

V button ............................................................. 67Navigation
...............................................................66
AcuraLink Real-Time Traffic ...............................72
Detour
....................................................................72
Display and Controls
...........................................67
Entering a Destination

........................................69
Find Near

est Place ...............................................70
Home Address
......................................................69
Interface Dial Feedback
.....................................68
Map Legend
..........................................................71
ODMD Shortcuts
.................................................70
Place Category
.....................................................70
Routing
..................................................................71
Steering Wheel Controls

....................................66
Str

eet Address ......................................................69
System Guidance Volume

.................................68
T

alk Button Tips ...................................................66
Traffic
.....................................................................72
Turn-by-Turn Directions
.....................................71
Voice Prompt
.......................................................68
Navigation Commands

.......................................133
ODMD

.....................................................................48
On-Demand Multi-Use Display

.........................48
One-

Touch Turn Signal .........................................34
On/Off Indicators
...................................................25
Opening the Hood
...............................................115
Opening the Trunk
..................................................29
Operator Assistance
..............................................65
Overheating
..........................................................100
Pairing a Phone
.......................................................59
Pandora
....................................................................55
Pandora
® Commands ........................................... 134
P
arking Brake .......................................................... 80
Parking Sensor System

.......................................... 92
P

assenger Airbag Off Indicator .............................11
Passenger’s Side Interior Fuse Box
....................110
Phone

........................................................................\
59
Phonebook
............................................................... 61
PHONE button
....................................................... 57
Phone Commands
................................................ 133
Pick-Up button
........................................................ 57
Place Category
........................................................ 70
Power Door Mirrors............................................... 40
Power Mode............................................................. 77
Power Moonroof
..................................................... 32
Power Rear Sunshade
........................................... 44
Power Window
........................................................ 31
Precision All Wheel Steer System indicator
......22
Rain-Sensing Wipers
.............................................. 35
RDM indicator
......................................................... 23
Readiness Codes
................................................... 128
Rear Camera
............................................................ 93
Rear Sunshade
........................................................ 44
Rear Temperature Control Dial
...........................44
Rearview Mirror
..................................................... 40
Refueling
.................................................................. 97
CMBS indicator

.......................................................
23
CMBS off indicator

.................................................
25
Collision Mitigation Braking System
™ ............... 89
C
ompact Disc (CD)

................................................ 51
Compact Disc Commands

.................................. 134
C

ompact Spare Tire*

............................................ 105
Condition Indicators

.............................................. 24
Contact Us

............................................................. 131
Cross Traffic Monitor

............................................. 96
Cruise Control

......................................................... 82
Cruise Control indicators

...................................... 25
Customiz

ed Features

............................................. 41
Dashboard and Ceiling Controls

............................ 2
Destination

.............................................................. 69
Detour

....................................................................... 72
Dialing a Number

.................................................. 60
Distance button

..................................................... 83
Door Mirrors

........................................................... 40
Door Operation

..................................................... 30
Doors........................................................................\
.29 Childproof Door Locks

....................................... 30
Front Door Inner Handle

................................... 30
Lock Tab

................................................................ 30
Master Door Lock Switch

.................................. 30
DOT Tire Quality Grading

................................... 126
Driv

er’s Knee Airbag

................................................. 8
Driver’s Side Interior Fuse Boxes

....................... 109
Driving


...................................................................... 73
Braking

.................................................................. 80
Exterior Checks ..................................................... 73
Interior Checks

..................................................... 73
Maximum Load Limit

.......................................... 74
Power Mode

.......................................................... 77
Refueling

................................................................ 97
Remote Engine Start

........................................... 76
Shifting................................................................... 78
Driving Position Memory System

....................... 39
Electric Parking Brake

........................................... 80
Electric Parking Brake indicator

........................... 24
Electric P

arking Brake system indicator ............. 23
Electric Power Steering indicator
........................ 23
E-Mail

........................................................................\
63
Emergency Assistance

........................................... 65
Emergency Engine Stop

...................................... 101
Emergency Towing

............................................... 101
Engine and Fuel

..................................................... 129
Engine Compartment Cover

............................... 116
Engine

Compartment Fuse Boxes .................... 108
Engine Coolant

...................................................... 119
Engine Oil

............................................................... 117
Engine Oil Life

....................................................... 118
Engine Start/Stop Button

..................................... 77
EPS indicator

........................................................... 23
Exterior Lights

......................................................... 33
Fastening a Seat Belt

............................................... 7FCW indicator
.........................................................
23
FCW off indicator ...................................................
25
Find Nearest Place .................................................
70
Floor Mats ...............................................................
38
Fluids .......................................................................
129
FM/AM Radio .........................................................
49
FM/AM Radio Commands
..................................
134
F
oot Brake ...............................................................
80
Forward Collision Warning (FCW) .....................
86
Frequently Asked Questions
..............................
130
F
ront Airbags (SRS) ..................................................
8
Front Door Inner Handle ......................................
30
Front Seats ...............................................................
36
Fuel Information .....................................................
97
Fuse Locations ......................................................
108
Changing Fuses ...................................................
111
Driver’s Side Interior Fuse Boxes.....................109
Engine Compartment Fuse Boxes .................
108
Passenger’s Side Interior Fuse Box .................
110
Garage Opener ........................................................42
Hang-Up/Back button ....................................
57, 66
Hard Disc Drive (HDD) Audio
..............................
52
Har
d Disc Drive (HDD) Commands ..................
134
Headlight Washers .................................................
35
Headlight-Wiper Integration
..............................
34
Head R
estraints ......................................................
37
Heated Steering Wheel
........................................
44
High beams indicator
............................................
25
Home Address .........................................................
69
HomeLink .................................................................
42
Hood .......................................................................
115
Immobilizer indicator ............................................
24
Installing a Child Seat ............................................
18
Instrument Panel ....................................................
22
Condition Indicators ...........................................
24
Malfunction Indicators .......................................
22
On/Off Indicators ................................................
25
Interface Dial Feedback ........................................
68
Interior Fuse Boxes ......................................
109, 110
Interior Lights ..........................................................
33
Intermittent Wipers ..............................................34
iPod........................................................................\
....53
iPod
® Commands .................................................. 134
Jump Starting ..........................................................99
Keyless Access System

.......................................... 29
K

eyless Access System indicator .........................23
Lane Departure Warning indicator......................23
Lane Departure Warning (LDW)
..........................87
Lane Keeping Assist System (LKAS)
...................88
Lap/Shoulder Seat Belts
.......................................... 5
LATCH-Compatible Child Seat
............................17
LDW indicator
......................................................... 23
Left selector wheel:
................................................ 47
