uuWhen Driving uBlind Spot Information (BSI) System
414
Driving

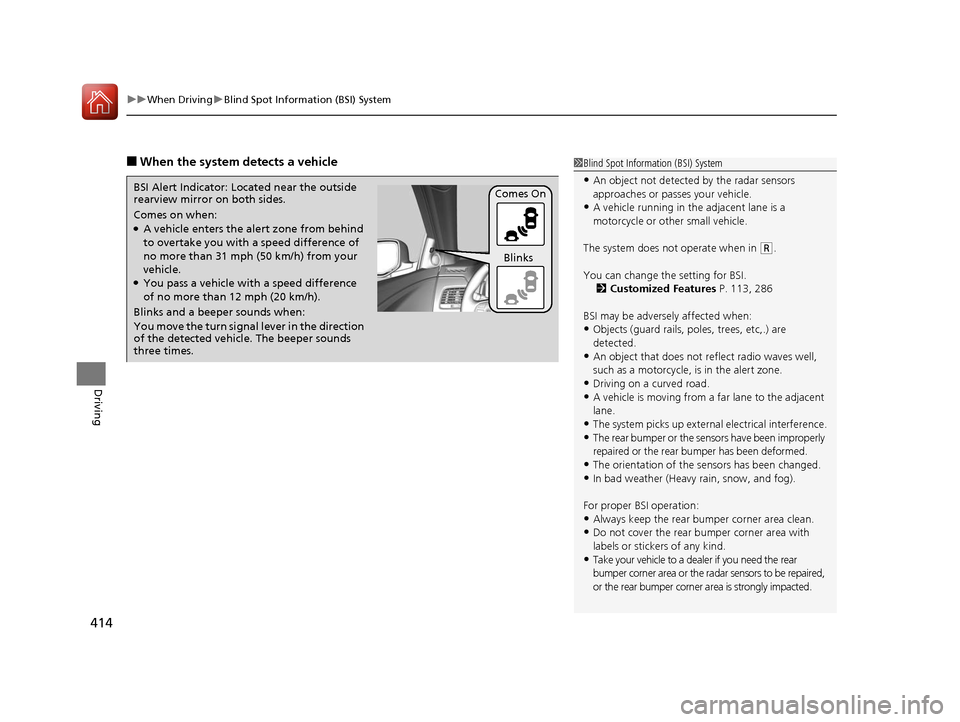

■When the system detects a vehicle1Blind Spot Inform ation (BSI) System
•An object not detected by the radar sensors
approaches or passes your vehicle.
•A vehicle running in th e adjacent lane is a
motorcycle or other small vehicle.
The system does not operate when in
( R.
You can change the setting for BSI. 2 Customized Features P. 113, 286
BSI may be adversel y affected when:
•Objects (guard rails, poles, trees, etc,.) are
detected.
•An object that does not re flect radio waves well,
such as a motorcycle, is in the alert zone.
•Driving on a curved road.•A vehicle is moving from a far lane to the adjacent
lane.
•The system picks up external electrical interference.
•The rear bumper or the sens ors have been improperly
repaired or the rear bu mper has been deformed.
•The orientation of the sensors has been changed.
•In bad weather (Heavy rain, snow, and fog).
For proper BSI operation:
•Always keep the rear bumper corner area clean.•Do not cover the rear bumper corner area with
labels or stickers of any kind.
•Take your vehicle to a dealer if you need the rear
bumper corner area or the radar sensors to be repaired,
or the rear bumper corner area is strongly impacted.
Comes on when:●A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
●You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
Blinks and a beeper sounds when:
You move the turn signal
lever in the direction
of the detected vehicle. The beeper sounds
three times. Comes On
Blinks
16 ACURA RLX E-AWD-31TY36200.book 414 ページ ２０１５年３月１１日　水曜日　午後１時３０分

427
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It does not prevent collision nor
stop the vehicle automatically. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS
TM Conditions and Limitations P. 431
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 383
1How the system works
Rapid vibrations on the steering wheel alert you
when the your vehicle speed is between 19 and 62
mph (30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
The radar sensor is
in the front grille.
The camera is
located behind
the rearview
mirror.
The system starts monitoring the roadway ah ead when your vehicle speed is about 3
mph (5 km/h) and there is a vehicle in front of you.
When to use
The CMBSTM activates when:●The speed difference between your vehicle and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected vehicle or a pedestrian in front of you.
16 ACURA RLX E-AWD-31TY36200.book 427 ページ ２０１５年３月１１日　水曜日　午後１時３０分

449
uuSurround View Camera System*uWhen Parking Your Vehicle
Continued
Driving

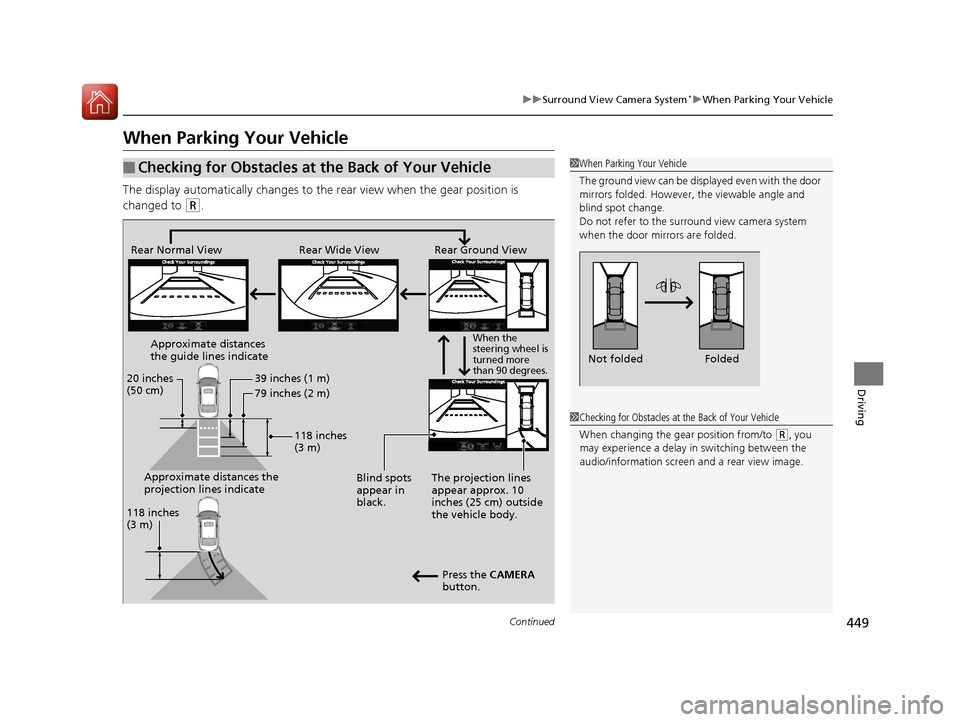

When Parking Your Vehicle
The display automatically changes to the rear view when the gear position is
changed to
(R.
■Checking for Obstacles at the Back of Your Vehicle1 When Parking Your Vehicle
The ground view can be disp layed even with the door
mirrors folded. However, the viewable angle and
blind spot change.
Do not refer to the surround view camera system
when the door mirrors are folded.
Folded
Not folded
Rear Wide View
Rear Normal View Rear Ground View
When the
steering wheel is
turned more
than 90 degrees.
The projection lines
appear approx. 10
inches (25 cm) outside
the vehicle body.
Blind spots
appear in
black.
Press the CAMERA
button.
Approximate distances
the guide lines indicate
Approximate distances the
projection lines indicate 39 inches (1 m)
79 inches (2 m)
118 inches
(3 m)
20 inches
(50 cm)
118 inches
(3 m)
1
Checking for Obstacles at the Back of Your Vehicle
When changing the gear position from/to
(R, you
may experience a delay in switching between the
audio/information screen and a rear view image.
16 ACURA RLX E-AWD-31TY36200.book 449 ページ ２０１５年３月１１日　水曜日　午後１時３０分

568
Index
Console Compartment............................. 187
Controls ..................................................... 131
Coolant (Engine) ....................................... 476
Adding to the Radiator ............................ 477
Adding to the Reserve Tank ..................... 476
High Temperature Indicator ....................... 83
Low Temperature Indicator ........................ 83
Overheating............................................. 533
Coolant (Inverter) ..................................... 478
Creeping (Dual Clutch Transmission) ....... 372
Cross Traffic Monitor ................................ 440
Cup Holders ............................................... 189
Customized Features ........................ 113, 286
D
Daytime Running Lights ........................... 162
Dead Battery (12-Volt) ............................. 530
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 555
Dimming Headlights ............................................... 159
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 472
Directional Signals (Turn Signal) .............. 158
Door Mirrors ............................................. 173
Doors ......................................................... 133
Auto Door Locking .................................. 145
Auto Door Unlocking ............................... 145
Door Open Message .................................. 35 Keys ........................................................ 133
Locking/Unlocking the Doors from
the Inside ........................................ 18, 142
Locking/Unlocking the Doors from the Outside ........................................... 136
Lockout Prevention System ...................... 140
DOT Tire Quality Grading ........................ 491
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 359
Braking ................................................... 420
Dual Clutch Transmission ........................ 372
Shifting Gear ........................................... 373
Turning on the Power.............................. 366
Driving Position Memory System ............ 169
Dual Clutch Transmission ......................... 372
Creeping ................................................. 372
Fluid ........................................................ 478
Kickdown ................................................ 372
Operating the Shift Button ................ 23, 375
Shifting ................................................... 373
Dust and Pollen Filter ............................... 500
E
Elapsed Time............................................. 111
Electric Parking Brake Indicator.................................................... 75
Electric Parking Brake System Indicator............................................ 75, 537
Electric Power Steering (EPS) System
Indicator............................................ 82, 537 Electronic Stability Control (ESC)
............ 409
Emergency ................................................ 546
Emissions Testing (Readiness Codes) ...... 557
Energy Efficiency ........................................ 12
Engine ....................................................... 554
Coolant .................................................. 476
Jump Starting ......................................... 530
Oil .......................................................... 471
Remote Engine Start ............................... 368
Engine Compartment Cover .................... 470
Engine Coolant ........................................ 476
Adding to the Radiator ........................... 477
Adding to the Reserve Tank .................... 476
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83
Overheating ............................................ 533
Engine Oil ................................................. 471
Adding ................................................... 473
Checking ................................................ 472
Displaying Oil Life ................................... 464
Low Oil Pressure Indicator ................. 74, 535
Recommended Engine Oil ....................... 471
e-pretensioners .......................................... 38
EPS (Electric Power Steering) System ........ 82
Exhaust Gas Hazard (Carbon
Monoxide) ................................................ 70
Expanded Rear Door Sunshades ............. 199
Expanded View Driver’s Mirror ............... 174
Exterior Care (Cleaning) .......................... 503
Exterior Mirrors ........................................ 173
16 ACURA RLX E-AWD-31TY36200.book 568 ページ ２０１５年３月１１日　水曜日　午後１時３０分

570
Index
High Beam Indicator................................... 85
High Voltage Battery ................................ 419
Hill Start Assist System .............................. 370
HomeLink ® Universal Transceiver ............ 311
Hybrid Vehicle
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............. 554
Vehicle Identification ............................... 554
Illumination Control Buttons............................................ 166, 167
Immobilizer System .................................. 149
Indicator .................................................... 85
Indicators ..................................................... 74
12-Volt Battery Charging System ....... 79, 535
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)...................................... 88, 385
Anti-lock Brake System (ABS) ..................... 82
Automatic Brake Hold........................ 76, 423
Automatic Brake Hold System ............ 76, 423
Blind Spot Information (BSI) ............... 90, 414
Brake System (Amber)................................ 77
Brake System (Red) ............................ 74, 536
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 90, 91
Door and Trunk Open ................................ 35
Electric Parking Brake................................. 75 Electric Parking Brake System ............ 75, 537
Electric Power Steering (EPS)
System ............................................ 82, 537
Fog Light ................................................... 85
Gear Position............................................. 80
High Beam ................................................ 85
High Temperature ..................................... 83
Immobilizer System ................................... 85
Keyless Access System ............................... 86
Lane Keeping Assist System (LKAS) .... 89, 404
Lights On .................................................. 85
Low Fuel ................................................... 81
Low Oil Pressure ................................ 74, 535
Low Temperature ...................................... 83
Low Tire Pressure/TPMS ............. 84, 415, 417
Malfunction Indicator Lamp............... 79, 536
POWER SYSTEM ........................................ 78
READY ...................................................... 78
Road Departure Mitigation (RDM) ............. 87
Seat Belt Reminder .............................. 37, 81
Security System Alarm ............................... 86
SPORT Mode ..................................... 86, 380
Supplemental Restraint System ............ 55, 82
System Message ........................................ 84
Transmission ............................................. 80
Turn Signal ................................................ 85
Vehicle Stability Assist (VSA ®)
System ............................................ 83, 409
VSA ® OFF .......................................... 83, 410
Information .............................................. 551
Instant Fuel Economy ............................... 111 Instrument Panel
........................................ 73
Brightness Control .................................. 166
Interface Dial ............................................ 216
Interior Lights ........................................... 182
Interior Rearview Mirror ......................... 172
Inverter Coolant ....................................... 478
J
Jack (Wheel Nut Wrench) ........................ 524
Jump Starting ........................................... 530
K
Key Number Tag ...................................... 135
Keyless Access System .............................. 138
Keyless Lockout Prevention ..................... 140
Keys ........................................................... 133
Lockout Prevention ................................. 140
Number Tag............................................ 135
Rear Door Won’t Open ........................... 144
Remote Transmitter ................................ 136
Two-way Keyless Access Remote..... 141, 368
Types and Functions................................ 133
Kickdown (Dual Clutch Transmission) .... 372
L
Lane Keeping Assist System (LKAS)........ 402
Language (HFL) ........................................ 314
LATCH (Child Seats) ................................... 63
16 ACURA RLX E-AWD-31TY36200.book 570 ページ ２０１５年３月１１日　水曜日　午後１時３０分

571
Index
Lights................................................ 159, 480
Automatic............................................... 160
Bulb Replacement ................................... 480
Daytime Running Lights .......................... 162
Fog Lights ............................................... 162
High Beam Indicator ................................. 85
Interior.................................................... 182
Light Switches......................................... 159
Lights On Indicator.................................... 85
Turn Signals ............................................ 158
Load Limits ............................................... 363
Locking/Unlocking ................................... 133
Auto Door Locking/Unlocking ................. 145
Childproof Door Locks ............................ 144
From Inside ............................................. 142
From Outside .......................................... 136
Keys........................................................ 133
Using a Key............................................. 140
Lockout Prevention System ..................... 140
Low Battery Charge (12-Volt) ................. 535
Low Fuel Indicator ..................................... 81
Low Keyless Access Remote Signal
Strength .................................................. 135
Low Oil Pressure Indicator ................. 74, 535
Lower Anchors ........................................... 63
Luggage (Maximum Load Limit) ............. 363
Lumbar Support ....................................... 176M
Maintenance............................................. 459
12-Volt Battery ........................................ 497
Brake Fluid .............................................. 479
Cleaning .................................................. 501
Climate Control System ........................... 500
Coolant ........................................... 476, 478
Maintenance Minder
TM............................ 463
Oil ........................................................... 472
Precautions .............................................. 460
Radiator .................................................. 477
Remote Transmitter ......................... 498, 499
Replacing Light Bulbs ............................... 480
Safety ...................................................... 461
Service Items ........................................... 466
Tires ........................................................ 488
Transmission Fluid ................................... 478
Under the Hood ...................................... 468
Malfunction Indicator Lamp .............. 79, 536
Map Lights ................................................ 183
Maximum Load Limit ............................... 363
Meters, Gauges ......................................... 106
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 458
Moonroof .................................................. 154 MP3
................................................... 248, 272
Multi-Information Display ....................... 108
Multi-View Rear Camera .......................... 444
N
Numbers (Identification).......................... 554
O
Odometer................................................. 110
Oil (Engine) ....................................... 471, 553
Adding .................................................... 473
Checking................................................. 472
Displaying Oil Life .................................... 464
Low Oil Pressure Indicator ................. 74, 535
Recommended Engine Oil ............... 471, 553
Viscosity .......................................... 471, 553
On Demand Multi-Use Display
TM............. 217
Opening
Trunk ...................................................... 548
Opening/Closing Hood....................................................... 469
Moonroof ............................................... 154
Power Windows ...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ...................................................... 155
Outside Temperature Display .................. 110
Overheating .............................................. 533
16 ACURA RLX E-AWD-31TY36200.book 571 ページ ２０１５年３月１１日　水曜日　午後１時３０分

572
Index
P
Paddle Shifters (Sequential Mode).......... 379
Pandora® ................................................... 270
Panic Mode ............................................... 151
Parking ...................................................... 435
Parking Brake ............................................ 420
Parking Sensor System .............................. 436
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 159
POWER Button .......................................... 155
Power Distribution Monitor ............. 128, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 366
POWER SYSTEM Indicator .......................... 78
Power Windows ........................................ 152
Precautions While Driving
Rain ......................................................... 371
Pregnant Women ....................................... 41
Puncture (Tire) .................................. 509, 521
R
Radiator..................................................... 477
Radio (AM/FM) .......................................... 240
Radio (SiriusXM ®)...................................... 245
Radio Data System (RDS) .......................... 242
Range ........................................................ 111
RDS (Radio Data System) .......................... 242
Reactive Force Pedal ................................. 381
Readiness Codes (Emissions Testing) ....... 557READY Indicator
......................................... 78
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 455
Fuel Gauge.............................................. 106
Gasoline .......................................... 455, 552
Low Fuel Indicator ..................................... 81
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 417, 491, 555
Remote Engine Start with Vehicle
Feedback ................................................. 368
Remote Transmitter ................................. 136
Replacement
Battery ............................................ 498, 499
Bulbs ....................................................... 480
Fuses ....................................... 540, 542, 544
Tires ........................................................ 494
Wiper Blade Rubber ................................ 485
Reporting Safety Defects ......................... 556
Resetting a Trip Meter ............................. 110
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ....................... 108, 113
Road Departure Mitigation (RDM) ......... 398
On and Off.............................................. 399
S
Safe Driving ................................................ 31
Safety Check ............................................... 35
Safety Labels .............................................. 71
Safety Message ............................................ 1
Seat Belts .................................................... 36
Adjusting the Shoulder Anchor ................. 40
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
e-pretensioners ......................................... 38
Fastening .................................................. 39
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 65
Pregnant Women...................................... 41
Reminder ............................................ 37, 81
Warning Indicator ............................... 37, 81
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................................. 175
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 149
Immobilizer System Indicator..................... 85
Security System Alarm Indicator ................ 86
Selecting a Child Seat ................................ 62
Sequential Mode ...................................... 378
Sequential Mode Operation ................... 379
Setting the Clock ...................................... 132
Shift Button ........................................ 23, 373
Operation ............................................... 375
Shifting (Transmission) ...................... 23, 373
16 ACURA RLX E-AWD-31TY36200.book 572 ページ ２０１５年３月１１日　水曜日　午後１時３０分
