keyless Acura RLX Hybrid 2016 Owner's Guide

301
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Settings Door
SetupAuto Door Lock
Changes the setting
for when the doors
automatically lock. With Vehicle Speed
*1/
Shift from P /Off
Auto Door Unlock Changes the setting
for when the doors
automatically unlock. All Doors When
Driver’s Door Opens
*1/
All Doors When
Shifted to Park /All
Doors When Ignition
Switched Off /Off
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to
unlock on the first push of the remote. Driver Door
*1/
All
Doors
Keyless Lock Answer Back LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.
On
*1/
Off
Security Relock Timer Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door. 90seconds
/
60seconds /
30seconds
*1
Auto Folding Door Mirror Changes how you can fold the door mirrors.Auto Fold With
Keyless*1/Manual Only
Wiper
SetupWiper Action Changes the setting for the automatic
intermittent wipers in the
AUTO position. Rain Sensing*1/
Intermittent /Speed
Sensitive
16 ACURA RLX E-AWD-31TY36200.book 301 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuAcuraLink ®u
354
Features
Your subscribed telematics service provider can track your vehicle’s location,
remotely lock or unlock doors, and help you find your vehicle.
To use these features, you need your us er ID and personal identification number
(PIN).
■Stolen vehicle tracking
This feature searches and tracks down your ve hicle position even if it is on the move.
If you believe that your vehicle has been stolen, contact the police as well as the
provider.
■Remote door lock/unlock
The provider can remotely lock or unlock doors upon your request.
■Vehicle finder
This feature is convenient to use when trying to locate yo ur vehicle in large areas,
such as a crowded parking lot. If you cannot locate your vehicle after using the
remote transmitter’s answerback function, you can contact the provider which can
then flash your vehicle’s exterior lights and sound the horn.
■Security alarm notification
If the security system in your vehicle detects an abnormal condition, such as
someone tampering with the lock on your vehicle, the provider notifies you by email
or SMS.
■Security Features1 Security Features
The contact information of your provider, your user
ID and PIN will be given when you subscribe to
AcuraLink. If you forget any of the above, contact a
dealer, or go to owners.acura.com (in U.S.) or
www.acura.ca (in Canada).
You can also activate the remote door lock/unlock
and vehicle finder features from the Internet or using
your smartphone app. As k a dealer, or visit
owners.acura.com (in U.S.) or www.acura.ca (in
Canada) for details.
1 Vehicle finder
The lights will stop flas hing and horn will stop
sounding under the foll owing conditions:
•When 30 seconds have elapsed.
•You unlock the doors using the remote transmitter.
•You unlock the doors using the keyless access
system.
•You unlock the doors us ing the built-in key.
•The power mode is set to ACCESSORY or ON.
16 ACURA RLX E-AWD-31TY36200.book 354 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued367
uuWhen Driving uTurning on the Power
Driving
3. Press the POWER button without
depressing the accelerator pedal.
u The Ready To Drive message appears
on the multi-info rmation display.
u When the ambient temperature is
extremely low, the vehicle does not move
until certain conditions are met.
A warning message appears instead of
Ready To Drive .
2Multi-Information Display Warning
and Information Messages P. 99
uIf the High Voltage battery is fully
charged, the gasoline engine may not
start.
u If the High Voltage battery charge level is
low, the gasoline engine starts.
You can turn the power system off when the vehicle is completely stopped.
1. Select
(P.
2. Press the POWER button.
1Turning on the Power
The immobilizer system pr otects your vehicle from
theft.
If an improperly coded de vice is used, the power
system does not activate. 2 Immobilizer System P. 149
Bring the keyless access remote close to the POWER
button if the battery in the keyless access remote is

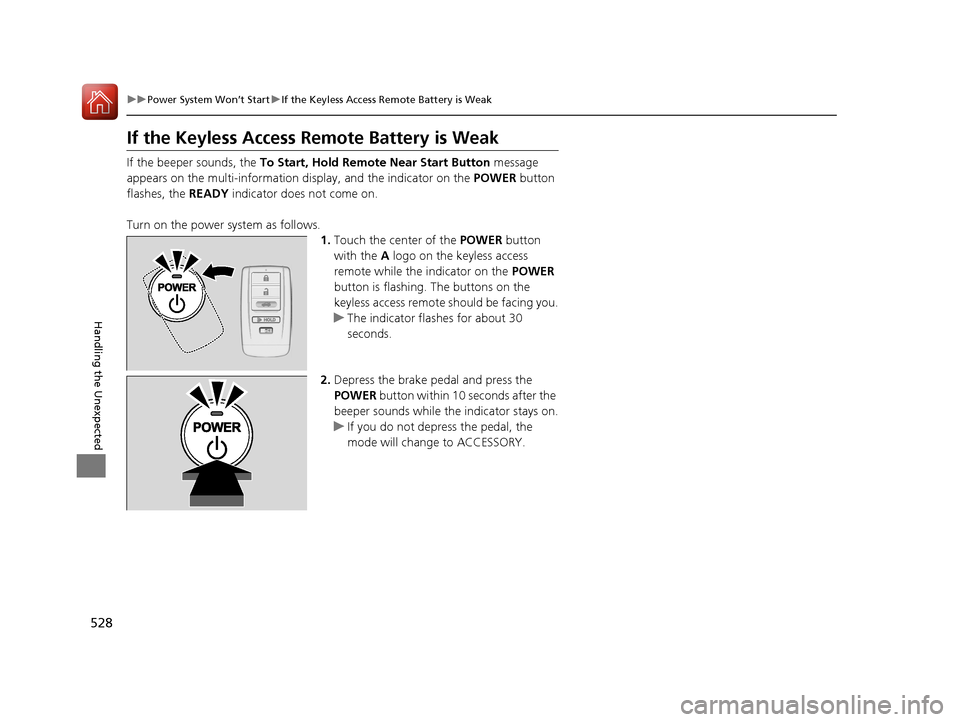

weak. 2 If the Keyless Access Remote Battery is
Weak P. 528
The power system may not activate if the keyless
access remote is subjecte d to strong radio waves.
Do not hold the POWER button to start the power
system.
If the power system does not start, wait at least 10
seconds before trying again.
■Stopping the Power System
16 ACURA RLX E-AWD-31TY36200.book 367 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuWhen Driving uTurning on the Power
368
Driving
You can remotely turn the power system on using the two-way keyless access
remote from extended distances.
■To turn the power system on
The power system is on for up to 10 minutes without you starting the vehicle.
To extend the time for another 10 minute s during the first 10 minutes, press the
button, then press and hold the button.
u The amber LED blinks, then the green LED comes back on if a 10-minute
extension request was transmitted successfully.
After pressing the (lock) button, wait for th e green LED to blink. This indicates that
the all the doors and the trunk are locked.
■Remote Engine Start with Vehicle Feedback*1 Remote Engine Start with Vehicle Feedback*
If there are buildings an d obstacles between your
vehicle and the remote, th e range will be reduced.
This distance may vary by external electrical
interference.
The power system may not be turned on by the
remote engine start if:
•You have disabled a remo te engine start setting
using the multi-information display.
•The power mode is not in VEHICLE OFF (LOCK).
•The gear is in a position other than ( P.
•The hood is open, or any door or the trunk is
unlocked.
•You have already used the remote twice to turn the
power system on.
•Another registered keyless access remote is in the
vehicle.
•There is any antenna failure.•Door is unlocked with the built-in key.
3WARNING
Engine exhaust contains toxic carbon
monoxide.
Breathing carbon monoxide can kill you
or cause unconsciousness.
Never use the remote engine starter
when the vehicle is parked in a garage
or other area with limited ventilation.
With the doors locked, Press the button,
then press and hold the button.
Amber LED: Blinks when any button is pressed.
Continues to blink
during a vehicle
self check until the
power system is
turned on. Go within the range,
and try again.
Green LED: Comes on while
the power system is on. Red LED: Blinks when the
remote is out of the keyless
access system range.
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 368 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued369
uuWhen Driving uTurning on the Power
Driving
■To turn the power system off
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you know
that the power system is turned off.
●Blinks when the remote is out of the keyless
access system range. The power system will not
be turned off.
1
Remote Engine Start with Vehicle Feedback*
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.
•The security system alarm is not set.
Before turning the power sy stem on, make sure to
check the door lock status using the remote. When
you press the button, wait for the green LED to
blink. If the red LED turns on, the doors and trunk did
not lock, and the power system is not turned on.
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The air conditioning is acti vated in recirculation
mode.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters are
activated.
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 369 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuWhen Driving uTurning on the Power
370
Driving
1. While depressing the brake pedal, press the POWER button.
2. Change the gear position to
(D. Select (R when reversing.
3. With the parking brake applied, release the brake pedal and gently depress the
accelerator pedal.
u Make sure the electric parking brake indicator goes off.
4. Gradually release the brake pedal and gently depress the accelerator pedal to pull
away.
■Hill Start Assist System
Hill start assist keeps the brake engaged br iefly to help prevent the vehicle from
rolling on inclines as you move your fo ot from the brake pedal to the accelerator.
Change to
(D when facing uphill, or (R when facing downhi ll, then release the
brake pedal.
■Starting to Drive1 Starting to Drive
You can also release the parking brake by pressing
the electric parking brake sw itch while depressing the
brake pedal.
When facing downhill, you can start your vehicle
more smoothly by manually releasing it with the
electric parking brake switch than by releasing it with
the accelerator pedal.
The power sytem is turned off when the gear position
is changed from
( P before the POWER button is
pressed. Follow the step 1 when starting to drive.
When the engine was started using the two-way
keyless access remote*
When the engine was started using the two-way keyless access remote*
When the engine was started in any case
1Hill Start Assist System
Hill start assist may not prevent the vehicle from
rolling downhill on a very st eep or slippery slope, and
does not operate on small inclines.
Hill start assist is not a replacement for the parking
brake.
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 370 ページ ２０１５年３月１１日　水曜日　午後１時３０分

507
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 508
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 509
Changing a Flat Tire ......................... 521
Power System Won’t Start Checking the Procedure ................... 527
If the Keyless Access Remote Battery is Weak ............................................. 528
Emergency Power System Off........... 529
Jump Starting .................................... 530
Overheating How to Handle Overheating ............. 533 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On ...... 535
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 535
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 536
If the Brake System Indicator (Red) Comes On .. 536
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 537
If the Electric Parking Brake System Indicator Comes On............................................. 537
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 538 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 539
Fuses
Fuse Locations ................................. 540
Inspecting and Changing Fuses ........ 545
Emergency Towing ........................... 546
When You Cannot Unlock the Fuel Fill Door ................................................. 547
When You Cannot Open the Trunk ..... 548
Refueling
Refueling From a Portable Fuel Container ... 549
16 ACURA RLX E-AWD-31TY36200.book 507 ページ ２０１５年３月１１日　水曜日　午後１時３０分

527
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready to Drive message
does not appear on the multi-information display, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display Warning and
Information Messages P. 92
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2POWER Button Operating Range P. 155
2If the Keyless Access Remote Battery is
Weak P. 528
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission indicator blinks and Transmission Problem
Apply Parking Brake When Parked message appears.The power system can be activated as a
temporary measure.
2If the Transmission Indicator Blinks along
with the Warning Message P. 539
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 545
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 85
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 530
16 ACURA RLX E-AWD-31TY36200.book 527 ページ ２０１５年３月１１日　水曜日　午後１時３０分

528
uuPower System Won’t Start uIf the Keyless Access Remote Battery is Weak
Handling the Unexpected
If the Keyless Access Re mote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information di splay, and the indicator on the POWER button
flashes, the READY indicator does not come on.
Turn on the power system as follows. 1.Touch the center of the POWER button
with the A logo on the keyless access
remote while the indicator on the POWER
button is flashing. The buttons on the
keyless access remote should be facing you.
u The indicator flashes for about 30
seconds.
2. Depress the brake pedal and press the
POWER button within 10 seconds after the
beeper sounds while the indicator stays on.
u If you do not depress the pedal, the
mode will change to ACCESSORY.
16 ACURA RLX E-AWD-31TY36200.book 528 ページ ２０１５年３月１１日　水曜日　午後１時３０分

555
Information
Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada Standard RSS-Gen/210/310. Operation is subject to the
following two conditions: (1) this device may not ca use interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
AcuraLink
Audio System
Blind Spot Information System
Bluetooth® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigation Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback
16 ACURA RLX E-AWD-31TY36200.book 555 ページ ２０１５年３月１１日　水曜日　午後１時３０分
