Acura RLX Hybrid 2016 Owner's Manual

480
Maintenance
Replacing Light Bulbs
Headlight Bulbs
Headlight bulbs are LED type. Have an authorized Acura dealer inspect and replace
the light assembly.
Fog Light Bulbs
Fog light bulbs are LED type. Have an auth orized Acura dealer inspect and replace
the light assembly.
Front Turn Signal/Parking Light Bulbs
Front turn signal/parking light bulbs are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
1 Headlight Bulbs
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
16 ACURA RLX E-AWD-31TY36200.book 480 ページ ２０１５年３月１１日　水曜日　午後１時３０分

481
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger’s side: Turn the steering wheel
to the left.
Driver’s side: Turn the steering wheel to
the right.
2. Remove the holding clips (A) and (B), pull
the inner fender back.
2 Engine Compartment Cover P. 470
3.Turn the socket to th e left and remove it,
then remove the old bulb.
4. Insert a new bulb.
Side Turn Signal/Emerge ncy Indicator Light Bulbs
Door mirrors have the side turn lights. Have an authorized Acura dealer inspect and
replace the light assembly.
Front Side Marker Light: 2 CP
1Front Side Marker Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Holding clip (B-type)
Clip
Push until the
pin is flat.
Inner Fender
Clip (A)Clips (B)
Bulb Socket
16 ACURA RLX E-AWD-31TY36200.book 481 ページ ２０１５年３月１１日　水曜日　午後１時３０分

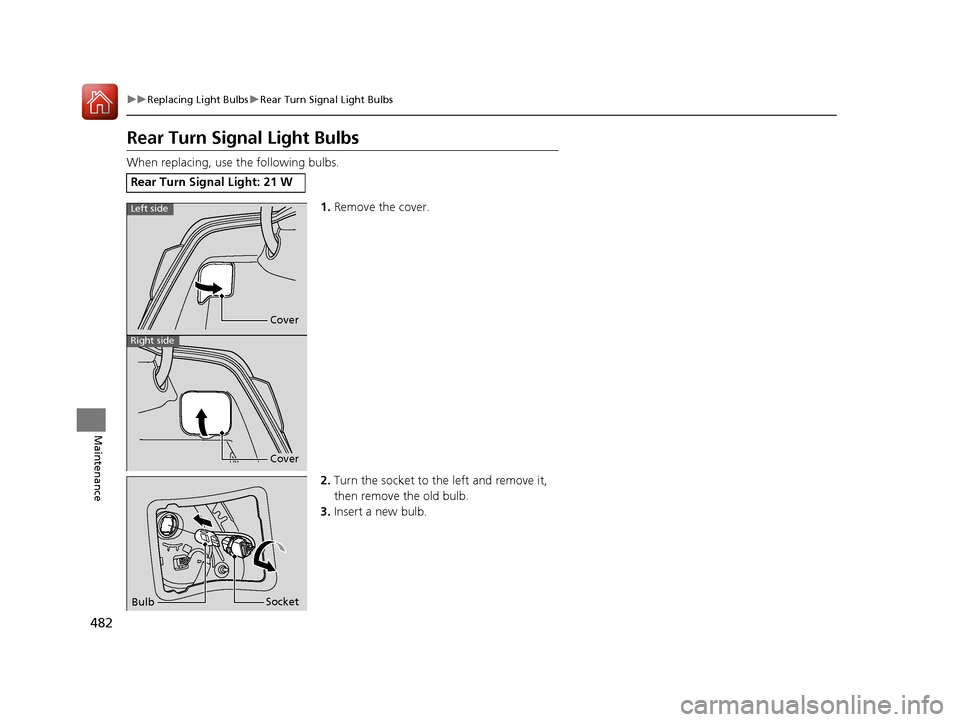

482
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
2. Turn the socket to the left and remove it,
then remove the old bulb.
3. Insert a new bulb.
Rear Turn Signal Light: 21 W
Left side
Cover
Cover
Right side
Bulb Socket
16 ACURA RLX E-AWD-31TY36200.book 482 ページ ２０１５年３月１１日　水曜日　午後１時３０分

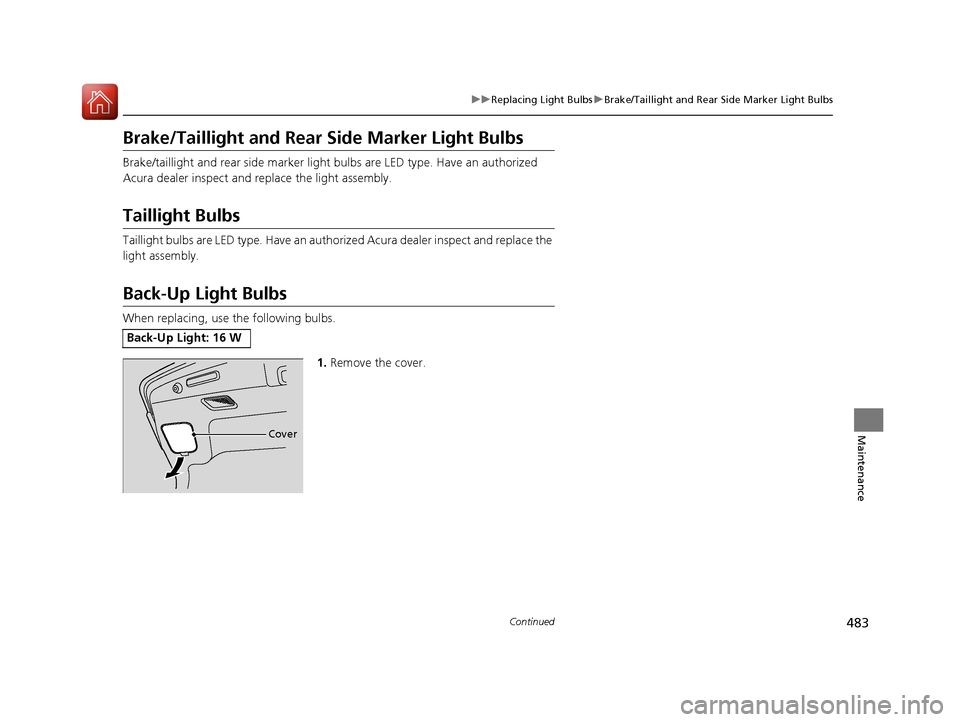

483
uuReplacing Light Bulbs uBrake/Taillight and Rear Side Marker Light Bulbs
Continued
Maintenance
Brake/Taillight and Rear Si de Marker Light Bulbs
Brake/taillight and rear side marker light bulbs are LED type. Have an authorized
Acura dealer inspect and re place the light assembly.
Taillight Bulbs
Taillight bulbs are LED type. Have an author ized Acura dealer inspect and replace the
light assembly.
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
Back-Up Light: 16 W
Cover
16 ACURA RLX E-AWD-31TY36200.book 483 ページ ２０１５年３月１１日　水曜日　午後１時３０分

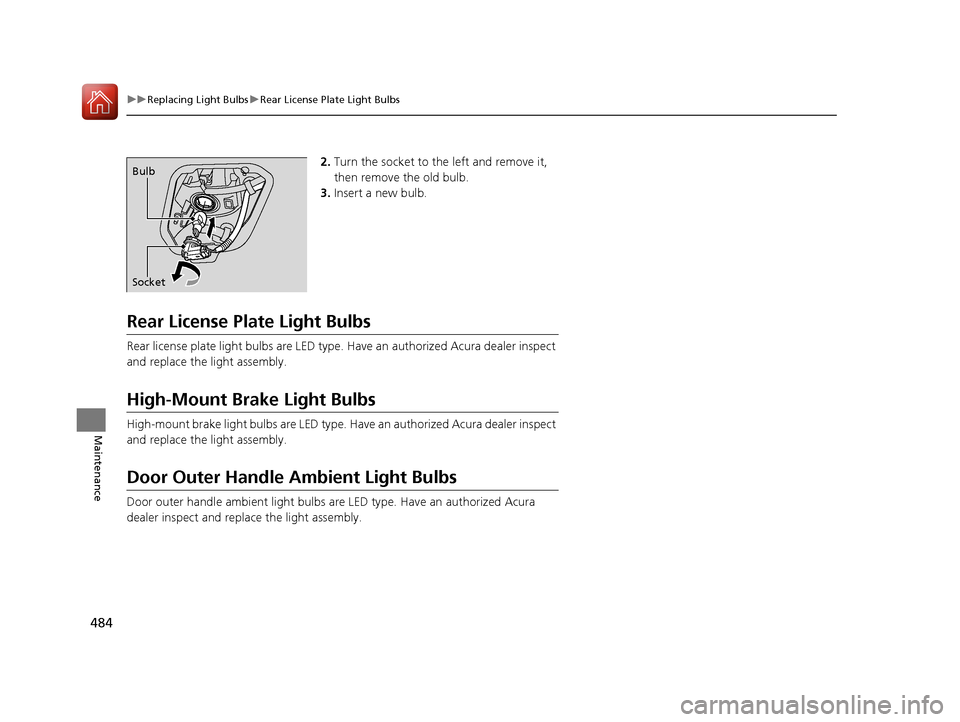

484
uuReplacing Light Bulbs uRear License Plate Light Bulbs
Maintenance
2. Turn the socket to the left and remove it,
then remove the old bulb.
3. Insert a new bulb.
Rear License Plate Light Bulbs
Rear license plate light bulbs are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
High-Mount Brake Light Bulbs
High-mount brake light bulbs are LED type. Have an au thorized Acura dealer inspect
and replace the light assembly.
Door Outer Handle Ambient Light Bulbs
Door outer handle ambient light bulbs are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Socket Bulb
16 ACURA RLX E-AWD-31TY36200.book 484 ページ ２０１５年３月１１日　水曜日　午後１時３０分

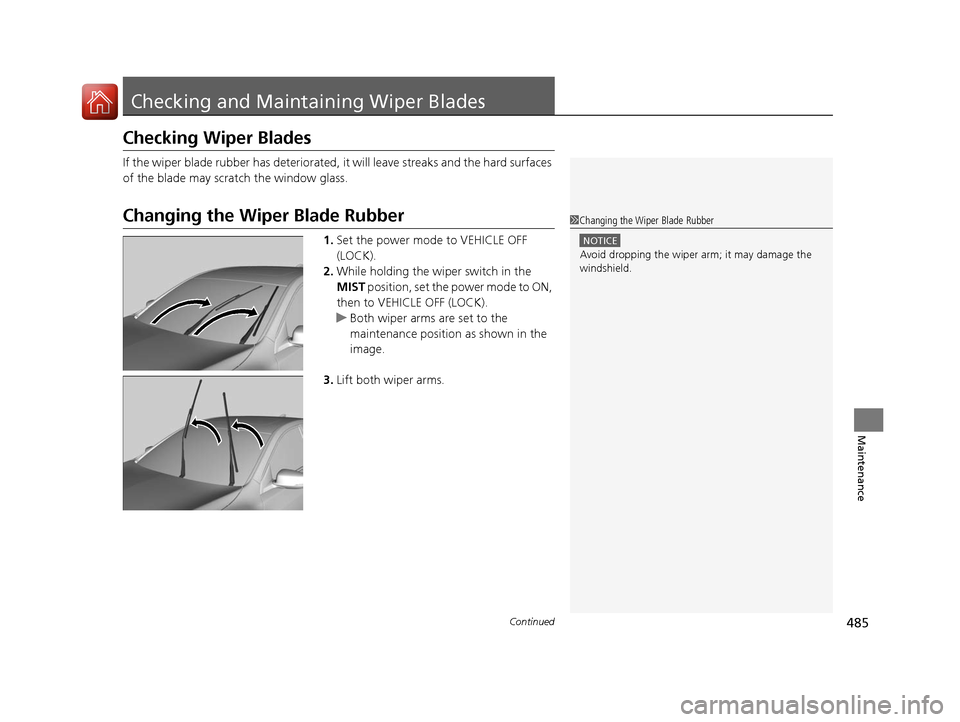

485Continued
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Set the power mode to VEHICLE OFF
(LOCK).
2. While holding the wiper switch in the
MIST position, set the power mode to ON,
then to VEHICLE OFF (LOCK).
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
16 ACURA RLX E-AWD-31TY36200.book 485 ページ ２０１５年３月１１日　水曜日　午後１時３０分

486
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
4. Press and hold the tab, then slide the
blade out from the wiper arm.
5. Pull the end of the wiper blade to the
direction of the arrow in the image until it
unfastens from the holder’s end cap.
6. Pull the wiper blade to the opposite
direction to slide it out from its holder.
Tab
Wiper
Blade
End Cap at
the bottom
Holder
16 ACURA RLX E-AWD-31TY36200.book 486 ページ ２０１５年３月１１日　水曜日　午後１時３０分

487
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Maintenance
7. Insert the flat side of the new wiper blade
onto the bottom part of the holder. Insert
the blade all the way.
8. Install the end of the wiper blade into the
cap.
9. Slide the wiper blade onto the wiper arm
until it locks.
10. Lower both wiper arms.
11. Set the power mode to ON and hold the
wiper switch in the MIST position until
both wiper arms return to the standard
position.
Cap Wiper
Blade
Holder
16 ACURA RLX E-AWD-31TY36200.book 487 ページ ２０１５年３月１１日　水曜日　午後１時３０分

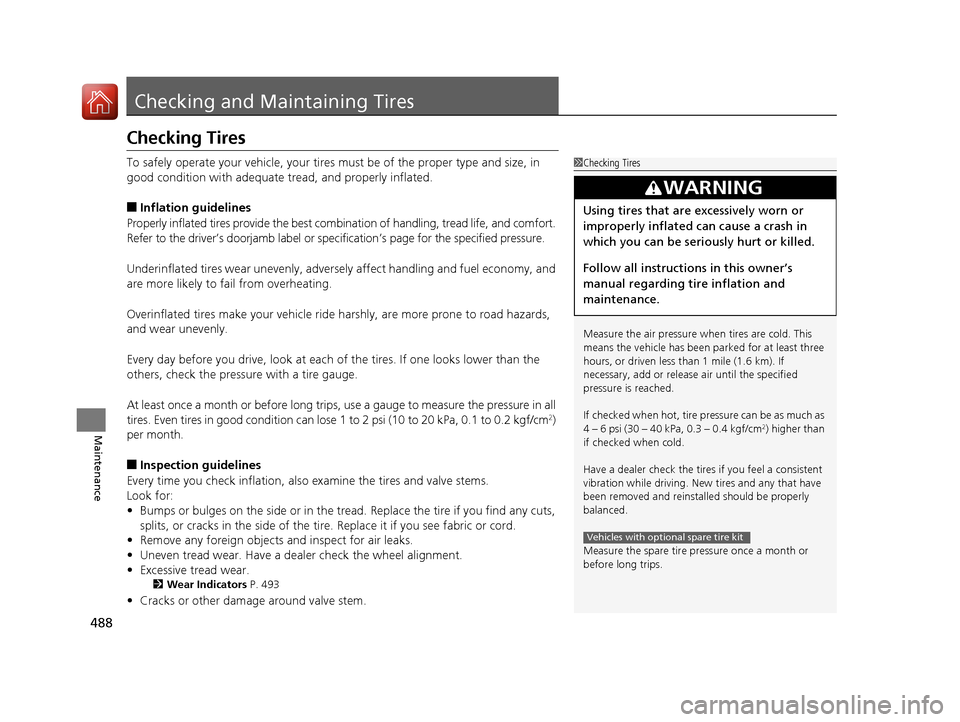

488
Maintenance
Checking and Maintaining Tires
Checking Tires
To safely operate your vehicle, your tires must be of the proper type and size, in
good condition with adequate tread, and properly inflated.
■Inflation guidelines
Properly inflated tires provide the best combination of handling, tread life, and comfort.
Refer to the driver’s doorjamb label or spec ification’s page for the specified pressure.
Underinflated tires wear unevenly, adversely affect handling and fuel economy, and
are more likely to fail from overheating.
Overinflated tires make your vehicle ride harshly, are more prone to road hazards,
and wear unevenly.
Every day before you drive, look at each of the tires. If one looks lower than the
others, check the pressure with a tire gauge.
At least once a month or before long trips, use a gauge to measure the pressure in all
tires. Even tires in good condition can lose 1 to 2 psi (10 to 20 kPa, 0.1 to 0.2 kgf/cm
2)
per month.
■Inspection guidelines
Every time you check inflation, also examine the tires and valve stems.
Look for:
• Bumps or bulges on the side or in the tread. Replace the tire if you find any cuts,
splits, or cracks in the si de of the tire. Replace it if you see fabric or cord.
• Remove any foreign objects and inspect for air leaks.
• Uneven tread wear. Have a deal er check the wheel alignment.
• Excessive tread wear.
2 Wear Indicators P. 493
•Cracks or other damage around valve stem.
1Checking Tires
Measure the air pressure when tires are cold. This
means the vehicle has been parked for at least three
hours, or driven less than 1 mile (1.6 km). If
necessary, add or releas e air until the specified
pressure is reached.
If checked when hot, tire pressure can be as much as
4 – 6 psi (30 – 40 kPa, 0.3 – 0.4 kgf/cm
2) higher than
if checked when cold.
Have a dealer check the tires if you feel a consistent
vibration while driving. Ne w tires and any that have
been removed and reinst alled should be properly
balanced.
Measure the spare tire pressure once a month or
before long trips.
3WARNING
Using tires that are excessively worn or
improperly inflated can cause a crash in
which you can be seriously hurt or killed.
Follow all instruction s in this owner’s
manual regarding ti re inflation and
maintenance.
Vehicles with optional spare tire kit
16 ACURA RLX E-AWD-31TY36200.book 488 ページ ２０１５年３月１１日　水曜日　午後１時３０分

489
uuChecking and Maintaining Tires uTire and Loading Information Label
Continued
Maintenance
Tire and Loading Information Label
The label attached to the driver’s doorj amb provides necessary tire and loading
information.
Tire Labeling
The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described below.
Whenever tires are replaced, they should be replaced with tires of the same size.
1Tire and Loading Information Label
The tire and loading informat ion label attached to the
driver’s doorjamb contains:
aThe number of people your vehicle can carry.
bThe total weight your vehicle can carry. Do not
exceed this weight.
cThe original tire sizes for front, rear, and spare, if
equipped.
dThe proper cold tire pressure for front, rear, and
spare, if equipped.
Label
Example
Example Tire Size
Tire
Identification
Number (TIN)
Maximum
Tire Load
Maximum
Tire Pressure
Tire Size
■Tire Sizes
1 Tire Sizes
Following is an example of tire size with an
explanation of what each component means.
245/40R19 98W
245: Tire width in millimeters.
40: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
19: Rim diameter in inches.
98: Load index (a numerical code associated with the
maximum load the tire can carry).
W: Speed symbol (an alphabe tical code indicating the
maximum speed rating).
