Acura RLX Hybrid 2016 Owner's Manual

540
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
There are four fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
■Engine Compartment Fuse Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1IG1A ACG FR15 A
2IG1A MISS SOL110 A
3−−
4− −
5SMART(7.5 A)
6 IG1B ECU FR 7.5 A
7IG1B OP FR7.5 A
8 IGP2 15 A
9DBW15 A
10 IGP 15 A
11IG Coil15 A
12 ACM 20 A
13−−
14 Interior Lights 10 A
15Back Up Radio10 A
16 Back Up 10 A
17AFP10 A
18 Front Washer 15 A
19Stop7.5 A
20 Right Headlight High Beam 10 A
21Trunk10 A
22 Small 15 A
23Front Fog Lights7.5 A
24 Left Headlight High Beam 10 A
25IMA Motor15 A
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 IGP2 Sub 7.5 A
29Power Rear Sunshade*20 A
30 Headlight Washer*30 A
31Wiper30 A
Circuit ProtectedAmps
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 540 ページ ２０１５年３月１１日　水曜日　午後１時３０分

541
uuFuses uFuse Locations
Continued
Handling the Unexpected
Located near the 12-volt battery. Push the
tabs to open the box.■Circuit protected and fuse rating
Circuit ProtectedAmps
1Main Fuse200 A
2
−(40 A)
Rear Defroster 40 A DR F/B Main 1 60 AAS F/B Main 1 60 A R/B Main 3 50 A
AS F/B Main 2 60 A ABS/VSA RLY 30 A
Heater Motor 40 A
3
R/B Main 160 A
ESB40 A
IG Main60 A
DR F/B Main 260 A
SBW60 A
R/B Main 260 A
Horn & Hazard20 A
ABS/VSA Motor40 A
4EOP 30A
5Left Electric Parking Brake30 A
6 Right Electric Parking Brake 30 A
7Injector20 A
8 Hazard 15 A
9−−
10 − −
11Horn10 A
Located near the + terminal on the 12-volt
battery. Push the tabs to open the box.
■Circuit protected and fuse rating
1
2
Circuit ProtectedAmps
1Radiator Fan50 A
2EPS80 A
16 ACURA RLX E-AWD-31TY36200.book 541 ページ ２０１５年３月１１日　水曜日　午後１時３０分

542
uuFuses uFuse Locations
Handling the Unexpected
Located inside the left side of the front
bumper. Pull the inner fender back, then
push the tabs to open the box.
2 Front Side Marker Light Bulbs P. 481
■Circuit protected and fuse rating
Inner
Fender
Circuit ProtectedAmps
1HCA 120 A
2TCU30 A
3HCA 220 A
4STRG MOVE 120 A
5−−
6−−
There are two fuse boxes in the driver's side.
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■Driver’s Side Interior Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Side Door Lock10 A
2Passenger’s Side Door Lock10 A
3Driver’s Door Lock10 A
4Driver’s Side Door Unlock10 A
5Passenger’s Side Door
Unlock10 A
6Driver’s Door Unlock10 A
7Door Lock20 A
8−−
9Power System 110 A
10IG1 DR17.5 A
11Meter10 A
12Passenger’s Side Fuse Box20 A
13ACCESSORY7.5 A
14−−
15Driver’s Power Seat Sliding20 A
16Moonroof20 A
17Rear Driver’s Side Power Window20 A
18STRG MOVE 220 A
19Driver’s Power Window20 A
20Power System 215 A
21Fuel Pump20 A
22Power System 27.5 A
23Starter Cut7.5 A
24IG1 DR27.5 A
16 ACURA RLX E-AWD-31TY36200.book 542 ページ ２０１５年３月１１日　水曜日　午後１時３０分

543
uuFuses uFuse Locations
Continued
Handling the Unexpected
25Start DIAG7.5 A
26Air Conditioning7.5 A
27Daytime Running Lights7.5 A
28ACC Key Lock7.5 A
29Driver’s Lumbar Support7.5 A
30SMART10 A
31−−
32Driver’s Power Seat
Reclining20 A
33Left e-pretensioner(20 A)
34IG1 Box30 A
Circuit ProtectedAmpsLocated inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.
1.Pry on the lower edge of the panel using
a flat-tip screwdriver.
u Wrap the flat-tip screwdriver with a
cloth to prevent scratches.
2. Pull the outer panel towards you, then
remove it.
Outer Panel
Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.
■Circuit protected and fuse rating
3
12
Fuse Box
Circuit ProtectedAmps
1IG Main 130 A
2ST MG30 A
3IG Main 230 A
16 ACURA RLX E-AWD-31TY36200.book 543 ページ ２０１５年３月１１日　水曜日　午後１時３０分

544
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5−−
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters*(20 A)
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21−−
22e-pretensioner(7.5 A)
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner(20 A)
27Heated Steering Wheel*(10 A)
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 544 ページ ２０１５年３月１１日　水曜日　午後１時３０分

545
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 540 to 544.
There is a fuse puller in the engine compartment fuse
box located near the brake fluid reservoir.Blown Fuse
Combined Fuse
Blown
Fuse
Fuse Puller
16 ACURA RLX E-AWD-31TY36200.book 545 ページ ２０１５年３月１１日　水曜日　午後１時３０分

546
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will da mage the vehicle’s drive system.
1Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
16 ACURA RLX E-AWD-31TY36200.book 546 ページ ２０１５年３月１１日　水曜日　午後１時３０分

547
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Lever
16 ACURA RLX E-AWD-31TY36200.book 547 ページ ２０１５年３月１１日　水曜日　午後１時３０分

548
Handling the Unexpected

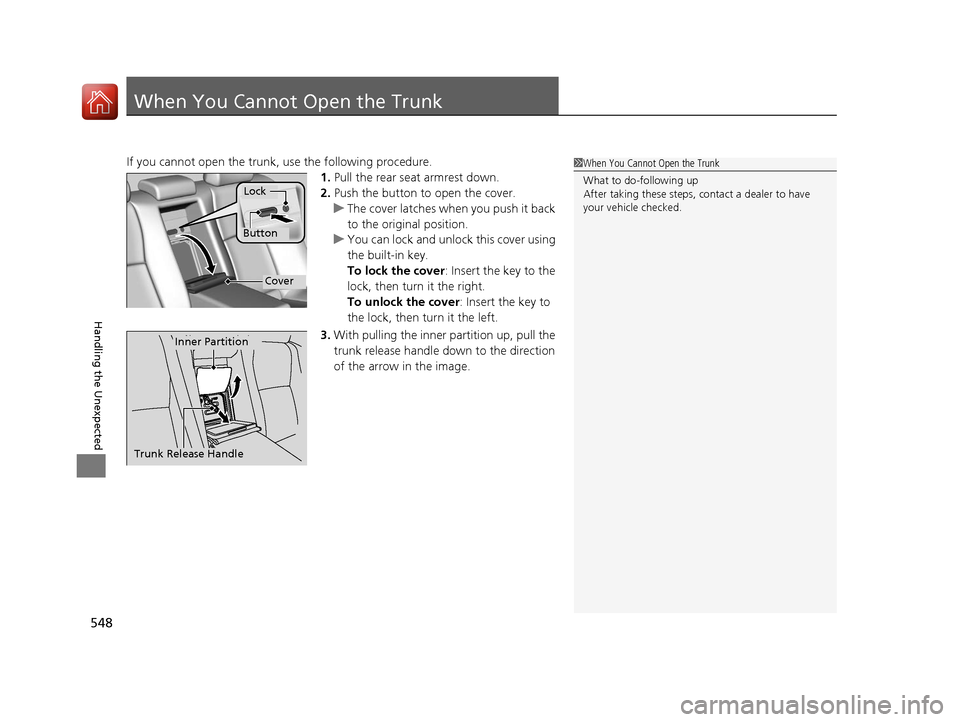

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Pull the rear seat armrest down.
2. Push the button to open the cover.
u The cover latches when you push it back
to the original position.
u You can lock and unlock this cover using
the built-in key.
To lock the cover : Insert the key to the
lock, then turn it the right.
To unlock the cover : Insert the key to
the lock, then turn it the left.
3. With pulling the inner partition up, pull the
trunk release handle down to the direction
of the arrow in the image.1When You Cannot Open the Trunk
What to do-following up
After taking these steps, contact a dealer to have
your vehicle checked.
Lock
Button
Cover
Trunk Release Handle
Inner Partition
16 ACURA RLX E-AWD-31TY36200.book 548 ページ ２０１５年３月１１日　水曜日　午後１時３０分

549
Handling the Unexpected

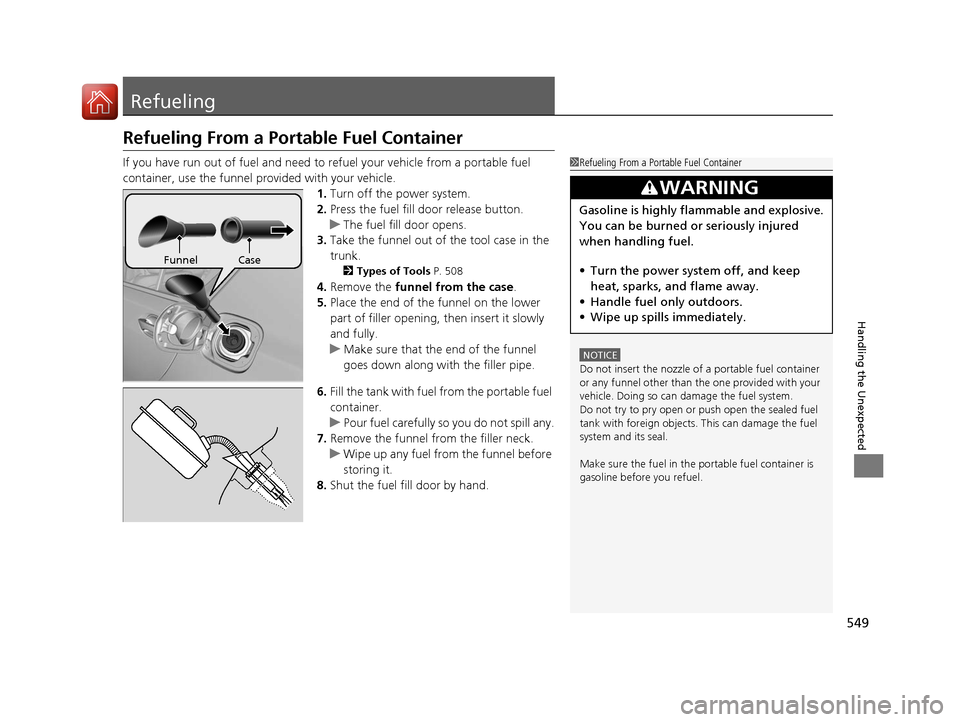

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 508
4.Remove the funnel from the case .
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power sy stem off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel Case
