display Acura RLX Hybrid 2017 Owner's Manual

479
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
If the washer fluid is low, a message appears on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1 Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
MIN
Reserve Tank
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
17 ACURA RLX E-AWD-31TY36300.book 479 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

495
uuChecking and Maintaining Tires uTire Rotation
Maintenance
Tire Rotation
Rotating tires according to the maintena nce messages on the multi-information
display helps to distribute wear more evenly and increase tire life.
■Tires without rotation marks
Rotate the tires as shown here.
■Tires with rotation marksRotate the tires as shown here.
1Tire Rotation
Tires with directional trea d patterns should only be
rotated front to back (not fr om one side to the other).
Directional tires should be mounted with the rotation
indication mark facing forward, as shown below.
FRONT
Direction MarkFront
Front
17 ACURA RLX E-AWD-31TY36300.book 495 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

497
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
Check the battery terminals for corrosion
monthly.
The battery condition is being monitored by
the sensor on the negative terminal. If there is
a problem with the sensor, the warning
message on multi-information display will let
you know. Have your vehicle checked by a
dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock resets.
2 Clock P. 132
•The navigation system is disabled.
2 Refer to the Navigation System Manual
Charging the 12-Volt Battery
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
112-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean terminals with a damp towel. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance,
wear protective clothing and a face shield,
or have a skilled technician do it.
17 ACURA RLX E-AWD-31TY36300.book 497 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

uuIf a Tire Goes Flat uChanging a Flat Tire
528
Handling the Unexpected
1. Place the flat tire face down in the spare tire
well.
2. Wrap the spacer cone and spare tire wing
bolt with cloth or paper, and store them in
the spare tire well.
3. Store the jack and tools in the tool case.
Place the tool case and the trunk floor lid on
the flat tire.
4. Close the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer Cone
Wing Bolt
■TPMS and the Spare Tire1TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
17 ACURA RLX E-AWD-31TY36300.book 528 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

529
Handling the Unexpected

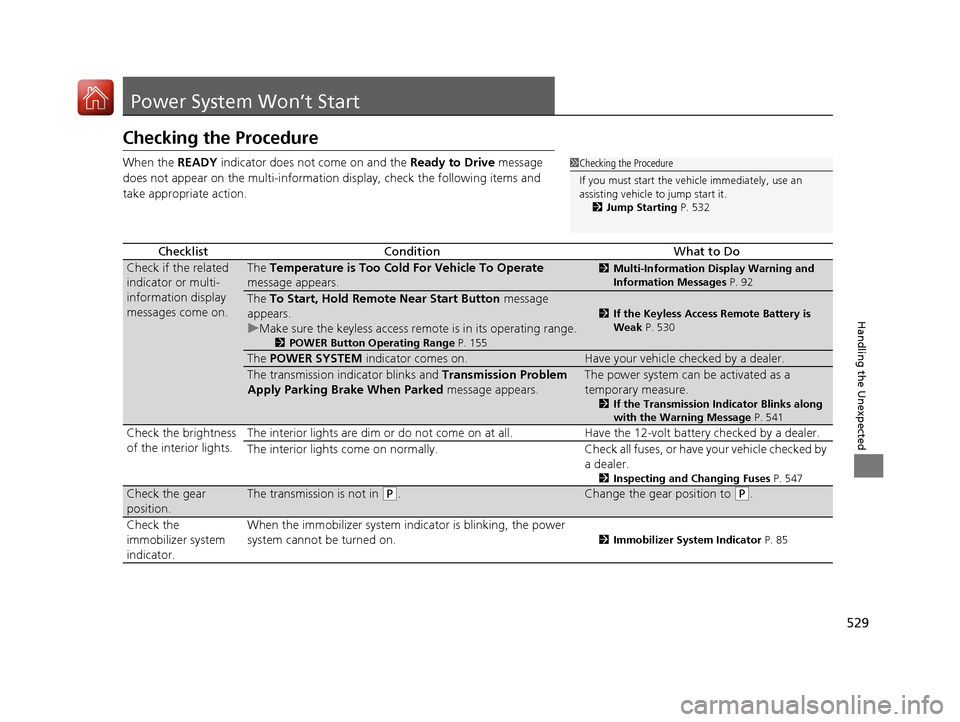

Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready to Drive message
does not appear on the multi-information display, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display Warning and
Information Messages P. 92
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2POWER Button Operating Range P. 155
2If the Keyless Access Remote Battery is
Weak P. 530
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission indicator blinks and Transmission Problem
Apply Parking Brake When Parked message appears.The power system can be activated as a
temporary measure.
2If the Transmission Indicator Blinks along
with the Warning Message P. 541
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 547
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 85
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 532
17 ACURA RLX E-AWD-31TY36300.book 529 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

565
uuClient Service Information u
Continued
Information
Music recognition technology and related
data are provided by Gracenote ®.
Gracenote is the indus try standard in music
recognition technology and related content
delivery.
For more information, visit
www.gracenote.com.
When music is recorded to the HDD from a
CD, information such as the recording artist
and track name are retrieved from the
Gracenote Database and displayed (when
available).
Gracenote may not contain information for
all albums.
Gracenote is an in ternet-based music
recognition service that allows artist, album,
and track information from CDs to display
on the HDD.
Gracenote users are allowed 4 free updates
a year. More information about Gracenote,
its features, and downloads are available at
■Gracenote Music Recognition
Service (CDDB)www.acura.com (in U.S.) or www.acura.ca
(in Canada).
CD and music-related data from Gracenote,
Inc., copyright © 2000 to present
Gracenote. Gracenote Software, copyright
© 2000 to present Gracenote.
One or more patents owned by Gracenote
apply to this produc t and service. See the
Gracenote website for a non-exhaustive list
of applicable Gracenote patents.
Gracenote, CDDB, MusicID, MediaVOCS,
the Gracenote logo and logotype, and the
“Powered by Gracenote” logo are either
registered trademarks or trademarks of
Gracenote in the United States and/or other
countries.
This application or device contains software
from Gracenote, Inc. of Emeryville,
California (“Grace note”). The software
from Gracenote (the “Gracenote
Software”) enables this application to
perform disc and/or f ile identification and
obtain music- related information, including
name, artist, track, and title information
(“Gracenote Data”) from online servers or
■Gracenote ® END USER LICENSE
AGREEMENT
embedded databases (collectively,
“Gracenote Servers”) and to perform other
functions. You may use Gracenote Data
only by means of th e intended End-User
functions or this application or device.
You agree that you will use Gracenote Data,
the Gracenote Software, and Gracenote
Servers for your own personal non-
commercial use only.
You agree not to assign, copy, transfer, or
transmit the Gracenote Software or any
Gracenote Data to any third party.
YOU AGREE NOT TO USE OR EXPLOIT
GRACENOTE DATA, THE GRACENOTE
SOFTWARE, OR GRACENOTE SERVERS,
EXCEPT AS EXPRESSLY PERMITTED HEREIN.
You agree that your no n-exclusive license to
use the Gracenote Data, the Gracenote
Software, and Gracenote Servers will
terminate if you violate these restrictions. If
your license terminates , you agree to cease
any and all use of the Gracenote Data, the
Gracenote Software, and Gracenote
Servers.
17 ACURA RLX E-AWD-31TY36300.book 565 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

569
Index
B
Battery12-Volt ................................................... 497
12-Volt Battery Charging System
Indicator ......................................... 79, 537
Charging (12-Volt Battery) ...................... 497
High Voltage........................................... 418
Jump Starting ......................................... 532
Maintenance (Checking the 12-Volt Battery) ................................................. 497
Maintenance (Replacing) ......................... 498
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 412
Bluetooth ® Audio ..................................... 272
Bluetooth ® HandsFreeLink ®.................... 310
Booster Seats (For Children) ...................... 69
Brake System ............................................ 419
Anti-lock Brake System (ABS) .................. 424
Automatic Brake Hold ............................. 422
Brake Assist System................................. 425
Fluid ....................................................... 479
Foot Brake .............................................. 421
Parking Brake.......................................... 419
Brake System (Amber) Indicator ................................................... 77
Brake System (Red)
Indicator ........................................... 74, 538
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166BSI (Blind Spot Information) System
....... 412
Bulb Replacement .................................... 480
Back-Up Lights ........................................ 483
Brake/Taillight s and Rear Side Marker
Lights .................................................... 483
Door Outer Handle Ambient Lights .......... 484
Fog Lights ................................................ 480
Front Side Marker Lights .......................... 481
Front Turn Signal/Parking Lights ............... 480
Headlights ............................................... 480
High-Mount Brake Light .......................... 484
Rear License Plate Lights .......................... 484
Rear Turn Signal Lights ............................ 482
Side Turn Signal/Em ergency Indicator
Lights .................................................... 481
Taillights .................................................. 483
Bulb Specifications ................................... 554
C
CAMERA Button....................................... 446
Carbon Monoxide Gas ................................ 70
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 359, 361
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 556
Changing Bulbs ......................................... 480
Charging System Indicator ....................... 537Child Safety
................................................. 58
Childproof Door Locks............................. 144
Child Seat .................................................... 58
Booster Seats ............................................ 69
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 65
Larger Children ......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 67
Childproof Door Locks ............................. 144
Cleaning the Exterior ............................... 503
Cleaning the Interior ................................ 501
Client Service Information ....................... 564
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 500
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 426
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 426
Compact Spare Tire (Optional) ........ 523, 555
17 ACURA RLX E-AWD-31TY36300.book 569 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

570
Index
Console Compartment............................. 187
Controls ..................................................... 131
Coolant (Engine) ....................................... 476
Adding to the Radiator ............................ 477
Adding to the Reserve Tank ..................... 476
High Temperature Indicator ....................... 83
Low Temperature Indicator ........................ 83
Overheating............................................. 535
Coolant (Inverter) ..................................... 478
Creeping (Dual Clutch Transmission) ....... 370
Cross Traffic Monitor ................................ 440
Cup Holders ............................................... 189
Customized Features ........................ 113, 283
D
Daytime Running Lights ........................... 162
Dead Battery (12-Volt) ............................. 532
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 557
Dimming Headlights ............................................... 159
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 472
Directional Signals (Turn Signal) .............. 158
Door Mirrors ............................................. 173
Doors ......................................................... 133
Auto Door Locking .................................. 145
Auto Door Unlocking ............................... 145
Door Open Message .................................. 35 Keys ........................................................ 133
Locking/Unlocking the Doors from the
Inside .............................................. 18, 142
Locking/Unlocking the Doors from the Outside ................................................. 136
Lockout Prevention System ...................... 140
DOT Tire Quality Grading ........................ 491
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 357
Braking ................................................... 419
Dual Clutch Transmission ........................ 370
Shifting Gear ........................................... 371
Turning on the Power.............................. 364
Driving Position Memory System ............ 169
Dual Clutch Transmission ......................... 370
Creeping ................................................. 370
Fluid ........................................................ 478
Kickdown ................................................ 370
Operating the Shift Button ................ 23, 373
Shifting ................................................... 371
Dust and Pollen Filter ............................... 500
E
Elapsed Time............................................. 111
Electric Parking Brake Indicator.................................................... 75
Electric Parking Brake System Indicator............................................ 75, 539
Electric Power Steering (EPS) System
Indicator............................................ 82, 539 Electronic Stability Control (ESC)
............ 408
Emergency ................................................ 548
Emissions Testing (Readiness Codes) ...... 559
Energy Efficiency ........................................ 12
Engine ....................................................... 556
Coolant .................................................. 476
Jump Starting ......................................... 532
Oil .......................................................... 471
Remote Engine Start ............................... 366
Engine Compartment Cover .................... 470
Engine Coolant ........................................ 476
Adding to the Radiator ........................... 477
Adding to the Reserve Tank .................... 476
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83
Overheating ............................................ 535
Engine Oil ................................................. 471
Adding ................................................... 473
Checking ................................................ 472
Displaying Oil Life ................................... 464
Low Oil Pressure Indicator ................. 74, 537
Recommended Engine Oil ....................... 471
e-pretensioners .......................................... 38
EPS (Electric Power Steering) System ........ 82
Exhaust Gas Hazard (Carbon Monoxide) .. 70
Expanded Rear Door Sunshades ............. 199
Expanded View Driver’s Mirror ............... 174
Exterior Care (Cleaning) .......................... 503
Exterior Mirrors ........................................ 173
17 ACURA RLX E-AWD-31TY36300.book 570 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

571
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 500
Oil .......................................................... 474
Flat Tire ............................................. 511, 523
Floor Mats ................................................ 502
Fluids
Brake ...................................................... 479
Dual Clutch Transmission ........................ 478
Engine Coolant ....................................... 476
Inverter Coolant ...................................... 478
Windshield Washer ................................. 479
Foot Brake ................................................ 421
Front Airbags (SRS) .................................... 46
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................ 175, 178, 180
Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 381
Fuel ..................................................... 25, 455
Economy................................................. 457
Gauge .................................................... 106
Instant Fuel Economy .............................. 111
Low Fuel Indicator..................................... 81
Range ..................................................... 111
Recommendation............................ 455, 554
Refueling ................................................ 455
Fuel Economy ........................................... 457
Fuel Fill Door ...................................... 25, 456 Fuses
.......................................................... 542
Inspecting and Changing ......................... 547
Locations ................................. 542, 544, 546
G
Gasoline (Fuel)
Economy ................................................. 457
Gauge ..................................................... 106
Information ............................................. 455
Instant Fuel Economy ............................... 111
Low Fuel Indicator ..................................... 81
Refueling ................................................. 455
Gauges ...................................................... 106
Gear Position Indicator ...................... 80, 373
Gear Shift Positions
Dual Clutch Transmission ......................... 371
Glass (care) ........................................ 501, 504
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 509
HandsFreeLink ® (HFL) ............................... 310
Auto Answer ........................................... 325
Automatic Import of Cellular Phonebook
and Call History ..................................... 327
Automatic Transferring ............................ 325
Displaying Messages ................................ 344
Editing User Name ................................... 324
HFL Buttons ............................................. 310 HFL Menus .............................................. 312
HFL Status Display ................................... 311
Limitations for Manual Operation ............ 311
Making a Call .......................................... 335
Options During a Call .............................. 341
Phone Setup............................................ 316
Phonebook Phonetic Modification ........... 331
Receiving a Call ....................................... 340
Receiving a Text/E-m
ail Message.............. 342
Ring Tone................................................ 326
Roadside Assistance ................................ 348
Selecting a Mail Account ......................... 343
Speed Dial ............................................... 328
To Create a Security PIN .......................... 323
To Set Up a Text/E-mail Message Option................................................... 321
Use Contact Photo .................................. 326
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 159
Aiming .................................................... 480
Automatic Operation............................... 160
Dimming ......................................... 159, 162
Operating................................................ 159
Head-Up Display ....................................... 123
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
HFL (HandsFreeLink ®)............................... 310
17 ACURA RLX E-AWD-31TY36300.book 571 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

573
Index
Lights................................................ 159, 480
Automatic............................................... 160
Bulb Replacement ................................... 480
Daytime Running Lights .......................... 162
Fog Lights ............................................... 162
High Beam Indicator ................................. 85
Interior.................................................... 182
Light Switches......................................... 159
Lights On Indicator.................................... 85
Turn Signals ............................................ 158
Load Limits ............................................... 361
Locking/Unlocking ................................... 133
Auto Door Locking/Unlocking ................. 145
Childproof Door Locks ............................ 144
From Inside ............................................. 142
From Outside .......................................... 136
Keys........................................................ 133
Using a Key............................................. 140
Lockout Prevention System ..................... 140
Low Battery Charge (12-Volt) ................. 537
Low Fuel Indicator ..................................... 81
Low Keyless Access Remote Signal
Strength .................................................. 135
Low Oil Pressure Indicator ................. 74, 537
Lower Anchors ........................................... 63
Luggage (Maximum Load Limit) ............. 361
Lumbar Support ....................................... 176M
Maintenance............................................. 459
12-Volt Battery ........................................ 497
Brake Fluid .............................................. 479
Cleaning .................................................. 501
Climate Control System ........................... 500
Coolant ........................................... 476, 478
Maintenance Minder
TM............................ 463
Oil ........................................................... 472
Precautions .............................................. 460
Radiator .................................................. 477
Remote Transmitter ......................... 498, 499
Replacing Light Bulbs ............................... 480
Safety ...................................................... 461
Service Items ........................................... 466
Tires ........................................................ 488
Transmission Fluid ................................... 478
Under the Hood ...................................... 468
Malfunction Indicator Lamp .............. 79, 538
Map Lights ................................................ 183
Maximum Load Limit ............................... 361
Meters, Gauges ......................................... 106
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 506
Moonroof .................................................. 154
MP3 ................................................... 245, 269
Multi-Information Display ....................... 108Multi-View Rear Camera
.......................... 444
N
Numbers (Identification).......................... 556
O
Odometer................................................. 110
Oil (Engine) ....................................... 471, 555
Adding .................................................... 473
Checking................................................. 472
Displaying Oil Life .................................... 464
Low Oil Pressure Indicator ................. 74, 537
Recommended Engine Oil ............... 471, 555
Viscosity .......................................... 471, 555
On Demand Multi-Use Display
TM............. 217
Opening Trunk ...................................................... 550
Opening/Closing
Hood....................................................... 469
Moonroof ............................................... 154
Power Windows ...................................... 152
Trunk ...................................................... 146
Operating the Switches Around the Steering Wheel ....................................... 155
Outside Temperature Display .................. 110
Overheating .............................................. 535
17 ACURA RLX E-AWD-31TY36300.book 573 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分
