Acura RLX Hybrid 2017 Owner's Manual

280
uuGeneral Information on the Audio System uRecommended CDs
Features
Recommended CDs
• Use only high-quality CD-R or CD-RW discs labeled for audio use.
• Use only CD-R or CD-RW discs on which the recordings are closed.
• Play only standard round-shaped CDs.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA or AAC formats may be unsupported.1Recommended CDs
A Dual-disc cannot play on th is audio unit. If recorded
under certain conditions, a CD-R or CD-RW may not
play either.
For DTS patents, see http://patents.dts.com .
Manufactured under licens e from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks, and DTS Digital
Surround and DTS Neural Surround are trademarks of
DTS, Inc. © DTS, Inc. All Rights Reserved.
■CDs with MP3, WMA or AAC files
The CD packages or jackets should have one of these marks.
Also includes:
17 ACURA RLX E-AWD-31TY36300.book 280 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

281
uuGeneral Information on the Audio System uRecommended CDs
Features
■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean cloth from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign obje cts into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer rings or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
17 ACURA RLX E-AWD-31TY36300.book 281 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

282
uuGeneral Information on the Audio System uCompatible iPod, iPhone, and USB Flash Drives
Features
Compatible iPod, iPhone, and USB Flash Drives
• Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4s /iPhone 5/iPhone 5c/iPhone 5s/iPhone 6/
iPhone 6 Plus/iPhone 6s/iPhone 6s Plus
■USB Flash Drives
1 iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
17 ACURA RLX E-AWD-31TY36300.book 282 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

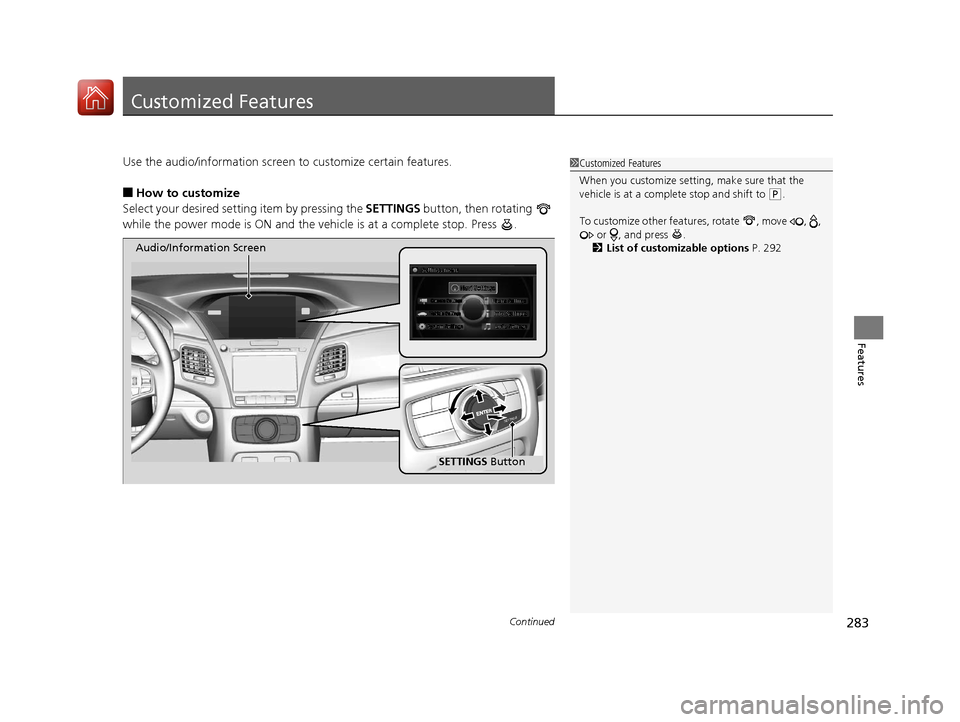

283Continued
Features
Customized Features
Use the audio/information screen to customize certain features.
■How to customize
Select your desired setting item by pressing the SETTINGS button, then rotating
while the power mode is ON and the vehicle is at a complete stop. Press .
1 Customized Features
When you customize setting, make sure that the
vehicle is at a complete stop and shift to
(P.
To customize other featur es, rotate , move , ,
or , and press .
2 List of customizable options P. 292
SETTINGS Button
Audio/Information Screen
17 ACURA RLX E-AWD-31TY36300.book 283 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

284
uuCustomized Features u
Features
■Customization flow
Song By Voice
Song By Voice Phonetic Modification
Phonebook Phonetic Modification
Press the SETTINGS button.



Guidance Volume
Voice Prompt

Message Auto Reading
Guidance Volume
Interface Dial Feedback
Verbal Reminder
Brightness
Contrast
Black Level



Bluetooth Status
Bluetooth Device List
Edit Pairing Code

Default
Sound/Beep
Display
System
Settings
Bluetooth
Voice Reco
Sync Display Brightness
Sound Volume Opening
17 ACURA RLX E-AWD-31TY36300.book 284 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

285
uuCustomized Features u
Continued
Features
System Device Information
Factory Data Reset

Background Color
Header Clock Display
Clock Reset
Auto Time Zone
Auto Daylight
Clock
Clock Adjustment
Clock Format
Clock
Units
Language
Voice Command Tips
Others

Wallpaper
Clock/Wallpaper
Type
17 ACURA RLX E-AWD-31TY36300.book 285 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

286
uuCustomized Features u
Features
“Trip A” Reset Timing
“Trip B” Reset Timing
Language Selection
Adjust Outside Temp. Display




Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep

Turn By Turn Display
Default
Memory Position Link

Door Unlock Mode
Keyless Access Light Flash

Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Vehicle
Settings
Meter/
Head-up
Display Setup
Driver Assist
System Setup
Keyless Access
Setup
Lighting Setup
Keyless Access Beep
Lane Keeping Assist Suspend Beep
Blind Spot Info
Steering Wheel Movement At Entry/Exit
Auto Seat Belt Tension

Driving
Position
Setup
Display Speed Unit
Reactive Force Pedal
Head-up Warning
Road Departure Mitigation Setting
Remote Start System On/Off*

* Not available on all models
17 ACURA RLX E-AWD-31TY36300.book 286 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

287
uuCustomized Features u
Continued
Features
Fixed Guideline
Dynamic Guideline


Default
Rear
Camera
Cross Traffic Monitor
*1: Models with multi-view rear camera
Maintenance ResetMaintenance Info.
Wiper ActionWiper Setup
Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Auto Door Lock
Auto Door Unlock
Door
Setup
Auto Folding Door Mirror
Camera
Settings*1
17 ACURA RLX E-AWD-31TY36300.book 287 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

288
uuCustomized Features u
Features
Fixed Guideline
Dynamic Guideline


Default
Guidelines
Cross Traffic Monitor

Automatically show
camera after reverse
Default camera mode in forward
PreferencesDefault camera mode in reverse
Show camera when decelerating
Clear parking guideline automatically
Display
*2: Models with surround vi ew camera system (MVCS)
Camera
Settings*2MVCS
17 ACURA RLX E-AWD-31TY36300.book 288 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

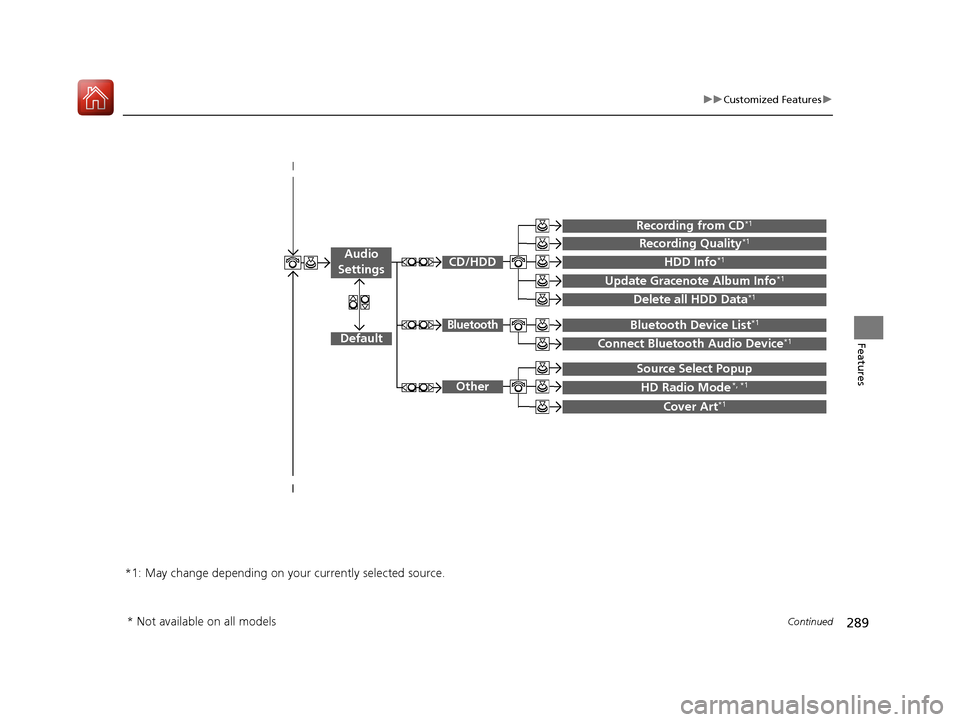

289
uuCustomized Features u
Continued
Features


Default
Source Select Popup
HD Radio Mode*, *1
Cover Art*1
Connect Bluetooth Audio Device*1
Bluetooth Device List*1
Recording from CD*1
Recording Quality*1
HDD Info*1
Update Gracenote Album Info*1
Delete all HDD Data*1


*1: May change depending on your currently selected source.
CD/HDD
Bluetooth
Other
Audio
Settings
* Not available on all models
