Safe Driving

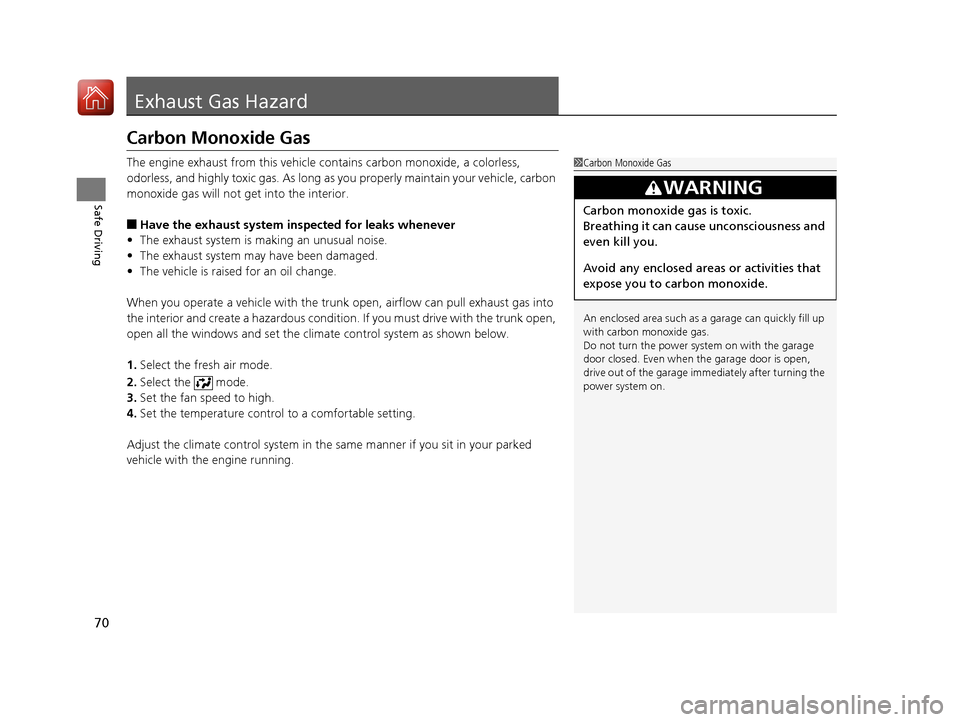

Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not turn the power system on with the garage
door closed. Even when th e garage door is open,
drive out of the garage i mmediately after turning the
power system on.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
17 ACURA RLX E-AWD-31TY36300.book 70 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

71
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Radiator Cap Dashboard
Sun Visors
U.S. models Canadian models
U.S. models only Radiator Cap
High Voltage System Components
U.S. models Canadian models
17 ACURA RLX E-AWD-31TY36300.book 71 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

72
17 ACURA RLX E-AWD-31TY36300.book 72 ページ ２０１６年６月１７日　金曜日　午前８時２９分

73
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 74
Multi-Information Display Warning and Information Messages ...................... 92
Gauges and Displays ................................ 106
Gauges ............................................ 106
Multi-Information Display ................ 108
Head-Up Display .............................. 123
17 ACURA RLX E-AWD-31TY36300.book 73 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

74
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the brake fluid level
is low.
●Comes on if there is a problem with
the brake system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 538
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally
do.
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 538
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 537
U.S.
Canada
(Red)
17 ACURA RLX E-AWD-31TY36300.book 74 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

75
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Parking
Brake Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off if the parking brake has
been released.
●Comes on when the parking brake is
applied, and goes off when it is
released.
●Comes on for about 15 seconds then
goes off when you pull the electric
parking brake switch with the power
mode in OFF.
●Comes on for about 15 seconds then
goes off when you set the power
mode to OFF with the parking brake
applied.
●Blinks and the elec tric parking brake
system indicator comes on at the same
time - There is a problem with the electric
parking brake system. The parking brake
may not be set.
●Comes on when you press the
electric parking brake switch without
depressing the brake pedal.●Depress the brake pedal to release the
parking brake.
2 Parking Brake P. 419
Electric Parking
Brake System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with
the electric parking brake system.
●Comes on while driving - Avoid using the
parking brake and have your vehicle
checked by a dealer immediately.
2 If the Electric Parking Brake System
Indicator Comes On P. 539
U.S.
Canada
17 ACURA RLX E-AWD-31TY36300.book 75 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

76
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

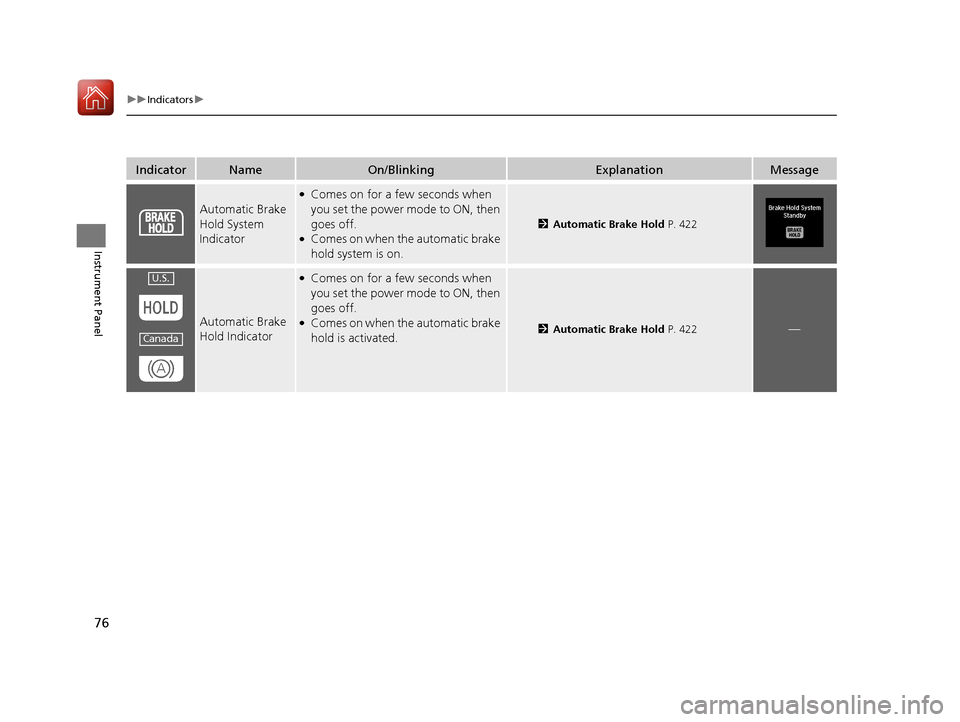

Automatic Brake
Hold System
Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold system is on.
2Automatic Brake Hold P. 422
Automatic Brake
Hold Indicator
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the automatic brake
hold is activated.2Automatic Brake Hold P. 422—
U.S.
Canada
17 ACURA RLX E-AWD-31TY36300.book 76 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

77
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

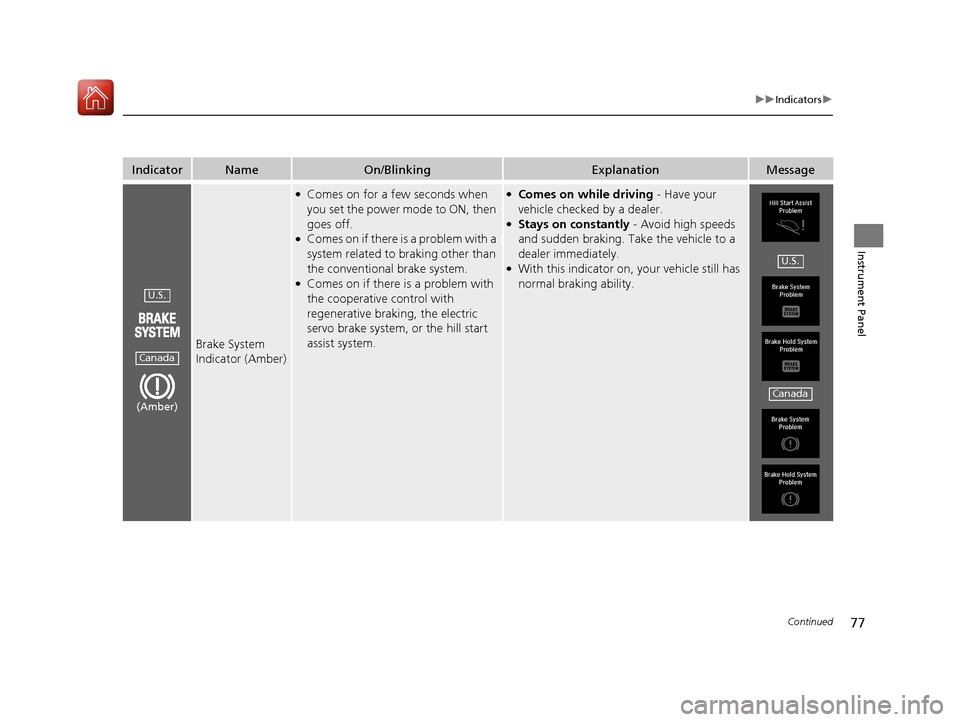

Brake System
Indicator (Amber)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on if there is a problem with a
system related to braking other than
the conventional brake system.
●Comes on if there is a problem with
the cooperative control with
regenerative braking, the electric
servo brake system, or the hill start
assist system.
●Comes on while driving - Have your
vehicle checked by a dealer.
●Stays on constantly - Avoid high speeds
and sudden braking. Take the vehicle to a
dealer immediately.
●With this indicator on, your vehicle still has
normal braking ability.
U.S.
Canada
(Amber)
U.S.
Canada
17 ACURA RLX E-AWD-31TY36300.book 77 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage

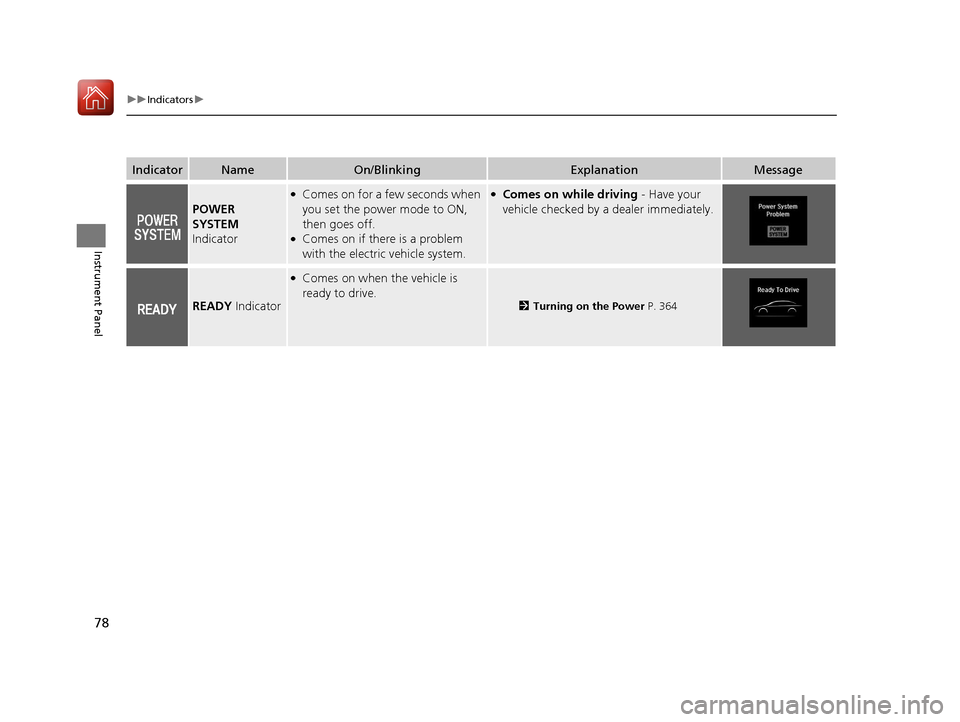

POWER
SYSTEM
Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Comes on if there is a problem
with the electric vehicle system.
●Comes on while driving - Have your
vehicle checked by a dealer immediately.
READY Indicator
●Comes on when the vehicle is
ready to drive.
2Turning on the Power P. 364
17 ACURA RLX E-AWD-31TY36300.book 78 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Malfunction
Indicator Lamp
●Comes on when you set the power
mode to ON, and goes off either
when the power system is on or after
several seconds if the power system
did not turn on. If “readiness codes”
have not been set, it blinks five times
before it goes off.
●Comes on if there is a problem with
the emissions control system.
●Blinks when a misfire in the engine’s
cylinders is detected.
●Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2Testing of Readiness Codes P. 559●Comes on while driving - Have your
vehicle checked by a dealer.
●Blinks while driving - Stop in a safe place
where there are no flammable objects. Stop
the power system for 10 minutes or more,
and wait for it to cool down. Then, take the
vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 538
12-Volt Battery
Charging System
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system is on.
●Comes on when the 12-volt battery
is not charging.
●Comes on while driving - Turn off the
climate control system and rear defogger in
order to reduce elec tricity consumption.
2If the 12-Volt Battery Charging System
Indicator Comes On P. 537
17 ACURA RLX E-AWD-31TY36300.book 79 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分
