clock setting Acura RLX Hybrid 2017 Owner's Manual

132
Controls
Clock
Adjusting the Clock
The clock is automatically updated through the navigation system, so the time does
not need to be adjusted.
You can also adjust the time manually in the audio/information screen, with the
power mode in ON.
■Using the Settings menu on th e audio/information screen
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Clock tab.
4. Rotate to select Clock Adjustment,
then press .
5. Rotate to change hour, then press .
6. Rotate to change minute, then press
.
■Adjusting the Time
1Adjusting the Clock
These indications are used to show how to operate
the interface dial.
Rotate to select.
Press to enter.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 283
Hour
Clock/Wallpaper Type
System settings
Clock Display
17 ACURA RLX E-AWD-31TY36300.book 132 ページ ２０１６年６月１７日　金曜日　午前８時
２９分

uuAudio System Basic Operation uAudio/Information Screen
228
Features
You can change, store, and delete the wa llpaper on the audio/information screen.
■Import wallpaper
You can import up to three images, one at a time, for wallpaper from a USB flash
drive.
1.Connect the USB flash drive to the USB port.
2 USB Port P. 213
2.Press the SETTINGS button.
3. Rotate to select System Settings, then
press .
4. Move or to select the Clock tab.
5. Rotate to select Clock/Wallpaper
Type, then press .
6. Move to select Wallpaper.
u The screen will change to the wallpaper
list.
7. Move to select Add New Wallpaper , then
press .
8. Rotate to select a desired picture.
u The preview is displayed on the left side
on the screen.
9. Press , then move to select Start
Import .
u The confirmation message will appear.
Then the display will return to the
wallpaper list.
■Wallpaper Setup1Wallpaper Setup
•When importing wallpaper files, the image must be
in the USB flash drive’s root directory.
Images in a folder cannot be imported.
•The file name must be fewer than 64 characters.•The file format of the im age that can be imported
is BMP (bmp) or JPEG (jpg).
•The individual file size limit is 6 MB.•The maximum image size is 1,680 x 936 pixels. If
the image size is less than 420 × 234 pixels, the
image is displayed in the middle of the screen with
the extra area appearing in black.
•Up to 255 files can be selected.
•If the USB flash drive doe s not have any pictures,
the No files detected message appears.
17 ACURA RLX E-AWD-31TY36300.book 228 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

229
uuAudio System Basic Operation uAudio/Information Screen
Features
■Select wallpaper
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
3. Move or to select the Clock tab.
4. Rotate to select Clock/Wallpaper Type , then press .
5. Move to select Wallpaper.
u The screen changes to the wallpaper list.
6. Rotate to select a desired wallpaper.
u The preview is displayed on the left side on the screen.
7. Press .
u The pop-up menu appears on the screen.
8. Rotate to select Set, then press .
u The display will return to the wallpaper list.
■Delete wallpaper
1. Press the SETTINGS button.
2. Rotate to select System Settings, then press .
3. Move or to select the Clock tab.
4. Rotate to select Clock/Wallpaper Type , then press .
5. Move to select Wallpaper.
u The screen changes to the wallpaper list.
6. Rotate to select a wallpaper that you want to delete, then press .
u The preview is displayed on the left side on the screen.
7. Press .
u The pop-up menu appears on the screen.
8. Rotate to select Delete, then press .
u The confirmation me ssage will appear.
9. Rotate to select Yes, then press to delete completely.
u The display will return to the wallpaper list.
1Wallpaper Setup
From the pop-up menu, rotate to select Preview
and press to see a preview at full-size screen.
To go back to the previous screen, press to select
OK , or press the BACK button.
When the file size is large, it takes a while to be
previewed.

17 ACURA RLX E-AWD-31TY36300.book 229 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

291
uuCustomized Features u
Continued
Features
Auto Daylight
Clock Reset
Info Screen Preference

Clock Format
Auto Time Zone

Clock/Wallpaper Type
Clock Adjustment
Clock
Default

Others
Info
Settings
Navi
SettingsSee the Navigation System Manual.
AcuraLink Subscription Status
AcuraLink Msg Notice
Delete AcuraLink Message
AcuraLink

17 ACURA RLX E-AWD-31TY36300.book 291 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

293
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
Settings
Voice
Reco
Guidance VolumeChanges the volume of the voice prompt.—
Voice PromptTurns the voice prompt on and off.On*1/
Off
Song By VoiceTurns the Song By VoiceTM on and off.2 Song By VoiceTM (SBV) P. 262On*1/Off
Song By Voice Phonetic
ModificationModifies a voice command for music stored in
the HDD or an iPod.
2 Phonetic Modification P. 264—
Phonebook Phonetic
ModificationModifies a voice command for the phonebook.
2Phonebook Phonetic Modification P. 331—
OpeningSound VolumeChanges the volume of the system’s startup sound.—
Clock
Clock/
Wallpaper
Type
ClockChanges the clock display type.Analog/Digital*1/
Small Digital/ Off
Wallpaper
●Changes the wallpaper type.●Imports an image file for a new wallpaper.●Deletes an image file for a wallpaper.2Wallpaper Setup P. 228
Blank/Galaxy*1/
Metallic
Clock AdjustmentAdjusts Clock.
2 Clock P. 132—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Auto Time ZoneSets the navigation system to automatically adjust
the clock when driving through different time zones.On*1/Off
17 ACURA RLX E-AWD-31TY36300.book 293 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

294
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
System
Settings
ClockAuto Daylight
Sets the navigation system to automatically adjust
the clock (“spring ahead” or “fall back” by one
hour) when a daylight saving time change occurs.
On*1/Off
Clock ResetResets the settings of all items in the Clock group.—
Others
UnitsChanges the distance unit on the navigation map
screen.mile*1/km (U.S.)
mile /km*1 (Canada)
LanguageChanges the display language.English*1/French /
Spanish
Voice Command Tips
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.
On*1/ Off
Background Color
Changes the background color of the audio/
information screen and the On Demand Multi-
Use Display
TM.
Blue*1/Amber /Red/
Green
Header Clock DisplaySelects whether the clock display comes on.On /Off*1
System Device InformationDisplays the system /device information.—
Factory Data ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 306—
DefaultCancels /Resets all customized items in the
System Settings group as default.Default/OK
17 ACURA RLX E-AWD-31TY36300.book 294 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

305
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Info
Settings Acura
Link
AcuraLink Msg Notice
Selects whether newly received AcuraLink
messages to be displayed. On
*1/
Off
Delete AcuraLink Message Deletes AcuraLink messages. —
AcuraLink Subscription StatusDisplays your current AcuraLink subscription status. —
Clock Clock/
Wallpaper
Type
Clock
See System Settings on P. 292 to P. 294.
Wallpaper
Clock Adjustment
Clock Format
Auto Time Zone
Auto Daylight
Clock Reset
Other Info Screen Preference Selects the top menu when the
INFO button is
pressed.
●Info Top- A brief menu pops up.●Info Menu - A full menu pops up.●Off- A menu does not pop up. Info Top/
Info
Menu
*1/ Off
Default Cancels/Resets all customized items in the
Info
Settings group as default. Default/
OK
17 ACURA RLX E-AWD-31TY36300.book 305 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

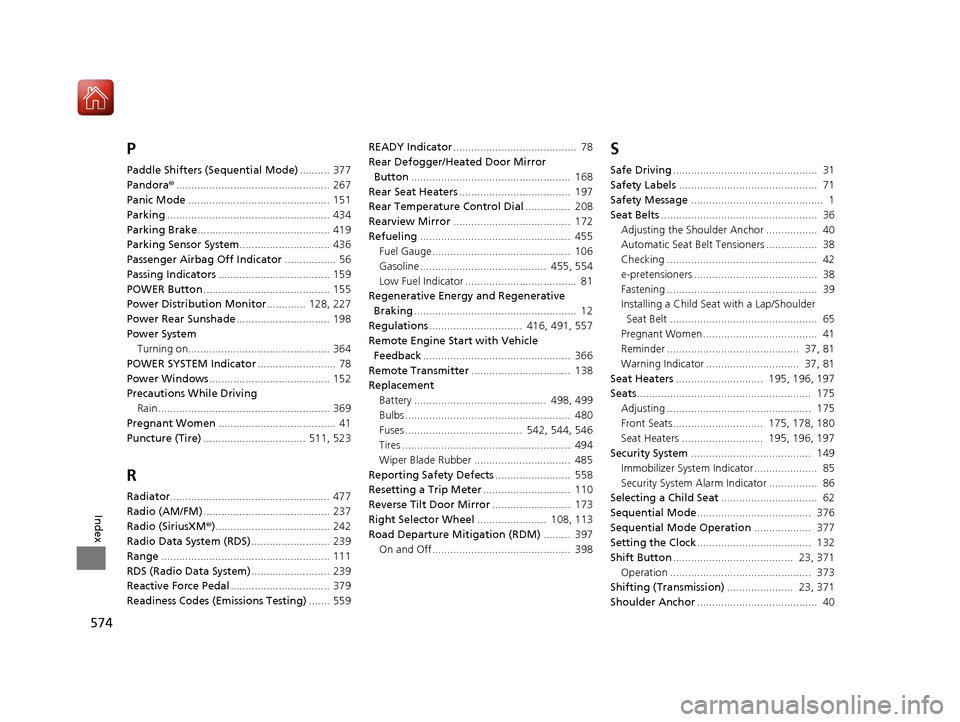

574
Index
P
Paddle Shifters (Sequential Mode).......... 377
Pandora® ................................................... 267
Panic Mode ............................................... 151
Parking ...................................................... 434
Parking Brake ............................................ 419
Parking Sensor System .............................. 436
Passenger Airbag Off Indicator ................. 56
Passing Indicators ..................................... 159
POWER Button .......................................... 155
Power Distribution Monitor ............. 128, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 364
POWER SYSTEM Indicator .......................... 78
Power Windows ........................................ 152
Precautions While Driving
Rain ......................................................... 369
Pregnant Women ....................................... 41
Puncture (Tire) .................................. 511, 523
R
Radiator..................................................... 477
Radio (AM/FM) .......................................... 237
Radio (SiriusXM ®)...................................... 242
Radio Data System (RDS) .......................... 239
Range ........................................................ 111
RDS (Radio Data System) .......................... 239
Reactive Force Pedal ................................. 379
Readiness Codes (Emissions Testing) ....... 559READY Indicator
......................................... 78
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 455
Fuel Gauge.............................................. 106
Gasoline .......................................... 455, 554
Low Fuel Indicator ..................................... 81
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 416, 491, 557
Remote Engine Start with Vehicle
Feedback ................................................. 366
Remote Transmitter ................................. 138
Replacement
Battery ............................................ 498, 499
Bulbs ....................................................... 480
Fuses ....................................... 542, 544, 546
Tires ........................................................ 494
Wiper Blade Rubber ................................ 485
Reporting Safety Defects ......................... 558
Resetting a Trip Meter ............................. 110
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ....................... 108, 113
Road Departure Mitigation (RDM) ......... 397
On and Off.............................................. 398
S
Safe Driving ................................................ 31
Safety Labels .............................................. 71
Safety Message ............................................ 1
Seat Belts .................................................... 36
Adjusting the Shoulder Anchor ................. 40
Automatic Seat Belt Tensioners ................. 38
Checking .................................................. 42
e-pretensioners ......................................... 38
Fastening .................................................. 39
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 65
Pregnant Women...................................... 41
Reminder ............................................ 37, 81
Warning Indicator ............................... 37, 81
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................. 175, 178, 180
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 149
Immobilizer System Indicator..................... 85
Security System Alarm Indicator ................ 86
Selecting a Child Seat ................................ 62
Sequential Mode ...................................... 376
Sequential Mode Operation ................... 377
Setting the Clock ...................................... 132
Shift Button ........................................ 23, 371
Operation ............................................... 373
Shifting (Transmission) ...................... 23, 371
Shoulder Anchor ........................................ 40
17 ACURA RLX E-AWD-31TY36300.book 574 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分
