jump start Acura RLX Hybrid 2017 Owner's Manual

Contents
Child Safety P. 58Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Trunk P. 146 Security System P. 149 Opening and Closing the Windows P. 152
Operating the Switches Around the Steering Wheel P. 155 Adjusting the Mirrors P. 172
Interior Lights/Interior Convenience It ems P. 182 Climate Control System P. 200
Audio Error Messages P. 274General Information on the Audio System P. 279
Bluetooth® HandsFreeLink ® P. 310 AcuraLink ® P. 349
When Driving P. 364 Braking P. 419Parking Your Vehicle P. 434
Refueling P. 455 Fuel Economy and CO
2 Emissions P. 457
Maintenance Under the Hood P. 468 Replacing Light Bulbs P. 480
Checking and Maintaining Tires P. 488 12-Volt Battery P. 497 Remote Transmitter Care P. 498
Cleaning P. 501 Accessories and Modifications P. 506
Power System Won’t Start P. 529 Jump Starting P. 532
Fuses P. 542 Emergency Towing P. 548 When You Cannot Unlock the Fuel Fill Door P. 549
Refueling P. 551
Devices that Emit Radio Waves P. 557 Reporting Safety Defects P. 558
Authorized Manuals P. 563 Client Service Information P. 564
Quick Reference GuideP. 4
Safe DrivingP. 31
Instrument PanelP. 73
ControlsP. 131
FeaturesP. 211
DrivingP. 357
MaintenanceP. 459
Handling the UnexpectedP. 509
InformationP. 553
IndexP. 568
17 ACURA RLX E-AWD-31TY36300.book 3 ページ ２０１６年６月１７日　金曜日　午前８時２９分

Quick Reference Guide
27
Handling the Unexpected (P 509)
Flat Tire (P 511)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P 537)
● Identify the indica tor and consult the
owner’s manual.
Vehicles with optional spare tire kit
Power System Won’t Start
(P 529)
● If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse

(P 542)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 535)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system and the engine
cool down.
Emergency Towing
(P 548)
●Call a professional towing service if you
need to tow your vehicle.
17 ACURA RLX E-AWD-31TY36300.book 27 ページ ２０１６年６月１７日　金曜日　午前８時２ ９分

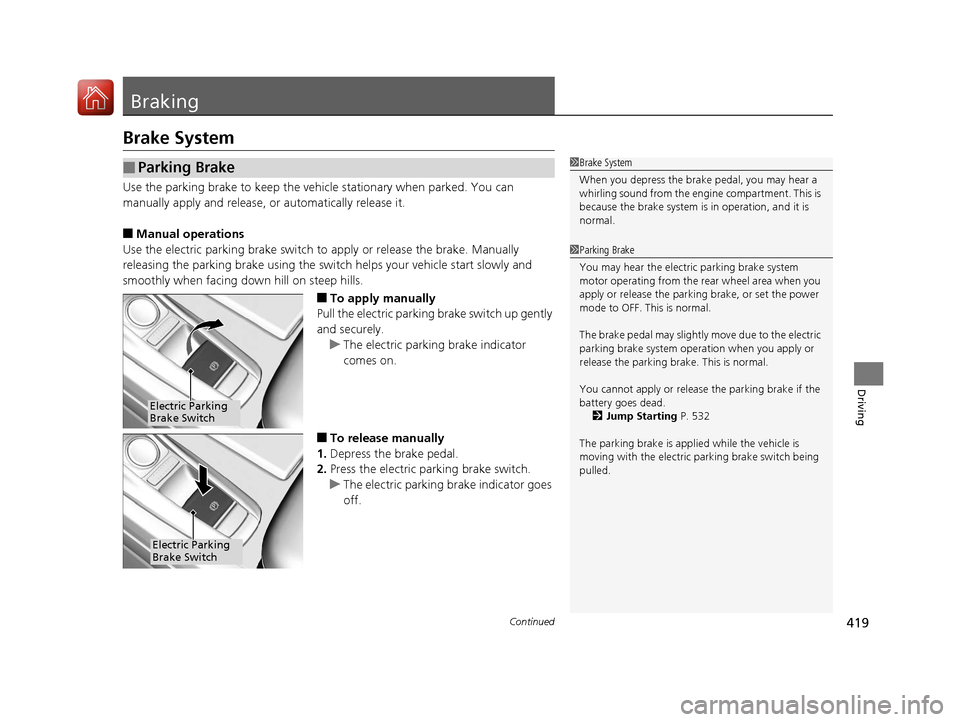

419Continued
Driving
Braking
Brake System
Use the parking brake to keep the vehicle stationary when parked. You can
manually apply and release, or automatically release it.
■Manual operations
Use the electric parking brake switch to apply or release the brake. Manually
releasing the parking brake using the swit ch helps your vehicle start slowly and
smoothly when facing down hill on steep hills.
■To apply manually
Pull the electric parking brake switch up gently
and securely.
u The electric parking brake indicator
comes on.
■To release manually
1. Depress the brake pedal.
2. Press the electric parking brake switch.
u The electric parking brake indicator goes
off.
■Parking Brake1Brake System
When you depress the brak e pedal, you may hear a
whirling sound from the engine compartment. This is
because the brake system is in operation, and it is
normal.
1 Parking Brake
You may hear the electric parking brake system
motor operating from the re ar wheel area when you
apply or release the parki ng brake, or set the power
mode to OFF. This is normal.
The brake pedal may slightly move due to the electric
parking brake system opera tion when you apply or
release the parking br ake. This is normal.
You cannot apply or release the parking brake if the
battery goes dead. 2 Jump Starting P. 532
The parking brake is appl ied while the vehicle is
moving with the electric pa rking brake switch being
pulled.
Electric Parking
Brake Switch
Electric Parking
Brake Switch
17 ACURA RLX E-AWD-31TY36300.book 419 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

509
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 510
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 511
Changing a Flat Tire ......................... 523
Power System Won’t Start Checking the Procedure ................... 529
If the Keyless Access Remote Battery is Weak ............................................. 530
Emergency Power System Off........... 531
Jump Starting .................................... 532
Overheating How to Handle Overheating ............. 535 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On ...... 537
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 537
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 538
If the Brake System Indicator (Red) Comes On .. 538
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 539
If the Electric Parking Brake System Indicator Comes On............................................. 539
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 540 If the Transmission I
ndicator Blinks along
with the Warning Message ............ 541
Fuses
Fuse Locations ................................. 542
Inspecting and Changing Fuses ........ 547
Emergency Towing ........................... 548
When You Cannot Unlock the Fuel Fill Door ................................................. 549
When You Cannot Open the Trunk ..... 550
Refueling
Refueling From a Portable Fuel Container ... 551
17 ACURA RLX E-AWD-31TY36300.book 509 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

529
Handling the Unexpected
Power System Won’t Start
Checking the Procedure
When the READY indicator does not come on and the Ready to Drive message
does not appear on the multi-information display, check the following items and
take appropriate action.
ChecklistConditionWhat to Do
Check if the related
indicator or multi-
information display
messages come on.The Temperature is Too Cold For Vehicle To Operate
message appears.2 Multi-Information Display Warning and
Information Messages P. 92
The To Start, Hold Remote Near Start Button message
appears.
u Make sure the keyless access remote is in its operating range.
2POWER Button Operating Range P. 155
2If the Keyless Access Remote Battery is
Weak P. 530
The POWER SYSTEM indicator comes on.Have your vehicle checked by a dealer.
The transmission indicator blinks and Transmission Problem
Apply Parking Brake When Parked message appears.The power system can be activated as a
temporary measure.
2If the Transmission Indicator Blinks along
with the Warning Message P. 541
Check the brightness
of the interior lights.The interior lights are dim or do not come on at
all. Have the 12-volt battery checked by a dealer.
The interior lights come on normally. Check al l fuses, or have your vehicle checked by
a dealer.
2 Inspecting and Changing Fuses P. 547
Check the gear
position.The transmission is not in (P.Change the gear position to (P.
Check the
immobilizer system
indicator. When the immobilizer system in
dicator is blinking, the power
system cannot be turned on.
2 Immobilizer System Indicator P. 85
1Checking the Procedure
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 532
17 ACURA RLX E-AWD-31TY36300.book 529 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

532
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the power
system, then open the hood.1.Open the fuse box cover on your vehicle’s
12-volt battery positive + terminal.
2. Connect the first jump er cable to your
vehicle’s 12-volt battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u If you use a booster battery, only use a
12-volt booster battery.
u When using an automotive battery
charger, select a charging voltage lower
than 15-volts. Check the charger manual
for the proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cable clips so that they do
not come off when the engine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A 12-volt battery can explode if you do not
follow the correct procedure, seriously
injuring anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the 12-volt battery.
Booster Battery
17 ACURA RLX E-AWD-31TY36300.book 532 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

533
uuJump Starting u
Continued
Handling the Unexpected
5.Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.
6. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
7. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
17 ACURA RLX E-AWD-31TY36300.book 533 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

534
uuJump Starting u
Handling the Unexpected
Once your vehicle’s engine has started, remove the jumper cabl es in the following
order.
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s 12-volt battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
17 ACURA RLX E-AWD-31TY36300.book 534 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

569
Index
B
Battery12-Volt ................................................... 497
12-Volt Battery Charging System
Indicator ......................................... 79, 537
Charging (12-Volt Battery) ...................... 497
High Voltage........................................... 418
Jump Starting ......................................... 532
Maintenance (Checking the 12-Volt Battery) ................................................. 497
Maintenance (Replacing) ......................... 498
Battery Types .............................................. 12
Belts (Seat) .................................................. 36
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 412
Bluetooth ® Audio ..................................... 272
Bluetooth ® HandsFreeLink ®.................... 310
Booster Seats (For Children) ...................... 69
Brake System ............................................ 419
Anti-lock Brake System (ABS) .................. 424
Automatic Brake Hold ............................. 422
Brake Assist System................................. 425
Fluid ....................................................... 479
Foot Brake .............................................. 421
Parking Brake.......................................... 419
Brake System (Amber) Indicator ................................................... 77
Brake System (Red)
Indicator ........................................... 74, 538
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166BSI (Blind Spot Information) System
....... 412
Bulb Replacement .................................... 480
Back-Up Lights ........................................ 483
Brake/Taillight s and Rear Side Marker
Lights .................................................... 483
Door Outer Handle Ambient Lights .......... 484
Fog Lights ................................................ 480
Front Side Marker Lights .......................... 481
Front Turn Signal/Parking Lights ............... 480
Headlights ............................................... 480
High-Mount Brake Light .......................... 484
Rear License Plate Lights .......................... 484
Rear Turn Signal Lights ............................ 482
Side Turn Signal/Em ergency Indicator
Lights .................................................... 481
Taillights .................................................. 483
Bulb Specifications ................................... 554
C
CAMERA Button....................................... 446
Carbon Monoxide Gas ................................ 70
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 359, 361
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 556
Changing Bulbs ......................................... 480
Charging System Indicator ....................... 537Child Safety
................................................. 58
Childproof Door Locks............................. 144
Child Seat .................................................... 58
Booster Seats ............................................ 69
Child Seat for Infants................................. 60
Child Seat for Small Children ..................... 61
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 65
Larger Children ......................................... 68
Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Using a Tether ........................................... 67
Childproof Door Locks ............................. 144
Cleaning the Exterior ............................... 503
Cleaning the Interior ................................ 501
Client Service Information ....................... 564
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 500
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 426
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 426
Compact Spare Tire (Optional) ........ 523, 555
17 ACURA RLX E-AWD-31TY36300.book 569 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分

570
Index
Console Compartment............................. 187
Controls ..................................................... 131
Coolant (Engine) ....................................... 476
Adding to the Radiator ............................ 477
Adding to the Reserve Tank ..................... 476
High Temperature Indicator ....................... 83
Low Temperature Indicator ........................ 83
Overheating............................................. 535
Coolant (Inverter) ..................................... 478
Creeping (Dual Clutch Transmission) ....... 370
Cross Traffic Monitor ................................ 440
Cup Holders ............................................... 189
Customized Features ........................ 113, 283
D
Daytime Running Lights ........................... 162
Dead Battery (12-Volt) ............................. 532
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 557
Dimming Headlights ............................................... 159
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 472
Directional Signals (Turn Signal) .............. 158
Door Mirrors ............................................. 173
Doors ......................................................... 133
Auto Door Locking .................................. 145
Auto Door Unlocking ............................... 145
Door Open Message .................................. 35 Keys ........................................................ 133
Locking/Unlocking the Doors from the
Inside .............................................. 18, 142
Locking/Unlocking the Doors from the Outside ................................................. 136
Lockout Prevention System ...................... 140
DOT Tire Quality Grading ........................ 491
Driver’s Knee Airbag .................................. 50
Driving ...................................................... 357
Braking ................................................... 419
Dual Clutch Transmission ........................ 370
Shifting Gear ........................................... 371
Turning on the Power.............................. 364
Driving Position Memory System ............ 169
Dual Clutch Transmission ......................... 370
Creeping ................................................. 370
Fluid ........................................................ 478
Kickdown ................................................ 370
Operating the Shift Button ................ 23, 373
Shifting ................................................... 371
Dust and Pollen Filter ............................... 500
E
Elapsed Time............................................. 111
Electric Parking Brake Indicator.................................................... 75
Electric Parking Brake System Indicator............................................ 75, 539
Electric Power Steering (EPS) System
Indicator............................................ 82, 539 Electronic Stability Control (ESC)
............ 408
Emergency ................................................ 548
Emissions Testing (Readiness Codes) ...... 559
Energy Efficiency ........................................ 12
Engine ....................................................... 556
Coolant .................................................. 476
Jump Starting ......................................... 532
Oil .......................................................... 471
Remote Engine Start ............................... 366
Engine Compartment Cover .................... 470
Engine Coolant ........................................ 476
Adding to the Radiator ........................... 477
Adding to the Reserve Tank .................... 476
High Temperature Indicator ...................... 83
Low Temperature Indicator ....................... 83
Overheating ............................................ 535
Engine Oil ................................................. 471
Adding ................................................... 473
Checking ................................................ 472
Displaying Oil Life ................................... 464
Low Oil Pressure Indicator ................. 74, 537
Recommended Engine Oil ....................... 471
e-pretensioners .......................................... 38
EPS (Electric Power Steering) System ........ 82
Exhaust Gas Hazard (Carbon Monoxide) .. 70
Expanded Rear Door Sunshades ............. 199
Expanded View Driver’s Mirror ............... 174
Exterior Care (Cleaning) .......................... 503
Exterior Mirrors ........................................ 173
17 ACURA RLX E-AWD-31TY36300.book 570 ページ ２０１６年６月１７日　金曜日　午前８時 ２９分
