Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 36 Airbags P. 43
2Instrument Panel P. 73
Indicators P. 74 Gauges and Displays P. 106
2Controls P. 131
Clock P. 132 Locking and Unlocking the Doors P. 133
Opening and Closing the Moonroof P. 154
Adjusting the Seats P. 175
2 Features P. 211
Audio System P. 212 Audio System Basic Operation P. 216
Customized Features P. 283 HomeLink® Universal Transceiver P. 308
2 Driving P. 357
Before Driving P. 358 Towing a Trailer P. 363
Multi-View Rear Camera* P. 444 Surround View Camera System* P. 445
2Maintenance P. 459
Before Performing Maintenance P. 460 Maintenance MinderTM P. 463
Checking and Maintaining Wiper Blades P. 485
Climate Control System Maintenance P. 500
2Handling the Unexpected P. 509
Tools P. 510 If a Tire Goes Flat P. 511
Overheating P. 535 Indicator, Coming On/Blinking P. 537
When You Cannot Open the Trunk P. 550
2 Information P. 553
Specifications P. 554 Identification Numbers P. 556
Emissions Testing P. 559 Warranty Coverages P. 561
17 ACURA RLX E-AWD-31TY36300.book 2 ページ 2016年6月17日 金曜日 午前8時29分
Page 4 of 577
Contents
Child Safety P. 58Exhaust Gas Hazard P. 70Safety Labels P. 71
Opening and Closing the Trunk P. 146 Security System P. 149 Opening and Closing the Windows P. 152
Operating the Switches Around the Steering Wheel P. 155 Adjusting the Mirrors P. 172
Interior Lights/Interior Convenience It ems P. 182 Climate Control System P. 200
Audio Error Messages P. 274General Information on the Audio System P. 279
Bluetooth® HandsFreeLink ® P. 310 AcuraLink ® P. 349
When Driving P. 364 Braking P. 419Parking Your Vehicle P. 434
Refueling P. 455 Fuel Economy and CO
2 Emissions P. 457
Maintenance Under the Hood P. 468 Replacing Light Bulbs P. 480
Checking and Maintaining Tires P. 488 12-Volt Battery P. 497 Remote Transmitter Care P. 498
Cleaning P. 501 Accessories and Modifications P. 506
Power System Won’t Start P. 529 Jump Starting P. 532
Fuses P. 542 Emergency Towing P. 548 When You Cannot Unlock the Fuel Fill Door P. 549
Refueling P. 551
Devices that Emit Radio Waves P. 557 Reporting Safety Defects P. 558
Authorized Manuals P. 563 Client Service Information P. 564
Quick Reference GuideP. 4
Safe DrivingP. 31
Instrument PanelP. 73
ControlsP. 131
FeaturesP. 211
DrivingP. 357
MaintenanceP. 459
Handling the UnexpectedP. 509
InformationP. 553
IndexP. 568
17 ACURA RLX E-AWD-31TY36300.book 3 ページ 2016年6月17日 金曜日 午前8時29分
Page 19 of 577
18
Quick Reference Guide
Wipers and Washers
(P 163)
Wiper/Washer Control LeverAdjustment Ring : Low Sensitivity: High Sensitivity
MIST
OFF
AUTO : Wiper speed varies automatically
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P 171)
● To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Unlocking the Front
Doors from the Inside
(P 142)
●Pull either front door inner handle to
unlock and open it in one motion.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P 146)
● To unlock and open the trunk:
•Press the trunk release button on the
driver’s door.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Trunk Release Button
17 ACURA RLX E-AWD-31TY36300.book 18 ページ 2016年6月17日 金曜日 午前8時2 9分
Page 28 of 577
Quick Reference Guide
27
Handling the Unexpected (P 509)
Flat Tire (P 511)
● Park in a safe location and repair the flat
tire using the temporary tire repair kit.
Park in a safe location and replace the
flat tire with the comp act spare tire in the
trunk.
Indicators Come On
(P 537)
● Identify the indica tor and consult the
owner’s manual.
Vehicles with optional spare tire kit
Power System Won’t Start
(P 529)
● If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse
(P 542)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 535)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power system and the engine
cool down.
Emergency Towing
(P 548)
●Call a professional towing service if you
need to tow your vehicle.
17 ACURA RLX E-AWD-31TY36300.book 27 ページ 2016年6月17日 金曜日 午前8時2 9分
Page 49 of 577
48
uuAirbags uFront Airbags (SRS)
Safe Driving

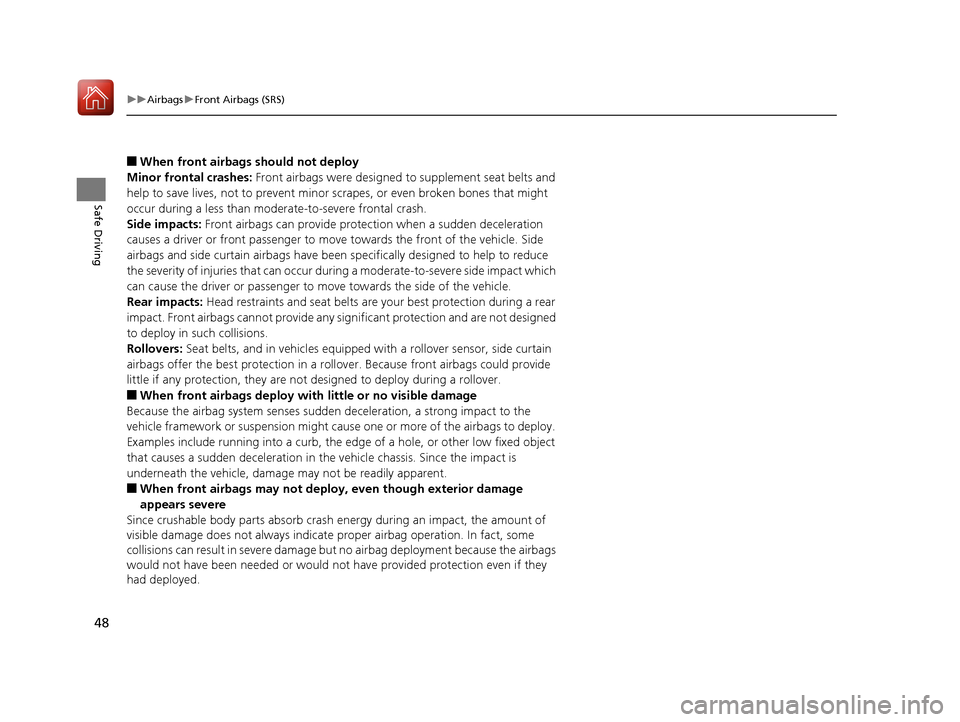

■When front airbags should not deploy
Minor frontal crashes: Front airbags were designed to supplement seat belts and
help to save lives, not to prevent minor scrapes, or even broken bones that might
occur during a less than modera te-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or front passenger to move towards the front of the vehicle. Side
airbags and side curtain airbag s have been specifically designed to help to reduce
the severity of injuries that can occur du ring a moderate-to-severe side impact which
can cause the driver or passenger to move towards the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any si gnificant protection and are not designed
to deploy in such collisions.
Rollovers: Seat belts, and in vehicl es equipped with a rollover sensor, side curtain
airbags offer the best protection in a ro llover. Because front airbags could provide
little if any protection, they are not designed to deploy during a rollover.
■When front airbags deploy with little or no visible damage
Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might caus e one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in th e vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.
■When front airbags may not deploy, even though exterior damage
appears severe
Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.
17 ACURA RLX E-AWD-31TY36300.book 48 ページ 2016年6月17日 金曜日 午前8時2 9分
Page 54 of 577
53
uuAirbags uSide Airbags
Safe Driving

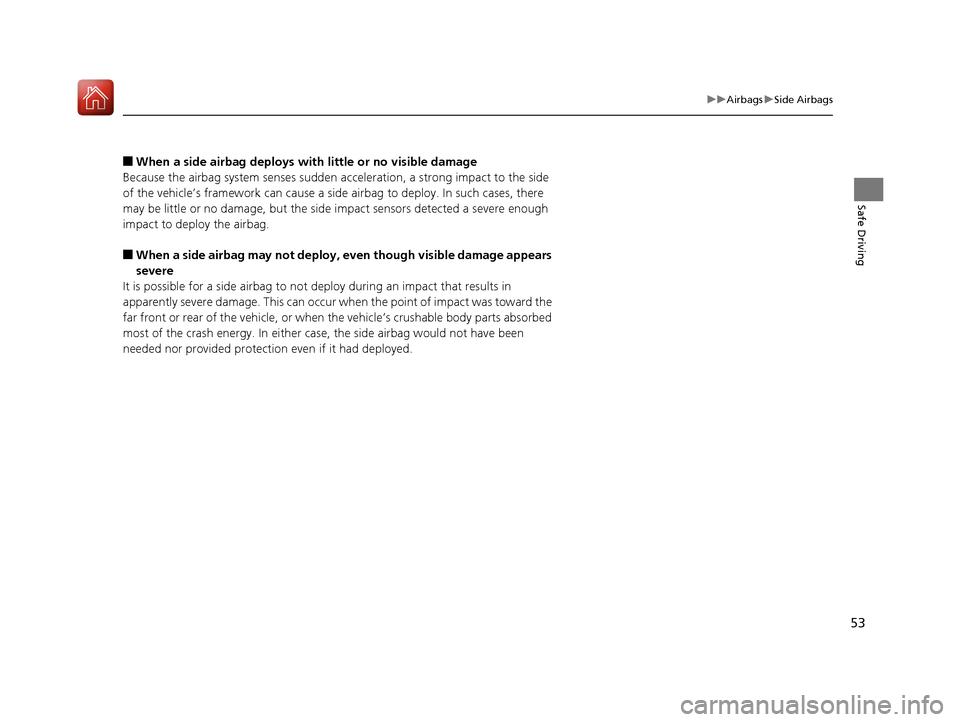

■When a side airbag deploys with little or no visible damage
Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.
■When a side airbag may not deploy, even though visible damage appears
severe
It is possible for a side airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case , the side airbag would not have been
needed nor provided protection even if it had deployed.
17 ACURA RLX E-AWD-31TY36300.book 53 ページ 2016年6月17日 金曜日 午前8時2 9分
Page 81 of 577
80
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Gear Position
Indicator●Indicates the current gear selection.2Shifting P. 371—
Transmission
Indicator
●The indicated current gear selection
blinks if there is a problem with the
transmission system.●Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
●All the gear positions may light for
several seconds, and go off.●When all the gear positions light,
immediately stop your vehicle in a safe
place.
●Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.—
●The indicated current gear selection
or all the gear positions blink if there
is a problem with the transmission
system, and the vehicle no longer
moves.●Immediately stop in a safe place.2Emergency Towing P. 548●Have your vehicle checked by a dealer.
●The indicated current gear selection
or all the gear positions blink if you
cannot select
(P due to the
transmission system failure.
●The power system can be activated as a
temporary measure.
2 If the Transmission Indicator Blinks
along with the Warning Message
P. 541
●Set the parking brake when parking.●Have your vehicle checked by a dealer
immediately.
17 ACURA RLX E-AWD-31TY36300.book 80 ページ 2016年6月17日 金曜日 午前8時2 9分
Page 164 of 577
163
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, LO, HI)
Change the wiper switch setting according to
the amount of rain.
■AUTO
2 Automatic Intermittent Wipers P. 164
■Washer
Sprays while you pull the lever toward you.
When you release the lever, the wipers make
two or three more sweeps before stopping.
1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield, becoming stuck.
Operating the wipers in th is condition may damage
them. Use the defroster to warm the windshield,
then turn the wipers on.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle starts moving, the wipers make a
single sweep.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
MIST
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
AUTO : Wiper speed varies
automatically
17 ACURA RLX E-AWD-31TY36300.book 163 ページ 2016年6月17日 金曜日 午前8時 29分
Page 358 of 577
357
Driving
This chapter discusses driving, refueling, and information on items such as accessories.
Before Driving
Driving Preparation .......................... 358
Maximum Load Limit........................ 361
Towing a Trailer Towing Your Vehicle ........................ 363
When Driving Turning on the Power ...................... 364
Precautions While Driving................. 369
Dual Clutch Transmission ................. 370
Shifting ............................................ 371
SPORT Mode.................................... 378
Reactive Force Pedal......................... 379
Acoustic Vehicle Al erting System ...... 380
Front Sensor Camera ....................... 381
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ......................... 383Road Departure Mitigation (RDM) System.... 397Lane Keeping Assist System (LKAS)...... 401Vehicle Stability Assist (VSA ®), aka Electronic
Stability Control (ESC), System ........... 408
Agile Handling Assist ....................... 410SPORT HYBRID Super Handling-All Wheel DriveTM (SPORT HYBRID SH-AWD®) .... 411Blind Spot Information (BSI) System ..... 412Tire Pressure Monitoring System (TPMS) ... 414Tire Pressure Monitoring System (TPMS) - Required Federal Explanation ......... 416
High Voltage Battery ........................ 418
Braking Brake System ................................... 419
Anti-lock Brake System (ABS) ........... 424 Brake Assist System ......................... 425
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 426
Parking Your Vehicle When Stopped ................................ 434
Parking Sensor System
*................... 436
Cross Traffic Monitor ....................... 440
Multi-View Rear Camera
*................ 444
Surround View Camera System*..... 445
Refueling Fuel Information .............................. 455
How to Refuel ................................. 456
Fuel Economy and CO
2 Emissions .... 457
Improving Fuel Economy and Reducing CO
2 Emissions ................................ 457
* Not available on all models
17 ACURA RLX E-AWD-31TY36300.book 357 ページ 2016年6月17日 金曜日 午前8時 29分
Page 362 of 577
361
uuBefore Driving uMaximum Load Limit
Continued
Driving
Maximum Load Limit
The maximum load for your vehicl e is 850 lbs (385 kg). See the
Tire and Loading Information label attached to the driver’s doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 554
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 554
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.Label Example
17 ACURA RLX E-AWD-31TY36300.book 361 ページ 2016年6月17日 金曜日 午前8時 29分
