display Acura RLX HYBRID 2018 Owner's Manual

298
uuCustomized Features u
Features

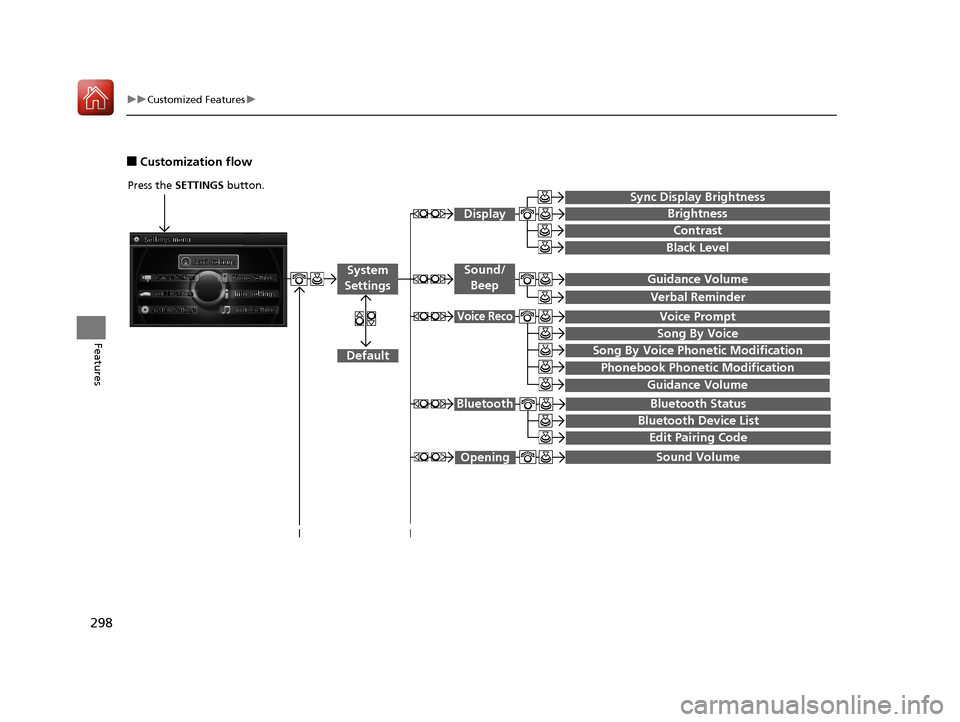

■Customization flow
Song By Voice
Song By Voice Phonetic Modification
Phonebook Phonetic Modification
Press the SETTINGS button.



Guidance Volume
Voice Prompt
Guidance Volume
Verbal Reminder
Brightness
Contrast
Black Level



Bluetooth Status
Bluetooth Device List
Edit Pairing Code

Default
Sound/Beep
Display
System
Settings
Bluetooth
Voice Reco
Sync Display Brightness
Sound Volume Opening
18 ACURA RLX E-AWD-31TY36400.book 298 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

299
uuCustomized Features u
Continued
Features
System Device Information
Factory Data Reset

Background Color
Header Clock Display
Clock Reset
Auto Time Zone
Auto Daylight
Clock
Clock Adjustment
Clock Format
Clock
Units
Language
Operation Restriction Tips
Others

Wallpaper
Clock/Wallpaper
Type
18 ACURA RLX E-AWD-31TY36400.book 299 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

300
uuCustomized Features u
Features“Trip B” Reset Timing
Language Selection
Adjust Outside Temp. Display



Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep

Turn By Turn Display
Default
Memory Position Link

Door Unlock Mode
Keyless Access Light Flash


Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Vehicle
Settings
Driver Assist
System Setup
Keyless Access
Setup
Lighting Setup
Keyless Access Beep
Lane Keeping Assist Suspend Beep
Blind Spot Info
Easy Entry/Exit
Auto Seatbelt Tension

Driving
Position Setup
Display Speed Unit
Reactive Force Pedal
Head-up Warning
Road Departure Mitigation Setting
Remote Start System On/Off

Reverse Alert Tone

“Trip A” Reset TimingMeter/
Head-up Display Setup
Walk Away Auto Lock
18 ACURA RLX E-AWD-31TY36400.book 300 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

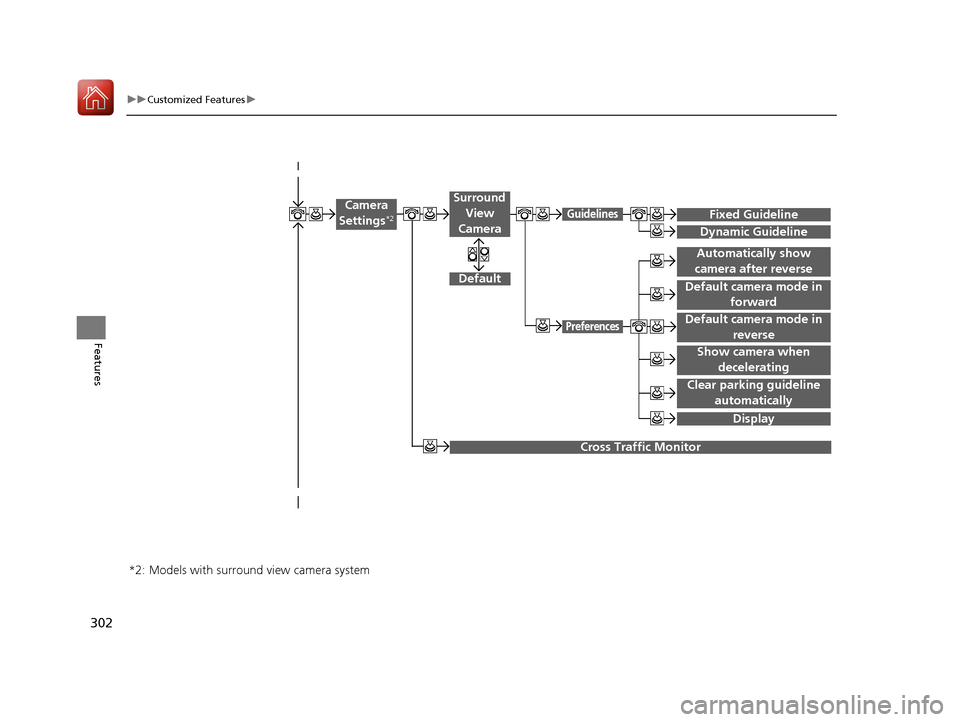

302
uuCustomized Features u
Features
Fixed Guideline
Dynamic Guideline


Default
Guidelines
Cross Traffic Monitor

Automatically show
camera after reverse
Default camera mode in forward
PreferencesDefault camera mode in reverse
Show camera when
decelerating
Clear parking guideline automatically
Display
*2: Models with surround view camera system
Camera
Settings*2
Surround View
Camera
18 ACURA RLX E-AWD-31TY36400.book 302 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

306
uuCustomized Features u
Features

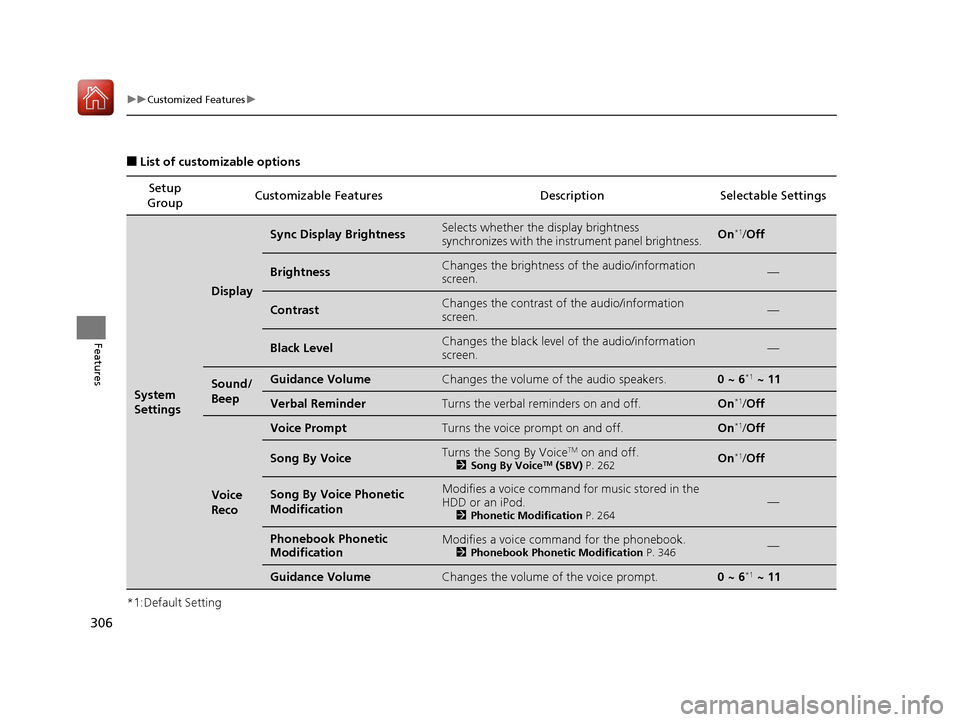

■List of customizable options
*1:Default Setting Setup
Group Customizable Features Descri
ption Selectable Settings
System
Settings
Display
Sync Display BrightnessSelects whether the display brightness
synchronizes with the instrument panel brightness.On*1/Off
BrightnessChanges the brightness of the audio/information
screen.—
ContrastChanges the contrast of the audio/information
screen.—
Black LevelChanges the black level of the audio/information
screen.—
Sound/
BeepGuidance VolumeChanges the volume of the audio speakers.0 ~ 6*1 ~ 11
Verbal ReminderTurns the verbal reminders on and off.On*1/Off
Voice
Reco
Voice PromptTurns the voice prompt on and off.On*1/Off
Song By VoiceTurns the Song By VoiceTM on and off.2 Song By VoiceTM (SBV) P. 262On*1/Off
Song By Voice Phonetic
ModificationModifies a voice command fo r music stored in the
HDD or an iPod.
2 Phonetic Modification P. 264—
Phonebook Phonetic
ModificationModifies a voice command for the phonebook.2Phonebook Phonetic Modification P. 346—
Guidance VolumeChanges the volume of the voice prompt.0 ~ 6*1 ~ 11
18 ACURA RLX E-AWD-31TY36400.book 306 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

307
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
Settings
Blue-
tooth
Bluetooth StatusTurns the
Bluetooth® on and off.On*1/Off
Bluetooth Device List
Pairs a new phone to HFL, edits and deletes a
paired phone, and creates a security PIN.
2 Phone Setup P. 332
—
Edit Pairing CodeChanges a pairing code.
2To change the pairing code setting P. 334Random/Fixed*1
OpeningSound VolumeChanges the volume of the system’s startup
sound.0 ~ 6*1 ~ 11
Clock
Clock/
Wallpaper
Type
ClockChanges the clock display type.Analog /Digital*1/
Small Digital/ Off
Wallpaper
•Changes the wallpaper type.
• Imports an image file for a new wallpaper.
• Deletes an image file for a wallpaper.
2 Wallpaper Setup P. 228
Blank/Galaxy*1/
Metallic
Clock AdjustmentAdjusts Clock.
2 Clock P. 128—
Clock FormatSelects the digital clock display from 12H to 24H.12H*1/24H
Auto Time Zone
Sets the navigation syst em to automatically
adjust the clock when driving through different
time zones.
On*1/ Off
18 ACURA RLX E-AWD-31TY36400.book 307 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

308
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
System
Settings
ClockAuto Daylight
Sets the navigation system to automatically adjust
the clock (“spring ahead” or “fall back” by one
hour) when a daylight saving time change occurs.
On*1/ Off
Clock ResetResets the settings of all items in the Clock group.—
Others
UnitsChanges the distance unit on the navigation map
screen.mile*1/km (U.S.)
mile /km*1 (Canada)
LanguageChanges the display language.English*1/Français /
Español
Operation Restriction Tips
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.
On*1/ Off
Background Color
Changes the background color of the audio/
information screen and the On Demand Multi-Use
Display
TM.
Blue*1/Amber /Red/
Green
Header Clock DisplaySelects whether the clock display comes on.On /Off*1
System Device InformationDisplays the system /device information.—
Factory Data ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 321—
DefaultCancels /Resets all customized items in the
System Settings group as default.Default/OK
18 ACURA RLX E-AWD-31TY36400.book 308 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

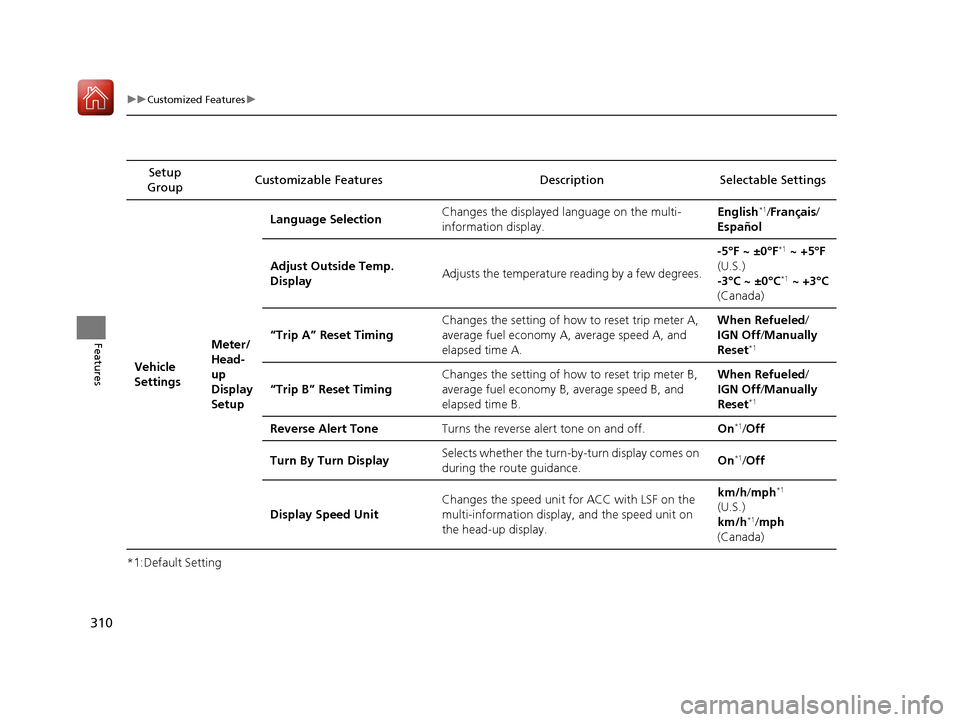

310
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Vehicle
Settings Meter/
Head-
up
Display
SetupLanguage Selection
Changes the displayed language on the multi-
information display. English
*1/
Français /
Español
Adjust Outside Temp.
Display Adjusts the temperature reading by a few degrees. -5°F ~ ±0°F
*1
~ +5°F
(U.S.)
-3°C ~ ±0°C
*1 ~ +3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset trip meter A,
average fuel economy A,
average speed A, and
elapsed time A. When Refueled
/
IGN Off /Manually
Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset trip meter B,
average fuel economy B,
average speed B, and
elapsed time B. When Refueled
/
IGN Off /Manually
Reset*1
Reverse Alert Tone Turns the reverse alert tone on and off. On*1/Off
Turn By Turn Display Selects whether the turn-by-turn display comes on
during the route guidance. On
*1/
Off
Display Speed Unit Changes the speed unit for ACC with LSF on the
multi-information display, and the speed unit on
the head-up display. km/h
/mph
*1
(U.S.)
km/h*1/mph
(Canada)
18 ACURA RLX E-AWD-31TY36400.book 310 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

313
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings
Door
SetupSecurity Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door. 90seconds
/
60seconds /
30seconds*1
Auto Folding Door Mirror Changes how you can fold the door mirrors. Auto Fold With
Keyless*1/
Manual
Only
Wiper
Setup Wiper Action
Changes the setting for the automatic
intermittent wipers in the
AUTO position. Rain Sensing
*1/
Intermittent /Speed
Sensitive
Mainte-
nance
Info.Maintenance Reset Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all customized items in the
Vehicle Settings
group as default. Default/
OK
Camera
Settings
Rear
Camera
Fixed GuidelineSelects whether the fixed guidelines come on the
rear camera monitor.On*1/ Off
Dynamic GuidelineSelects whether the dynamic guidelines come on
the rear camera monitor.On*1/Off
DefaultCancels/Resets all customized items in the Rear
Camera group as default.Default/ OK
Cross Traffic MonitorTurns the cross traffic monitor feature on and off.On*1/Off
Models with
multi-view
rear camera
18 ACURA RLX E-AWD-31TY36400.book 313 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

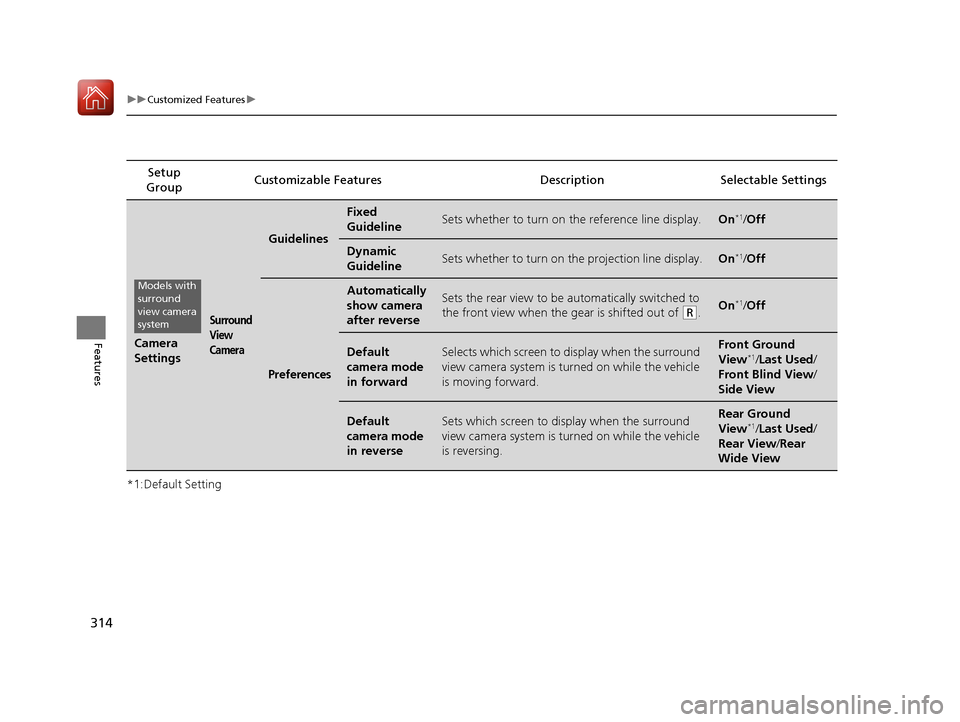

314
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Settings
Surround
View
Camera
Guidelines
Fixed
GuidelineSets whether to turn on the reference line display.On*1/Off
Dynamic
GuidelineSets whether to turn on th e projection line display.On*1/Off
Preferences
Automatically
show camera
after reverseSets the rear view to be automatically switched to
the front view when the gear is shifted out of
(R.On*1/Off
Default
camera mode
in forwardSelects which screen to di splay when the surround
view camera system is turned on while the vehicle
is moving forward.Front Ground
View*1/ Last Used /
Front Blind View /
Side View
Default
camera mode
in reverseSets which screen to display when the surround
view camera system is turned on while the vehicle
is reversing.Rear Ground
View*1/ Last Used /
Rear View /Rear
Wide View
Models with
surround
view camera
system
18 ACURA RLX E-AWD-31TY36400.book 314 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
