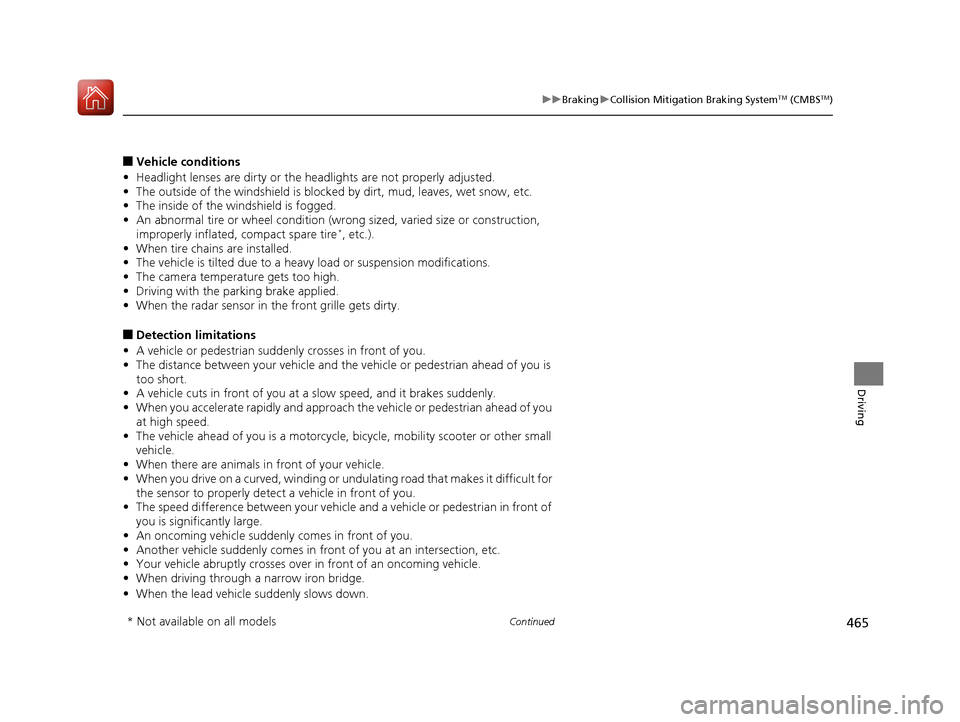

465
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor in the front grille gets dirty.
■Detection limitations
• A vehicle or pedestrian suddenly crosses in front of you.
• The distance between your vehicle and the vehicle or pedestrian ahead of you is
too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle or pedestrian ahead of you
at high speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved, winding or und ulating road that makes it difficult for
the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehicle an d a vehicle or pedestrian in front of
you is significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Another vehicle suddenly comes in front of you at an intersection, etc.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
• When driving through a narrow iron bridge.
• When the lead vehicl e suddenly slows down.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 465 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

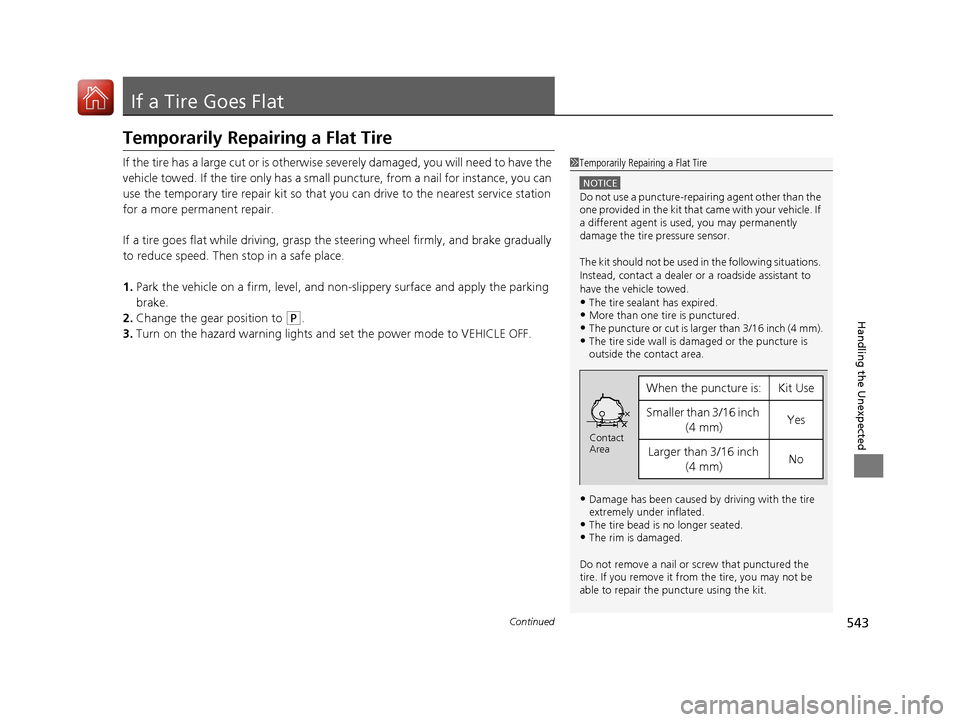

543Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch (4 mm)No
Contact
Area
18 ACURA RLX E-AWD-31TY36400.book 543 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

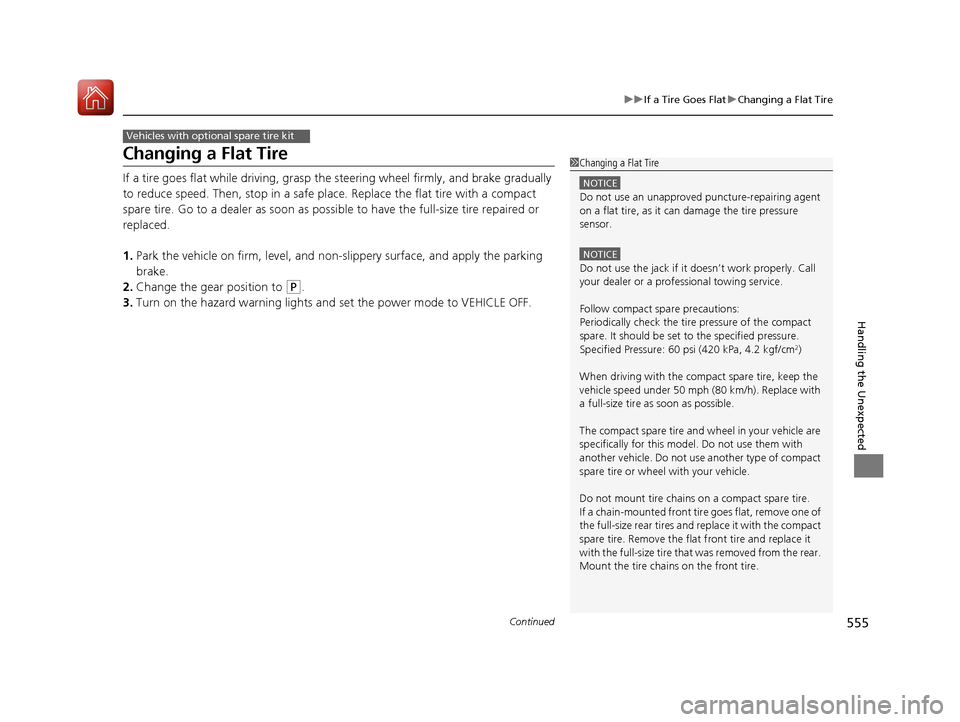

555
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface, and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Vehicles with optional spare tire kit
1Changing a Flat Tire
NOTICE
Do not use an unapproved puncture-repairing agent
on a flat tire, as it can damage the tire pressure
sensor.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
18 ACURA RLX E-AWD-31TY36400.book 555 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

Index
600
Index
Index
Numbers
12-Volt Battery Charging System Indicator .................................................... 81
A
AAC.................................................... 245, 269
ABS (Anti-lock Brake System) ................... 458
Accessories and Modifications ................. 538
Accessory Power Sockets .......................... 190
Acoustic Vehicle Alerting System ............ 397
AcuraLink .................................................. 365
AcuraWatch
TM..................................... 26, 398
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ............................ 90, 404
Additives
Coolant ........................................... 510, 512
Engine Oil ................................................ 505
Washer .................................................... 514
Adjusting Armrest ................................................... 181
Front Seats .............................. 175, 178, 180
Head Restraints........................................ 178
Mirrors .................................................... 172
Steering Wheel ........................................ 171
Temperature ............................................ 116
Agile Handling Assist ................................ 443
Aha
TM Menu .............................................. 268
AhaTM Radio .............................................. 278 Air Conditioning System (Climate Control
System) .................................................... 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 532
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Air Pressure ....................................... 522, 587
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
Airbag Care............................................... 59
Driver’s Knee Airbag.................................. 52
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator.............................................. 57, 84
Passenger Airbag Off Indicator .................. 58
Sensors ..................................................... 45
Side Airbags .............................................. 54
Side Curtain Airbags.................................. 56
AM/FM Radio ............................................ 237
Anti-lock Brake System (ABS) .................. 458
Indicator.................................................... 84
Armrest ..................................................... 181
Audio Remote Controls ........................... 215
Audio System ............................................ 212
Adjusting the Sound................................ 230
Auxiliary Input Jack.................................. 213 Error Messages ....................................... 274
General Information................................ 279
HDD ....................................................... 248
Internet Radio ......................................... 266
iPod ........................................................ 258
MP3/WMA/AAC ............................. 245, 269
Reactivating ............................................ 214
Recommended CDs ................................ 280
Recommended Devices ........................... 282
Remote Controls ..................................... 215
Security Code ......................................... 214
Shortcuts ................................................ 218
Theft Protection ...................................... 214
USB Flash Drives...................................... 282
USB Port ................................................. 213
Audio/Information Screen ....................... 225
Authorized Manuals ................................ 595
Auto Door Locking/Unlocking ................ 142
Customize .............................................. 312
Auto Engine Stop/Start .............................. 13
Auto High-Beam ...................................... 160
Automatic Brake Hold ............................. 456
Indicator ........................................... 78, 456
Automatic Brake Hold System Indicator ........................................... 78, 456
Automatic Lighting .................................. 157
Auxiliary Input Jack ................................. 213
Average Fuel Economy ............................ 116
Average Speed ......................................... 117
18 ACURA RLX E-AWD-31TY36400.book 600 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

601
Index
B
Battery12-Volt ................................................... 530
12-Volt Battery Charging System
Indicator ......................................... 81, 569
Charging (12-Volt Battery) ...................... 530
High Voltage........................................... 451
Jump Starting ......................................... 564
Maintenance (Checking the 12-Volt Battery) ................................................. 530
Maintenance (Replacing) ......................... 531
Battery Types .............................................. 12
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 445
Bluetooth ® Audio ..................................... 272
Bluetooth ® HandsFreeLink ®.................... 326
Booster Seats (For Children) ...................... 71
Brake System ............................................ 452
Anti-lock Brake System (ABS) .................. 458
Automatic Brake Hold ............................. 456
Brake Assist System................................. 459
Fluid ....................................................... 513
Foot Brake .............................................. 455
Parking Brake.......................................... 452
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 76, 570
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166Bulb Replacement
.................................... 515
Back-Up Lights ........................................ 517
Brake/Taillight s and Rear Side Marker
Lights .................................................... 516
Door Outer Handle Ambient Lights .......... 517
Fog Lights ................................................ 515
Front Side Marker Lights .......................... 516
Front Turn Signal/Parking Lights ............... 515
Headlights ............................................... 515
High-Mount Brake Light .......................... 517
Rear License Plate Lights .......................... 517
Rear Turn Signal Lights ............................ 516
Side Turn Signal/Em ergency Indicator
Lights .................................................... 516
Taillights .................................................. 516
Bulb Specifications ................................... 586
C
CAMERA Button....................................... 481
Carbon Monoxide Gas ................................ 72
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 375, 377
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 588
Changing Bulbs ......................................... 515
Charging System Indicator ....................... 569
Child Safety ................................................. 60
Childproof Door Locks ............................. 141 Child Seat
.................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 70
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 141
Cleaning the Exterior ............................... 535
Cleaning the Interior ................................ 533
Client Service Information ....................... 596
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 532
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 460
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 460
Compact Spare Tire (Optional) ........ 555, 587
Console Compartment ............................. 187
Controls ..................................................... 127
18 ACURA RLX E-AWD-31TY36400.book 601 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

603
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 532
Oil .......................................................... 508
Flat Tire ............................................. 543, 555
Floor Mats ................................................ 534
Fluids
Brake ...................................................... 513
Dual Clutch Transmission ........................ 513
Engine Coolant ....................................... 510
Inverter Coolant ...................................... 512
Windshield Washer ................................. 514
Foot Brake ................................................ 455
Front Airbags (SRS) .................................... 48
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats ................................ 175, 178, 180
Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 402
Fuel ..................................................... 25, 490
Economy................................................. 492
Gauge .................................................... 112
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 83
Range ..................................................... 117
Recommendation............................ 490, 586
Refueling ................................................ 490
Fuel Economy ........................................... 492
Fuel Fill Door ...................................... 25, 491 Fuses
.......................................................... 574
Inspecting and Changing ......................... 580
Locations ................................. 574, 577, 579
G
Gasoline (Fuel)
Economy ................................................. 492
Gauge ..................................................... 112
Information ............................................. 490
Instant Fuel Economy ............................... 117
Low Fuel Indicator ..................................... 83
Refueling ................................................. 490
Gauges ...................................................... 112
Gear Position Indicator ...................... 81, 389
Gear Shift Positions
Dual Clutch Transmission ......................... 387
Glass (care) ........................................ 533, 536
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 541
HandsFreeLink ® (HFL) ............................... 326
Auto Answer ........................................... 340
Automatic Import of Cellular Phonebook and
Call History ............................................ 342
Automatic Transferring ............................ 340
Displaying Messages ................................ 360
Editing User Name ................................... 339
HFL Buttons ............................................. 326 HFL Menus .............................................. 328
HFL Status Display ................................... 327
Limitations for Manual Operation ............ 327
Making a Call .......................................... 351
Options During a Call .............................. 357
Phone Setup............................................ 332
Phonebook Phonetic Modification ........... 346
Receiving a Call ....................................... 356
Receiving a Text/E-m
ail Message.............. 358
Ring Tone................................................ 341
Roadside Assistance ................................ 364
Selecting a Mail Account ......................... 359
Speed Dial ............................................... 343
To Create a Security PIN .......................... 338
To Set Up a Text/E-mail Message Option................................................... 337
Use Contact Photo .................................. 341
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 156
Aiming .................................................... 515
Auto High-Beam ..................................... 160
Automatic Operation............................... 157
Dimming ................................................. 156
Operating................................................ 156
Head-Up Display ....................................... 119
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
18 ACURA RLX E-AWD-31TY36400.book 603 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

606
Index
P
Paddle Shifters (Sequential Mode).......... 394
Pandora® ................................................... 267
Panic Mode ............................................... 148
Parking ...................................................... 468
Parking Brake ............................................ 452
Parking Sensor System .............................. 470
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 156
POWER Button .......................................... 152
Power Distribution Monitor ............. 124, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 380
POWER SYSTEM Indicator .......................... 80
Power Windows ........................................ 149
Precautions While Driving
Rain ......................................................... 385
Pregnant Women ....................................... 43
Puncture (Tire) .................................. 543, 555
R
Radiator..................................................... 511
Radio (AM/FM) .......................................... 237
Radio (SiriusXM ®)...................................... 242
Radio Data System (RDS) .......................... 239
Range ........................................................ 117
RDS (Radio Data System) .......................... 239
Reactive Force Pedal ................................. 396
Readiness Codes (Emissions Testing) ....... 591READY Indicator
......................................... 80
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 490
Fuel Gauge.............................................. 112
Gasoline .......................................... 490, 586
Low Fuel Indicator ..................................... 83
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 449, 524, 589
Remote Engine Start with Vehicle
Feedback ................................................. 382
Remote Transmitter ................................. 136
Replacement
Battery .................................................... 531
Bulbs ....................................................... 515
Fuses ....................................... 574, 577, 579
Tires ........................................................ 527
Wiper Blade Rubber ................................ 518
Reporting Safety Defects ......................... 590
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ............................... 114
Road Departure Mitigation (RDM) ......... 418
On and Off.............................................. 420
S
Safe Driving ................................................ 33
Safety Labels .............................................. 73
Safety Message ............................................ 1
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor ................. 42
Automatic Seat Belt Tensioners ................. 40
Checking .................................................. 44
e-pretensioners ......................................... 40
Fastening .................................................. 41
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Pregnant Women...................................... 43
Reminder ............................................ 39, 83
Warning Indicator ............................... 39, 83
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................. 175, 178, 180
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 146
Immobilizer System Indicator..................... 87
Security System Alarm Indicator ................ 88
Selecting a Child Seat ................................ 64
Sequential Mode ...................................... 393
Sequential Mode Operation ................... 394
Setting the Clock ...................................... 128
Shift Button ........................................ 23, 387
Operation ............................................... 389
Shifting (Transmission) ...................... 23, 387
Shoulder Anchor ........................................ 42
18 ACURA RLX E-AWD-31TY36400.book 606 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

607
Index
Side Airbags............................................... 54
Side Curtain Airbags .................................. 56
SiriusXM ® Radio ....................................... 242
Snow Tires ................................................ 529
Sounds Unique to the SPORT HYBRID SH-
AWD ® System ........................................... 13
Spare Tire (Optional) ....................... 555, 587
Spark Plugs ............................................... 586
Specifications ........................................... 586
Specified Fuel ................................... 490, 586
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)....... 444
SPORT Mode ............................................. 395
SPORT Mode Indicator ....................... 88, 395
SRS Airbags (Airbags) ................................ 48
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 468
Summer Tires ............................................ 529
Supplemental Restraint System (SRS) ....... 48
Surround View Camera System ............... 480
Switches (Around the Steering
Wheel) ............................................ 4, 5, 152
System Message Indicator ......................... 86
T
Temperature
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Temperature Sensor ................................ 209 Temporary Tire Repair Kit
........................ 544
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 447
Indicator ............................................ 86, 572
Tires ........................................................... 521
Air Pressure ..................................... 522, 587
Chains ..................................................... 529
Checking and Maintaining ....................... 521
Flat Tire (Puncture) ................................... 543
Inspection ................................................ 521
Labeling .................................................. 522
Regulations ............................................. 524
Rotation .................................................. 528
Spare (Optional) .............................. 555, 587
Summer .................................................. 529
Temporary Tire Repair Kit ........................ 544
Wear Indicators ....................................... 526
Winter ..................................................... 529
Tools .......................................................... 542
Towing a Trailer ....................................... 379
Towing Your Vehicle ................................ 379
Emergency .............................................. 581
Transmission ....................................... 23, 387
Dual Clutch ............................... 23, 386, 387
Fluid ........................................................ 513
Gear Position Indicator ...................... 81, 389
Number ................................................... 588
Sequential Mode ..................................... 393
TRIP Button ............................................... 115 Trip Meter
................................................. 116
Troubleshooting ....................................... 541
Blown Fuse.............................. 574, 577, 579
Brake Pedal Vibrates ............................ 29, 30
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 581
Flat Tire/Puncture ............................ 543, 555
Noise When Braking .................................. 30
Overheating ............................................ 567
Power System Won’t Start ....................... 561
Premium Gasoline ........................... 490, 586
Rear Door Won’t Open...................... 29, 141
Warning Indicators .................................... 76
Trunk ......................................................... 143
Lid........................................................... 143
Light Bulbs .............................................. 586
Release Handle ........................................ 583
Unable to Open....................................... 583
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ................... 118, 123
Turning on the Power .............................. 380
Does Not Activate ................................... 561
Jump Starting .......................................... 564
Remote Engine Start................................ 382
Two-way Keyless Access Remote ..... 138, 382
18 ACURA RLX E-AWD-31TY36400.book 607 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
