turn signal Acura RLX HYBRID 2018 User Guide

uuWhen Driving uRoad Departure Mitigation (RDM) System
420
Driving
The system becomes ready to start sear ching for lane markings when all the
following conditions are met:
• The vehicle is traveling between 45 and 89 mph (72 and 144 km/h).
• The vehicle is on a straight or slightly curved road.
• The turn signals are off.
• The brake pedal is not depressed.
• The wipers are not in continuous operation.
• The system makes a determination that the driver is not actively accelerating,
braking or steering.
Press the RDM button to turn the system on
and off.u The indicator in the button comes on and
the message appears on the multi-
information display when the system is
on.
■How the System Activates
■RDM On and Off
1How the System Activates
The RDM system may automa tically shut off and the
indicator comes and stays on.
2 Indicators P. 76
RDM system function can be impacted when the
vehicle is:
•Not driven within a traffic lane.•Driven on the inside edge of a curve, or outside of
a lane.
•Driven in a narrow lane.
1 RDM On and Off
When you have selected Warning Only from the
customized options using the audio/information
screen, the system does not operate the steering
wheel and braking. 2 Customized Features P. 297
RDM ButtonIndicator
18 ACURA RLX E-AWD-31TY36400.book 420 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

423
uuWhen Driving uLane Keeping Assist System (LKAS)
Continued
Driving
Lane Keeping Assist System (LKAS)
Provides steering input to help keep the vehicle in the middle of a detected lane and
provides tactile and visual al erts if the vehicle is detected drifting out of its lane.1Lane Keeping Assist System (LKAS)
Important Safety Reminders
The LKAS is for your convenience only. It is not a
substitute for your vehicl e control. The system does
not work if you take y our hands off the steering
wheel or fail to steer the vehicle.
2 Multi-Information Display Warning and
Information Messages P. 94
Do not place objects on the instrument panel.
Objects may reflect on th e front windshield and
prevent correct detectio n of the traffic lanes.
The LKAS only alerts you when lane drift is detected
without a turn signal in us e. The LKAS may not detect
all lane markings or lane departures; accuracy will
vary based on weather, speed, and lane marker
condition. It is always your responsibility to safely
operate the vehicle an d avoid collisions.
The LKAS is convenient when it is used on freeways.
The LKAS may not work properly or may work
improperly under the certain conditions: 2 LKAS Conditions and Limitations P. 428
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 402
When you operate the turn signals to chan ge lanes, the system is suspended, and
resumes after the signals are off.
() If you make a lane change without operating the turn signals, the LKAS
alerts activate, and torque is applied to the steering.
■LKAS camera
Monitors the lane
lines■Tactile and visual alerts
Rapid vibrations on the steering
wheel and a warning display alert you
that the vehicle is drifting out of a
detected lane.
■Steering input assist
The system applies torque to the steering to keep the vehicle between the left and
right lane lines. The applied torque becomes stronger as the vehicle gets closer to
either of the lane lines.
18 ACURA RLX E-AWD-31TY36400.book 423 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

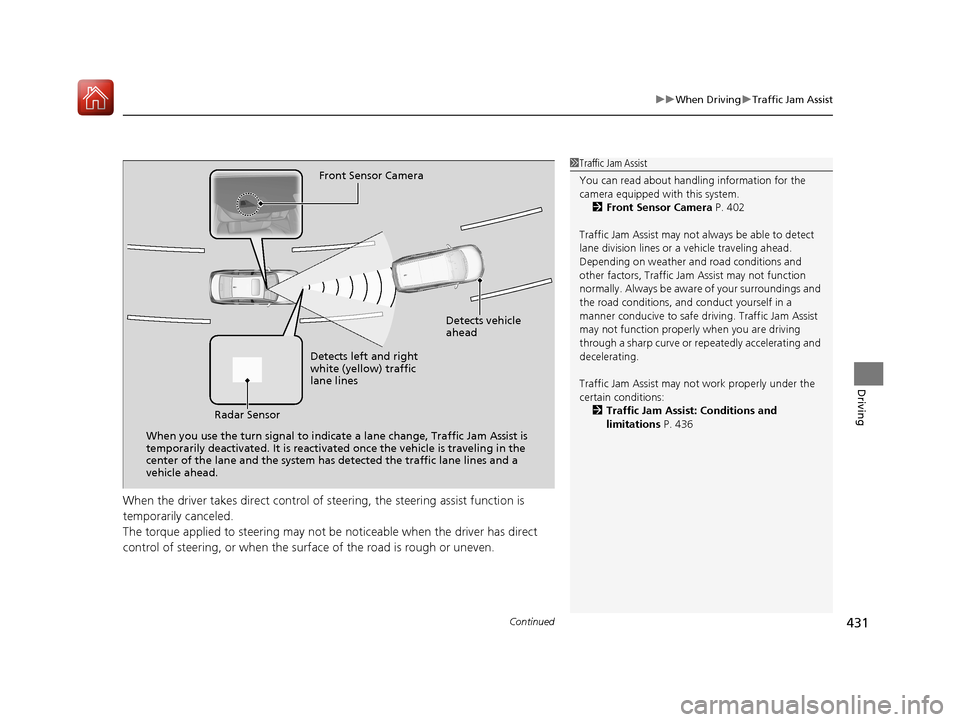

Continued431
uuWhen Driving uTraffic Jam Assist
Driving
When the driver takes direct control of steering, the steering assist function is
temporarily canceled.
The torque applied to steering may not be noticeable when the driver has direct
control of steering, or when the surfa ce of the road is rough or uneven.
Front Sensor Camera
Detects vehicle
ahead
Detects left and right
white (yellow) traffic
lane lines
Radar Sensor
When you use the turn signal to indica te a lane change, Traffic Jam Assist is
temporarily deactivated. It is reactivated once the vehicle is traveling in the
center of the lane and the system has detected the traffic lane lines and a
vehicle ahead.1 Traffic Jam Assist
You can read about handling information for the
camera equipped with this system.
2 Front Sensor Camera P. 402
Traffic Jam Assist may not always be able to detect
lane division lines or a vehicle traveling ahead.
Depending on weather and road conditions and
other factors, Traffic Jam Assist may not function
normally. Always be awar e of your surroundings and
the road conditions, and conduct yourself in a
manner conducive to safe driv ing. Traffic Jam Assist
may not function properly when you are driving
through a sharp curve or re peatedly accelerating and
decelerating.
Traffic Jam Assist may not work properly under the
certain conditions:
2 Traffic Jam Assist: Conditions and
limitations P. 436
18 ACURA RLX E-AWD-31TY36400.book 431 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

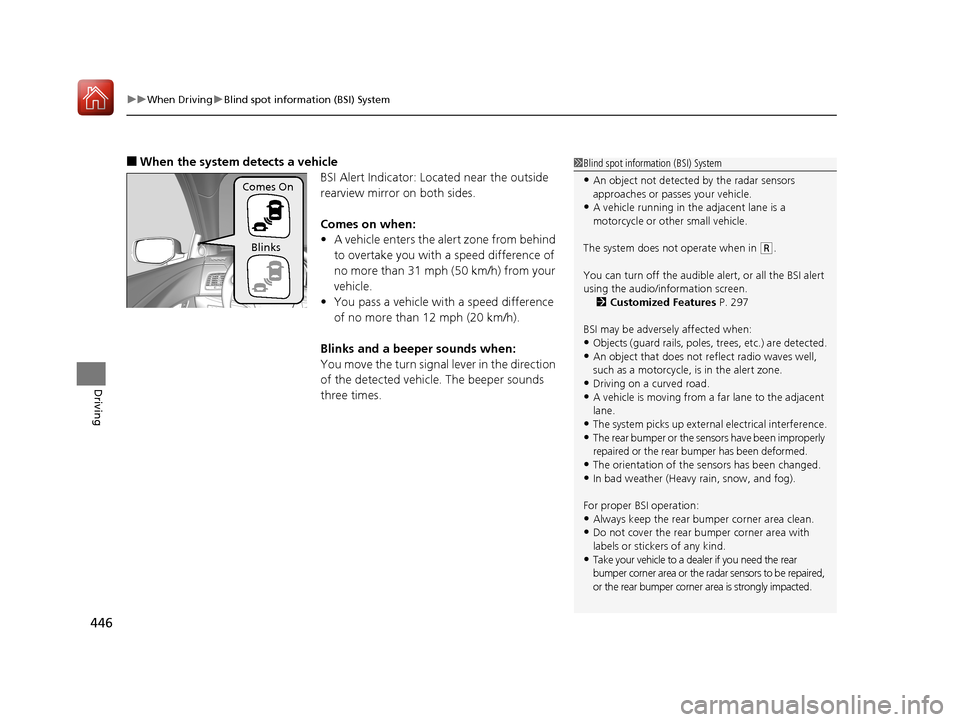

uuWhen Driving uBlind spot information (BSI) System
446
Driving
■When the system detects a vehicle
BSI Alert Indicator: Located near the outside
rearview mirror on both sides.
Comes on when:
•A vehicle enters the alert zone from behind
to overtake you with a speed difference of
no more than 31 mph (50 km/h) from your
vehicle.
• You pass a vehicle with a speed difference
of no more than 12 mph (20 km/h).
Blinks and a beeper sounds when:
You move the turn signal lever in the direction
of the detected vehicle. The beeper sounds
three times.1 Blind spot inform ation (BSI) System
•An object not detected by the radar sensors
approaches or passes your vehicle.
•A vehicle running in the adjacent lane is a
motorcycle or other small vehicle.
The system does not operate when in
( R.
You can turn off the audible alert, or all the BSI alert
using the audio/information screen. 2 Customized Features P. 297
BSI may be adversel y affected when:
•Objects (guard rails, poles, trees, etc.) are detected.•An object that does not re flect radio waves well,
such as a motorcycle, is in the alert zone.
•Driving on a curved road.•A vehicle is moving from a far lane to the adjacent
lane.
•The system picks up external electrical interference.
•The rear bumper or the sens ors have been improperly
repaired or the rear bu mper has been deformed.
•The orientation of the sensors has been changed.
•In bad weather (Heavy rain, snow, and fog).
For proper BSI operation:
•Always keep the rear bumper corner area clean.•Do not cover the rear bumper corner area with
labels or sticke rs of any kind.
•Take your vehicle to a dealer if you need the rear
bumper corner area or the radar sensors to be repaired,
or the rear bumper corner area is strongly impacted.
Comes On
Blinks
18 ACURA RLX E-AWD-31TY36400.book 446 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

515
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
Fog Lights*
Fog lights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Turn Signal Lights
Front turn signal ligh ts are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 515 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

516
uuReplacing Light Bulbs uFront Side Marker Lights
Maintenance
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
Rear Turn Signal Lights
Rear turn signal lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Brake/Taillight and Rear Side Marker Lights
Brake/taillight and rear side marker lights are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Taillights
Taillights are LED type. Have an authorized Acura dealer inspect and replace the light
assembly.
18 ACURA RLX E-AWD-31TY36400.book 516 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

586
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 5,379 lbs (2,440 kg)
Canada: 2,440 kg
Gross Axle Weight
Rating (Front)U.S.: 2,822 lbs (1,280 kg)
Canada: 1,280 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,590 lbs (1,175 kg)
Canada: 1,175 kg
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.3 - 17.1 oz (435 - 485 g)
Lubricant TypeND-OIL 11
Quantity 7.9 - 8.8 cu-in (130.0 - 145.0 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.1 US gal (57 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.3 US qt (5.0 L)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*1LED
Front Turn Signal Lights LED
Parking/Daytime Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
TaillightsLED
Back-Up Lights LED
Rear Turn Signal LightsLED
High-Mount Brake Light LED
Rear License Plate LightsLED
Door Outer Handle Ambient Lights LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights2.1 WFront Door Pocket LightsLEDCenter Pocket LightLEDBeverage Holder LightLEDDoor Courtesy Lights3.4 WConsole Compartment LightLEDGlove Box LightLEDFront and Rear*1 Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5 W
18 ACURA RLX E-AWD-31TY36400.book 586 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

601
Index
B
Battery12-Volt ................................................... 530
12-Volt Battery Charging System
Indicator ......................................... 81, 569
Charging (12-Volt Battery) ...................... 530
High Voltage........................................... 451
Jump Starting ......................................... 564
Maintenance (Checking the 12-Volt Battery) ................................................. 530
Maintenance (Replacing) ......................... 531
Battery Types .............................................. 12
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 445
Bluetooth ® Audio ..................................... 272
Bluetooth ® HandsFreeLink ®.................... 326
Booster Seats (For Children) ...................... 71
Brake System ............................................ 452
Anti-lock Brake System (ABS) .................. 458
Automatic Brake Hold ............................. 456
Brake Assist System................................. 459
Fluid ....................................................... 513
Foot Brake .............................................. 455
Parking Brake.......................................... 452
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 76, 570
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166Bulb Replacement
.................................... 515
Back-Up Lights ........................................ 517
Brake/Taillight s and Rear Side Marker
Lights .................................................... 516
Door Outer Handle Ambient Lights .......... 517
Fog Lights ................................................ 515
Front Side Marker Lights .......................... 516
Front Turn Signal/Parking Lights ............... 515
Headlights ............................................... 515
High-Mount Brake Light .......................... 517
Rear License Plate Lights .......................... 517
Rear Turn Signal Lights ............................ 516
Side Turn Signal/Em ergency Indicator
Lights .................................................... 516
Taillights .................................................. 516
Bulb Specifications ................................... 586
C
CAMERA Button....................................... 481
Carbon Monoxide Gas ................................ 72
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 375, 377
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 588
Changing Bulbs ......................................... 515
Charging System Indicator ....................... 569
Child Safety ................................................. 60
Childproof Door Locks ............................. 141 Child Seat
.................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 70
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 141
Cleaning the Exterior ............................... 535
Cleaning the Interior ................................ 533
Client Service Information ....................... 596
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 532
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 460
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 460
Compact Spare Tire (Optional) ........ 555, 587
Console Compartment ............................. 187
Controls ..................................................... 127
18 ACURA RLX E-AWD-31TY36400.book 601 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

602
Index
Coolant (Engine)....................................... 510
Adding to the Radiator ............................ 511
Adding to the Reserve Tank ..................... 510
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Overheating............................................. 567
Coolant (Inverter) ..................................... 512
Creeping (Dual Clutch Transmission) ....... 386
Cross Traffic Monitor ................................ 474
Cup Holders ............................................... 189
Customized Features ................................ 297
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 564
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 589
Dimming Headlights ............................................... 156
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 506
Directional Signals (Turn Signal) .............. 155
Door Mirrors ............................................. 173
Doors ......................................................... 129
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142
Door Open Message .................................. 37
Keys ........................................................ 129 Locking/Unlocking the Doors from
the Inside ........................................ 18, 139
Locking/Unlocking the Doors from the Outside ........................................... 131
Lockout Prevention System ...................... 137
DOT Tire Quality Grading ........................ 524
Driver’s Knee Airbag .................................. 52
Driving ...................................................... 373
Braking ................................................... 452
Dual Clutch Transmission ........................ 386
Shifting Gear ........................................... 387
Turning on the Power.............................. 380
Driving Position Memory System ............ 169
Dual Clutch Transmission
Creeping ................................................. 386
Fluid ........................................................ 513
Kickdown ................................................ 386
Operating the Shift Button ................ 23, 389
Shifting ................................................... 387
Dust and Pollen Filter ............................... 532
E
Elapsed Time............................................. 117
Electric Parking Brake Indicator.................................................... 77
Electric Parking Brake System
Indicator............................................ 77, 571
Electric Power Steering (EPS) System Indicator............................................ 84, 571 Electronic Stability Control (ESC)
............ 441
Emergency ................................................ 581
Emissions Testing (Readiness Codes) ...... 591
Energy Efficiency ........................................ 12
Engine ....................................................... 588
Coolant .................................................. 510
Jump Starting ......................................... 564
Oil .......................................................... 505
Remote Engine Start ............................... 382
Engine Compartment Cover .................... 504
Engine Coolant ........................................ 510
Adding to the Radiator ........................... 511
Adding to the Reserve Tank .................... 510
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Overheating ............................................ 567
Engine Oil ................................................. 505
Adding ................................................... 507
Checking ................................................ 506
Displaying Oil Life ................................... 498
Low Oil Pressure Indicator ................. 76, 569
Recommended Engine Oil ....................... 505
e-pretensioners .......................................... 40
EPS (Electric Power Steering) System ........ 84
Exhaust Gas Hazard (Carbon Monoxide) .. 72
Expanded Rear Door Sunshades ............. 199
Exterior Care (Cleaning) .......................... 535
Exterior Mirrors ........................................ 173
18 ACURA RLX E-AWD-31TY36400.book 602 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

604
Index
HFL (HandsFreeLink®)............................... 326
High Beam Indicator ................................... 87
High Voltage Battery ................................ 451
Hill Start Assist System .............................. 384
HomeLink ® Universal Transceiver ............ 323
Honda App License Agreement ............... 283
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............. 588
Vehicle Identification ............................... 588
Illumination Control
Buttons............................................ 166, 167
Immobilizer System .................................. 146
Indicator .................................................... 87
Indicators ..................................................... 76
12-Volt Battery Charging System ....... 81, 569
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)...................................... 90, 404
Anti-lock Brake System (ABS) ..................... 84
Automatic Brake Hold........................ 78, 456
Automatic Brake Hold System ............ 78, 456
Blind Spot Information (BSI) ............... 92, 446
Brake System (Amber)................................ 79
Brake System (Red) ............................ 76, 570
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 92, 93 Door and Trunk Open ............................... 37
Electric Parking Brake ................................ 77
Electric Parking Brake System ............ 77, 571
Electric Power Steering (EPS) System .. 84, 571
Fog Light ................................................... 87
Gear Position............................................. 81
High Beam ................................................ 87
High Temperature ..................................... 85
Immobilizer System ................................... 87
Keyless Access System ............................... 88
Lane Keeping Assist System (LKAS) .... 91, 425
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ................................ 76, 569
Low Temperature ...................................... 85
Low Tire Pressure/TPMS ............. 86, 447, 449
Malfunction Indicator Lamp............... 81, 570
POWER SYSTEM ........................................ 80
READY ...................................................... 80
Road Departure Mitigation (RDM) ............. 89
Seat Belt Reminder .............................. 39, 83
Security System Alarm ............................... 88
SPORT Mode ..................................... 88, 395
Supplemental Restraint System ............ 57, 84
System Message ........................................ 86
Transmission ............................................. 82
Turn Signal ................................................ 86
Vehicle Stability Assist (VSA
®)
System ............................................ 85, 441
VSA ® OFF .......................................... 85, 442 Information
.............................................. 585
Instant Fuel Economy .............................. 117
Instrument Panel ........................................ 75
Brightness Control .................................. 166
Interface Dial ............................................ 216
Interior Lights ........................................... 182
Interior Rearview Mirror ......................... 172
Inverter Coolant ....................................... 512
J
Jack (Wheel Nut Wrench) ........................ 558
Jump Starting ........................................... 564
K
Key Number Tag ...................................... 130
Keyless Access System .............................. 131
Keyless Lockout Prevention ..................... 137
Keys ........................................................... 129
Lockout Prevention ................................. 137
Number Tag............................................ 130
Rear Door Won’t Open ........................... 141
Remote Transmitter ................................ 136
Two-way Keyless Access Remote..... 138, 382
Types and Functions................................ 129
Kickdown (Dual Clutch Transmission) .... 386
18 ACURA RLX E-AWD-31TY36400.book 604 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
