Acura RLX HYBRID 2018 Owner's Guide

20
Quick Reference Guide

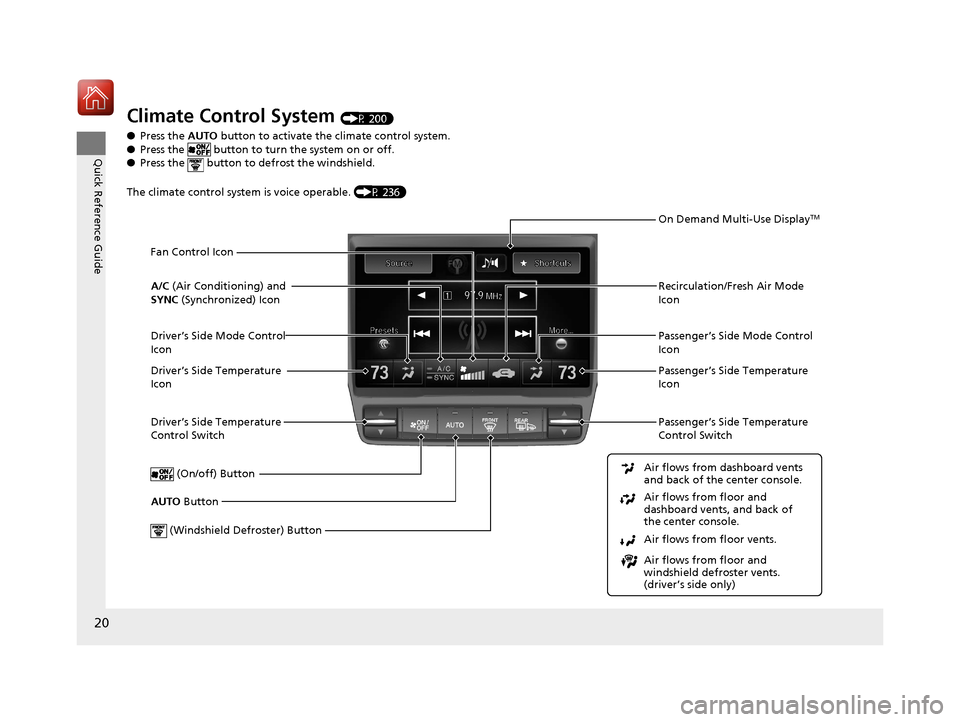

Climate Control System (P 200)
● Press the AUTO button to activate the climate control system.
● Press the button to turn the system on or off.
● Press the button to defrost the windshield.
The climate control system is voice operable. (P 236)
Driver’s Side Temperature
Control Switch
Air flows from floor and
windshield defroster vents.
(driver’s side only) Air flows from floor vents. Air flows from floor and
dashboard vents, and back of
the center console. Air flows from dashboard vents
and back of the center console.
AUTO Button Passenger’s Side Temperature
Control Switch
(On/off) Button
Driver’s Side Temperature
Icon Passenger’s Side Temperature
Icon
On Demand Multi-Use DisplayTM
(Windshield Defroster) Button
Driver’s Side Mode Control
Icon A/C
(Air Conditioning) and
SYNC (Synchronized) IconPassenger’s Side Mode Control
Icon
Recirculation/Fresh Air Mode
Icon
Fan Control Icon
18 ACURA RLX E-AWD-31TY36400.book 20 ページ ２０１７年７月２０日　木曜日　午後６時８分

21
Quick Reference Guide

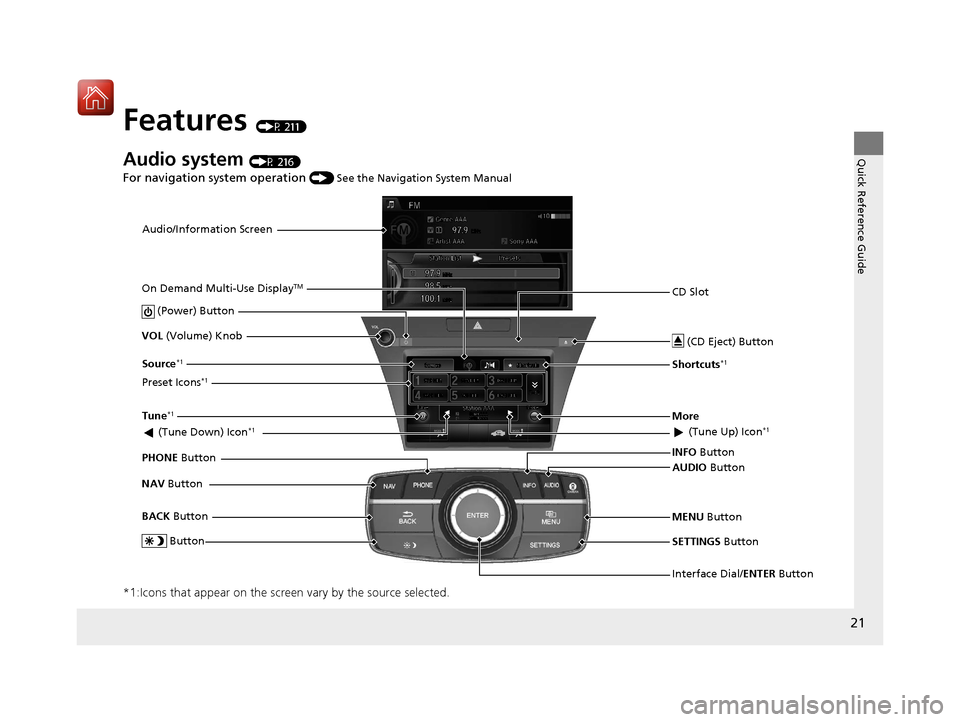

Features (P 211)
Audio system (P 216)
For navigation system operation () See the Navigation System Manual
*1:Icons that appear on the screen vary by the source selected.
Audio/Information Screen
Interface Dial/ENTER Button
(Power) Button
CD Slot
(CD Eject) Button
SETTINGS Button
VOL
(Volume) Knob
BACK Button
NAV
Button AUDIO
Button
INFO
Button
On Demand Multi-Use Display
TM
PHONE
Button
Preset Icons
*1
(Tune Up) Icon*1
Source*1
(Tune Down) Icon*1Tune*1More
Button
Shortcuts*1
MENU
Button
18 ACURA RLX E-AWD-31TY36400.book 21 ページ ２０１７年７月２０日　木曜日　午後６時８分

22
Quick Reference Guide

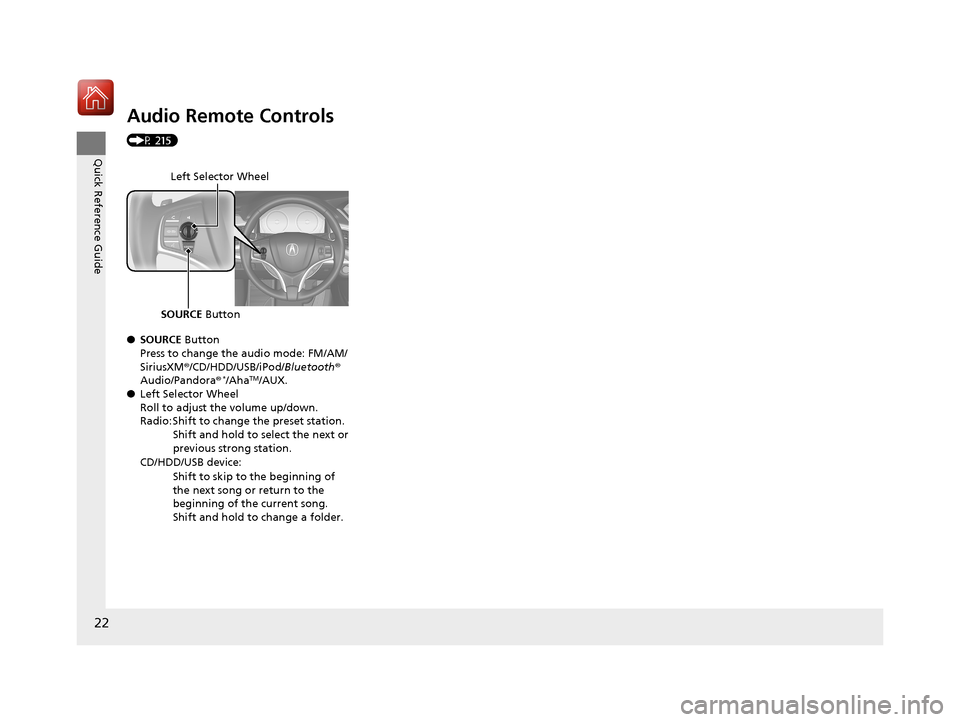

Audio Remote Controls
(P 215)
●SOURCE Button
Press to change the audio mode: FM/AM/
SiriusXM ®/CD/HDD/USB/iPod/ Bluetooth®
Audio/Pandora®
*/AhaTM/AUX.
● Left Selector Wheel
Roll to adjust the volume up/down.
Radio: Shift to change the preset station.
Shift and hold to select the next or
previous strong station.
CD/HDD/USB device: Shift to skip to the beginning of
the next song or return to the
beginning of the current song.
Shift and hold to change a folder.
Left Selector Wheel
SOURCE Button
18 ACURA RLX E-AWD-31TY36400.book 22 ページ ２０１７年７月２０日　木曜日　午後６時８分

23
Quick Reference Guide

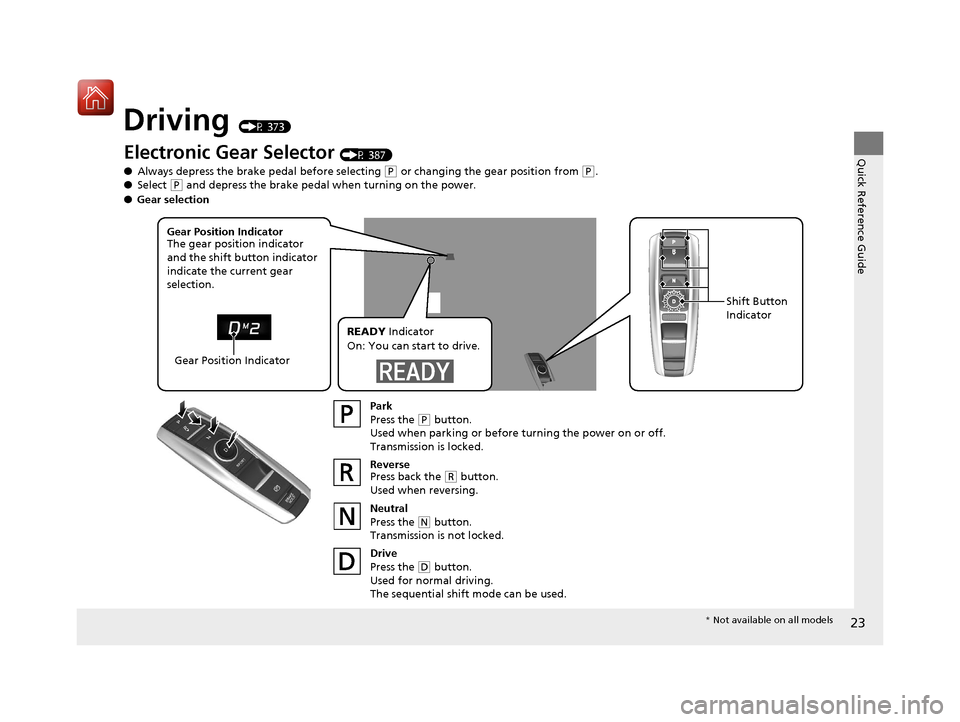

Driving (P 373)
Electronic Gear Selector (P 387)
● Always depress the brake pedal before selecting
(P or changing the gear position from (P.
● Select (P and depress the brake pedal when turning on the power.
Park
Press the
(P button.
Used when parking or before turning the power on or off.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Drive
Press the
( D button.
Used for normal driving.
The sequential shift mode can be used.
Gear Position Indicator
The gear position indicator
and the shift bu tton indicator
indicate the current gear
selection.
Gear Position Indicator Shift Button
Indicator
●
Gear selection
READY Indicator
On: You can start to drive.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 23 ページ ２０１７年７月２０日　木曜日　午後６時８分

24
Quick Reference Guide

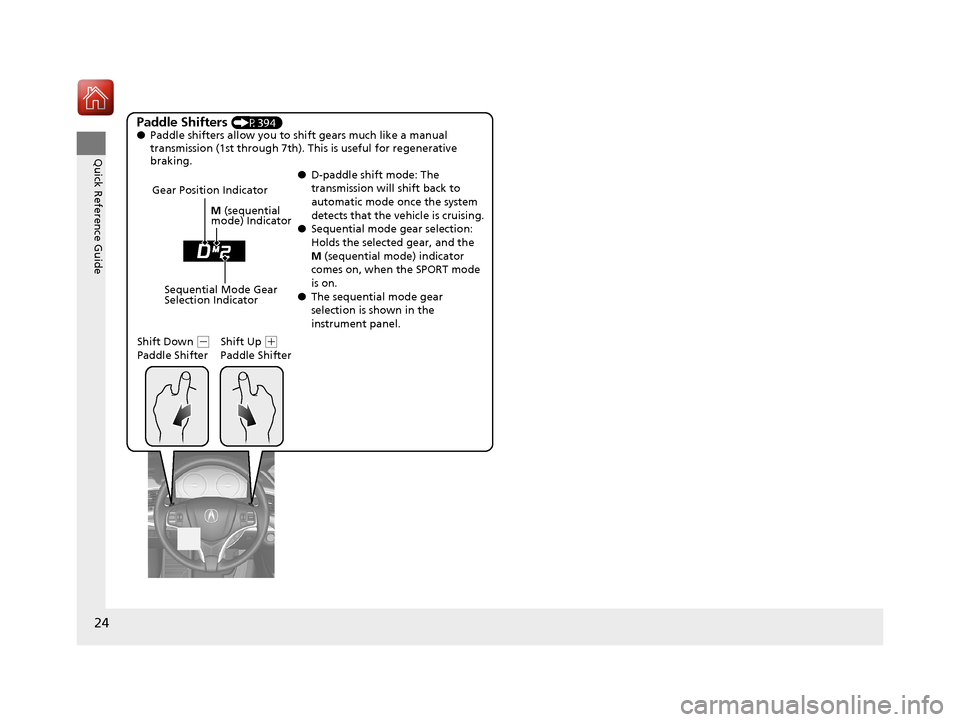

Paddle Shifters (P394)
● Paddle shifters allow you to shift gears much like a manual
transmission (1st through 7th). This is useful for regenerative
braking.
●D-paddle shift mode: The
transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
● Sequential mode gear selection:
Holds the selected gear, and the
M (sequential mode) indicator
comes on, when the SPORT mode
is on.
● The sequential mode gear
selection is shown in the
instrument panel.
Gear Position Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Sequential Mode Gear
Selection Indicator M
(sequential
mode) Indicator
18 ACURA RLX E-AWD-31TY36400.book 24 ページ ２０１７年７月２０日　木曜日　午後６時８分

25
Quick Reference Guide

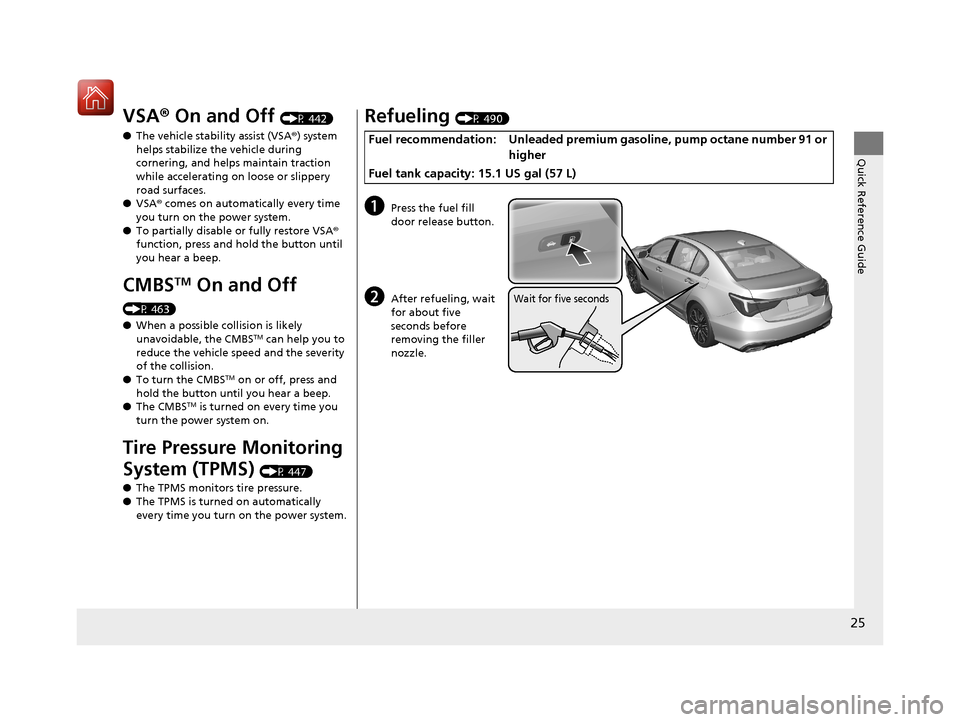

VSA® On and Off (P 442)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you turn on the power system.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P 463)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
● The CMBS
TM is turned on every time you
turn the power system on.
Tire Pressure Monitoring
System (TPMS)
(P 447)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you turn on the power system.
Refueling (P 490)
aPress the fuel fill
door release button.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Fuel recommendation: Unleaded premium ga soline, pump octane number 91 or
higher
Fuel tank capacity: 15.1 US gal (57 L)
Wait for five seconds
18 ACURA RLX E-AWD-31TY36400.book 25 ページ ２０１７年７月２０日　木曜日　午後６時８分

26
Quick Reference Guide

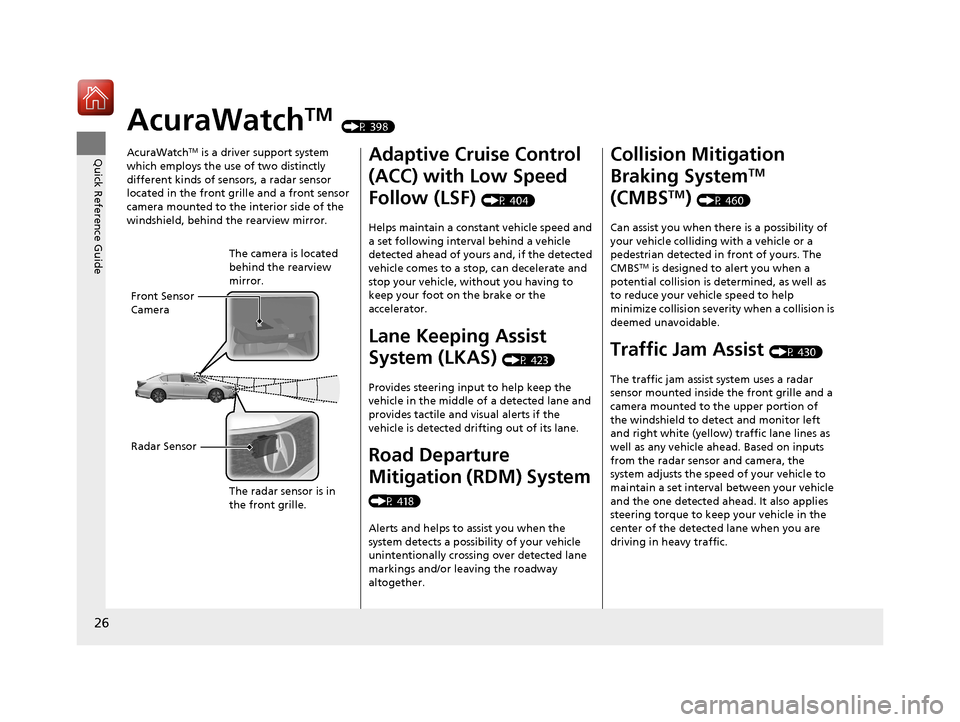

AcuraWatchTM (P 398)
AcuraWatch
TM is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rearview mirror.
Front Sensor
Camera The camera is located
behind the rearview
mirror.
Radar Sensor The radar sensor is in
the front grille.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
(P 404)
Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, wi thout you having to
keep your foot on the brake or the
accelerator.
Lane Keeping Assist
System (LKAS)
(P 423)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Road Departure
Mitigation (RDM) System
(P 418)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 460)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.
Traffic Jam Assist (P 430)
The traffic jam assist system uses a radar
sensor mounted inside the front grille and a
camera mounted to the upper portion of
the windshield to detect and monitor left
and right white (yellow) traffic lane lines as
well as any vehicle ahead. Based on inputs
from the radar sensor and camera, the
system adjusts the speed of your vehicle to
maintain a set interval between your vehicle
and the one detected ahead. It also applies
steering torque to keep your vehicle in the
center of the detected lane when you are
driving in heavy traffic.
18 ACURA RLX E-AWD-31TY36400.book 26 ページ ２０１７年７月２０日　木曜日　午後６時８分

27
Quick Reference Guide
Maintenance (P 493)
Under the Hood (P 502)
● Check engine oil, engine coolant, and inverter coolant. Add
when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 515)
● Inspect all lights regularly.
Wiper Blades (P 518)
● Replace blades if they leave streaks
across the windshield.
Tires (P 521)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
18 ACURA RLX E-AWD-31TY36400.book 27 ページ ２０１７年７月２０日　木曜日　午後６時８分

28
Quick Reference Guide
Handling the Unexpected (P 541)
Flat Tire (P 543)
● Park in a safe location and repair the flat
tire using the tire repair kit, or replace
the flat tire with the compact spare tire
*1.
Indicators Come On
(P 569)
●Identify the indicator and consult the
owner’s manual.
*1:Vehicles with optional spare tire kit
Power System Won’t Start
(P 561)
● If the 12-volt battery is dead, jump start
using a booster battery.
Blown Fuse

(P 574)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 567)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the power sy stem and the engine
cool down.
Emergency Towing
(P 581)
● Call a professional towing service if you
need to tow your vehicle.
18 ACURA RLX E-AWD-31TY36400.book 28 ページ ２０１７年７月２０日　木曜日　午後６時８分

29
Quick Reference Guide

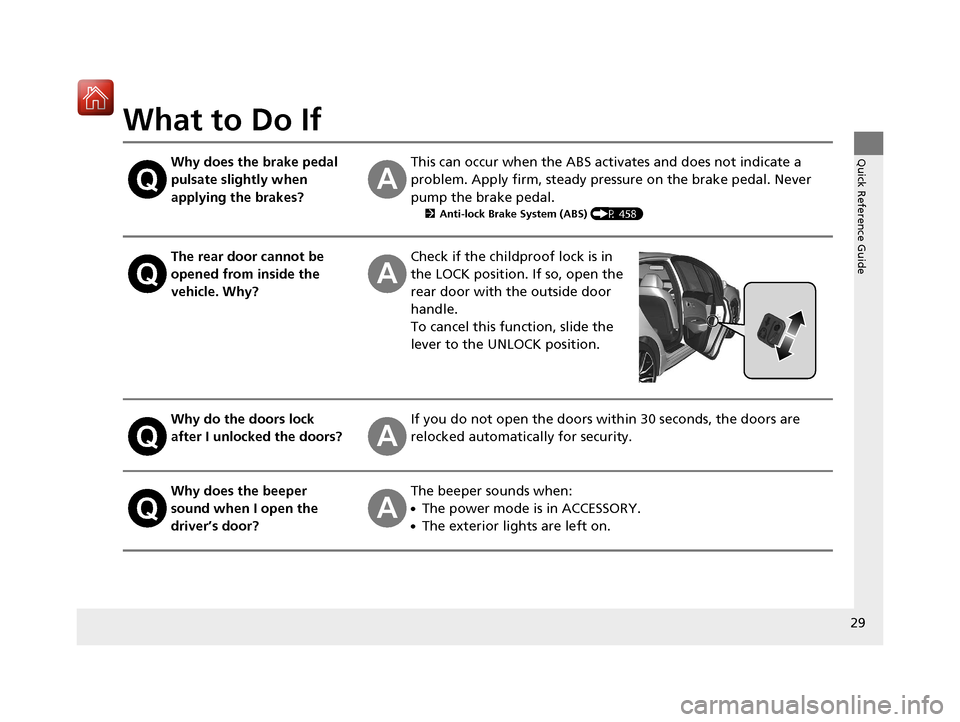

What to Do If
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2Anti-lock Brake System (ABS) (P 458)
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in
the LOCK position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever to the UNLOCK position.
Why do the doors lock
after I unlocked the doors?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
