bulb Acura RLX HYBRID 2018 Owner's Manual

Contents
Child Safety P. 60Exhaust Gas Hazard P. 72Safety Labels P. 73
Opening and Closing the Trunk P. 143 Security System P. 146 Opening and Closing the Windows P. 149
Operating the Switches Around the Steering Wheel P. 152 Adjusting the Mirrors P. 172
Interior Lights/Interior Convenience It ems P. 182 Climate Control System P. 200
Audio Error Messages P. 274General Information on the Audio System P. 279
Bluetooth® HandsFreeLink ® P. 326 AcuraLink ® P. 365
When Driving P. 380 Braking P. 452Parking Your Vehicle P. 468
Refueling P. 490 Fuel Economy and CO
2 Emissions P. 492
Maintenance Under the Hood P. 502 Replacing Light Bulbs P. 515
Checking and Maintaining Tires P. 521 12-Volt Battery P. 530 Remote Transmitter Care P. 531
Cleaning P. 533 Accessories and Modifications P. 538
Power System Won’t Start P. 561 Jump Starting P. 564
Fuses P. 574 Emergency Towing P. 581 When You Cannot Unlock the Fuel Fill Door P. 582
Refueling P. 584
Devices that Emit Radio Waves P. 589 Reporting Safety Defects P. 590
Authorized Manuals P. 595 Client Service Information P. 596
Quick Reference GuideP. 4
Safe DrivingP. 33
Instrument PanelP. 75
ControlsP. 127
FeaturesP. 211
DrivingP. 373
MaintenanceP. 493
Handling the UnexpectedP. 541
InformationP. 585
IndexP. 600
18 ACURA RLX E-AWD-31TY36400.book 3 ページ ２０１７年７月２０日　木曜日　午後６時８分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire Pressure/
TPMS Indicator
•Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on if the tire pressure of any
of the tires becomes significantly
low.•Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
• Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire
* is temporarily installed.
• Blinks and remains on - Have your
vehicle checked by a deal er. If the vehicle is
fitted with a compact spare
*, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
System Message
Indicator
• Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.•While the indicator is on, roll the right
selector wheel to see the message again.
• Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
• The multi-information display does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is rolled.
—
Turn Signal and
Hazard Warning
Indicators
•Blinks when you operate the turn
signal lever.
• Blinks along with all turn signals
when you press the hazard warning
button.• Does not blink or blinks rapidly - Have
your vehicle checked by a dealer.
2 Replacing Light Bulbs P. 515, 516—
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 86 ページ ２０１７年７月２０日　木曜日　午後６時８分

493
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 494
Safety When Performing Maintenance .... 495Parts and Fluids Used in Maintenance Service ........................................... 496
Maintenance Minder
TM..................... 497
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 502Opening the Hood ........................... 503
Engine Compartment Cover ............. 504
Recommended Engine Oil ................ 505
Oil Check ......................................... 506
Adding Engine Oil ............................ 507
Changing the Engine Oil and Oil Filter ..... 508Cooling System ................................ 510
Inverter Coolant ............................... 512
Transmission Fluid ............................ 513
Brake Fluid ....................................... 513
Refilling Window Washer Fluid......... 514
Replacing Light Bulbs ....................... 515
Checking and Maintaining Wiper Blades.... 518Checking and Maintaining Tires
Checking Tires ................................. 521
Tire and Loading Information Label .. 522
Tire Labeling .................................... 522
DOT Tire Quality Grading (U.S. Vehicles).. 524
Wear Indicators ............................... 526
Tire Service Life ................................ 526
Tire and Wheel Replacement ........... 527
Tire Rotation .................................... 528
Winter Tires ..................................... 529
12-Volt Battery ................................. 530
Remote Transmitter Care Replacing the Button Battery ........... 531
Climate Control System Maintenance.... 532CleaningInterior Care .................................... 533
Exterior Care.................................... 535
Accessories and Modifications ........ 538
18 ACURA RLX E-AWD-31TY36400.book 493 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

494
Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.) Refer to the separate maintena nce booklet for detailed maintenance and
inspection information.
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake fluid level monthly.
2 Brake Fluid P. 513
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 521
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 515
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 518
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the mult i-information display.
2 Maintenance Service Items P. 500
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 595
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
18 ACURA RLX E-AWD-31TY36400.book 494 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

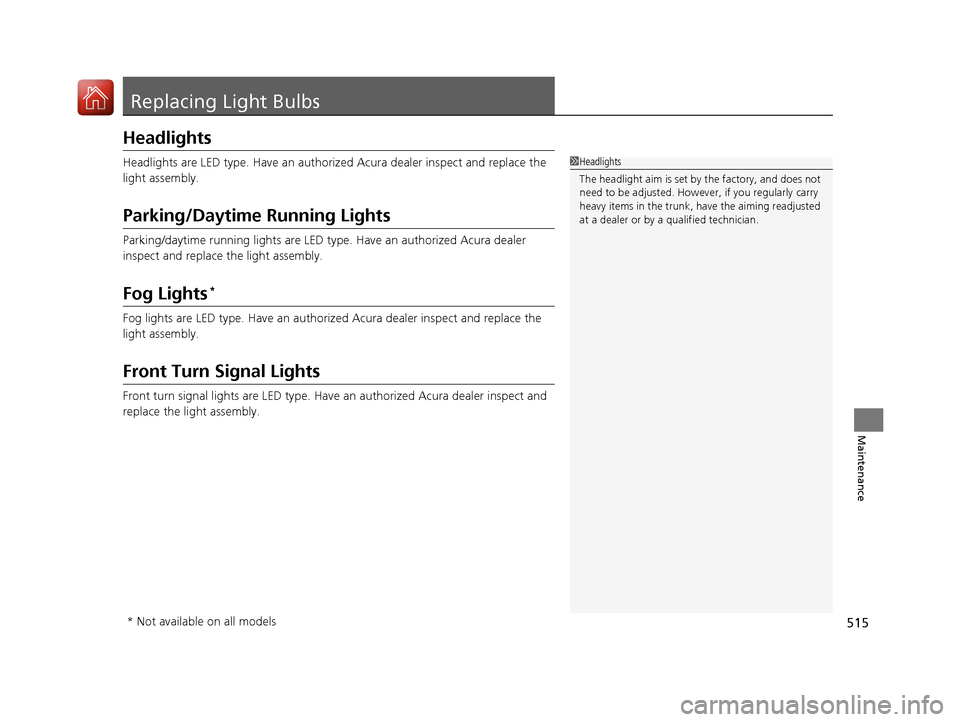

515
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type. Have an authorized Acura dealer
inspect and replace the light assembly.
Fog Lights*
Fog lights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Front Turn Signal Lights
Front turn signal ligh ts are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 515 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

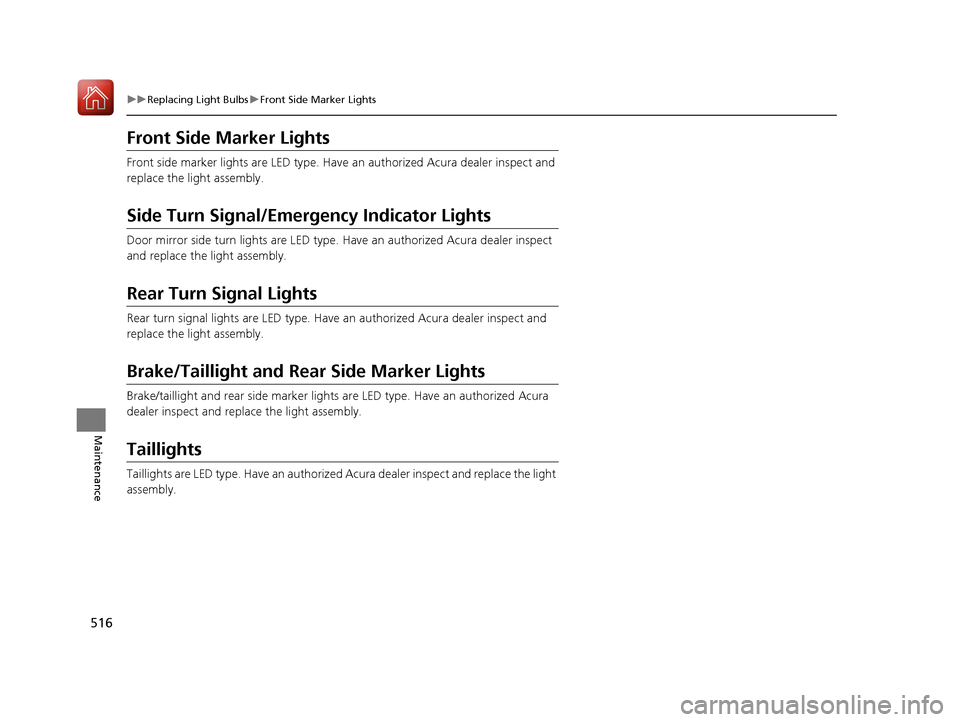

516
uuReplacing Light Bulbs uFront Side Marker Lights
Maintenance
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
Rear Turn Signal Lights
Rear turn signal lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Brake/Taillight and Rear Side Marker Lights
Brake/taillight and rear side marker lights are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Taillights
Taillights are LED type. Have an authorized Acura dealer inspect and replace the light
assembly.
18 ACURA RLX E-AWD-31TY36400.book 516 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

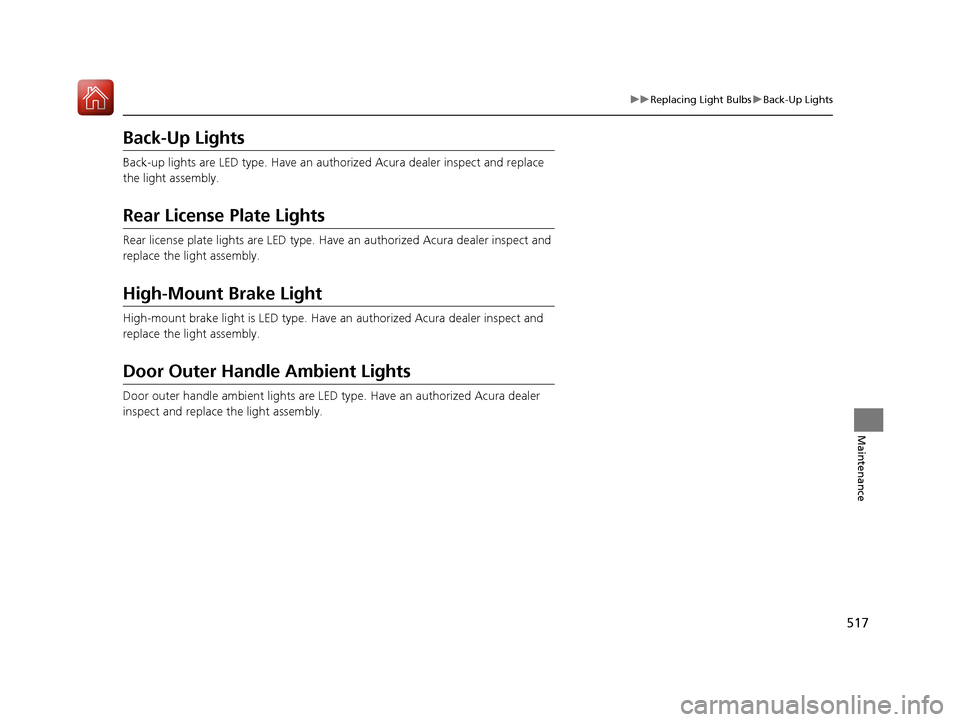

517
uuReplacing Light Bulbs uBack-Up Lights
Maintenance
Back-Up Lights
Back-up lights are LED type. Have an auth orized Acura dealer inspect and replace
the light assembly.
Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Door Outer Handle Ambient Lights
Door outer handle ambient lights are LED ty pe. Have an authorized Acura dealer
inspect and replace the light assembly.
18 ACURA RLX E-AWD-31TY36400.book 517 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

586
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 5,379 lbs (2,440 kg)
Canada: 2,440 kg
Gross Axle Weight
Rating (Front)U.S.: 2,822 lbs (1,280 kg)
Canada: 1,280 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,590 lbs (1,175 kg)
Canada: 1,175 kg
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.3 - 17.1 oz (435 - 485 g)
Lubricant TypeND-OIL 11
Quantity 7.9 - 8.8 cu-in (130.0 - 145.0 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.1 US gal (57 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.3 US qt (5.0 L)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*1LED
Front Turn Signal Lights LED
Parking/Daytime Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
TaillightsLED
Back-Up Lights LED
Rear Turn Signal LightsLED
High-Mount Brake Light LED
Rear License Plate LightsLED
Door Outer Handle Ambient Lights LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights2.1 WFront Door Pocket LightsLEDCenter Pocket LightLEDBeverage Holder LightLEDDoor Courtesy Lights3.4 WConsole Compartment LightLEDGlove Box LightLEDFront and Rear*1 Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5 W
18 ACURA RLX E-AWD-31TY36400.book 586 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

601
Index
B
Battery12-Volt ................................................... 530
12-Volt Battery Charging System
Indicator ......................................... 81, 569
Charging (12-Volt Battery) ...................... 530
High Voltage........................................... 451
Jump Starting ......................................... 564
Maintenance (Checking the 12-Volt Battery) ................................................. 530
Maintenance (Replacing) ......................... 531
Battery Types .............................................. 12
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 189
Blind Spot Information (BSI) System ....... 445
Bluetooth ® Audio ..................................... 272
Bluetooth ® HandsFreeLink ®.................... 326
Booster Seats (For Children) ...................... 71
Brake System ............................................ 452
Anti-lock Brake System (ABS) .................. 458
Automatic Brake Hold ............................. 456
Brake Assist System................................. 459
Fluid ....................................................... 513
Foot Brake .............................................. 455
Parking Brake.......................................... 452
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 76, 570
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166Bulb Replacement
.................................... 515
Back-Up Lights ........................................ 517
Brake/Taillight s and Rear Side Marker
Lights .................................................... 516
Door Outer Handle Ambient Lights .......... 517
Fog Lights ................................................ 515
Front Side Marker Lights .......................... 516
Front Turn Signal/Parking Lights ............... 515
Headlights ............................................... 515
High-Mount Brake Light .......................... 517
Rear License Plate Lights .......................... 517
Rear Turn Signal Lights ............................ 516
Side Turn Signal/Em ergency Indicator
Lights .................................................... 516
Taillights .................................................. 516
Bulb Specifications ................................... 586
C
CAMERA Button....................................... 481
Carbon Monoxide Gas ................................ 72
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 375, 377
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 588
Changing Bulbs ......................................... 515
Charging System Indicator ....................... 569
Child Safety ................................................. 60
Childproof Door Locks ............................. 141 Child Seat
.................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Larger Children ......................................... 70
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 141
Cleaning the Exterior ............................... 535
Cleaning the Interior ................................ 533
Client Service Information ....................... 596
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 532
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 460
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 460
Compact Spare Tire (Optional) ........ 555, 587
Console Compartment ............................. 187
Controls ..................................................... 127
18 ACURA RLX E-AWD-31TY36400.book 601 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

605
Index
L
Lane Keeping Assist System (LKAS)........ 423
Language (HFL) ........................................ 327
LATCH (Child Seats) ................................... 65
Lights ................................................ 156, 515
Automatic............................................... 157
Bulb Replacement ................................... 515
Daytime Running Lights .......................... 159
Fog Lights ............................................... 159
High Beam Indicator ................................. 87
Interior.................................................... 182
Light Switches......................................... 156
Lights On Indicator.................................... 87
Turn Signals ............................................ 155
Load Limits ............................................... 377
Locking/Unlocking ................................... 129
Auto Door Locking/Unlocking ................. 142
Childproof Door Locks ............................ 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys........................................................ 129
Using a Key............................................. 137
Lockout Prevention System ..................... 137
Low Battery Charge (12-Volt) ................. 569
Low Fuel Indicator ..................................... 83
Low Keyless Access Remote Signal Strength .................................................. 130
Low Oil Pressure Indicator ................. 76, 569
Lower Anchors ........................................... 65
Luggage (Maximum Load Limit) ............. 377
Lumbar Support ....................................... 176
M
Maintenance............................................. 493
12-Volt Battery ........................................ 530
Brake Fluid .............................................. 513
Cleaning .................................................. 533
Climate Control System ........................... 532
Coolant ........................................... 510, 512
Maintenance Minder
TM............................ 497
Oil ........................................................... 506
Precautions .............................................. 494
Radiator .................................................. 511
Remote Transmitter ................................. 531
Replacing Light Bulbs ............................... 515
Safety ...................................................... 495
Service Items ........................................... 500
Tires ........................................................ 521
Transmission Fluid ................................... 513
Under the Hood ...................................... 502
Malfunction Indicator Lamp .............. 81, 570
Map Lights ................................................ 183
Maximum Load Limit ............................... 377
Meters, Gauges ......................................... 112
Mirrors ....................................................... 172
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172
Modifications (and Accessories) .............. 538
Moonroof .................................................. 151
MP3 ................................................... 245, 269
Multi-Information Display ....................... 114Multi-View Rear Camera
.......................... 478
N
Numbers (Identification).......................... 588
O
Odometer................................................. 116
Oil (Engine) ....................................... 505, 587
Adding .................................................... 507
Checking................................................. 506
Displaying Oil Life .................................... 498
Low Oil Pressure Indicator ................. 76, 569
Recommended Engine Oil ............... 505, 587
Viscosity .......................................... 505, 587
On Demand Multi-Use Display
TM............. 217
Open Source Licenses ............................... 296
Opening Trunk ...................................................... 583
Opening/Closing Hood....................................................... 503
Moonroof ............................................... 151
Power Windows ...................................... 149
Trunk ...................................................... 143
Operating the Switches Around the Steering
Wheel ...................................................... 152
Outside Temperature Display .................. 116
Overheating .............................................. 567
18 ACURA RLX E-AWD-31TY36400.book 605 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
