engine oil Acura RLX HYBRID 2018 Owner's Manual

27
Quick Reference Guide
Maintenance (P 493)
Under the Hood (P 502)
● Check engine oil, engine coolant, and inverter coolant. Add
when necessary.
● Check brake fluid.
● Check the 12-volt battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 515)
● Inspect all lights regularly.
Wiper Blades (P 518)
● Replace blades if they leave streaks
across the windshield.
Tires (P 521)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
18 ACURA RLX E-AWD-31TY36400.book 27 ページ ２０１７年７月２０日　木曜日　午後６時８分

72
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the trunk open, airflow can pull exhaust gas into
the interior and create a hazardous condition. If you must drive with the trunk open,
open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not turn the power system on with the garage
door closed. Even when th e garage door is open,
drive out of the garage i mmediately after turning the
power system on.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
18 ACURA RLX E-AWD-31TY36400.book 72 ページ ２０１７年７月２０日　木曜日　午後６時８分

76
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Brake System
Indicator (Red)
●Comes on for a few seconds when
you set the power mode to ON, then
goes off.
●Comes on when the brake fluid level
is low.
●Comes on if there is a problem with
the brake system.
●Comes on while driving - Check the
brake fluid level.
2 What to do when the indicator comes
on while driving P. 570
●Comes on along with the brake system
indicator (amber) - Immediately stop in a
safe place. Contact a dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you normally
do.
●Comes on along with the ABS indicator
- Have your vehicle checked by a dealer.
2 If the Brake System Indicator (Red)
Comes On P. 570
Low Oil Pressure
Indicator
●Comes on when you set the power
mode to ON, and goes off when the
power system starts.
●Comes on when the engine oil
pressure is low.
●Comes on while driving - Immediately
stop in a safe place.
2 If the Low Oil Pressure Indicator
Comes On P. 569
U.S.
Canada
(Red)
18 ACURA RLX E-AWD-31TY36400.book 76 ページ ２０１７年７月２０日　木曜日　午後６時８分

114
uuGauges and Displays uMulti-Information Display
Instrument Panel
Multi-Information Display
The multi-information display displays the odometer, trip meter, outside
temperature, and other gauges. It also displays important messages such as
warnings and other helpful information.
■Main displays
Roll the right selector wheel to change the display.
■Switching the Display
Right Selector Wheel Engine Oil LifeElapsed Time
Blank Screen
Average Speed
Range
Instant Fuel Economy/
Average Fuel Economy
Compass
Tire Pressure for
Each Tire Current Mode for ACC
with LSF, the LKAS,
and Traffic Jam Assist
Head-up Display
Content This message shows
when ACC with LSF,
the LKAS, and Traffic
Jam Assist are off.
Turn-by-Turn
Directions
18 ACURA RLX E-AWD-31TY36400.book 114 ページ ２０１７年７月２０日　木曜日　午後６時
８分

uuGauges and Displays uMulti-Information Display
118
Instrument Panel
The navigation system shows you turn-by -turn directions to your destination.
When the navigation system is not providing driving guidance, an image of a
compass appears in the multi-information display.
2 Refer to the Navigation System Manual
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 497
Shows the tire pressure of each tire.
2Tire Pressure Monitoring System (TPMS) P. 447
Shows the display for changing the head-up display content.
2To Change Head-Up Display Content P. 121
■Turn-by-Turn Directions
■Engine Oil Life
■Tire Pressure Monitor
■Head-Up Display Content
1Turn-by-Turn Directions
You can select whether to have the turn-by-turn
display come on duri ng the route guidance.
2 Customized Features P. 297
18 ACURA RLX E-AWD-31TY36400.book 118 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

313
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Settings
Door
SetupSecurity Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door. 90seconds
/
60seconds /
30seconds*1
Auto Folding Door Mirror Changes how you can fold the door mirrors. Auto Fold With
Keyless*1/
Manual
Only
Wiper
Setup Wiper Action
Changes the setting for the automatic
intermittent wipers in the
AUTO position. Rain Sensing
*1/
Intermittent /Speed
Sensitive
Mainte-
nance
Info.Maintenance Reset Resets the engine oil life display when you have
performed the maintenance service. —
Default Cancels/Resets all customized items in the
Vehicle Settings
group as default. Default/
OK
Camera
Settings
Rear
Camera
Fixed GuidelineSelects whether the fixed guidelines come on the
rear camera monitor.On*1/ Off
Dynamic GuidelineSelects whether the dynamic guidelines come on
the rear camera monitor.On*1/Off
DefaultCancels/Resets all customized items in the Rear
Camera group as default.Default/ OK
Cross Traffic MonitorTurns the cross traffic monitor feature on and off.On*1/Off
Models with
multi-view
rear camera
18 ACURA RLX E-AWD-31TY36400.book 313 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

Continued383
uuWhen Driving uTurning on the Power
Driving
■To turn the power system off1Remote Engine Start with Vehicle Feedback
•The engine oil pressure is low.•The engine coolant temper ature is extremely high.
•The telematics unit malfunctions.
•The security system alarm is not set.
Before turning the power sy stem on, make sure to
check the door lock status using the remote. When
you press the button, wait for the green LED to
blink. If the red LED turns on, the doors and trunk did
not lock, and the power system is not turned on.
While the power system is on, the vehicle will
automatically preconditi on inside the vehicle.
When it is cold outside:
•The defroster and heated windshield are activated
at a moderately warm temperature.
•The rear defogger, door mi rror heaters and heated
windshield are activated.
•The heated steering wheel is activated. 2Heated Steering Wheel P. 194
Press and hold the button
for one second.
Go within the range,
and try again.
Amber LED: Blinks when any
button is pressed. Red LED:
●Comes on for one second to let you know
that the power system is turned off.
●Blinks when the remote is out of the keyless
access system range. The power system will not
be turned off.
18 ACURA RLX E-AWD-31TY36400.book 383 ページ ２０１７年７月２０日　木曜日　午後６時
８分

492
Driving
Fuel Economy and CO2 Emissions
Improving Fuel Economy and Reducing CO2 Emissions
Achieving fuel economy and reducing CO2 emissions is dependent on several
factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.
You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
multi-information display.
• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicl e with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle’s underside
adds weight and increases wind resistance.
■Maintenance and Fuel Economy
1Improving Fuel Economy and Reducing CO2 Emissions
Direct calculation is the recommended method to
determine actual fuel consumed while driving.
In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/
Miles driven Gallons of
fuel Miles per
Gallon
100 L per 100 km
Liters of
fuel Kilometers
driven
18 ACURA RLX E-AWD-31TY36400.book 492 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

493
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 494
Safety When Performing Maintenance .... 495Parts and Fluids Used in Maintenance Service ........................................... 496
Maintenance Minder
TM..................... 497
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 502Opening the Hood ........................... 503
Engine Compartment Cover ............. 504
Recommended Engine Oil ................ 505
Oil Check ......................................... 506
Adding Engine Oil ............................ 507
Changing the Engine Oil and Oil Filter ..... 508Cooling System ................................ 510
Inverter Coolant ............................... 512
Transmission Fluid ............................ 513
Brake Fluid ....................................... 513
Refilling Window Washer Fluid......... 514
Replacing Light Bulbs ....................... 515
Checking and Maintaining Wiper Blades.... 518Checking and Maintaining Tires
Checking Tires ................................. 521
Tire and Loading Information Label .. 522
Tire Labeling .................................... 522
DOT Tire Quality Grading (U.S. Vehicles).. 524
Wear Indicators ............................... 526
Tire Service Life ................................ 526
Tire and Wheel Replacement ........... 527
Tire Rotation .................................... 528
Winter Tires ..................................... 529
12-Volt Battery ................................. 530
Remote Transmitter Care Replacing the Button Battery ........... 531
Climate Control System Maintenance.... 532CleaningInterior Care .................................... 533
Exterior Care.................................... 535
Accessories and Modifications ........ 538
18 ACURA RLX E-AWD-31TY36400.book 493 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

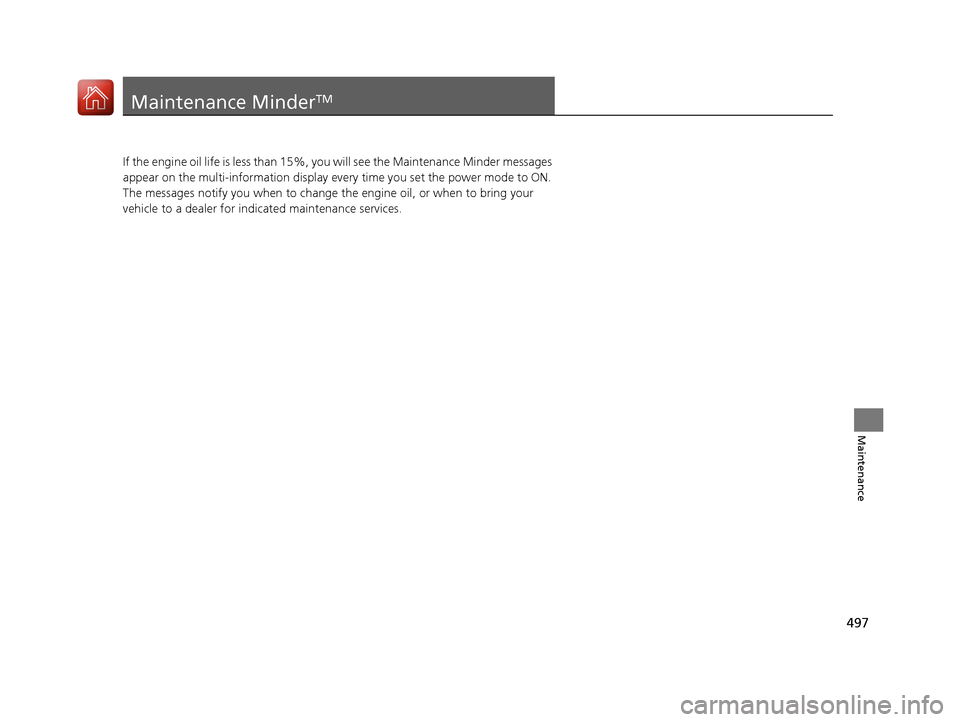

497
Maintenance
Maintenance MinderTM
If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the multi-information display ev ery time you set the power mode to ON.
The messages notify you when to change th e engine oil, or when to bring your
vehicle to a dealer for indicated maintenance services.
18 ACURA RLX E-AWD-31TY36400.book 497 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
