trailer Acura RLX HYBRID 2018 Owner's Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 33
For Safe Driving P. 34 Seat Belts P. 38 Airbags P. 45
2Instrument Panel P. 75
Indicators P. 76 Gauges and Displays P. 112
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 129
Opening and Closing the Moonroof P. 151
Adjusting the Seats P. 175
2 Features P. 211
Audio System P. 212 Audio System Basic Operation P. 216
Customized Features P. 297 HomeLink® Universal Transceiver P. 323
2 Driving P. 373
Before Driving P. 374 Towing a Trailer P. 379
Multi-View Rear Camera* P. 478 Surround View Camera System* P. 480
2Maintenance P. 493
Before Performing Maintenance P. 494 Maintenance MinderTM P. 497
Checking and Maintaining Wiper Blades P. 518
Climate Control System Maintenance P. 532
2Handling the Unexpected P. 541
Tools P. 542 If a Tire Goes Flat P. 543
Overheating P. 567 Indicator, Coming On/Blinking P. 569
When You Cannot Open the Trunk P. 583
2 Information P. 585
Specifications P. 586 Identification Numbers P. 588
Emissions Testing P. 591 Warranty Coverages P. 593
18 ACURA RLX E-AWD-31TY36400.book 2 ページ ２０１７年７月２０日　木曜日　午後６時８分

373
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 374
Maximum Load Limit........................ 377
Towing a Trailer ................................ 379
When Driving Turning on the Power ...................... 380
Precautions While Driving................. 385
Dual Clutch Transmission ................. 386
Shifting ............................................ 387
SPORT Mode.................................... 395
Reactive Force Pedal......................... 396
Acoustic Vehicle Al erting System ...... 397
AcuraWatch
TM.................................. 398
Front Sensor Camera ....................... 402 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ......................... 404
Road Departure Mitigation (RDM) System.... 418Lane Keeping Assist System (LKAS) .. 423
Traffic Jam Assist ............................. 430
Vehicle Stabilit y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 441
Agile Handling Assist ....................... 443SPORT HYBRID Super Handling-All Wheel DriveTM (SPORT HYBRID SH-AWD®) .... 444Blind spot information (BSI) System .. 445Tire Pressure Monitoring System (TPMS) .. 447Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 449
High Voltage Battery ........................ 451 Braking
Brake System ................................... 452
Anti-lock Brake System (ABS) ........... 458
Brake Assist System ......................... 459
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 460
Parking Your Vehicle When Stopped ................................ 468
Parking Sensor System
*................... 470
Cross Traffic Monitor ....................... 474
Multi-View Rear Camera
*................ 478
Surround View Camera System*..... 480
Refueling Fuel Information .............................. 490
How to Refuel ................................. 491
Fuel Economy and CO
2 Emissions .... 492
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 373 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

377
uuBefore Driving uMaximum Load Limit
Continued
Driving

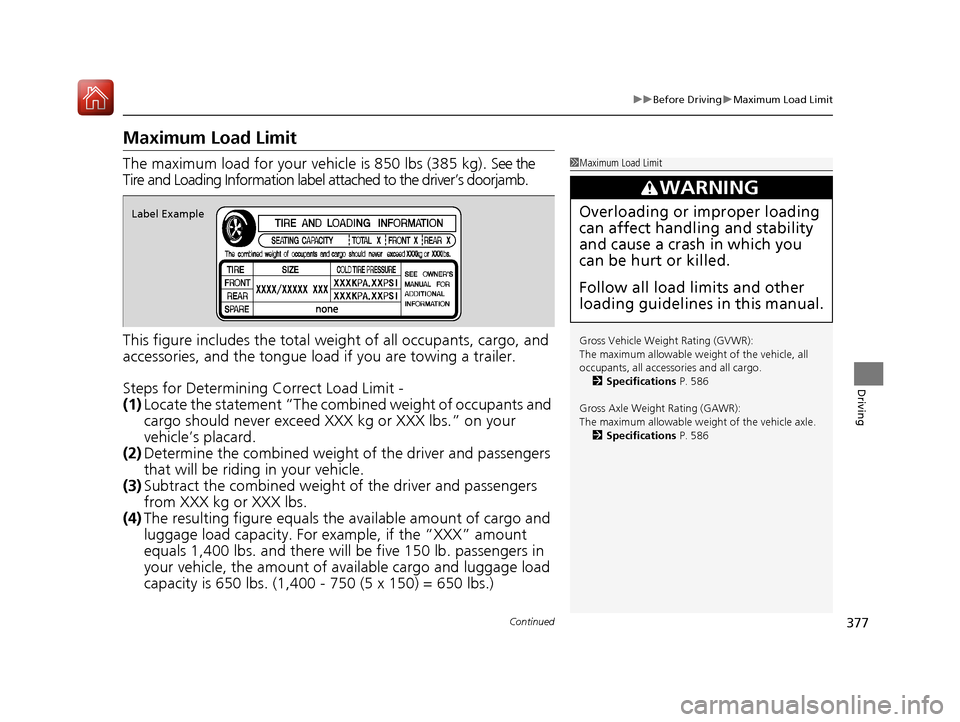

Maximum Load Limit
The maximum load for your vehicl e is 850 lbs (385 kg). See the
Tire and Loading Information label attached to the driver’s doorjamb.
This figure includes the total weig ht of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.
Steps for Determining Correct Load Limit -
(1) Locate the statement “The comb ined weight of occupants and
cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.
(2) Determine the combined weight of the driver and passengers
that will be riding in your vehicle.
(3) Subtract the combined weight of the driver and passengers
from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and
luggage load capacity. For example, if the “XXX” amount
equals 1,400 lbs. and there will be five 150 lb. passengers in
your vehicle, the am ount of available cargo and luggage load
capacity is 650 lbs. (1,400 - 750 (5 x 150) = 650 lbs.)1 Maximum Load Limit
Gross Vehicle Weight Rating (GVWR):
The maximum allowable weight of the vehicle, all
occupants, all accesso ries and all cargo.
2 Specifications P. 586
Gross Axle Weight Rating (GAWR):
The maximum allowable weight of the vehicle axle. 2 Specifications P. 586
3WARNING
Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.
Follow all load limits and other
loading guidelines in this manual.Label Example
18 ACURA RLX E-AWD-31TY36400.book 377 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

378
uuBefore Driving uMaximum Load Limit
Driving

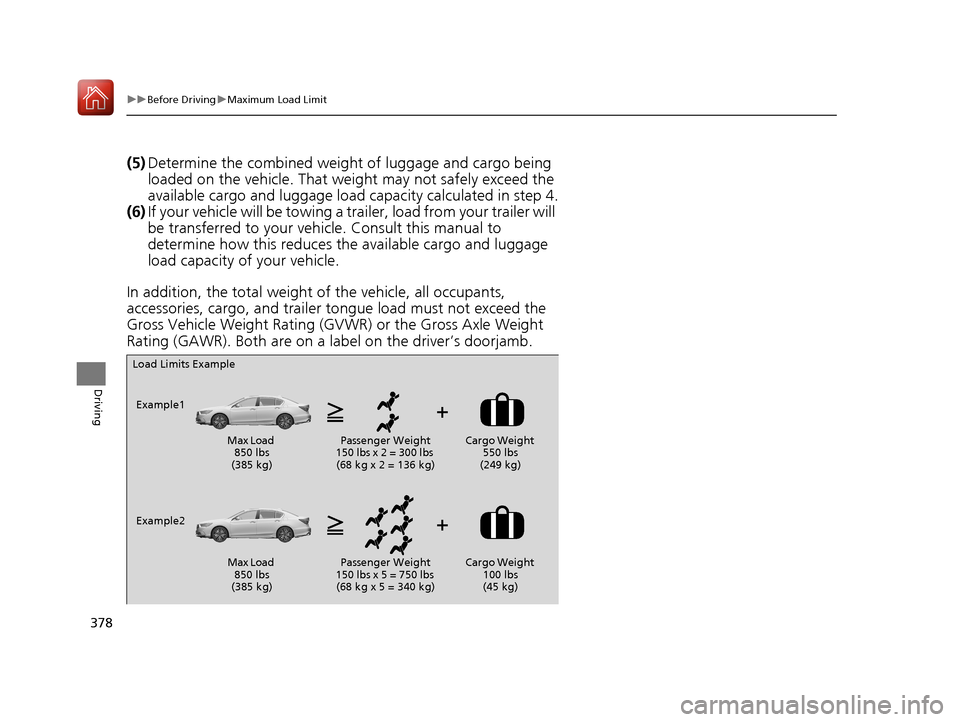

(5) Determine the combined weight of luggage and cargo being
loaded on the vehicle. That we ight may not safely exceed the
available cargo and luggage load capacity calculated in step 4.
(6) If your vehicle will be towing a tra iler, load from your trailer will
be transferred to your vehicl e. Consult this manual to
determine how this reduces the available cargo and luggage
load capacity of your vehicle.
In addition, the total weight of the vehicle, all occupants,
accessories, cargo, and trailer tongue load must not exceed the
Gross Vehicle Weight Rating (GVW R) or the Gross Axle Weight
Rating (GAWR). Both are on a label on the driver’s doorjamb.
Load Limits Example
Example1 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 2 = 300 lbs (68 kg x 2 = 136 kg) Cargo Weight
550 lbs
(249 kg)
Example2 Max Load 850 lbs
(385 kg) Passenger Weight
150 lbs x 5 = 750 lbs (68 kg x 5 = 340 kg) Cargo Weight
100 lbs
(45 kg)
18 ACURA RLX E-AWD-31TY36400.book 378 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

379
Driving

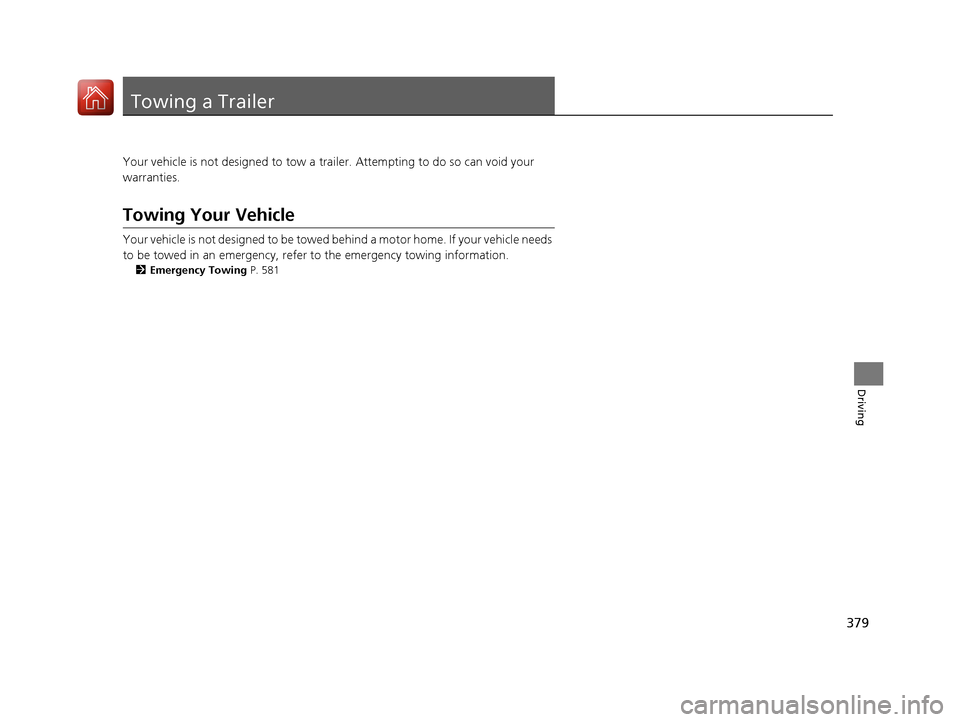

Towing a Trailer
Your vehicle is not designed to tow a trailer. Attempting to do so can void your
warranties.
Towing Your Vehicle
Your vehicle is not designed to be towed behind a motor home. If your vehicle needs
to be towed in an emergency, refer to the emergency towing information.
2Emergency Towing P. 581
18 ACURA RLX E-AWD-31TY36400.book 379 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

607
Index
Side Airbags............................................... 54
Side Curtain Airbags .................................. 56
SiriusXM ® Radio ....................................... 242
Snow Tires ................................................ 529
Sounds Unique to the SPORT HYBRID SH-
AWD ® System ........................................... 13
Spare Tire (Optional) ....................... 555, 587
Spark Plugs ............................................... 586
Specifications ........................................... 586
Specified Fuel ................................... 490, 586
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)....... 444
SPORT Mode ............................................. 395
SPORT Mode Indicator ....................... 88, 395
SRS Airbags (Airbags) ................................ 48
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 468
Summer Tires ............................................ 529
Supplemental Restraint System (SRS) ....... 48
Surround View Camera System ............... 480
Switches (Around the Steering
Wheel) ............................................ 4, 5, 152
System Message Indicator ......................... 86
T
Temperature
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Temperature Sensor ................................ 209 Temporary Tire Repair Kit
........................ 544
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 447
Indicator ............................................ 86, 572
Tires ........................................................... 521
Air Pressure ..................................... 522, 587
Chains ..................................................... 529
Checking and Maintaining ....................... 521
Flat Tire (Puncture) ................................... 543
Inspection ................................................ 521
Labeling .................................................. 522
Regulations ............................................. 524
Rotation .................................................. 528
Spare (Optional) .............................. 555, 587
Summer .................................................. 529
Temporary Tire Repair Kit ........................ 544
Wear Indicators ....................................... 526
Winter ..................................................... 529
Tools .......................................................... 542
Towing a Trailer ....................................... 379
Towing Your Vehicle ................................ 379
Emergency .............................................. 581
Transmission ....................................... 23, 387
Dual Clutch ............................... 23, 386, 387
Fluid ........................................................ 513
Gear Position Indicator ...................... 81, 389
Number ................................................... 588
Sequential Mode ..................................... 393
TRIP Button ............................................... 115 Trip Meter
................................................. 116
Troubleshooting ....................................... 541
Blown Fuse.............................. 574, 577, 579
Brake Pedal Vibrates ............................ 29, 30
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 581
Flat Tire/Puncture ............................ 543, 555
Noise When Braking .................................. 30
Overheating ............................................ 567
Power System Won’t Start ....................... 561
Premium Gasoline ........................... 490, 586
Rear Door Won’t Open...................... 29, 141
Warning Indicators .................................... 76
Trunk ......................................................... 143
Lid........................................................... 143
Light Bulbs .............................................. 586
Release Handle ........................................ 583
Unable to Open....................................... 583
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ................... 118, 123
Turning on the Power .............................. 380
Does Not Activate ................................... 561
Jump Starting .......................................... 564
Remote Engine Start................................ 382
Two-way Keyless Access Remote ..... 138, 382
18 ACURA RLX E-AWD-31TY36400.book 607 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
