Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 502)
❙Windshield Wipers (P 163, 518)
❙Tires (P 521, 543)
❙Door Lock/Unlock Control (P 131)
❙Power Door Mirrors (P 173)
❙Headlights (P 156, 515)
❙How to Refuel (P 491)
❙High-Mount Brake Light (P 517)
❙Emergency Trunk Release Lever (P 145)
❙Opening/Closing the Trunk (P 143)
❙Multi-View Rear Camera* (P 478)
❙Rear Side Marker Lights (P 516)
❙Brake/Taillights (P 516)
❙Rear Turn Signal Lights (P 516)
❙Back-Up Lights (P 517)
❙Rear License Plate Lights (P 517)
❙Taillights (P 516)
❙Fog Lights* (P 159, 515)
❙Surround View Camera System* (P 480)
❙Trunk Release Button (P 144)
❙Side Turn Signal Lights (P 155, 516)
❙Front Turn Signal Lights (P 155, 156, 515)
❙Parking/Daytime Running Lights (P 159, 515)
❙Front Side Marker Lights (P 156, 516)
18 ACURA RLX E-AWD-31TY36400.book 8 ページ ２０１７年７月２０日　木曜日　午後６時８分

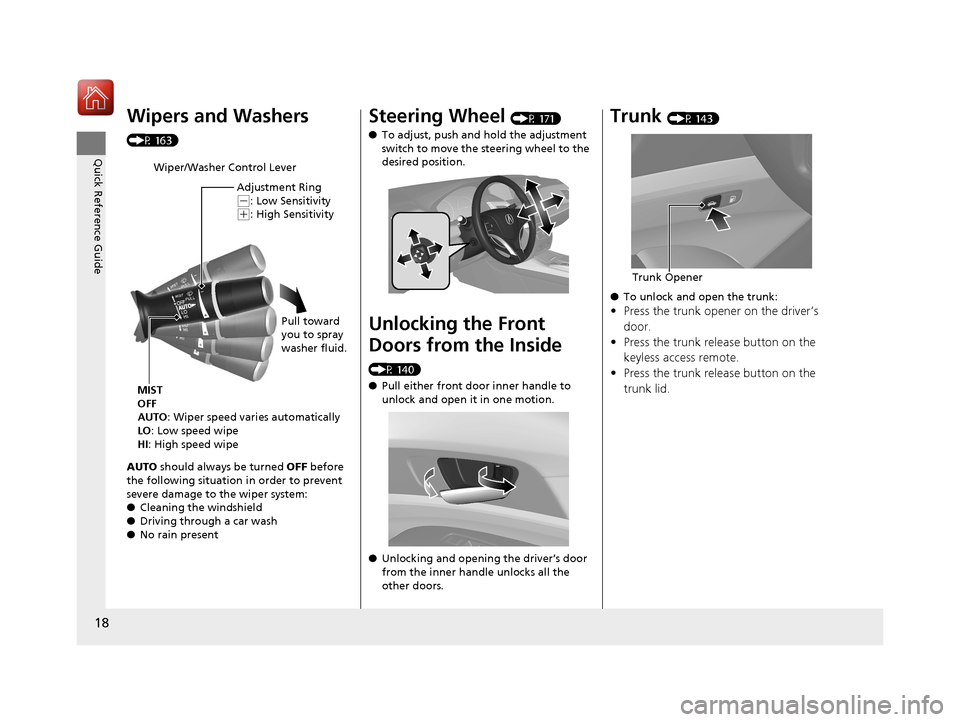

18
Quick Reference Guide
Wipers and Washers
(P 163)
AUTO should always be turned OFF before
the following situation in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Wiper/Washer Control Lever
Adjustment Ring
(-: Low Sensitivity
(+: High Sensitivity
MIST
OFF
AUTO : Wiper speed varies automatically
LO : Low speed wipe
HI: High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P 171)
● To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Unlocking the Front
Doors from the Inside
(P 140)
●Pull either front door inner handle to
unlock and open it in one motion.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P 143)
● To unlock and open the trunk:
•Press the trunk opener on the driver’s
door.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Trunk Opener
18 ACURA RLX E-AWD-31TY36400.book 18 ページ ２０１７年７月２０日　木曜日　午後６時８分

127
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 128
Locking and Unlocking the Doors
Key Type and Functions ................... 129
Low Keyless Access Remote Signal Strength ......................................... 130
Locking/Unlocking the Doors from the Outside .......................................... 131
Locking/Unlocking the Doors from the Inside ............................................. 139
Childproof Door Locks ..................... 141
Auto Door Locking/Unlocking .......... 142
Opening and Closing the Trunk ....... 143
Security System ................................ 146
Immobilizer System .......................... 146
Security System Alarm ...................... 146Opening and Closing the Windows .... 149
Opening and Closing the Moonroof ... 151
Operating the Switches Around the
Steering Wheel POWER Button................................. 152
Turn Signals ..................................... 155
Light Switches.................................. 156
Fog Lights
*...................................... 159
Daytime Running Lights ................... 159
Auto High-Beam .............................. 160
Wipers and Washers ........................ 163
Brightness Control ........................... 166
Rear Defogger/ Heated Door Mirror/Heated
Windshield Button ......................... 168 Driving Position Memory System ...... 169
Adjusting the Steering Wheel .......... 171
Adjusting the Mirrors ....................... 172
Interior Rearview Mirror ................... 172
Power Door Mirrors ......................... 173
Adjusting the Seats .......................... 175
Front Seats ...................................... 175
Interior Lights/Interior Convenience
Items ................................................ 182
Interior Lights .................................. 182
Interior Convenience Items .............. 184
Climate Control System ................... 200
Using Automatic Climate Control .... 200
Automatic Climate Control Sensors......209
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 127 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

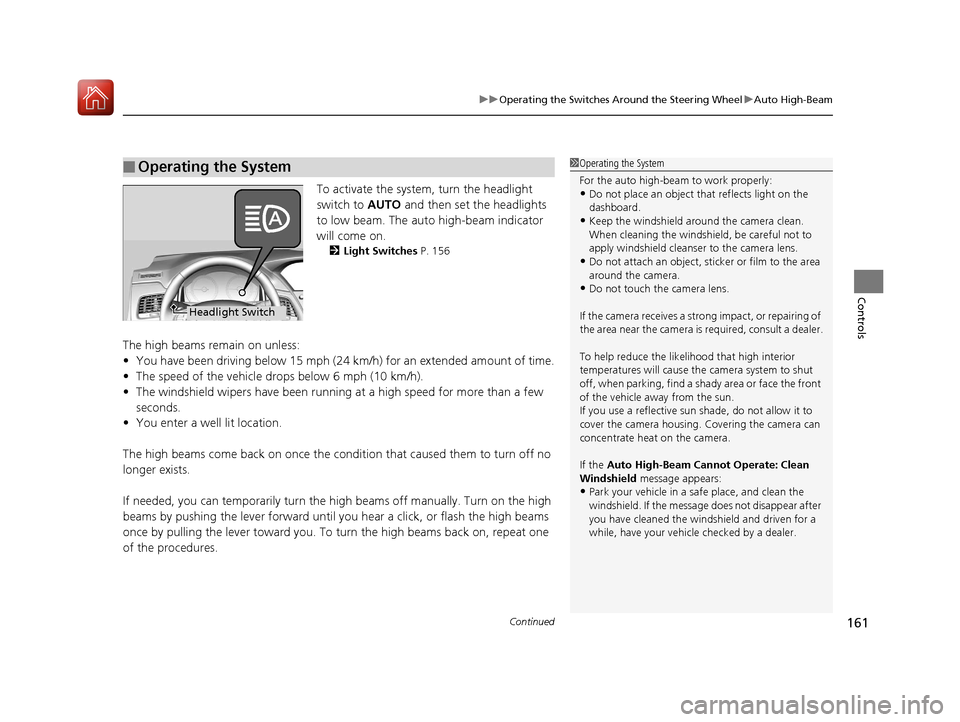

Continued161
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Controls
To activate the system , turn the headlight
switch to AUTO and then set the headlights
to low beam. The auto high-beam indicator
will come on.
2 Light Switches P. 156
The high beams remain on unless:
•You have been driving below 15 mph (24 km/h) for an extended amount of time.
• The speed of the vehicle dr ops below 6 mph (10 km/h).
• The windshield wipers have been runnin g at a high speed for more than a few
seconds.
• You enter a well lit location.
The high beams come back on once the condi tion that caused them to turn off no
longer exists.
If needed, you can temporarily turn the hi gh beams off manually. Turn on the high
beams by pushing the lever forward until you hear a click, or flash the high beams
once by pulling the lever toward you. To turn the high beams back on, repeat one
of the procedures.
■Operating the System1 Operating the System
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.
When cleaning the windshield, be careful not to
apply windshield cleanser to the camera lens.
•Do not attach an object, sticker or film to the area
around the camera.
•Do not touch the camera lens.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
To help reduce the likel ihood that high interior
temperatures will cause the camera system to shut
off, when parking, find a shady area or face the front
of the vehicle away from the sun.
If you use a reflective sun shade, do not allow it to
cover the camera housing. Covering the camera can
concentrate heat on the camera.
If the Auto High-Beam Cannot Operate: Clean
Windshield message appears:
•Park your vehicle in a sa fe place, and clean the
windshield. If the message does not disappear after
you have cleaned the winds hield and driven for a
while, have your vehicle checked by a dealer.
Headlight Switch
18 ACURA RLX E-AWD-31TY36400.book 161 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

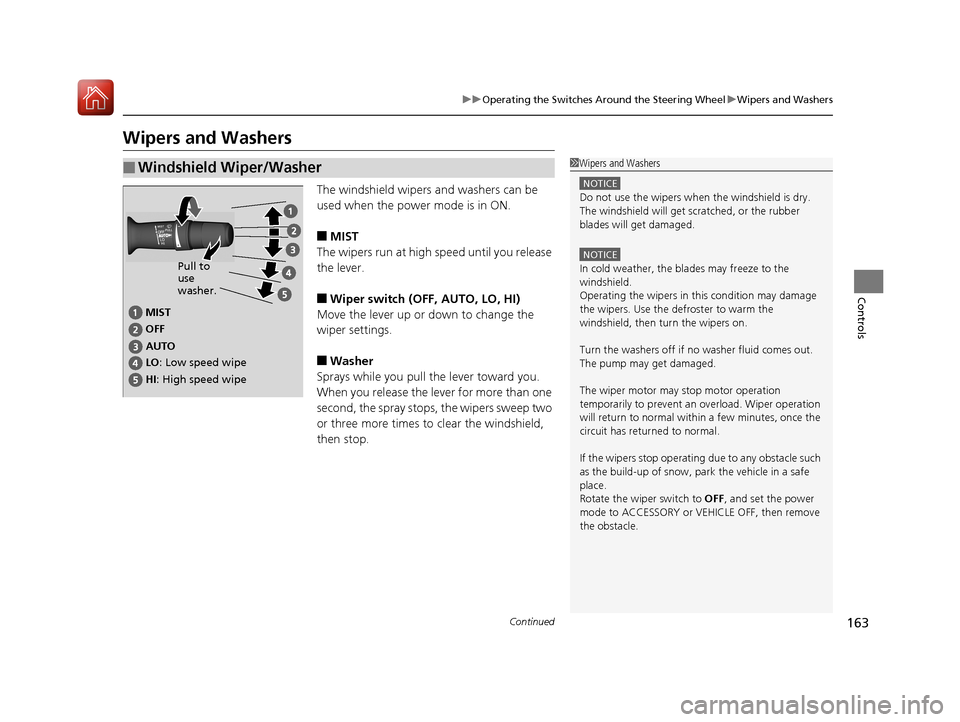

163
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, AUTO, LO, HI)
Move the lever up or down to change the
wiper settings.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
■Windshield Wiper/Washer1 Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defroster to warm the
windshield, then turn the wipers on.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the wipers stop operating due to any obstacle such
as the build-up of snow, park the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF, then remove
the obstacle.
MIST
OFF
LO : Low speed wipe
HI: High speed wipe Pull to
use
washer.
AUTO
18 ACURA RLX E-AWD-31TY36400.book 163 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

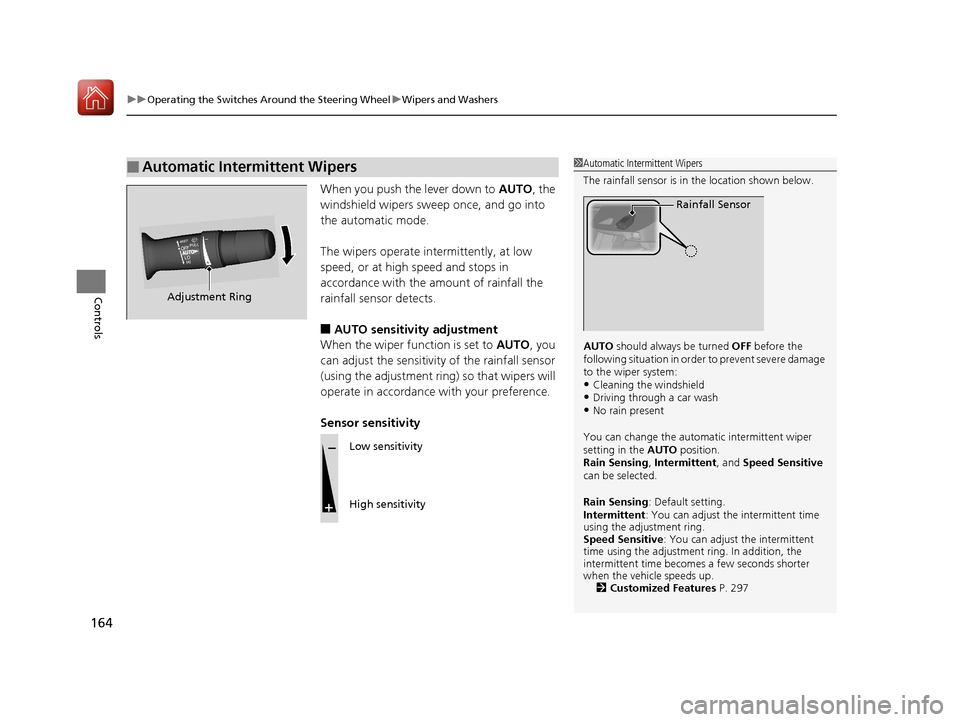

uuOperating the Switches Around the Steering Wheel uWipers and Washers
164
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the am ount of rainfall the
rainfall sensor detects.
■AUTO sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers1 Automatic Intermittent Wipers
The rainfall sensor is in the location shown below.
AUTO should always be turned OFF before the
following situation in order to prevent severe damage
to the wiper system:
•Cleaning the windshield•Driving through a car wash•No rain present
You can change the automatic intermittent wiper
setting in the AUTO position.
Rain Sensing , Intermittent , and Speed Sensitive
can be selected.
Rain Sensing : Default setting.
Intermittent : You can adjust the intermittent time
using the adjustment ring.
Speed Sensitive : You can adjust the intermittent
time using the adjustment ring. In addition, the
intermittent time become s a few seconds shorter
when the vehicle speeds up. 2 Customized Features P. 297
Rainfall Sensor
Adjustment Ring
Low sensitivity
High sensitivity
18 ACURA RLX E-AWD-31TY36400.book 164 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

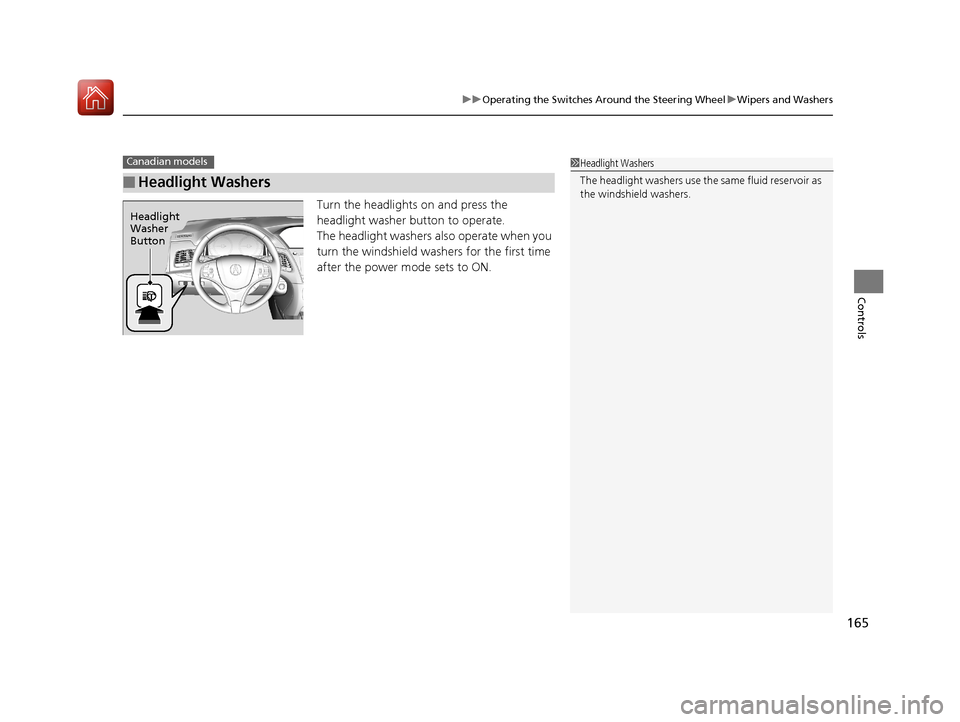

165
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
Turn the headlights on and press the
headlight washer button to operate.
The headlight washers also operate when you
turn the windshield washers for the first time
after the power mode sets to ON.
■Headlight Washers
Canadian models1Headlight Washers
The headlight washers use th e same fluid reservoir as
the windshield washers.
Headlight
Washer
Button
18 ACURA RLX E-AWD-31TY36400.book 165 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

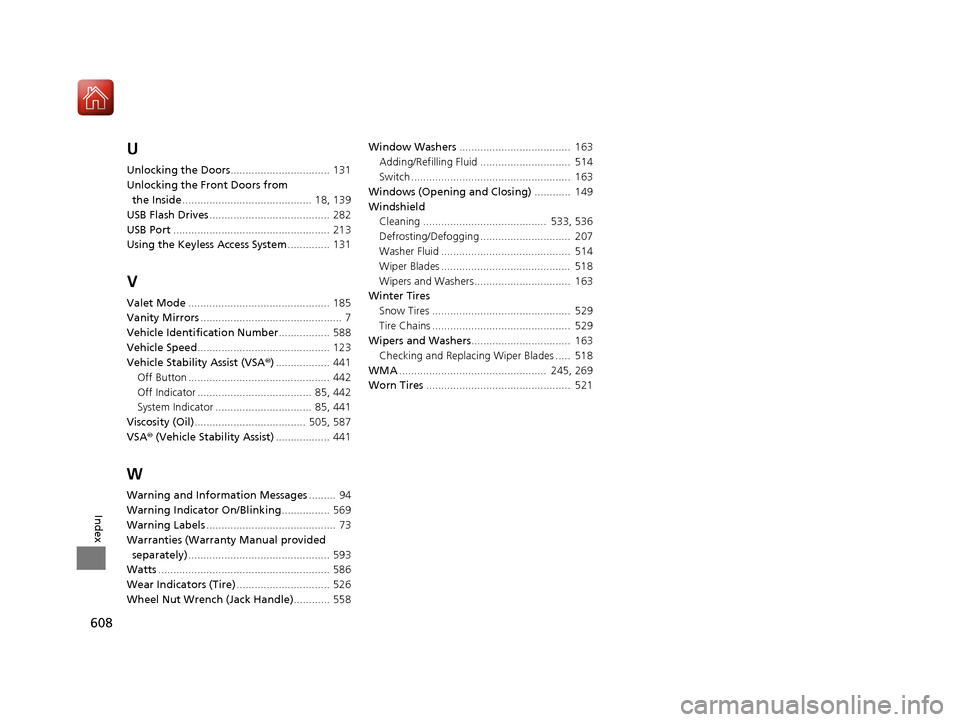

608
Index
U
Unlocking the Doors................................. 131
Unlocking the Front Doors from the Inside ........................................... 18, 139
USB Flash Drives ........................................ 282
USB Port .................................................... 213
Using the Keyless Access System .............. 131
V
Valet Mode............................................... 185
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................. 588
Vehicle Speed ............................................ 123
Vehicle Stability Assist (VSA ®).................. 441
Off Button ............................................... 442
Off Indicator ...................................... 85, 442
System Indicator ................................ 85, 441
Viscosity (Oil) ..................................... 505, 587
VSA ® (Vehicle Stability Assist) .................. 441
W
Warning and Information Messages ......... 94
Warning Indicator On/Blinking ................ 569
Warning Labels ........................................... 73
Warranties (Warranty Manual provided separately) ............................................... 593
Watts ......................................................... 586
Wear Indicators (Tire) ............................... 526
Wheel Nut Wrench (Jack Handle) ............ 558Window Washers
..................................... 163
Adding/Refilling Fluid .............................. 514
Switch ..................................................... 163
Windows (Opening and Closing) ............ 149
Windshield
Cleaning ......................................... 533, 536
Defrosting/Defogging .............................. 207
Washer Fluid ........................................... 514
Wiper Blades ........................................... 518
Wipers and Washers................................ 163
Winter Tires
Snow Tires .............................................. 529
Tire Chains .............................................. 529
Wipers and Washers ................................. 163
Checking and Replacing Wiper Blades ..... 518
WMA ................................................. 245, 269
Worn Tires ................................................ 521
18 ACURA RLX E-AWD-31TY36400.book 608 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
