headlight bulb Acura RLX HYBRID 2019 Owner's Manual

514
Maintenance

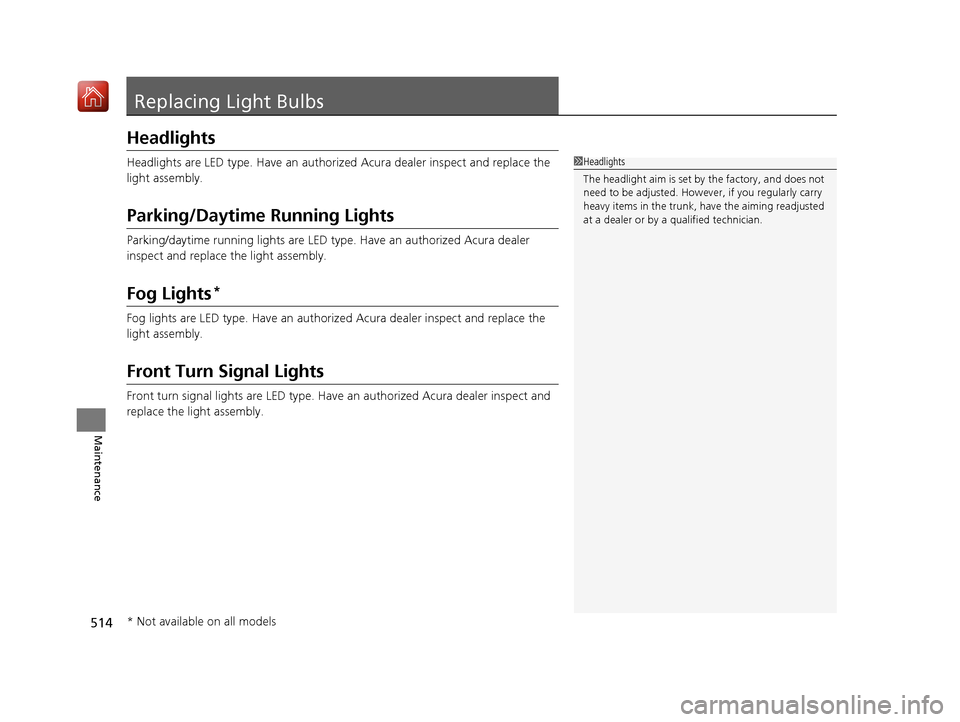

Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Acura dealer
inspect and replace the light assembly.
Fog Lights*
Fog lights are LED type. Have an authoriz ed Acura dealer inspect and replace the
light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
* Not available on all models
19 ACURA RLX HYBRID CSS-31TY36500.book 514 ページ ２０１８年３月７日　水曜日　午後４時１９分

586
Information

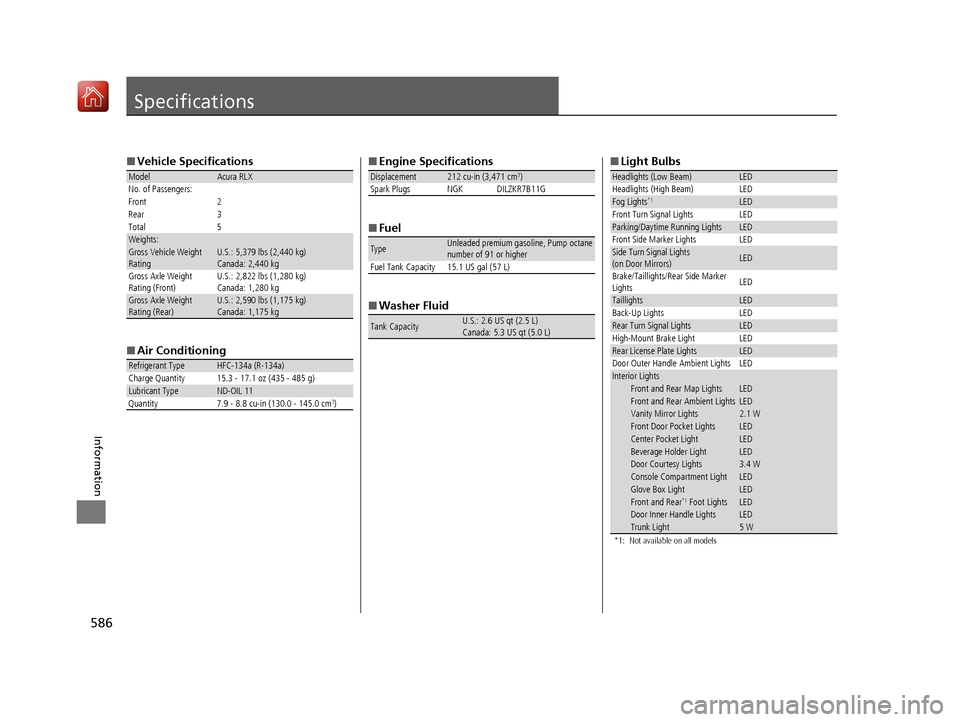

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 5,379 lbs (2,440 kg)
Canada: 2,440 kg
Gross Axle Weight
Rating (Front)U.S.: 2,822 lbs (1,280 kg)
Canada: 1,280 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,590 lbs (1,175 kg)
Canada: 1,175 kg
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 15.3 - 17.1 oz (435 - 485 g)
Lubricant TypeND-OIL 11
Quantity 7.9 - 8.8 cu-in (130.0 - 145.0 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.1 US gal (57 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 5.3 US qt (5.0 L)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog Lights*1LED
Front Turn Signal Lights LED
Parking/Daytime Running LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
TaillightsLED
Back-Up Lights LED
Rear Turn Signal LightsLED
High-Mount Brake Light LED
Rear License Plate LightsLED
Door Outer Handle Ambient Lights LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights2.1 WFront Door Pocket LightsLEDCenter Pocket LightLEDBeverage Holder LightLEDDoor Courtesy Lights3.4 WConsole Compartment LightLEDGlove Box LightLEDFront and Rear*1 Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5 W
19 ACURA RLX HYBRID CSS-31TY36500.book 586 ページ ２０１８年３月７日　水曜日　午後４時１９分

601
Index
B
Battery12-Volt ................................................... 529
12-Volt Battery Charging System
Indicator ......................................... 81, 567
Charging (12-Volt Battery) ...................... 529
High Voltage........................................... 449
Jump Starting ......................................... 562
Maintenance (Checking the 12-Volt Battery) ................................................. 529
Maintenance (Replacing) ......................... 530
Battery Types .............................................. 12
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 189
Blind spot information System ................ 443
Bluetooth ® Audio ..................................... 271
Bluetooth ® HandsFreeLink ®.................... 324
Booster Seats (For Children) ...................... 71
Brake System ............................................ 450
Anti-lock Brake System (ABS) .................. 456
Automatic Brake Hold ............................. 454
Brake Assist System................................. 457
Fluid ....................................................... 512
Foot Brake .............................................. 453
Parking Brake.......................................... 450
Brake System (Amber) Indicator ................................................... 79
Brake System (Red)
Indicator ........................................... 76, 568
Brightness Control (Head-Up Display) .... 167
Brightness Control (Instrument Panel) ... 166Bulb Replacement
.................................... 514
Back-Up Lights ........................................ 516
Brake/Taillight s and Rear Side Marker
Lights .................................................... 515
Door Outer Handle Ambient Lights .......... 516
Fog Lights ................................................ 514
Front Side Marker Lights .......................... 515
Front Turn Signal Lights ........................... 514
Headlights ............................................... 514
High-Mount Brake Light .......................... 516
Parking/Daytime Running Lights .............. 514
Rear License Plate Lights .......................... 516
Rear Turn Signal Lights ............................ 515
Side Turn Signal/Em ergency Indicator
Lights .................................................... 515
Taillights .................................................. 515
Bulb Specifications ................................... 586
C
CAMERA Button....................................... 479
Carbon Monoxide Gas ................................ 72
Cargo Area ................................................ 193
Cargo Hooks ............................................. 192
Carrying Cargo .................................. 373, 375
CD Player ................................................... 245
Center Pocket ........................................... 188
Certification Label .................................... 588
Changing Bulbs ......................................... 514
Charging System Indicator ....................... 567Child Safety
................................................. 60
Childproof Door Locks............................. 141
Child Seat .................................................... 60
Booster Seats ............................................ 71
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 67
Larger Children ......................................... 70
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 141
Cleaning the Exterior ............................... 534
Cleaning the Interior ................................ 532
Client Service Information ....................... 596
Climate Control System ............................ 200
Changing the Mode ................................ 203
Defrosting the Windshield and Windows ............................................... 207
Dust and Pollen Filter............................... 531
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Clock .......................................................... 128
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 458
Coat Hooks ............................................... 191
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 458
Compact Spare Tire (Optional) ........ 553, 587
