Continued535
uuCleaning uExterior Care
Maintenance
• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water direct ly into the engine compartment. Instead,
use low pressure water and a mild detergent.
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
■Using High Pressure Cleaners
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.
20 ACURA RLX HYBRID-31TY36601.book 535 ページ ２０１９年７月２３日　火曜日　午後６時２５分

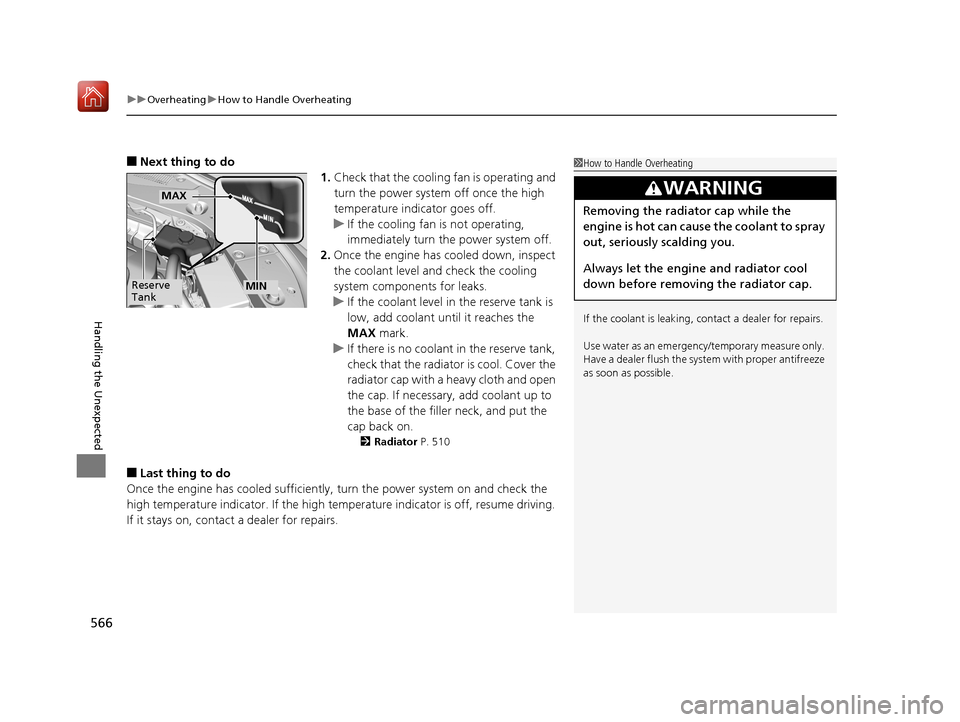

uuOverheating uHow to Handle Overheating
566
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
turn the power system off once the high
temperature indicator goes off.
u If the cooling fan is not operating,
immediately turn the power system off.
2. Once the engine has cooled down, inspect
the coolant level an d check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolan t in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
2 Radiator P. 510
■Last thing to do
Once the engine has cooled sufficiently , turn the power system on and check the
high temperature indicator. If the high temp erature indicator is off, resume driving.
If it stays on, contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
Reserve
Tank
MAX
MIN
20 ACURA RLX HYBRID-31TY36601.book 566 ページ ２０１９年７月２３日　火曜日　午後６時２５分

587
uuSpecifications u
Information
■Brake Fluid
■ Dual Clutch Transmission Fluid
■ Twin Motor Unit Fluid
SpecifiedAcura Heavy Duty Brake Fluid DOT 3
SpecifiedAcura ATF DW-1
Capacity Change 3.7 US qt (3.5 L)
SpecifiedAcura ATF DW-1
Capacity Change 2.56 US qt (2.42 L)
■ Engine Oil
■ Engine Coolant
■ Inverter Coolant
Recommended·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.5 US qt (4.3 L)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity2.1 US gal (7.9 L)
(change including the remaining
0.225 US gal (0.85 L) in the reserve tank)
SpecifiedAcura Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.32 US gal (1.23 L)
(change including the remaining
0.03 US gal (0.11 L) in the reserve tank)
■ Tire
*1: Vehicles with optional spare tire kit
RegularSize245/40R19 98WPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Compact
Spare*1
SizeT155/70D17 110M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular19 x 8JCompact Spare*117 x 4T
20 ACURA RLX HYBRID-31TY36601.book 587 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Index
600
Index
Index
Numbers
12-Volt Battery Charging System Indicator ............................................ 81, 567
A
AAC.................................................... 245, 268
ABS (Anti-lock Brake System) ................... 456
Accessories and Modifications ................. 537
Accessory Power Sockets .......................... 190
Acoustic Vehicle Alerting System ............ 395
AcuraLink .................................................. 363
AcuraWatch
TM..................................... 26, 396
Adaptive Cruise Control (ACC) with Low Speed Follow ..................................... 90, 402
Additives
Coolant ........................................... 509, 511
Washer .................................................... 513
Additives, Engine Oil ................................ 504
Adjusting Armrest ................................................... 181
Front Seats .............................. 175, 178, 180
Head Restraints........................................ 178
Mirrors .................................................... 172
Steering Wheel ........................................ 171
Temperature ............................................ 116
Agile Handling Assist ................................ 441
Air Conditioning System (Climate Control System) .................................................... 200
Changing the Mode ................................ 203 Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 531
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Air Pressure ....................................... 521, 587
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
Airbag Care............................................... 59
Driver’s Knee Airbag.................................. 52
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator.............................................. 57, 84
Passenger Airbag Off Indicator .................. 58
Sensors ..................................................... 45
Side Airbags .............................................. 54
Side Curtain Airbags.................................. 56
AM/FM Radio ............................................ 237
Anti-lock Brake System (ABS) .................. 456
Indicator.................................................... 84
Armrest ..................................................... 181
Audio Remote Controls ........................... 215
Audio System ............................................ 212
Adjusting the Sound................................ 230
Auxiliary Input Jack.................................. 213
Error Messages ........................................ 273
General Information ................................ 277
HDD ........................................................ 248
Internet Radio ......................................... 266 iPod ........................................................ 258
MP3/WMA/AAC ............................. 245, 268
Reactivating ............................................ 214
Recommended CDs ................................ 278
Recommended Devices ........................... 280
Remote Controls ..................................... 215
Security Code ......................................... 214
Shortcuts ................................................ 218
Theft Protection ...................................... 214
USB Flash Drives...................................... 280
USB Port ................................................. 213
Audio/Information Screen ....................... 225
Authorized Manuals ................................ 595
Auto Door Locking/Unlocking ................ 142
Customize .............................................. 310
Auto Engine Stop/Start .............................. 13
Auto High-Beam ...................................... 160
Indicator ................................................... 87
Automatic Brake Hold ............................. 454
Indicator ........................................... 78, 454
Automatic Brake Hold System Indicator ........................................... 78, 454
Automatic Lighting .................................. 157
Auxiliary Input Jack ................................. 213
Average Fuel Economy ............................ 116
Average Speed ......................................... 117
20 ACURA RLX HYBRID-31TY36601.book 600 ページ ２０１９年７月２３日　火曜日　午後６時２５分

602
Index
Compact Spare Tire (Optional)........ 553, 587
Console Compartment ............................. 187
Controls ..................................................... 127
Coolant (Engine) ....................................... 509
Adding to the Radiator ............................ 510
Adding to the Reserve Tank ..................... 509
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Overheating............................................. 565
Coolant (Inverter) ..................................... 511
Creeping (Dual Clutch Transmission) ....... 384
Cross Traffic Monitor ................................ 472
Cup Holders ............................................... 189
Customized Features ................................ 295
D
Daytime Running Lights ........................... 159
Dead Battery (12-Volt) ............................. 562
Defrosting the Windshield and Windows .................................................. 207
Devices that Emit Radio Waves ................ 589
Dimming Headlights ............................................... 156
Rearview Mirror ....................................... 172
Dipstick (Engine Oil) ................................. 505
Directional Signals (Turn Signal) .............. 155
Door Mirrors ............................................. 173
Doors ......................................................... 129
Auto Door Locking .................................. 142
Auto Door Unlocking ............................... 142 Door Open Message.................................. 37
Keys ........................................................ 129
Locking/Unlocking the Doors from
the Inside ........................................ 18, 139
Locking/Unlocking the Doors from
the Outside ........................................... 131
Lockout Prevention System ...................... 137
DOT Tire Quality Grading ........................ 523
Driver’s Knee Airbag .................................. 52
Driving ...................................................... 371
Braking ................................................... 450
Dual Clutch Transmission ........................ 384
Shifting Gear ........................................... 385
Turning on the Power.............................. 378
Driving Position Memory System ............ 169
Dual Clutch Transmission Creeping ................................................. 384
Fluid ........................................................ 512
Kickdown ................................................ 384
Operating the Shift Button ................ 23, 387
Shifting ................................................... 385
Dust and Pollen Filter ............................... 531
E
Elapsed Time............................................. 117
Electric Parking Brake
Indicator.................................................... 77
Electric Parking Brake System Indicator............................................ 77, 569 Electric Power Steering (EPS) System
Indicator ........................................... 84, 569
Electronic Stability Control (ESC) ............ 439
Emergency ................................................ 580
Emissions Testing (Readiness Codes) ...... 591
Energy Efficiency ........................................ 12
Engine ....................................................... 588
Coolant .................................................. 509
Jump Starting ......................................... 562
Oil .......................................................... 504
Remote Engine Start ............................... 380
Engine Compartment Cover .................... 503
Engine Coolant ........................................ 509
Adding to the Radiator ........................... 510
Adding to the Reserve Tank .................... 509
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Overheating ............................................ 565
Engine Oil ................................................. 504
Adding ................................................... 506
Checking ................................................ 505
Displaying Oil Life ................................... 496
Low Oil Pressure Indicator ................. 76, 567
Recommended Engine Oil ....................... 504
e-pretensioners .......................................... 40
EPS (Electric Power Steering) System ........ 84
Exhaust Gas Hazard (Carbon Monoxide) .. 72
Expanded Rear Door Sunshades ............. 199
Exterior Care (Cleaning) .......................... 534
Exterior Mirrors ........................................ 173
20 ACURA RLX HYBRID-31TY36601.book 602 ページ ２０１９年７月２３日　火曜日　午後６時２５分

603
Index
F
Features.................................................... 211
Filters Dust and Pollen....................................... 531
Oil .......................................................... 507
Flat Tire ............................................. 541, 553
Floor Mats ................................................ 533
Fluids
Brake ...................................................... 512
Dual Clutch Transmission ........................ 512
Engine Coolant ....................................... 509
Inverter Coolant ...................................... 511
Windshield Washer ................................. 513
Foot Brake ................................................ 453
Front Airbags (SRS) .................................... 48
Front Seat Heaters ................................... 195
Front Seat Heaters and Ventilation ........ 196
Front Seats Adjusting ................................ 175, 178, 180
Front Sensor Camera ............................... 400
Fuel ..................................................... 25, 488
Economy................................................. 490
Gauge .................................................... 112
Instant Fuel Economy .............................. 117
Low Fuel Indicator..................................... 83
Range ..................................................... 117
Recommendation............................ 488, 586
Refueling ................................................ 488
Fuel Economy ........................................... 490
Fuel Fill Door ...................................... 25, 489 Fuses
.......................................................... 572
Inspecting and Changing ......................... 579
Locations ................................. 572, 576, 577
G
Gasoline (Fuel)
Economy ................................................. 490
Gauge ..................................................... 112
Information ............................................. 488
Instant Fuel Economy ............................... 117
Low Fuel Indicator ..................................... 83
Refueling ................................................. 488
Gauges ...................................................... 112
Gear Position Indicator ...................... 81, 387
Gear Shift Positions
Dual Clutch Transmission ......................... 385
Glass (care) ........................................ 532, 535
Glove Box .................................................. 184
H
Handling the Unexpected ........................ 539
HandsFreeLink ® (HFL) ............................... 324
Auto Answer ........................................... 338
Automatic Import of Cellular Phonebook and
Call History ............................................ 340
Automatic Transferring ............................ 338
Displaying Messages ................................ 358
Editing User Name ................................... 337
HFL Buttons ............................................. 324 HFL Menus .............................................. 326
HFL Status Display ................................... 325
Limitations for Manual Operation ............ 325
Making a Call .......................................... 349
Options During a Call .............................. 355
Phone Setup............................................ 330
Phonebook Phonetic Modification ........... 344
Receiving a Call ....................................... 354
Receiving a Text/E-m
ail Message.............. 356
Ring Tone................................................ 339
Roadside Assistance ................................ 362
Selecting a Mail Account ......................... 357
Speed Dial ............................................... 341
To Create a Security PIN .......................... 336
To Set Up a Text/E-mail Message Option................................................... 335
Use Contact Photo .................................. 339
Hard Disk Drive (HDD) Audio .................. 248
Hazard Warning Button .............................. 4
Head Restraints ........................................ 178
Headlight Washers ................................... 165
Headlights ................................................. 156
Aiming .................................................... 514
Auto High-Beam ..................................... 160
Automatic Operation............................... 157
Dimming ................................................. 156
Operating................................................ 156
Head-Up Display ....................................... 119
Brightness Control................................... 167
Heated Steering Wheel ............................ 194
Heaters (Seat) ........................... 195, 196, 197
20 ACURA RLX HYBRID-31TY36601.book 603 ページ ２０１９年７月２３日　火曜日　午後６時２５分

604
Index
HFL (HandsFreeLink®)............................... 324
High Beam Indicator ................................... 87
High Voltage Battery ................................ 449
Hill Start Assist System .............................. 382
HomeLink ® Universal Transceiver ............ 321
Honda App License Agreement ............... 281
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............. 588
Vehicle Identification ............................... 588
Illumination Control
Buttons............................................ 166, 167
Immobilizer System .................................. 146
Indicator .................................................... 87
Indicators ..................................................... 76
12-Volt Battery Charging System ....... 81, 567
Adaptive Cruise Control (ACC) with Low Speed Follow.............................................. 90, 402
Anti-lock Brake System (ABS) ..................... 84
Auto High-Beam ........................................ 87
Automatic Brake Hold........................ 78, 454
Automatic Brake Hold System ............ 78, 454
Blind spot information System ........... 92, 444
Brake System (Amber)................................ 79
Brake System (Red) ............................ 76, 568 Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 92, 93
Door and Trunk Open ............................... 37
Electric Parking Brake ................................ 77
Electric Parking Brake System ............ 77, 569
Electric Power Steering (EPS) System .. 84, 569
Fog Light ................................................... 87
Gear Position............................................. 81
High Beam ................................................ 87
High Temperature ..................................... 85
Immobilizer System ................................... 87
Keyless Access System ............................... 88
Lane Keeping Assist System (LKAS) .... 91, 423
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ................................ 76, 567
Low Temperature ...................................... 85
Low Tire Pressure/TPMS ............. 86, 445, 447
Malfunction Indicator Lamp............... 81, 568
POWER SYSTEM ........................................ 80
READY ...................................................... 80
Road Departure Mitigation (RDM) ............. 89
Seat Belt Reminder .............................. 39, 83
Security System Alarm ............................... 88
SPORT Mode ..................................... 88, 393
Supplemental Restraint System ............ 57, 84
System Message ........................................ 86
Transmission System.................................. 82
Turn Signal ................................................ 86 Vehicle Stability Assist
TM (VSA
®)
System ............................................ 85, 439
VSA ® OFF .......................................... 85, 440
Information .............................................. 585
Instant Fuel Economy .............................. 117
Instrument Panel ........................................ 75
Brightness Control .................................. 166
Interface Dial ............................................ 216
Interior Lights ........................................... 182
Interior Rearview Mirror ......................... 172
Inverter Coolant ....................................... 511
J
Jack (Wheel Nut Wrench) ........................ 556
Jump Starting ........................................... 562
K
Key Number Tag ...................................... 130
Keyless Access System .............................. 131
Keyless Lockout Prevention ..................... 137
Keys ........................................................... 129
Lockout Prevention ................................. 137
Number Tag............................................ 130
Rear Door Won’t Open ........................... 141
Remote Transmitter ................................ 136
Two-way Keyless Access Remote..... 138, 380
Types and Functions................................ 129
Kickdown (Dual Clutch Transmission) .... 384
20 ACURA RLX HYBRID-31TY36601.book 604 ページ ２０１９年７月２３日　火曜日　午後６時２５分

605
Index
L
Lane Keeping Assist System (LKAS)........ 421
Language (HFL) ........................................ 325
LATCH (Child Seats) ................................... 65
Lights ................................................ 156, 514
Auto High-Beam ..................................... 160
Auto High-Beam Indicator......................... 87
Automatic............................................... 157
Bulb Replacement ................................... 514
Daytime Running Lights .......................... 159
Fog Lights ............................................... 159
High Beam Indicator ................................. 87
Interior.................................................... 182
Light Switches......................................... 156
Lights On Indicator.................................... 87
Turn Signals ............................................ 155
Load Limits ............................................... 375
Locking/Unlocking ................................... 129
Auto Door Locking/Unlocking ................. 142
Childproof Door Locks ............................ 141
From Inside ............................................. 139
From Outside .......................................... 131
Keys........................................................ 129
Using a Key............................................. 137
Lockout Prevention System ..................... 137
Low Battery Charge (12-Volt) ................. 567
Low Fuel Indicator ..................................... 83
Low Keyless Access Remote Signal
Strength .................................................. 130
Low Oil Pressure Indicator ................. 76, 567
Lower Anchors ........................................... 65 Luggage (Maximum Load Limit)
............. 375
Lumbar Support ........................................ 176
M
Maintenance............................................. 491
12-Volt Battery ........................................ 529
Brake Fluid .............................................. 512
Cleaning .................................................. 532
Climate Control System ........................... 531
Coolant ........................................... 509, 511
Maintenance Minder
TM............................ 495
Oil ........................................................... 505
Precautions .............................................. 492
Radiator .................................................. 510
Remote Transmitter ................................. 530
Replacing Light Bulbs ............................... 514
Safety ...................................................... 493
Service Items ........................................... 498
Tires ........................................................ 520
Transmission Fluid ................................... 512
Under the Hood ...................................... 501
Malfunction Indicator Lamp .............. 81, 568
Map Lights ................................................ 183
Maximum Load Limit ............................... 375
Meters, Gauges ......................................... 112
Mirrors
Adjusting ................................................. 172
Door........................................................ 173
Exterior .................................................... 173
Interior Rearview ..................................... 172 Modifications (and Accessories)
.............. 537
Moonroof ................................................. 151
MP3 ................................................... 245, 268
Multi-Information Display ....................... 114
Multi-View Rear Camera .......................... 476
N
Numbers (Identification).......................... 588
O
Odometer................................................. 116
Oil (Engine) ....................................... 504, 587
Adding .................................................... 506
Checking................................................. 505
Displaying Oil Life .................................... 496
Low Oil Pressure Indicator ................. 76, 567
Recommended Engine Oil ............... 504, 587
Viscosity .......................................... 504, 587
On Demand Multi-Use Display
TM............. 217
Open Source Licenses ............................... 294
Opening
Trunk ...................................................... 582
Opening/Closing Hood....................................................... 502
Moonroof ............................................... 151
Power Windows ...................................... 149
Trunk ...................................................... 143
Operating the Switches Around the Steering Wheel ...................................................... 152
20 ACURA RLX HYBRID-31TY36601.book 605 ページ ２０１９年７月２３日　火曜日　午後６時２５分
