sensor Acura RLX HYBRID 2020 User Guide

59
uuAirbags uAirbag Care
Safe Driving
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:
■When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt te nsioner has been activated, it must be
replaced.
■When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not infl ate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, front seat belt
tensioners, and each seat belt that was worn during the crash.
■Do not remove or modi fy a front seat without consulting a dealer
This would likely disable or affect the proper operation of the driver’s seat position
sensor or the weight sensors in the passenge r’s seat. If it is necessary to remove or
modify a front seat to accommodate a pe rson with disabilities, contact an Acura
dealer, or for U.S. vehicles, Acura Clie nt Relations at 1-800-382-2238 and for
Canadian vehicles, Acura Clie nt Services at 1-866-78-ACURA.
1Airbag Care
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.
20 ACURA RLX HYBRID-31TY36601.book 59 ページ ２０１９年７月２３日　火曜日　午後６時２５分

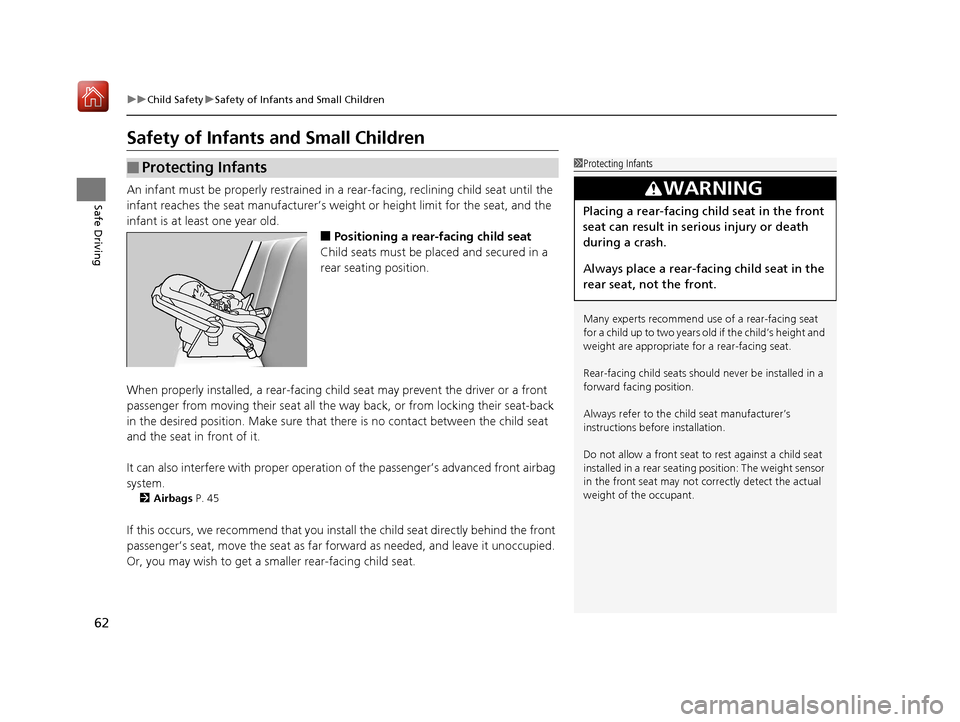

62
uuChild Safety uSafety of Infants and Small Children
Safe Driving
Safety of Infants and Small Children
An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer’s weig ht or height limit for the seat, and the
infant is at least one year old.
■Positioning a rear-facing child seat
Child seats must be placed and secured in a
rear seating position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position. Make sure that th ere is no contact between the child seat
and the seat in front of it.
It can also interfere with pr oper operation of the passenger’s advanced front airbag
system.
2 Airbags P. 45
If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far fo rward as needed, and leave it unoccupied.
Or, you may wish to get a sm aller rear-facing child seat.
■Protecting Infants1Protecting Infants
Many experts recommend us e of a rear-facing seat
for a child up to two years old if the child’s height and
weight are appropriate for a rear-facing seat.
Rear-facing child seats should never be installed in a
forward facing position.
Always refer to the child seat manufacturer’s
instructions before installation.
Do not allow a front seat to rest against a child seat
installed in a rear seating position: The weight sensor
in the front seat may not co rrectly detect the actual
weight of the occupant.
3WARNING
Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.
Always place a rear-fac ing child seat in the
rear seat, not the front.
20 ACURA RLX HYBRID-31TY36601.book 62 ページ ２０１９年７月２３日　火曜日　午後６時２５分

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
M (sequential
mode) Indicator/
Sequential Mode
Gear Selection
Indicator• Comes on when the manual
sequential mode is applied.
2 Sequential Mode P. 391—
Seat Belt
Reminder
Indicator
•Comes on and the beeper sounds if
you are not wearing a seat belt when
you set the power mode to ON.
• If the front passenger is not wearing
a seat belt, the indicator comes on a
few seconds later.
• Blinks while driving if either you and/
or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.•The beeper stops and the indicator goes off
when you and the front passenger fasten
their seat belts.
• Stays on after you and/or the front
passenger has fastened the seat belt(s)
- A detection error may have occurred in
the sensor. Have your vehicle checked by a
dealer.
2 Seat Belt Reminder P. 39
Low Fuel
Indicator
•Comes on when the fuel reserve is
running low (approximately 1.8 U.S.
gal/7.0 Liter left).
• Blinks if there is a problem with the
fuel gauge.•Comes on - Refuel your vehicle as soon as
possible.
• Blinks - Have your vehicle checked by a
dealer.
20 ACURA RLX HYBRID-31TY36601.book 83 ページ ２０１９年７月２３日　火曜日　午後６時２５分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
High
Temperature
Indicator
•Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Blinks when the engine coolant
temperature goes up, and stays on if
the temperature continues to rise.•Blinks while driving - Drive slowly to
prevent overheating.
•Stays on while driving - Immediately
stop in a safe place an d allow the engine to
cool.
2 Overheating P. 565
Low Temperature
Indicator
•Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on when the engine coolant
temperature is low.•If the indicator stays on after the engine has
reached normal operating temperature,
there may be problem with the
temperature sensors. Have your vehicle
inspected by a dealer.
—
Vehicle Stability
AssistTM (VSA ®)
System Indicator
• Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Blinks when VSA ® is active.
• Comes on if there is a problem with
the VSA® system.•Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 439
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
• Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on when you partially disable
VSA ®.
2VSA ® On and Off P. 440—
20 ACURA RLX HYBRID-31TY36601.book 85 ページ ２０１９年７月２３日　火曜日　午後６時２５分

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation (RDM)
Indicator
•Comes on for a few seconds when
you change the power mode to ON,
then goes off.
• Comes on if there is a problem with
the RDM system.•Stays on constantly - Have your vehicle
checked by a dealer.
• Comes on when the RDM system
shuts itself off.•Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 400
•Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
• Have your vehicle checked by a dealer if the
indicator and message come back on after
you cleaned the area around the camera.
2 Front Sensor Camera P. 400
20 ACURA RLX HYBRID-31TY36601.book 89 ページ ２０１９年７月２３日　火曜日　午後６時２５分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC )
with Low Speed
Follow Indicator
(Amber)
• Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on if there is a problem with
ACC with Low Speed Follow.• Comes on while driving - Have your
vehicle checked by a dealer.
• Comes on if anything covers the
radar sensor cover and prevents the
sensor from detecting a vehicle in
front.
• May come on when driving in bad
weather (rain, snow, fog, etc.)
• ACC with Low Speed Follow has
been automatically canceled.•When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
• Have your vehicle checked by a dealer if the
indicator does not go off even after you
clean the sensor cover.
Adaptive Cruise
Control (ACC )
with Low Speed
Follow Indicator
(Green)• Comes on when you press the MAIN
button.
2 Adaptive Cruise Control (ACC) with
Low Speed Follow P. 402—
20 ACURA RLX HYBRID-31TY36601.book 90 ページ ２０１９年７月２３日　火曜日　午後６時２５分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Blind spot
information
System Indicator
•Comes on for a few seconds when
you change the power mode to ON,
then goes off.
• Stays on while the blind spot
information system is turned off.
—
•Comes on when mud, snow, or ice
accumulates in the vicinity of sensor.•Comes on while driving - Remove the
obstacle in the vicinity of sensor.
2 Blind spot information System P. 443
•Comes on if there is a problem with
the system.• Comes on while driving - Have your
vehicle checked by a dealer.
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator
• Comes on for a few seconds when
you change the power mode to ON,
then goes off.
• Comes on when you deactivate the
CMBS
TM. A multi-information display
message appears for five seconds.
• Comes on if there is a problem with
the CMBS
TM.
• Stays on constant ly without the
CMBSTM off - Have your vehicle checked by
a dealer.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
20 ACURA RLX HYBRID-31TY36601.book 92 ページ ２０１９年７月２３日　火曜日　午後６時２５分

93
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Collision
Mitigation
Braking System
TM
(CMBSTM)
Indicator
• Comes on when the CMBSTM shuts
itself off.• Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place, and wipe it off with a soft
cloth.
2 Front Sensor Camera P. 400
•When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt
using a soft cloth.
• Have your vehicle checked by a dealer if the
indicator does not go off even after you
clean the sensor cover.
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 458
• Stays on - The temperature inside the
camera is too high. Use the climate control
system to cool do wn the camera. The
system activates when the temperature
inside the camera cools down.
2 Front Sensor Camera P. 400
20 ACURA RLX HYBRID-31TY36601.book 93 ページ ２０１９年７月２３日　火曜日　午後６時２５分

97
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when there is a pr oblem with the sensor on
the 12-volt battery.• Have your vehicle checked by a dealer.
2 Checking the 12-Volt Battery P. 529
•Appears when the starter system has a problem.•As a temporary measure, press and hold the POWER
button for up to 15 seconds while depressing the brake
pedal and manually turn on the power system.
Have your vehicle checked by a dealer.
• Appears after the driver’s door is opened when the
power mode is in ACCESSORY.•Change the power mode to VEHICLE OFF.
2 POWER Button P. 152
•Appears when the power mode is in ACCESSORY.
—
U.S.
Canada
20 ACURA RLX HYBRID-31TY36601.book 97 ページ ２０１９年７月２３日　火曜日　午後６時２５分

101
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears if there is a problem with the radiator system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears when there is a pr oblem with the headlights.•Appears while driving - The low beam headlights
may not be on. When conditions allow you to drive
safely, have your vehicle chec ked by a dealer as soon as
possible.
• Appears if there is a problem with the parking sensor
system.•Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If th e indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.
• Appears if the automatic brake hold is automatically
canceled while it is in operation.•Immediately depress the brake pedal.
•Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 454
Models with
parking sensor
system
20 ACURA RLX HYBRID-31TY36601.book 101 ページ ２０１９年７月２３日　火曜日　午後６時２５分
