trunk release Acura RLX HYBRID 2020 User Guide

581
Handling the Unexpected

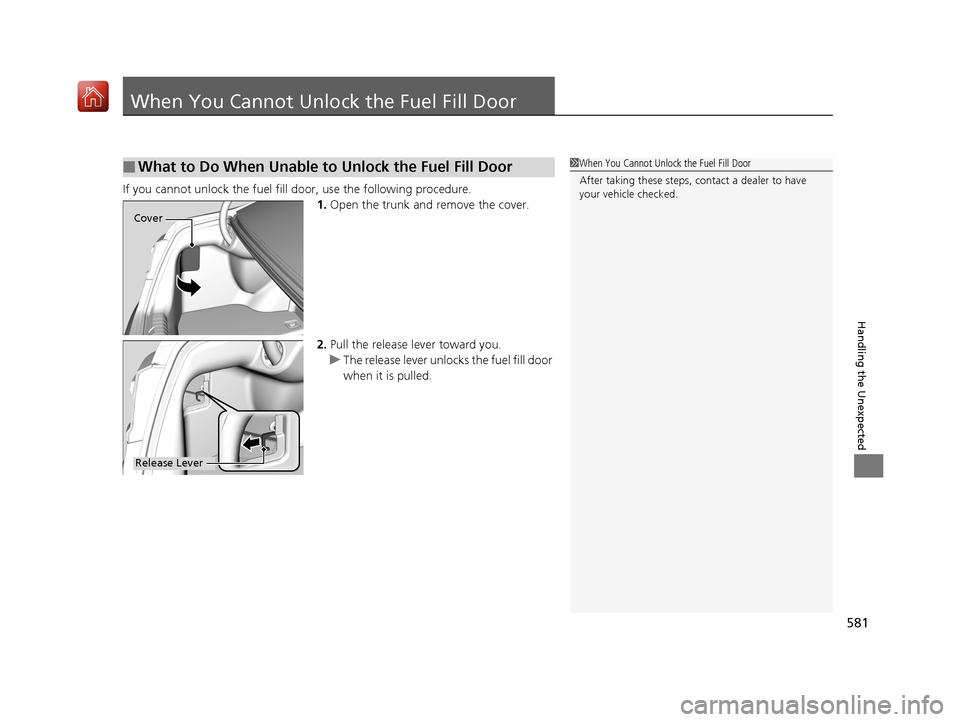

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Lever
20 ACURA RLX HYBRID-31TY36601.book 581 ページ ２０１９年７月２３日　火曜日　午後６時２５分

582
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Pull the rear seat armrest down.
2. Push the button to open the cover.
u The cover latches when you push it back
to the original position.
u You can lock and unlock this cover using
the built-in key.
To lock the cover : Insert the key to the
lock, then turn it the right.
To unlock the cover : Insert the key to
the lock, then turn it the left.
3. With pulling the inner partition up, pull the
trunk release handle down to the direction
of the arrow in the image.
■What to Do When Unable to Open the Trunk1What to Do When Unable to Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Lock
Button
Cover
Trunk
Release
Handle
Inner
Partition
20 ACURA RLX HYBRID-31TY36601.book 582 ページ ２０１９年７月２３日　火曜日　午後６時２５分

583
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the power system.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 540
4.Remove the funnel from the case .
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Turn the power system off, and keep
heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel Case
20 ACURA RLX HYBRID-31TY36601.book 583 ページ ２０１９年７月２３日　火曜日　午後６時２５分

607
Index
Sequential Mode Operation................... 392
Setting the Clock ...................................... 128
Shift Button ........................................ 23, 385
Operation ............................................... 387
Shifting (Transmission) ...................... 23, 385
Shoulder Anchor ........................................ 42
Side Airbags ............................................... 54
Side Curtain Airbags .................................. 56
SiriusXM ® Radio ....................................... 242
Snow Tires ................................................ 528
Sounds Unique to the SPORT HYBRID SH-
AWD ® System ........................................... 13
Spare Tire (Optional) ....................... 553, 587
Spark Plugs ............................................... 586
Specifications ........................................... 586
Specified Fuel ................................... 488, 586
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)....... 442
SPORT Mode ............................................. 393
SPORT Mode Indicator ....................... 88, 393
SRS Airbags (Airbags) ................................ 48
Steering Wheel
Adjusting ................................................ 171
Stopping ................................................... 466
Summer Tires ............................................ 528
Supplemental Restraint System (SRS) ....... 48
Surround View Camera System ............... 478
Switches (Around the Steering
Wheel) ............................................ 4, 5, 152
System Message Indicator ......................... 86
T
Temperature
High Temperature Indicator ....................... 85
Low Temperature Indicator ........................ 85
Temperature Sensor ................................. 209
Temporary Tire Repair Kit ........................ 542
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 445
Indicator ............................................ 86, 570
Tires ........................................................... 520
Air Pressure ..................................... 521, 587
Chains ..................................................... 528
Checking and Maintaining ....................... 520
Flat Tire (Puncture) ................................... 541
Inspection ................................................ 520
Labeling .................................................. 521
Regulations ............................................. 523
Rotation .................................................. 527
Spare (Optional) .............................. 553, 587
Summer .................................................. 528
Temporary Tire Repair Kit ........................ 542
Wear Indicators ....................................... 525
Winter ..................................................... 528
Tools .......................................................... 540
Towing a Trailer ....................................... 377
Towing Your Vehicle ................................ 377
Emergency .............................................. 580
Transmission ....................................... 23, 385
Dual Clutch ............................... 23, 384, 385 Fluid ........................................................ 512
Gear Position Indicator ...................... 81, 387
Number................................................... 588
Sequential Mode ..................................... 391
TRIP Button ............................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 539
Blown Fuse.............................. 572, 576, 577
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 580
Flat Tire/Puncture ............................ 541, 553
Noise When Braking .................................. 30
Overheating ............................................ 565
Power System Won’t Start ....................... 559
Premium Gasoline ........................... 488, 586
Rear Door Won’t Open...................... 29, 141
Warning Indicators .................................... 76
Trunk
Lid........................................................... 143
Light Bulbs .............................................. 586
Release Handle ........................................ 582
Unable to Open....................................... 582
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ................... 118, 123
Turning on the Power .............................. 378
Does Not Activate ................................... 559
Jump Starting .......................................... 562
Remote Engine Start................................ 380
Two-way Keyless Access Remote ..... 138, 380
20 ACURA RLX HYBRID-31TY36601.book 607 ページ ２０１９年７月２３日　火曜日　午後６時２５分
