light Acura RLX HYBRID 2020 Service Manual

182
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless whether
the doors are open or closed.
■Door activated
The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless
whether the doors are open or closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 se conds after the doors are
closed.
The lights go off after 30 seconds in the following
situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Customized Features P. 295
The interior lights go off i mmediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
• When you set the power mode to ON.
If you leave any doors open, the interior lights go off
after about 15 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the power system is off.
Door Activated Position
Off
On
20 ACURA RLX HYBRID-31TY36601.book 182 ページ ２０１９年７月２３日　火曜日　午後６時２５分

183
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

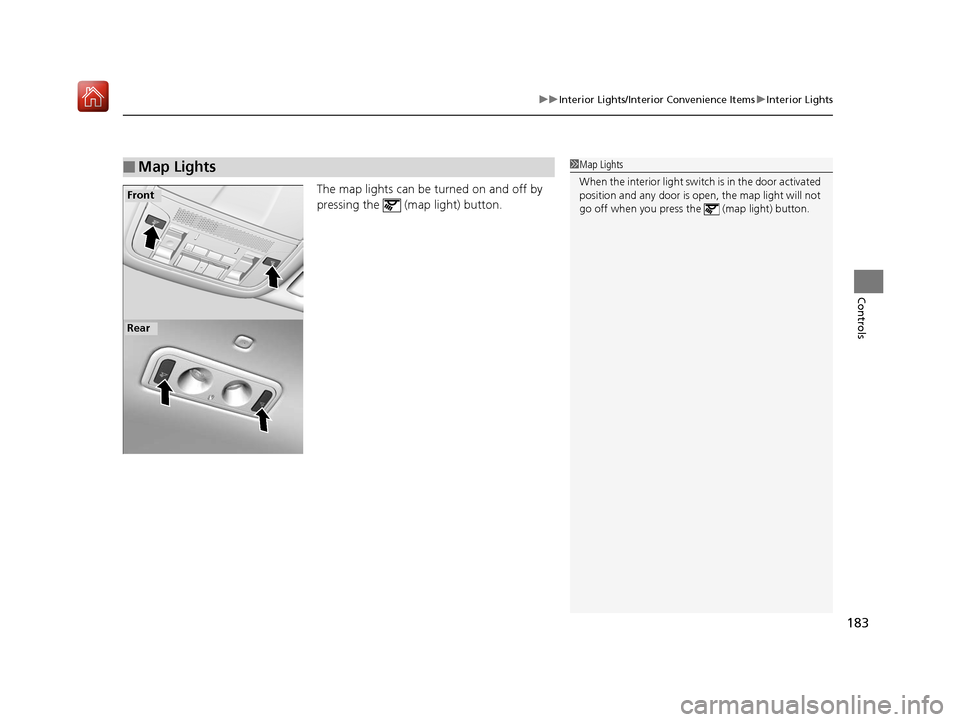

The map lights can be turned on and off by
pressing the (map light) button.
■Map Lights1Map Lights
When the interior light swit ch is in the door activated
position and any door is open, the map light will not
go off when you press th e (map light) button.
Front
Rear
20 ACURA RLX HYBRID-31TY36601.book 183 ページ ２０１９年７月２３日　火曜日　午後６時２５分

184
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
Interior Convenience Items
Press the release button to open the glove
box.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removable shelf can be stored upside
down in the glove box.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove BoxRelease Button
Tab
Shelf
20 ACURA RLX HYBRID-31TY36601.book 184 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued185
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
You can lock the glove box, trunk, and/or
navigation system, ente ring a PIN code from
the On Demand Multi-Use Display
TM.
To lock:
1. Select Shortcuts .
2. Select Valet.
3. Select the item you want to be PIN-
protected from the locked area, then select
OK .
■Valet Mode1Valet Mode
If you need to give the key to someone else, lock the
cover in the rear center seat-back first, and give the
keyless access remote without a built-in key as a valet
key.
2 When You Cannot Open the Trunk P. 582
Locked Area
20 ACURA RLX HYBRID-31TY36601.book 185 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
186
Controls
4. The previous code is displayed. Select OK.
u You will receive a confirmation message
on the display. Select OK.
When you enter the PIN code for the first time
or if you want to change the code:
1. Select Shortcuts .
2. Select Valet.
3. Select the item you want to be PIN-
protected from the locked area, then select
OK .
4. Enter your selected four-digit PIN code,
then select OK.
5. You will be asked to enter the same four-
digit PIN code again. Enter, then select OK.
u You will receive a confirmation message
on the display. Select OK.
To unlock:
1. Select Valet.
2. Select Unlock .
3. Enter the four-digit PIN code you have
previously selected, then select OK.1Valet Mode
The PIN code entering screen also appears when you
press:
•The glove box open button
•The trunk release button on the trunk, on the
remote, or the trunk ope ner on the driver’s door
While the glove box or the trunk is PIN-protected.
If you have locked all the items of the locked area, the
PIN code entering screen appears with the power
mode in ACCESSORY.
You can cancel the valet mode when you manually
open the trunk. 2 When You Cannot Open the Trunk P. 582
If you have only set Navi, Phone, Audio PIN-
protected but forgot your four-digit PIN code, you
need to go to a dealer to have the set valet mode
reset.
20 ACURA RLX HYBRID-31TY36601.book 186 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued187
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

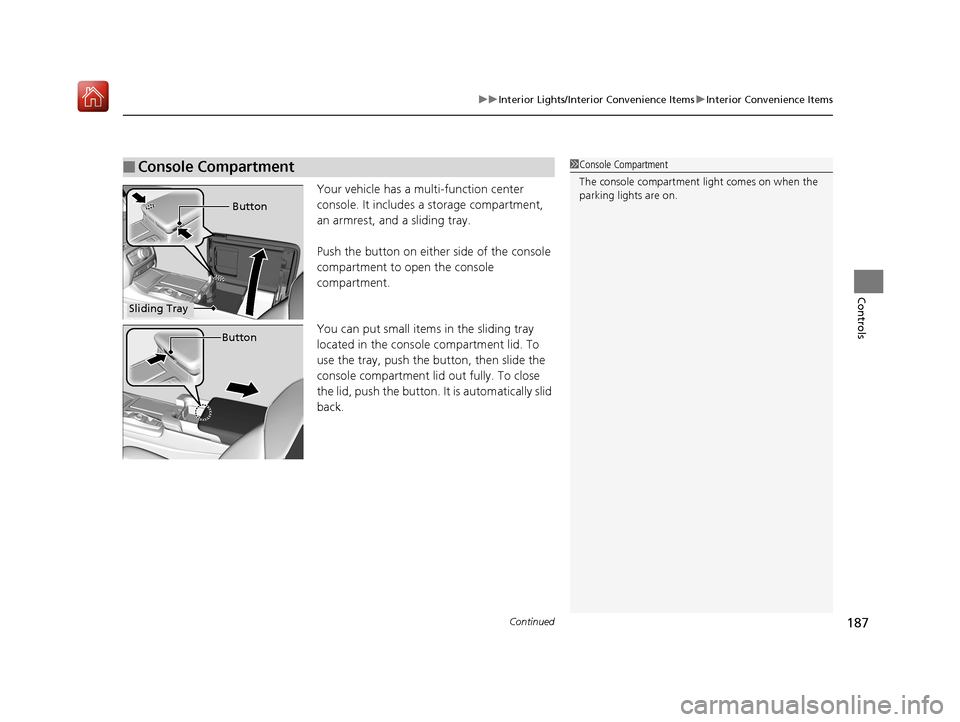

Your vehicle has a multi-function center
console. It includes a storage compartment,
an armrest, and a sliding tray.
Push the button on either side of the console
compartment to open the console
compartment.
You can put small items in the sliding tray
located in the console compartment lid. To
use the tray, push the button, then slide the
console compartment lid out fully. To close
the lid, push the button. It is automatically slid
back.
■Console Compartment1 Console Compartment
The console compartment light comes on when the
parking lights are on.
Button
Sliding Tray
Button
20 ACURA RLX HYBRID-31TY36601.book 187 ページ ２０１９年７月２３日　火曜日　午後６時２５分

188
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

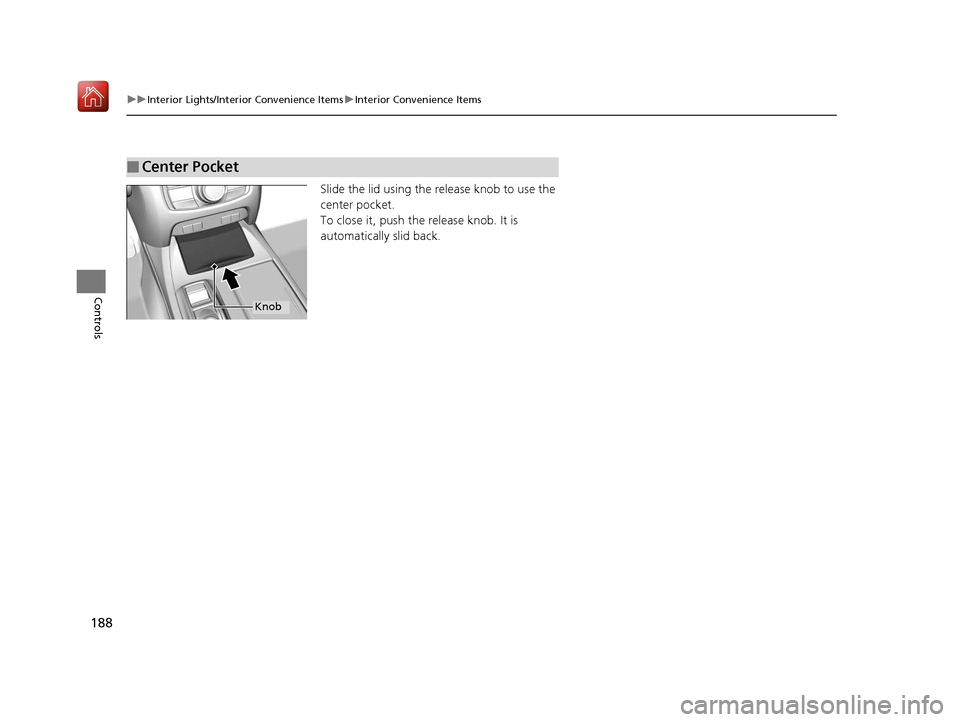

Slide the lid using the release knob to use the
center pocket.
To close it, push the release knob. It is
automatically slid back.
■Center Pocket
Knob
20 ACURA RLX HYBRID-31TY36601.book 188 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued189
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

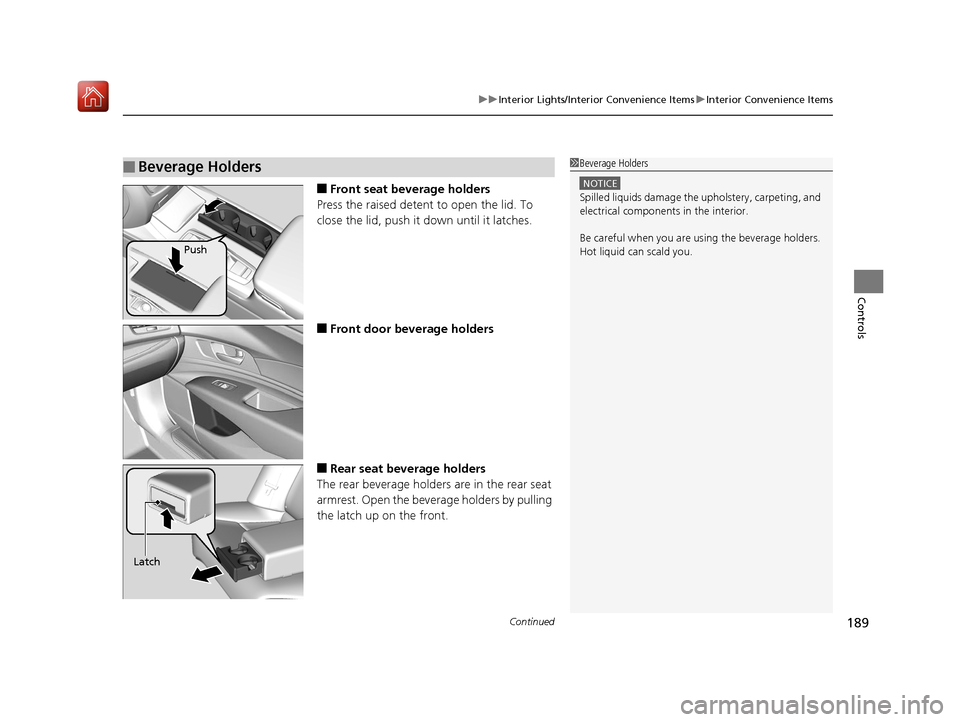

■Front seat beverage holders
Press the raised detent to open the lid. To
close the lid, push it down until it latches.
■Front door beverage holders
■Rear seat beverage holders
The rear beverage holders are in the rear seat
armrest. Open the beverage holders by pulling
the latch up on the front.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Push
Latch
20 ACURA RLX HYBRID-31TY36601.book 189 ページ ２０１９年７月２３日　火曜日　午後６時２５分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
190
Controls

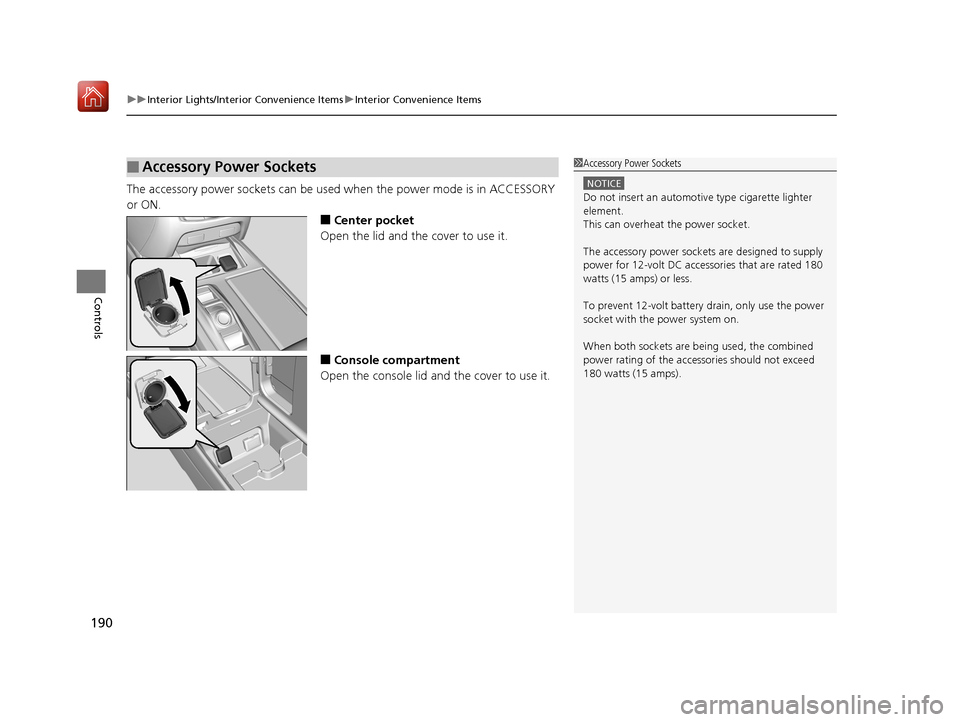

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Center pocket
Open the lid and the cover to use it.
■Console compartment
Open the console lid and the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket s are designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent 12-volt battery drain, only use the power
socket with the power system on.
When both sockets are being used, the combined
power rating of the accesso ries should not exceed
180 watts (15 amps).
20 ACURA RLX HYBRID-31TY36601.book 190 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Continued191
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

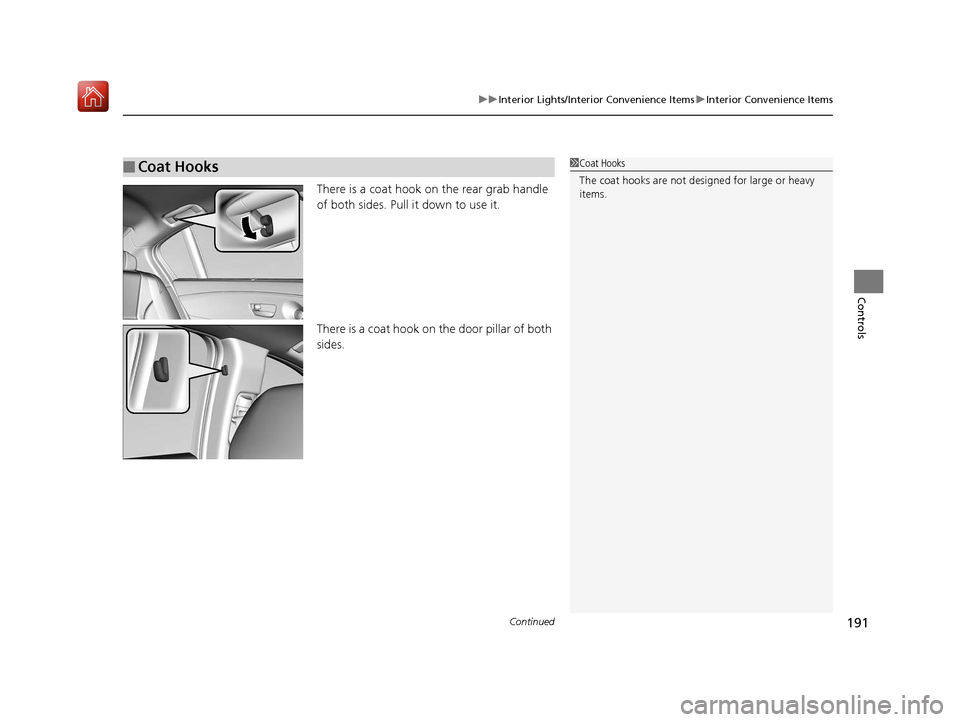

There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.
There is a coat hook on the door pillar of both
sides.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
