uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
*1: If a message Maintenance Due Now does not appear more than 12 months after the display is
reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Check expiration date for temporary tire repair kit
bottle (if equipped)
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperature. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under this condition, have the transmission fluid changed at
30,000 miles (48,000 km), then every 25,000 miles (40,000 km).
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles (100,000 km).
*6: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires Twin Motor Unit fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under this condition, have the Twin Motor Unit
fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid*4
4•Replace spark plugs
• Replace timing belt and inspect water pump*5
•Inspect valve clearance
5 •Replace engine coolant
6•Replace Twin Motor Unit fluid*6
20 ACURA RLX HYBRID-31TY36601.book 499 ページ ２０１９年７月２３日　火曜日　午後６時２５分

528
uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain su fficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire cl earance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Ra dial Chain SC1040
1Winter Tires
NOTICE
Traction devices that are th e wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
If your vehicle is equipped with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner’s
manual regarding the selection and use of
tire chains.
20 ACURA RLX HYBRID-31TY36601.book 528 ページ ２０１９年７月２３日　火曜日　午後６時２５分

539
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 540
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 541
Changing a Flat Tire ......................... 553
Power System Won’t Start Checking the Procedure ................... 559
If the Keyless Access Remote Battery is Weak ............................................. 560
Emergency Power System Off........... 561
Jump Starting .................................... 562
Overheating How to Handle Overheating ............. 565 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes
On ............................................. 567
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 567
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 568
If the Brake System Indicator (Red) Comes On ................................................. 568
If the Electric Power Steering (EPS) System
Indicator Comes On ....................... 569
If the Electric Parking Brake System Indicator Comes On ....................... 569 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks ....................... 570
If the Transmission System Indicator Blinks along with the Warning Message... 571
Fuses Fuse Locations ................................. 572
Inspecting and Changing Fuses ........ 579
Emergency Towing ........................... 580
When You Cannot Unlock the Fuel Fill Door ................................................. 581
When You Cannot Open the Trunk.....582RefuelingRefueling From a Portable Fuel Container .... 583
20 ACURA RLX HYBRID-31TY36601.book 539 ページ ２０１９年７月２３日　火曜日　午後６時２５分

541Continued
Handling the Unexpected
If a Tire Goes Flat
Temporarily Repairing a Flat Tire
If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.
1. Park the vehicle on a firm, level, and n on-slippery surface and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Temporarily Repairing a Flat Tire
NOTICE
Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.
The kit should not be used in the following situations.
Instead, contact a dealer or a roadside assistant to
have the vehicle towed.
•The tire sealant has expired.•More than one tire is punctured.•The puncture or cut is larger than 3/16 inch (4 mm).•The tire side wall is da maged or the puncture is
outside the contact area.
•Damage has been caused by driving with the tire
extremely under inflated.
•The tire bead is no longer seated.•The rim is damaged.
Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.
When the puncture is:Kit Use
Smaller than 3/16 inch
(4 mm)Yes
Larger than 3/16 inch
(4 mm)No
Contact
Area
20 ACURA RLX HYBRID-31TY36601.book 541 ページ ２０１９年７月２３日　火曜日　午後６時２５分

553
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non-slippery surface, and apply the parking
brake.
2. Change the gear position to
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
Vehicles with optional spare tire kit
1Changing a Flat Tire
NOTICE
Do not use an unapproved puncture-repairing agent
on a flat tire, as it can damage the tire pressure
sensor.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
20 ACURA RLX HYBRID-31TY36601.book 553 ページ ２０１９年７月２３日　火曜日　午後６時２５分

561
uuPower System Won’t Start uEmergency Power System Off
Handling the Unexpected
Emergency Power System Off
The POWER button may be used to turn the power system off due to an emergency
situation even while driving. If you must tu rn the power system off, do either of the
following operations:
• Press and hold the POWER button for about two seconds.
• Firmly press the POWER button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position auto matically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Power System Off
Do not press the button while driving unless it is
absolutely necessary for the power system to be
turned off.
20 ACURA RLX HYBRID-31TY36601.book 561 ページ ２０１９年７月２３日　火曜日　午後６時２５分

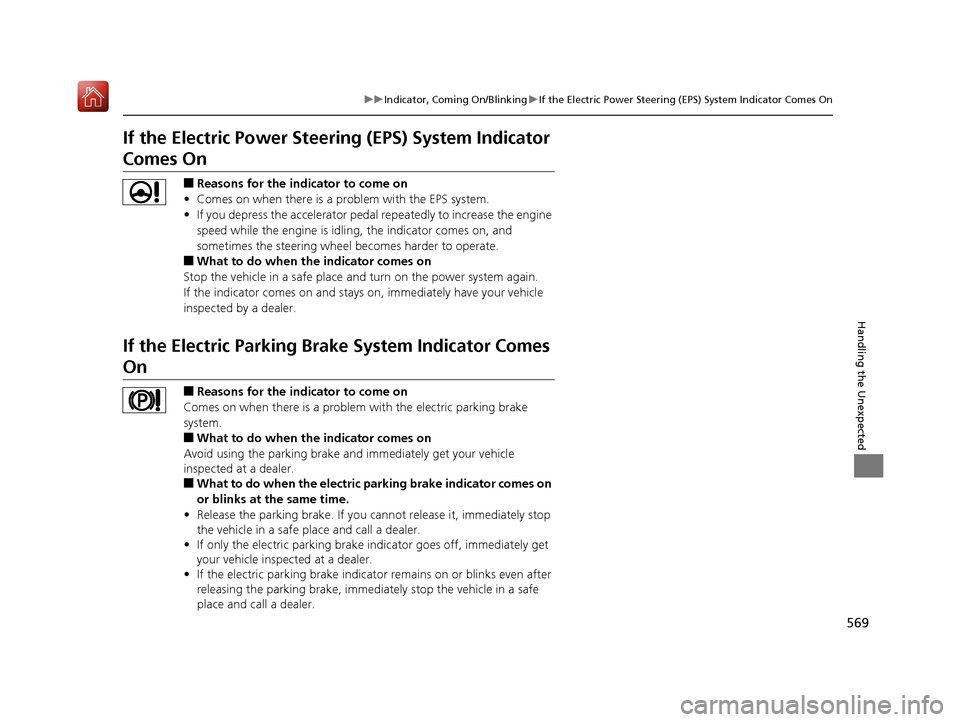

569
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place a nd turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
If the Electric Parking Brake System Indicator Comes
On
■Reasons for the indicator to come on
Comes on when there is a proble m with the electric parking brake
system.
■What to do when th e indicator comes on
Avoid using the parking brake and immediately get your vehicle
inspected at a dealer.
■What to do when th e electric parking brake indicator comes on
or blinks at the same time.
• Release the parking brake. If you cannot release it, immediately stop
the vehicle in a safe place and call a dealer.
• If only the electric parking brake indicator goes off, immediately get
your vehicle inspected at a dealer.
• If the electric parking brake indicato r remains on or blinks even after
releasing the parking brake, immediately stop the vehicle in a safe
place and call a dealer.
20 ACURA RLX HYBRID-31TY36601.book 569 ページ ２０１９年７月２３日　火曜日　午後６時２５分

574
uuFuses uFuse Locations
Handling the Unexpected
Located inside the left side of the front
bumper. Use the following procedure to
reach the box.
1. Turn the steering wheel all the way to the
right.
2. Remove the holding clips (A) and (B) by
inserting a flat-tip sc rewdriver and lifting
the center pins up.
u Make sure to reinstall the clips after
inspecting the fuses.
u To reinstall the clips, insert them with
the center pins raised, and push until
they are flat.
Inner Fender
Clip (A)
Clips
(B)
Clip (A)
Clip (B)


3.Pull the inner fender back.
4. Pull the lock tab to the direction shown in
the image and pull out the fuse box.
Lock Tab
20 ACURA RLX HYBRID-31TY36601.book 574 ページ ２０１９年７月２３日　火曜日　午後６時２５分

578
uuFuses uFuse Locations
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS*20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5Daytime Running Lights7.5 A
6A/C Water Pump10 A
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters20 A
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21BATT ECU7.5 A
22e-pretensioner7.5 A
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner20 A
27Heated Steering Wheel10 A
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
20 ACURA RLX HYBRID-31TY36601.book 578 ページ ２０１９年７月２３日　火曜日　午後６時２５分

Index
600
Index
Index
Numbers
12-Volt Battery Charging System Indicator ............................................ 81, 567
A
AAC.................................................... 245, 268
ABS (Anti-lock Brake System) ................... 456
Accessories and Modifications ................. 537
Accessory Power Sockets .......................... 190
Acoustic Vehicle Alerting System ............ 395
AcuraLink .................................................. 363
AcuraWatch
TM..................................... 26, 396
Adaptive Cruise Control (ACC) with Low Speed Follow ..................................... 90, 402
Additives
Coolant ........................................... 509, 511
Washer .................................................... 513
Additives, Engine Oil ................................ 504
Adjusting Armrest ................................................... 181
Front Seats .............................. 175, 178, 180
Head Restraints........................................ 178
Mirrors .................................................... 172
Steering Wheel ........................................ 171
Temperature ............................................ 116
Agile Handling Assist ................................ 441
Air Conditioning System (Climate Control System) .................................................... 200
Changing the Mode ................................ 203 Defrosting the Windshield and
Windows ............................................... 207
Dust and Pollen Filter............................... 531
Rear Temperature Control Dial ................ 208
Sensors ................................................... 209
Using Automatic Climate Control ............ 200
Air Pressure ....................................... 521, 587
Airbags ........................................................ 45
Advanced Airbags ..................................... 51
Airbag Care............................................... 59
Driver’s Knee Airbag.................................. 52
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 48
Indicator.............................................. 57, 84
Passenger Airbag Off Indicator .................. 58
Sensors ..................................................... 45
Side Airbags .............................................. 54
Side Curtain Airbags.................................. 56
AM/FM Radio ............................................ 237
Anti-lock Brake System (ABS) .................. 456
Indicator.................................................... 84
Armrest ..................................................... 181
Audio Remote Controls ........................... 215
Audio System ............................................ 212
Adjusting the Sound................................ 230
Auxiliary Input Jack.................................. 213
Error Messages ........................................ 273
General Information ................................ 277
HDD ........................................................ 248
Internet Radio ......................................... 266 iPod ........................................................ 258
MP3/WMA/AAC ............................. 245, 268
Reactivating ............................................ 214
Recommended CDs ................................ 278
Recommended Devices ........................... 280
Remote Controls ..................................... 215
Security Code ......................................... 214
Shortcuts ................................................ 218
Theft Protection ...................................... 214
USB Flash Drives...................................... 280
USB Port ................................................. 213
Audio/Information Screen ....................... 225
Authorized Manuals ................................ 595
Auto Door Locking/Unlocking ................ 142
Customize .............................................. 310
Auto Engine Stop/Start .............................. 13
Auto High-Beam ...................................... 160
Indicator ................................................... 87
Automatic Brake Hold ............................. 454
Indicator ........................................... 78, 454
Automatic Brake Hold System Indicator ........................................... 78, 454
Automatic Lighting .................................. 157
Auxiliary Input Jack ................................. 213
Average Fuel Economy ............................ 116
Average Speed ......................................... 117
20 ACURA RLX HYBRID-31TY36601.book 600 ページ ２０１９年７月２３日　火曜日　午後６時２５分
