width Acura RLX HYBRID 2020 Owner's Manual

436

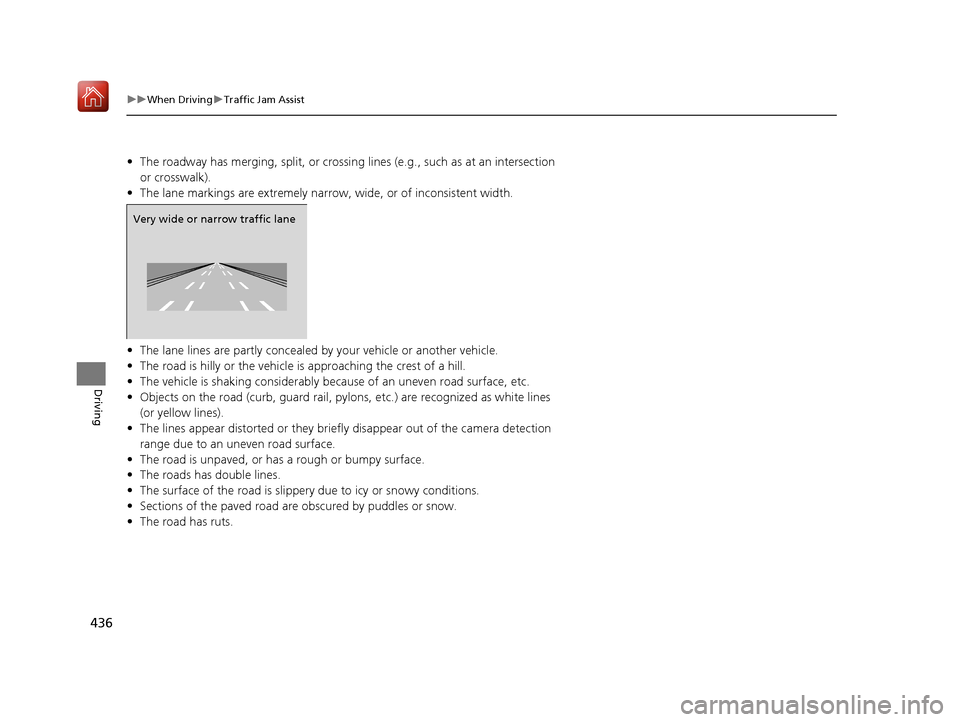

uuWhen Driving uTraffic Jam Assist
Driving
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narro w, wide, or of inconsistent width.
• The lane lines are partly concealed by your vehicle or another vehicle.
• The road is hilly or the vehicle is approaching the crest of a hill.
• The vehicle is shaking considerably be cause of an uneven road surface, etc.
• Objects on the road (curb, guard rail, py lons, etc.) are recognized as white lines
(or yellow lines).
• The lines appear distorted or they briefl y disappear out of the camera detection
range due to an uneven road surface.
• The road is unpaved, or has a rough or bumpy surface.
• The roads has double lines.
• The surface of the road is slippery due to icy or snowy conditions.
• Sections of the paved road are obscured by puddles or snow.
• The road has ruts.
Very wide or narrow traffic lane
20 ACURA RLX HYBRID-31TY36601.book 436 ページ ２０１９年７月２３日　火曜日　午後６時２５分

521
uuChecking and Maintaining Tires uTire and Loading Information Label
Continued
Maintenance

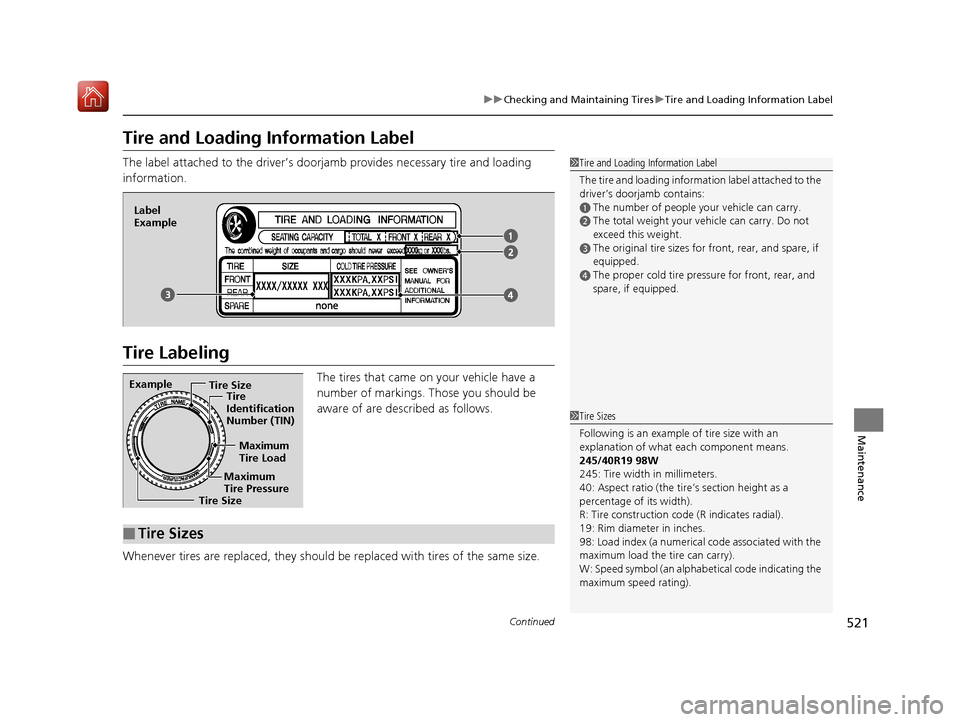

Tire and Loading Information Label
The label attached to the driver’s doorj amb provides necessary tire and loading
information.
Tire Labeling
The tires that came on your vehicle have a
number of markings. Those you should be
aware of are described as follows.
Whenever tires are replaced, they should be replaced with tires of the same size.
1Tire and Loading Information Label
The tire and loading informat ion label attached to the
driver’s doorjamb contains:
aThe number of people your vehicle can carry.bThe total weight your vehicle can carry. Do not
exceed this weight.
cThe original tire sizes for front, rear, and spare, if
equipped.
dThe proper cold tire pressure for front, rear, and
spare, if equipped.
Label
Example
Example Tire Size
Tire
Identification
Number (TIN)
Maximum
Tire Load
Maximum
Tire Pressure
Tire Size
■Tire Sizes
1 Tire Sizes
Following is an example of tire size with an
explanation of what each component means.
245/40R19 98W
245: Tire width in millimeters.
40: Aspect ratio (the tire’s section height as a
percentage of its width).
R: Tire construction code (R indicates radial).
19: Rim diameter in inches.
98: Load index (a numerical code associated with the
maximum load the tire can carry).
W: Speed symbol (an alphabe tical code indicating the
maximum speed rating).
20 ACURA RLX HYBRID-31TY36601.book 521 ページ ２０１９年７月２３日　火曜日　午後６時２５分

523
uuChecking and Maintaining Tires uDOT Tire Quality Grading (U.S. Vehicles)
Continued
Maintenance
DOT Tire Quality Grading (U.S. Vehicles)
The tires on your vehicle m eet all U.S. Federal Safety
Requirements. All tires are also graded for treadwear, traction,
and temperature performance according to Department of
Transportation (DOT) standards. The following explains these
gradings.
Quality grades can be found where applicable on the tire sidewall
between tread shoulder and maximum section width.
The treadwear grade is a comparative rating based on the wear
rate of the tire when tested un der controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100. The relative performance
of tires depends upon the actual co nditions of their use, however,
and may depart significantly from the norm due to variations in
driving habits, service practi ces and differences in road
characteristics and climate.
■Uniform Tire Quality Grading
■Treadwear
1 Uniform Tire Quality Grading
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform
to Federal Safety Requirements in
addition to these grades.
