Acura RSX 2006 Owner's Manual

Message Cause
If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer. Solution
FOCUS error.
Mechanical error.
High temperature.Press the EJECT button and pull out the CD.
Make sure the CD is inserted correctly into the
player and is not scratched or damaged.
Press the EJECT button and pull out the CD.
Check the CD for damage or deformation.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, consult your dealer.
T his message should disappear when the
temperature returns to normal.
Disc Player Error Messages
100

Message Cause
If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
your vehicle to your dealer. Solution
FOCUS error.
No CD in the CD
magazine.
Mechanical error.
High temperature.
No CD magazine in the
CD changer.Press the magazine eject button and pull it out,
check f or an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
consult your dealer.
Insert a CD.
Press the magazine eject button and pull it out,
check f or an error message, and insert the
magazine again. If the message does not
disappear or the magazine cannot be pulled out,
consult your dealer.
T his message should disappear when the
temperature returns to normal.
Insert the CD magazine.
Optional on all models
Disc Changer Error Messages
Features
101

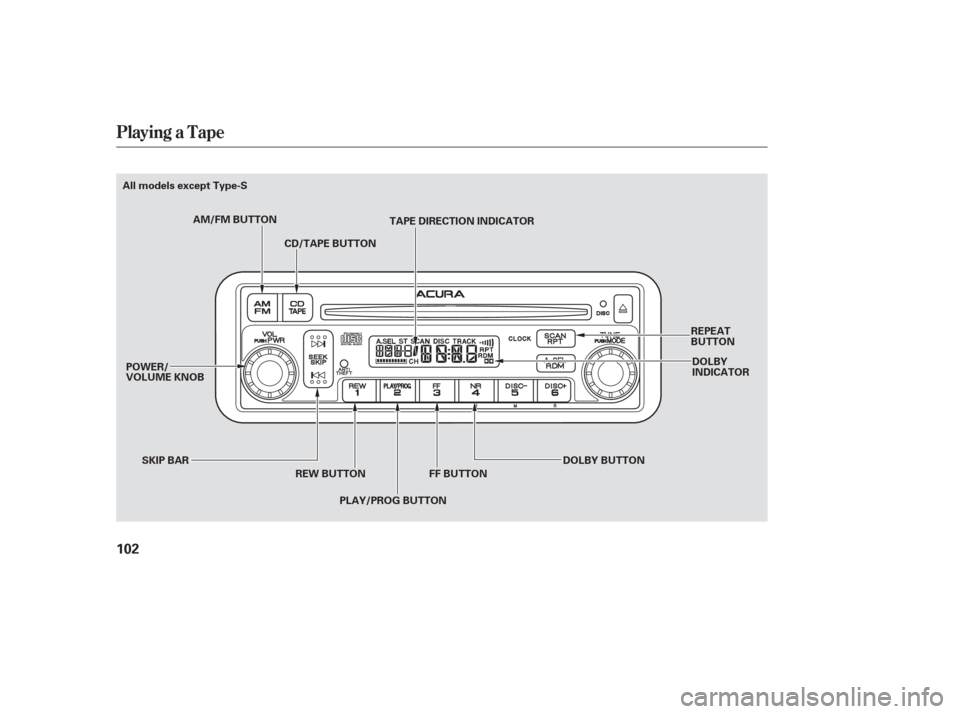

Playing a T ape
102
SKIP BARCD/TAPE BUTTON
TAPE DIRECTION INDICATOR
REW BUTTON PLAY/PROG BUTTON FF BUTTON
DOLBY BUTTONDOLBY
INDICATOR
REPEAT
BUTTON
AM/FM BUTTON
All models except Type-S
POWER/
VOLUME KNOB

Ûµ
Î
Î
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
The tape direction indicator will
come on to show you which side of
the tape is playing. The indicates
the side you inserted upward is now
playing. If you want to play the other
side, press the PLAY/PROG button.
When the player reaches the end of
the tape, it will automatically reverse
direction and play the other side.Dolby noise reduction turns on
when you insert a tape. The
indicator will come on in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
NR ( ) button. Dolby remains
of f until you press the NR ( )
button again.
To remove the tape, press the
EJECT button. If you want to turn
the player of f , press the PWR/VOL
knob or turn of f the ignition. The
tape will remain in the drive. When
youturnthesystembackon,the
tape will begin playing where it lef t
off. To switch to the radio or CD player
while a tape is playing, press the
AM/FM or CD/TAPE button. To
change back to the tape player, press
the CD/TAPE button.
To rewind the tape,
push the REW button. You will see
REW in the display. To f ast f orward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY/PROG button to
take the system out of rewind or fast
forward.
CONT INUED
Dolby noise reduction is manufactured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Playing a T ape
To Play a Tape
To Stop Playing a Tape
(Optional)
T ape Search Functions
FF/REW
Features
103

µµ
Press button to find
the beginning of the current song or
passage. Press button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
Press the RPT button
to continuously play a song or
passage. You will see RPT displayed.
The track will repeat until you press
the RPT button again.
The SKIP and REPEAT
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection. Damagedtapescanjaminsidethe
drive or cause other problems. See
page f or inf ormation on tape
care and protection.
122
Playing a T ape
SK IP
REPEAT Caring f or the T ape and Player
104
NOTE:

If your vehicle’s battery is
disconnected or goes dead, you will
need to set the clock.
Press and hold the CLOCK button.
ChangethehourbypressingtheH
button until the numbers advance to
the desired time. Change the
minutes by pressing the M button
until the numbers advance to the
desired time. When you are f inished,
release the CLOCK button.
You can quickly set the time to the
nearest hour. If the displayed time is
bef ore the half hour, pressing and
holding the CLOCK button, then
pressing the R (RESET) button sets
the clock back to the previous hour.
If the displayed time is after the half
hour, the clock sets f orward to the
beginning of the next hour.
For example: 1:06 will reset to 1:001:52 will reset to 2:00
Setting the Clock
Features
105
CLOCK BUTTON
All models except Type-S
HOUR BUTTONRESET BUTTON
MINUTE BUTTON

Playing the Radio
106
PRESET BUTTONSSCAN INDICATOR
FM BUTTON
SEEK BUTTONS
POWER/VOLUME KNOB
SCAN BUTTON
AUTO SELECT BUTTON STEREO INDICATOR
AM BUTTON
TUNE/MODE KNOB
Type-S model

µµ
µ ÓÓ
´µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pressing the
PWR/VOL knob, or the AM or FM
button. Adjust the volume by turning
the knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is broad-
castinginstereo.Stereo
reproduction on AM is not available.
You can use these five methods to
f ind radio stations on a selected
band: the
preset buttons, and .Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. The SCAN function
samples all the stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about 5 seconds. If you do
nothing, the system will then scan
f or the next strong station and play it
for 5 seconds. When it plays a station
that you want to listen to, press the
SCAN button again.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
CONT INUED
Playing the Radio
To Play the Radio
To Select a Station
TUNE,SEEK,SCAN, AUTO SELECT TUNE
SCAN
SEEK
Features
107

µµEach preset button can
store one f requency on AM and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
The preset f requencies will be lost if
your vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed. If you are
traveling far from home and can no
longer receive the stations you
preset, you can use the auto select
feature to find stations in the local
area.
Press the A. SEL button. ‘‘A.SEL’’
will f lash in the display, and the
system will go into scan mode f or
several seconds. It stores the
f requencies of six AM stations and
twelve FM stations in the preset
buttons. If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset buttons as
described previously.
press the
A. SEL button. This restores the
presets you originally set.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
every preset button.
1.
2.
3.
4.
To turn of f auto select,
Playing the Radio
Preset
A UT O SEL ECT
108

µµ
Press the MODE (TUNE) knob
repeatedly to display the Bass (BAS),
Treble (TRE), Balance (BAL), and
Fader (FAD) setting.
Eachmodeisshowninthedisplayas
it changes. Turn the MODE (TUNE)
knob to adjust the setting to your
liking. When the level reaches the
center, you will see ‘‘C’’ in the display.
The system will automatically return
the display to the selected audio
mode about 5 seconds af ter you stop
adjusting a mode.
Use the TRE/BAS
modes to adjust the tone to your
liking. These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f . For inf ormation, see page .
62 123
Playing the Radio
Adjusting the Sound
Treble/BassBalance/Fader
A udio System L ighting
Radio Frequencies and Reception
Features
109
